UNV NVR302-08B-P8-IQ 2 HDDs 8CH Network Video Recorder

The UNV NVR302-08B-P8-IQ is a high-performance, 8-channel Network Video Recorder designed for users who need 4K recording combined with deep-learning AI capabilities. As part of the IQ Series, this NVR goes beyond standard recording by supporting advanced metadata processing, allowing for lightning-fast AI Search of humans and vehicles within your recorded footage.

Equipped with 8 integrated PoE+ ports, this unit provides a seamless "plug-and-play" setup, delivering power and 4K data over a single cable to each camera. With its dual SATA bays, this NVR offers double the storage capacity of entry-level models, making it the perfect choice for businesses and homeowners who require high-resolution evidence and long-term video retention

Decoding

Decoding Format: Ultra 265, H.265, H.264
Decoding Capability: Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30
Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30
Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression: G.711A, G.711U

Network

Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 128Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP
Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input: 8-ch
RCA Audio Input: 1-ch

Peripheral Input

Ip Speaker: 16-ch
POS: All channels

Video/Audio Output

HDMI Output: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output: 1-ch
Liveview Display: 1/4/6/8/9
Corridor Mode Screen: 3/4/5/7/9

Two-way Audio

Two-way Audio: 1-ch, RCA(Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot: 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/ 3MP/ 1080P/ 960P/ 720P/ D1/ 2CIF/ CIF
Synchronous Playback in Local: 8-ch

Smart

Smart by IPC: All channels (up to 8 images/s in total), Face Detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring
Smart by NVR: Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
Smart by NVR Analyzer Mode: Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot be active simultaneously, only one mode can be active at a time.
VCA Search: AcuSearch, AcuTrack, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
AcuSearch: All channels with UNV SIP/UMD Camera
AcuTrack: All channels with UNV SIP/UMD Camera
by NVR: Up to 8-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-party brand, 1-ch 2MP)
Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal cameras: Up to 2-ch with normal camera (UNV and third-party brand, 2-ch 2MP, 1-ch 4MP)
UMD by NVR with normal cameras: Up to 4-ch with normal camera (UNV and Third-party brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)

Alarm

General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA: 2 SATA Interfaces
Capacity: Up to 24 TB for each HDD (The maximum HDD capacity varies with environmental temperature and hard disk size. The environmental temperature for use should not exceed 40°C)

External Interface

Network Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB: Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0
RS485: 1
RS232: N/A
Alarm In: 8-ch
Alarm Out: 2-ch
Power Supply: AC 100~240V

PoE

PoE Interface: 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power: Max 30 W for a single port, Max 130 W in total
Supported Standard: IEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature: -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
Working Humidity: ≤ 90% RH (non-condensing)
Power Consumption (without HDD): ≤ 12W

Dimensions

Weight (without HDD): ≤ 2.7Kg (6.0lb)

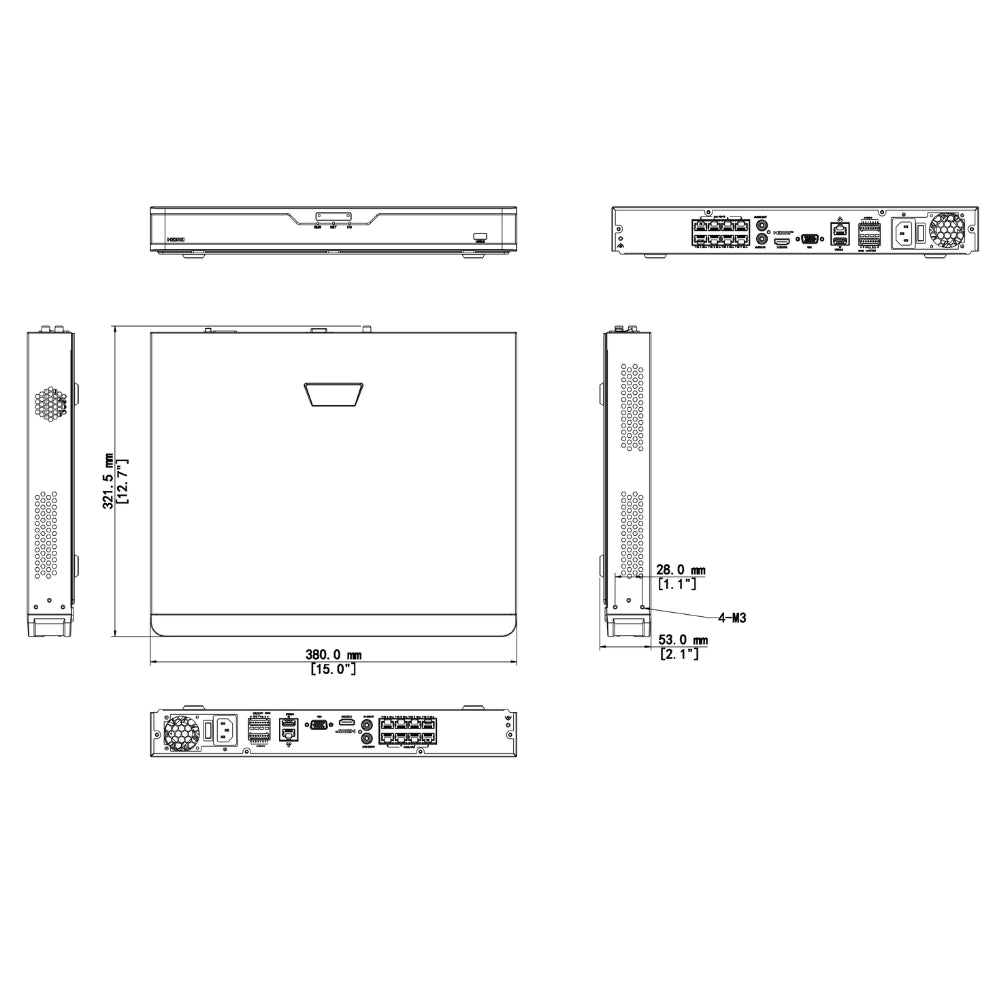

Dimensions: 380mm × 322mm × 53mm (15.0"×12.7"×2.1")

Certification

Certification: CE; FCC; UL; RoHS; WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part 15 Subpart B
