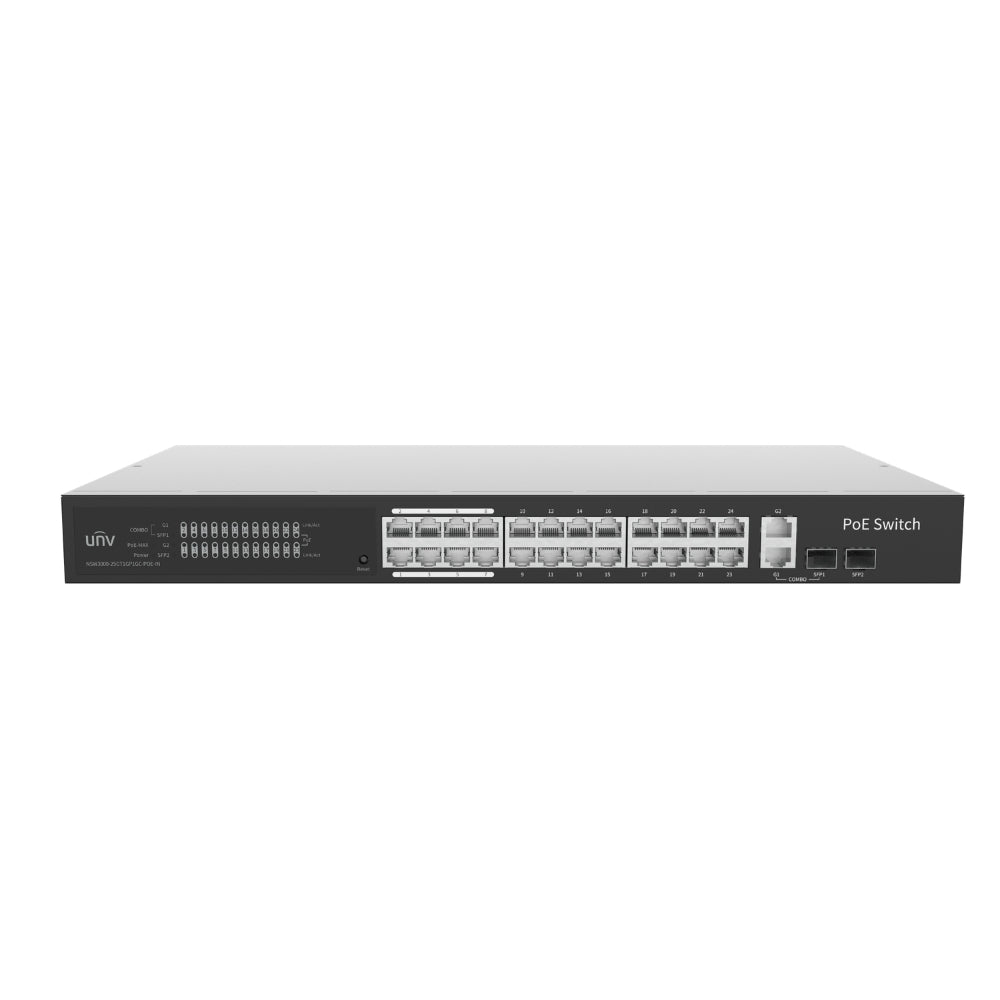

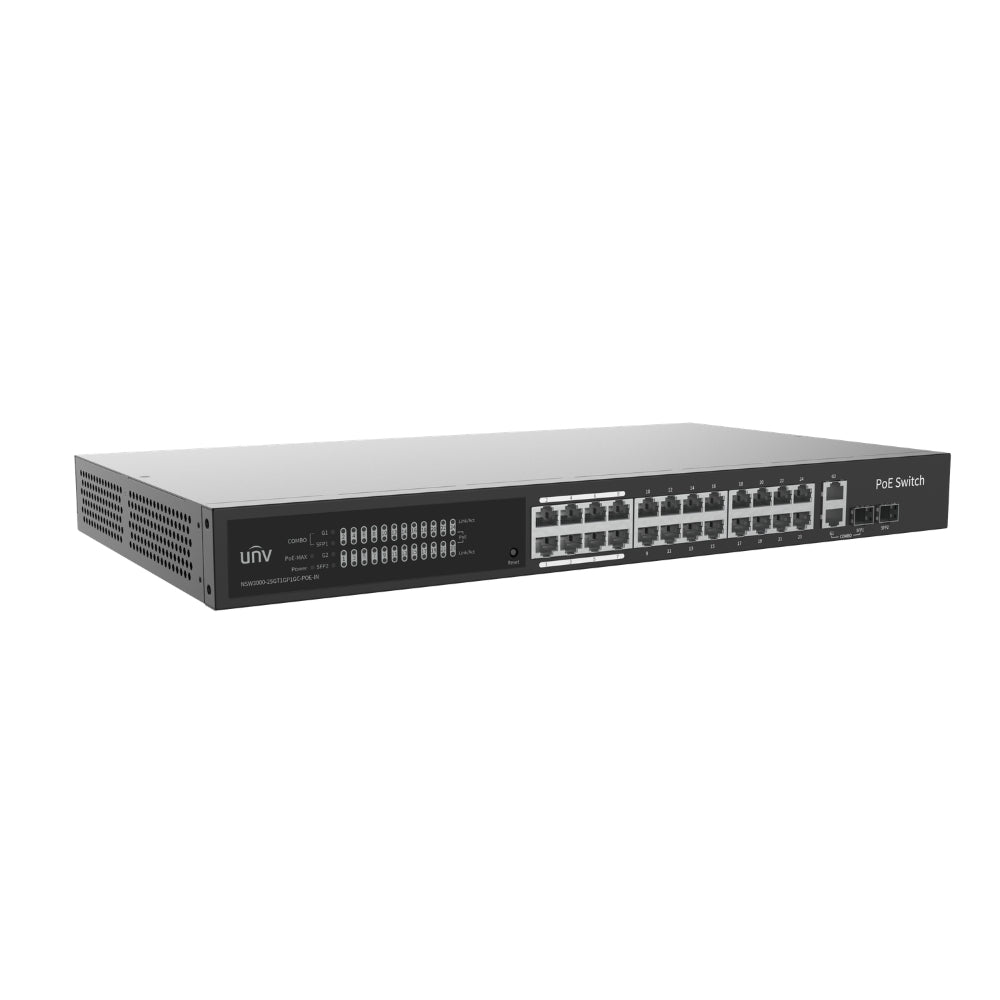

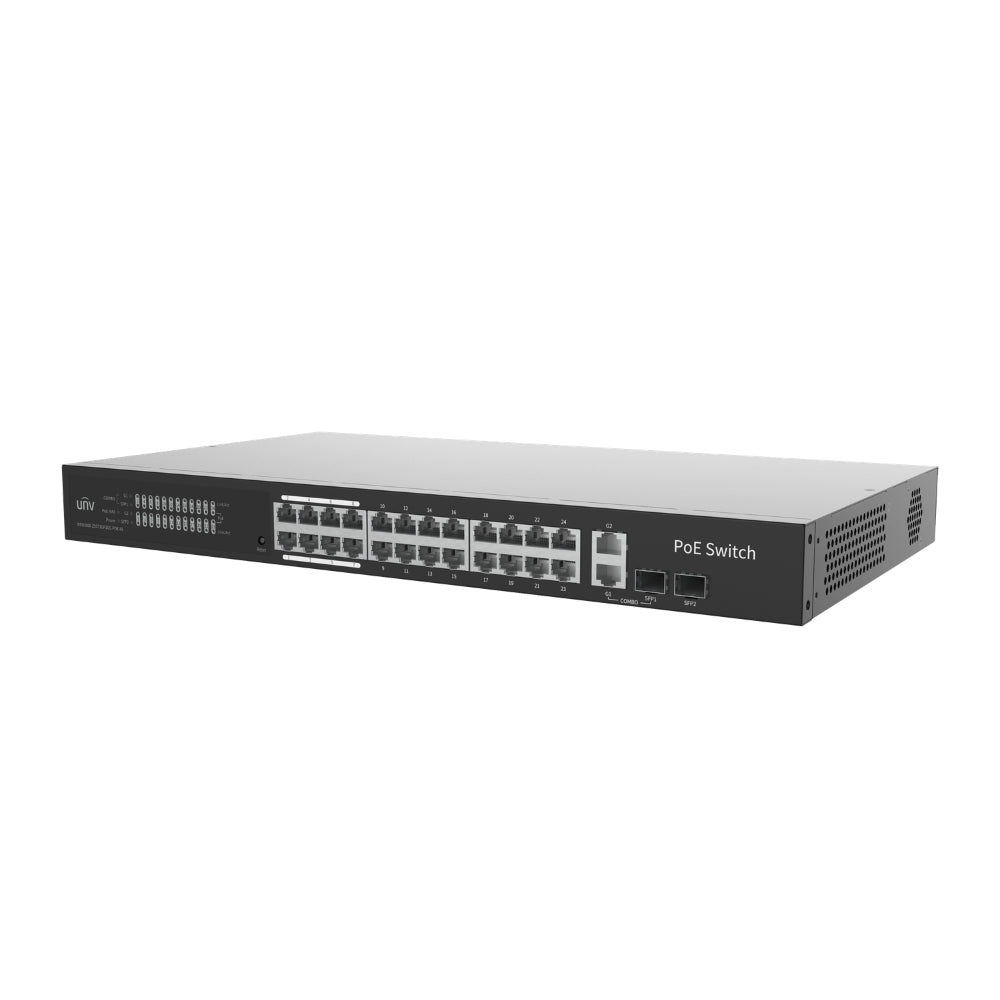

UNV NSW3000-25GT1GP1GC-POE-IN 24-Port 370W Gigabit Cloud Management PoE Switch

• Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
• Supports Web login, and device configuration and management on the Web interface
• Supports visiting the cloud by scanning the QR code. Allows to view the device status and network topology in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
• Allows to report port abnormal alarms to the software for realtime monitoring.
• Supports port priority. The packets received by the priority port will be forwarded first when the switch is fully loaded and the priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.

Hardware Specification

• Ports Type: 24 x 10/100/1000Mbps PoE port (RJ45)
  1 x 10/100/1000Mbps port (RJ45)
  1 x Gigabit SFP
  1 x Gigabit Combo
• Standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
• Switching capacity: 54Gbps
• Forwarding performance: 40.176Mpps
• Packet Buffer: 4 M bits
• MAC: 8K
• Weight: 6.57lbs (2.98kg)

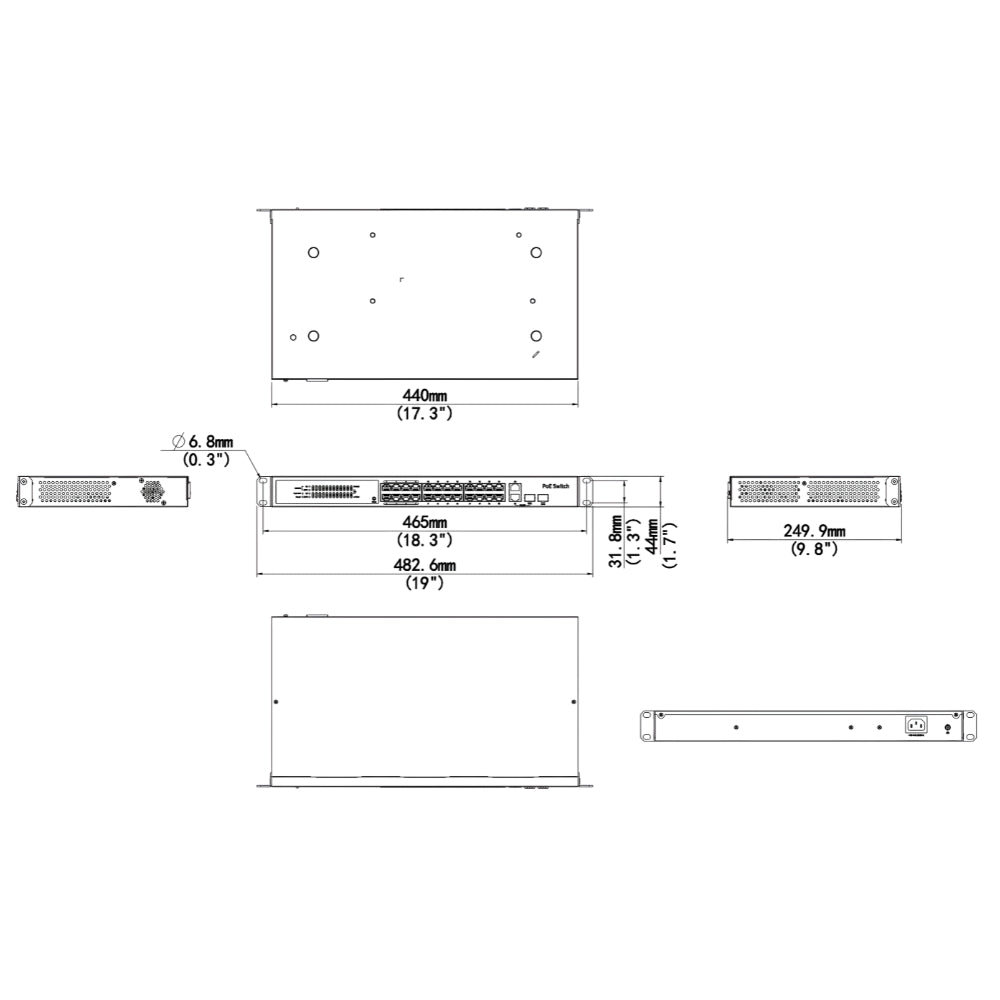

• Dimensions (W×D×H): 17.32" x 9.64" x 1.73" (440*244.8*44mm)
• PoE Standard: IEEE 802.3af, IEEE 802.3 at
• Max.PoE Power: Maximum total power: 370W
  Maximum PoE power for single port: 30W
• PoE Mode: ModeA (1236), ModeB (4578)
• Power Supply: AC: 100 to 240V, 50/60Hz
• Max.Power: 390W
• Prior Ports: 1 to 8
• Cooling Fans: 1
• Operating Humidity: 5% to 90% RH, noncondensing
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Indicator: Power:
  Off: Abnormal power input.
  Green: Normal power input.
  PoE:
  Off: The PoE port is not supplying power
  Steady on: The PoE port is supplying power normally
  Link/Act:
  Off: Disconnected to the port
  On: Connected to the port
  Blinking: Transmitting data
  MAX:
  Off: The total PoE power is less than 80% of the total power of the device
  Steady on: The total PoE power is higher than 85% of the total power of the device

Software Specification

• Ethernet: Supports full duplex, half duplex, and auto-negotiation working modes.
  Supports port auto-negotiation rate.
  Supports port priority flow control.
  Supports a link aggregation group (consist of two uplink ports)
  Supports port flow statistics
  Supports enabling/disabling ports
• VLAN: Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
• MAC: Support (up to 8K)
  Supports clearing the dynamic MAC address
• POE: Allows to view PoE status and power.
  Allows to enable/disable PoE power supply.
• Loop Detection: Loop Detection
• QoS: Supports port rate limitation.
  Supports broadcast storm control.
• Security: Supports port isolation (only for the downlink ports)
  Supports locking the login IP address, up to 64 addresses can be locked
• Maintenance: Supports N: 1 port mirroring
  Supports unified software configuration, management, and search
  Supports discovering connected video devices and generating a network topology in the software.
  Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.
• System: Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.
  Allows to edit and manage the IP address and device name
  Supports single-user management, user authentication, and password modification
  Allows to view other switches information on the same network, up to 32 switches
  Allows to view the connected video devices information, up to 64 devices

Compliance

• NDAA Compliant: Support
