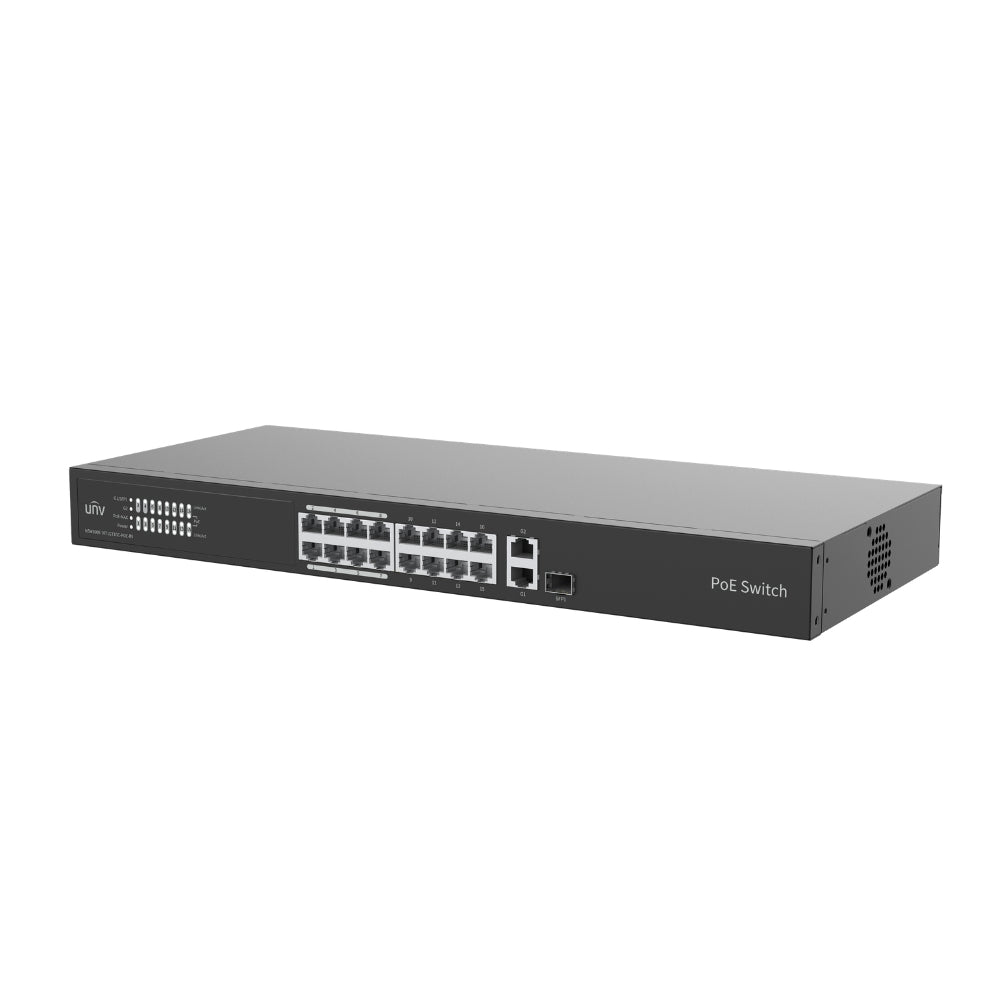

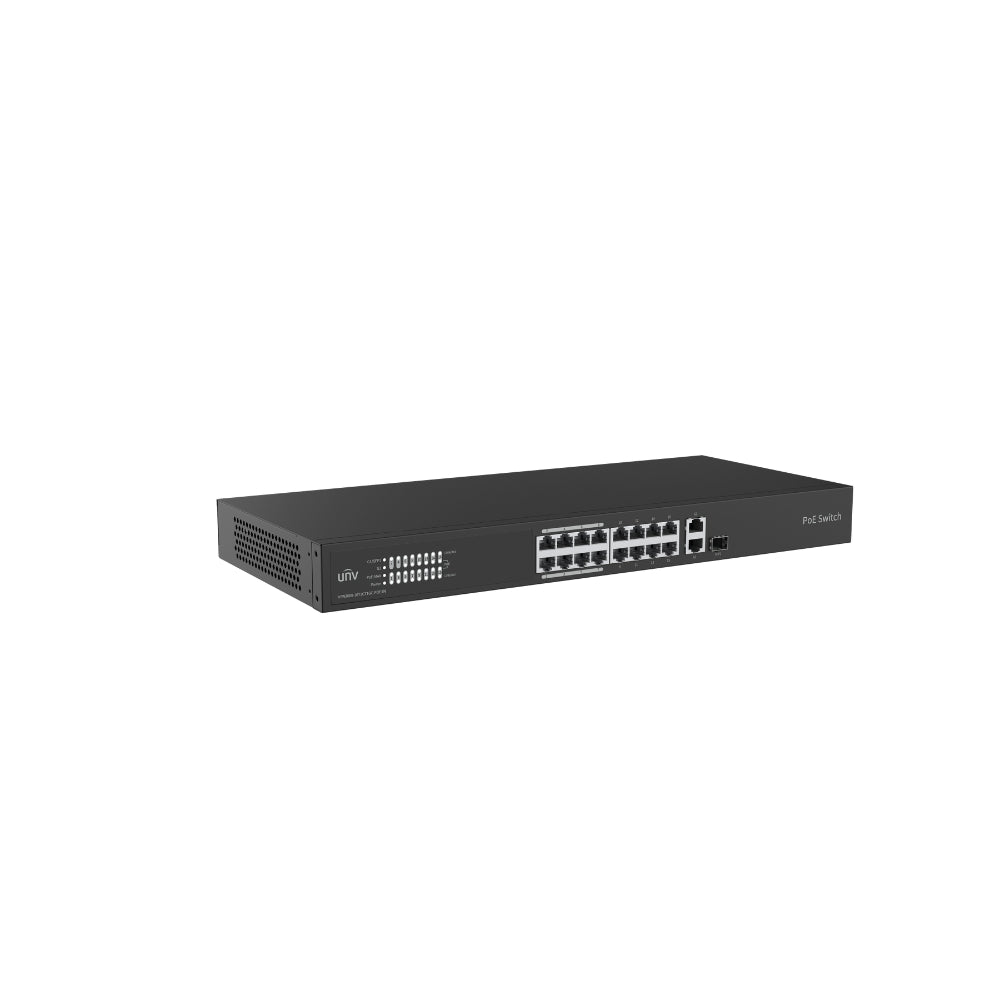

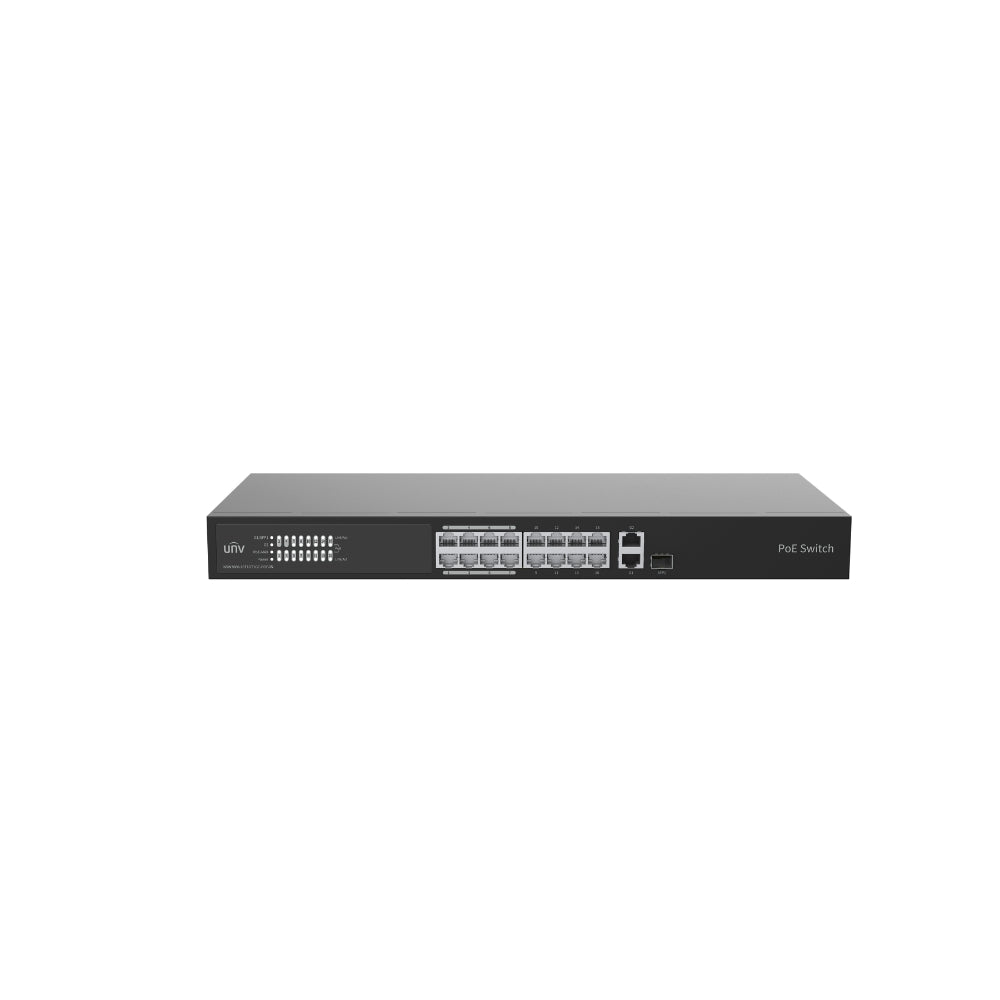

UNV NSW3000-16T1GT1GC-POE-IN 16-Port 250W Cloud Management Ethernet PoE Switch

• Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
• Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code, and allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m of power supply using a standard network cable.
• Supports the extended mode for up to 250m communication range and 10Mbps full-duplex port rate.
• Allows reporting of port abnormal alarms to the software for real-time monitoring.
• Supports port priority. The packets received by the priority port will be forwarded first, and the priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.

Hardware Specification

• Ports Type: 16 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45)+ 1 x Gigabit Combo
• Standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
• Switching capacity: 7.2 Gbps
• Forwarding performance: 5.36Mpps
• Packet Buffer: 4 M bits
• MAC: 16K
• Weight: 4.63lbs (2.1kg)

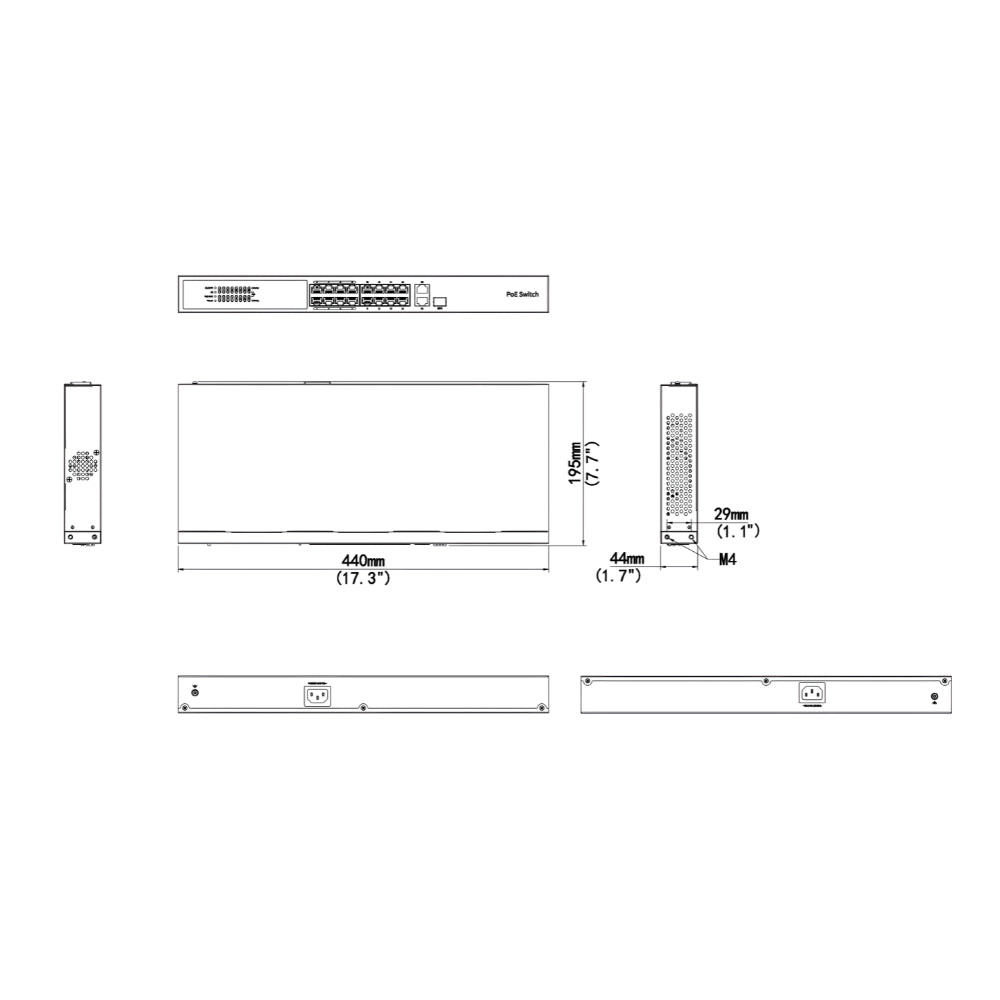

• Dimensions (W×D×H): 17.32" x 7.47" x 1.69" (440mm x 189.8mm x 44mm)
• PoE Standard: IEEE 802.3af, IEEE 802.3 at
• Max.PoE Power: Maximum total power: 250W
  Maximum PoE power for single port: 30W
• PoE Mode: ModeA (1236), ModeB (4578)
• Power Supply: AC: 100 to 240V, 50/60Hz
• Max. Power: 265W
• Prior Ports: 1 to 8
• Cooling Fans: 1
• Operating Humidity: 5% to 90% RH, noncondensing
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Indicator:
  Power: Steady on: Normal power input
  Off: Abnormal power input
  PoE:
  Off: The PoE port is not supplying power
  Steady on: The PoE port is supplying power normally
  Link/Act:
  Off: Disconnected to the port
  On: Connected to the port
  Blinking: Transmitting data
  MAX:
  Off: The total PoE power is less than 80% of the total power of the device
  Steady on: The total PoE power is higher than 85% of the total power of the device

Software Specification

• Ethernet: Supports full duplex, half duplex, and auto-negotiation working modes.
  Supports port auto-negotiation rate.
  Supports port priority flow control.
  Supports a link aggregation group (consisting of two uplink ports)
  Supports port flow statistics
  Supports enabling/disabling ports
• VLAN: Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
• MAC: Support (up to 16K).
  Supports clearing the dynamic MAC address
• POE: Allows to view PoE status and power.
  Allows to enable/disable PoE power supply.
• Loop Detection: Loop Detection
• QoS: Supports port rate limitation.
  Supports broadcast storm control.
• Security: Supports port isolation (only for the downlink ports).
  Supports locking the login IP address, up to 64 addresses can be locked
• Maintenance: Supports N: 1 port mirroring.
  Supports unified software configuration, management, and search.
  Supports discovering connected video devices and generating a network topology in the software.
  Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.
• System: Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.
  Allows editing and managing the IP address and device name.
  Supports single-user management, user authentication, and password modification.
  Allows to view other switches' information on the same network, up to 32 switches.
  Allows to view the connected video devices' information, up to 64 devices.

Compliance

• NDAA Compliant: Support
