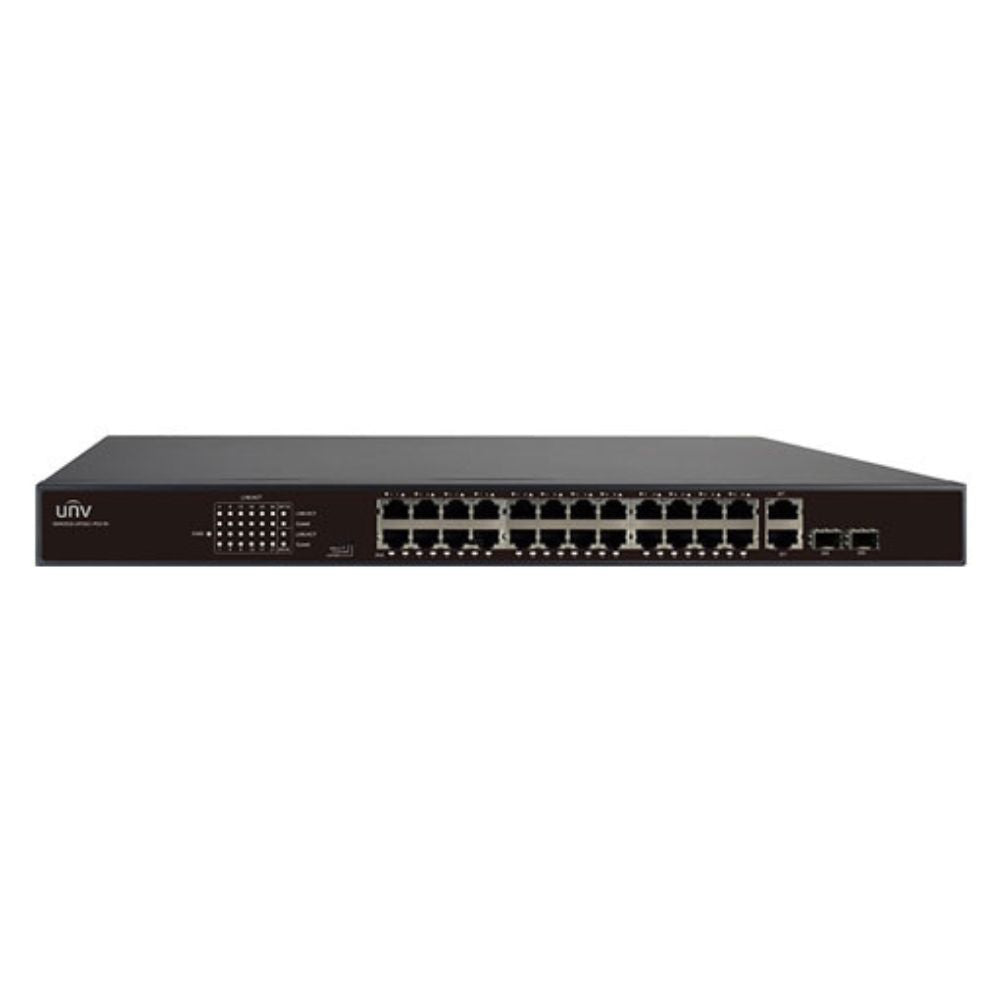

UNV 24PoE+2GC Switch | UNV-NSW2010-24T2GC-POE-IN

Introducing the UNV 24PoE+2GC Switch, also known as UNV-NSW2010-24T2GC-POE-IN, a high-performance networking solution designed to meet the diverse needs of modern businesses. This versatile switch offers a range of features and technical specifications that make it an ideal choice for various applications, from general networking to security and surveillance systems.

Features
  • Multiple working modes to address your business needs: Normal, Secure, and Surveillance
  • Support port traffic control
  • Support for secure mode, all downlink ports can communicate only with uplink ports
  • Up to 250m transmission distance on surveillance mode
  • Support buffer optimization
  • All metal housing, safe and reliable
Technical Specifications
  • Ports: 24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
  • Standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
  • Switching capacity: 8.8Gbps
  • Forwarding performance: 6.55Mpps
  • Packet Buffer: 4M bit
  • MAC: 16K
  • Dimensions (W×D×H): 440mm x 207mm x 45mm (17.3" × 8.1" × 1.8")
  • Weight: <4.2kg
  • Power supply: AC: 100-240V, 50/60Hz
  • PoE: 802.3at/af
  • Max. PoE Power
    • Max capacity: 370W
    • Max capacity for single port: 30W
  • Cooling Fans: 2
  • Mean Time Between Failure (MTBF): >50000 hours
  • Ambient temperature: 0°C-45°C (32°F-113°F)
  • Operating humidity: 10%~90% (noncondensing)
  • Storage humidity: 5%~90% (noncondensing)
  • Indicator
    • PoE
      • Off: No PoE power supply
      • Steady on: PoE power supply is normal
      • Flashing: PoE power supply is abnormal
    • LINK/ACT
      • Off: No link
      • Steady: Linked at 10/100Mbps
      • Flashing: Transmitting data
    • Speed
      • Off: Linked at 10/100Mbps
        On: Linked at 1000Mbps
  • Working Mode
    • Default (Normal mode): All ports can communicate with each other.
    • VLAN (Secure mode): Downlink ports can communicate only with uplink ports.
    • EXTEND (Surveillance mode): Transmission distance up to 250 meters.
