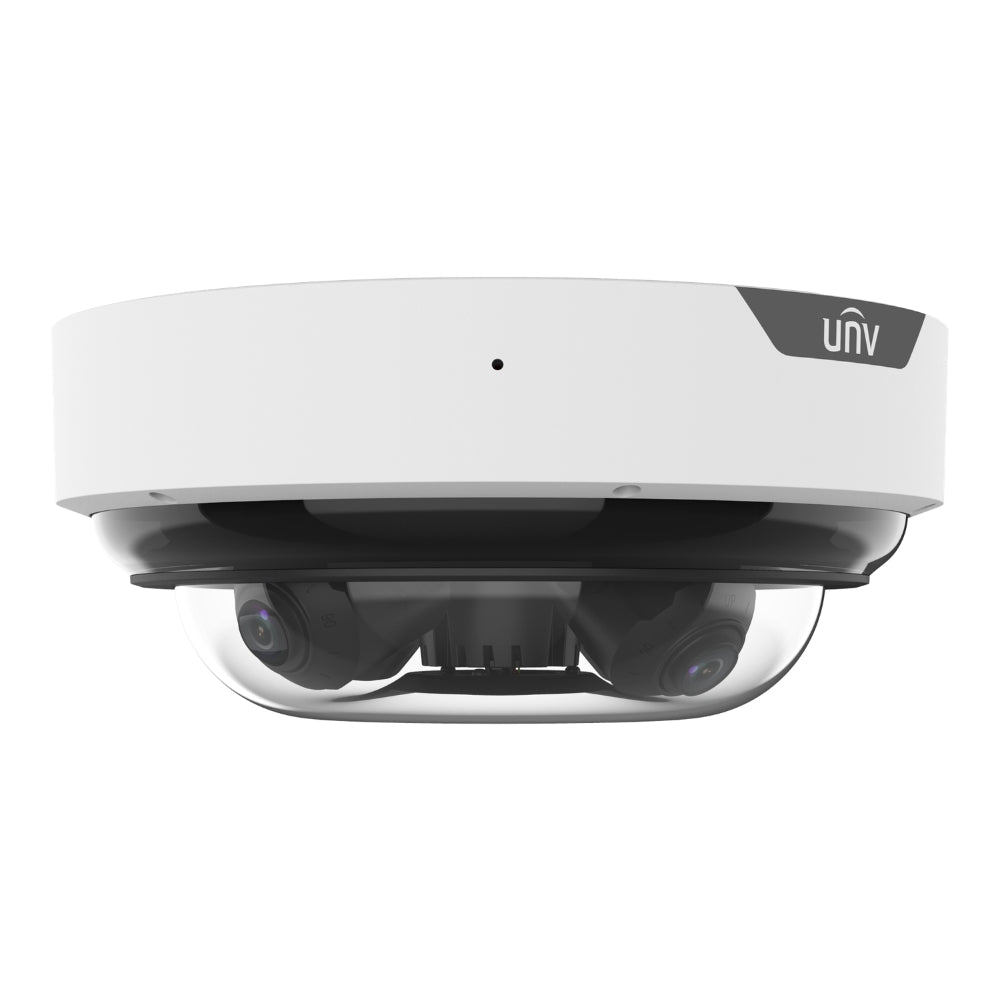

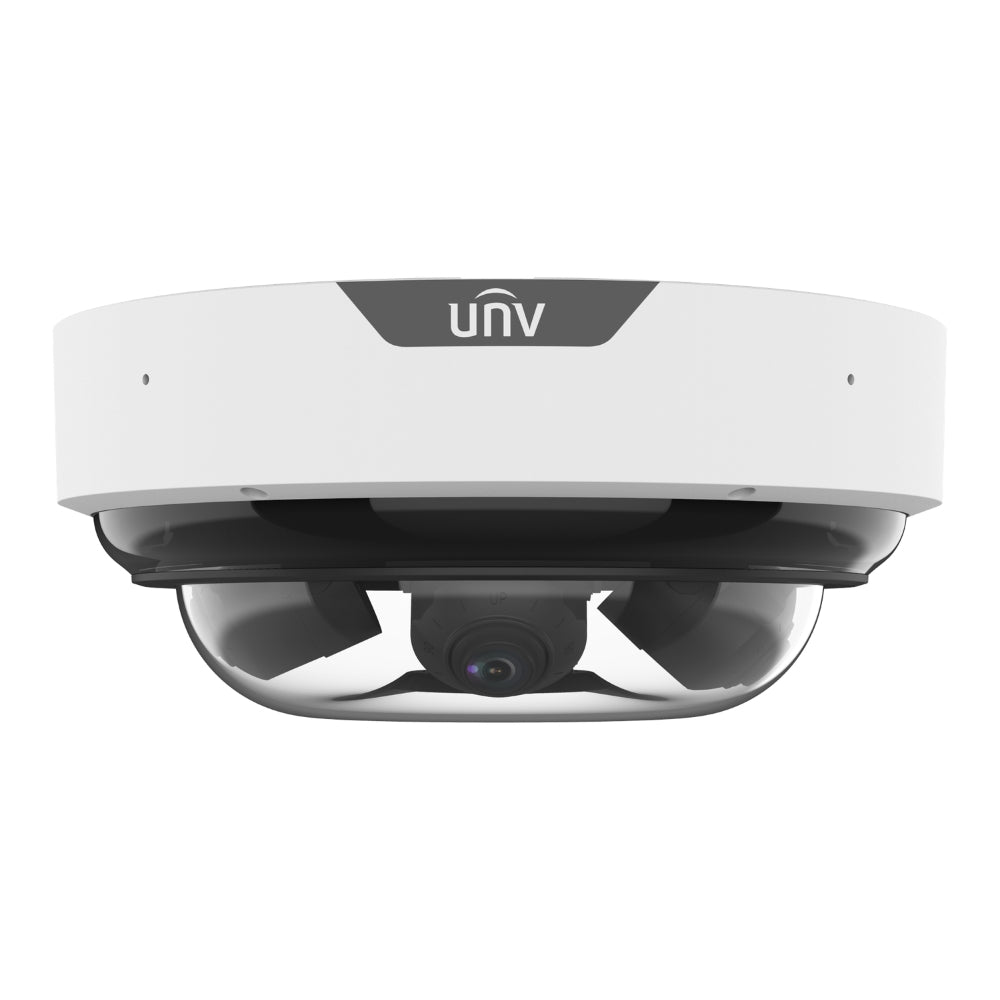

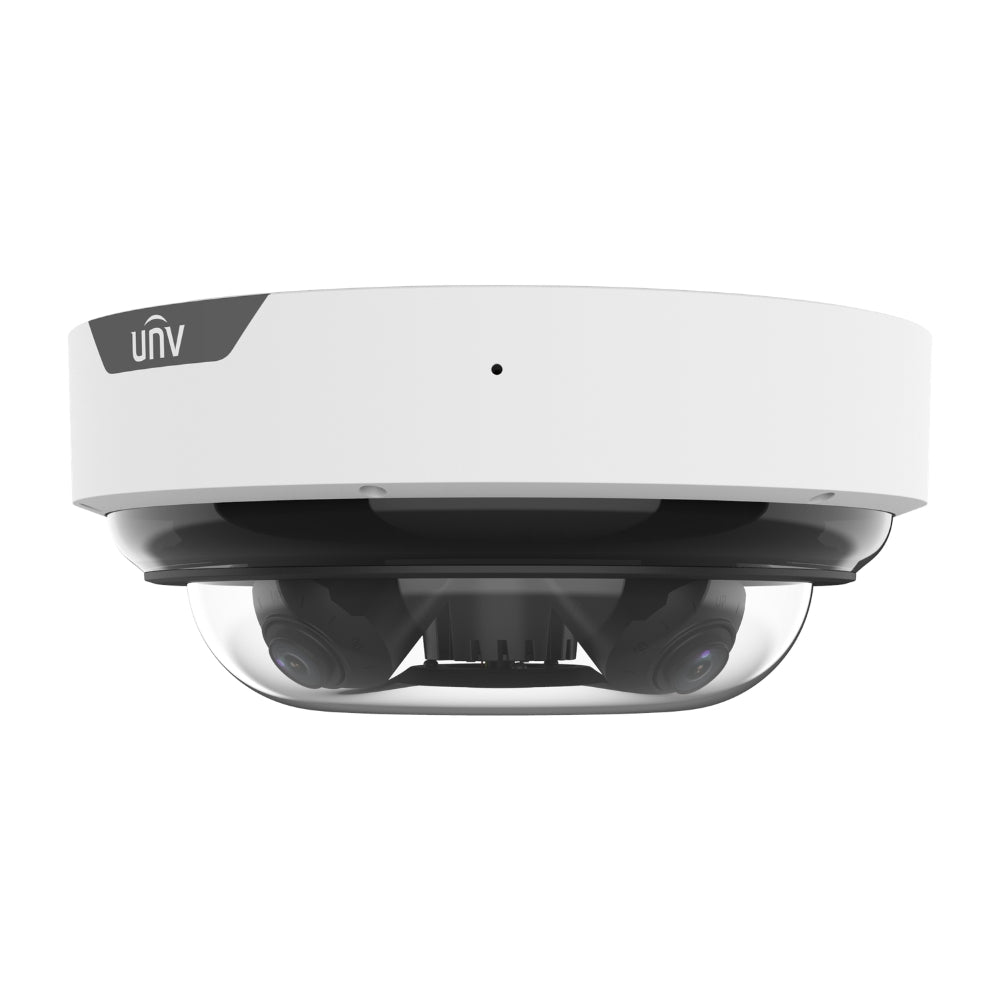

UNV IPC8645EA-ADZKM-I1 4 x 5MP Multi-Sensor VF Dome Network Camera

• One IP with four channels
• Supports multiple intelligent functions, different functions of each channel can be enabled at the same time to satisfy various analysis requirements
• Pan, tilt, and rotation angle of each lens can be adjusted independently, suitable for more complicated scenes
• 4-channel video output, 2880 × 1620@30 fps in the main stream of each channel, provides a high definition image
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention supports false alarm filtering and realizes accurate detection based on specific targets
• People counting supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environments
• 130 dB true WDR technology ensures a clear image in a strong backlight scene
• IP67 ingress and IK10 protection

Camera

• Sensor: 1/2.7" CMOS
• Min. Illumination: Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• WDR: 130 dB
• Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 65°, Rotate: 0° to 355°
• S/N: >56 dB

Lens

• Focal Length: 2.7 to 13.5 mm
• Optical Zoom: 5X
• Iris: F1.2 * 4
• Field of View (H): (W) 110.3° to (T) 31°
• Field of View (V): (W) 57.1° to (T) 17.5°
• Field of View (D): (W) 143.4° to (T) 38.1°
• Iris Type: Fixed

DORI

• DORI Distance (Detect): 70.9 m to 247.5 m (232.5 ft. to 812.0 ft)
• DORI Distance (Observe): 28.4 m to 99.0 m (93.2 ft. to 324.8 ft)
• DORI Distance (Recognize): 14.2 m to 49.5 m (46.5 ft. to 162.4 ft)
• DORI Distance (Identify): 7.1 m to 24.8 m (23.3 ft. to 81.4 ft)

Illuminator

• Illumination Distance (IR): 50 m (164.0 ft)
• IR On/Off Control: Auto/Manual

Intelligent

• Exception Detection: Scene change, Defocus detection, Object removed, Object Left Behind
• Smart Intrusion Prevention: Cross-line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle, and vehicle)
• People Counting: Support people flow counting and crowd density monitoring

Events

• Motion Detection: Support
• Tampering Detection: Support
• Audio Detection: Support
• UMD (Ultra Motion Detection): Support


• Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
• Defog: Digital defog

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE, and Digest Authentication for ONVIF
• Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Storage

• Edge Storage: MicroSD, up to 512 GB
• Network Storage: ANR, NAS (NFS)

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate-Main Stream: Channel × 4
  5 MP (2880 × 1620), max. 30 fps;
  4 MP (2688 × 1520), max. 30 fps;
  4 MP (2560 × 1440), max. 30 fps;
  3 MP (2304 × 1296), max. 30 fps;
  1080P (1920 × 1080), max. 30 fps;
  720P (1280 × 720), max. 30 fps;
  D1 (720 × 576), max. 30 fps;
  640 × 360, max. 30 fps;
  2CIF (704 × 288), max. 30 fps;
  CIF (352 × 288), max. 30 fps
• Frame Rate-Sub Stream: Channel × 4
  1080P (1920 × 1080), max. 30 fps;
  720P (1280 × 720), max. 30 fps;
  D1 (720 × 576), max. 30 fps;
  640 × 360, max. 30 fps;
  2CIF (704 × 288), max. 30 fps;
  CIF (352 × 288), max. 30 fps
• Frame Rate-Third Stream: Channel × 4
  D1 (720 × 576), max. 30 fps;
  640 × 360, max. 30 fps;
  2CIF (704 × 288), max. 30 fps;
  CIF (352 × 288), max. 30 fps
• Frame Rate Recommendation: Channel × 4
  2880 × 1620@30 fps + 1080P@30 fps + D1@30 fps
• Video Bit Rate: 128 Kbps ~ 16 Mbps * 4Channel
• U-code: Support
• ROI: Support
• Video Stream: Triple streams
• OSD: Up to 10 OSDs * 4 Channel
• Privacy Mask: Up to 8 * 4Channel

Audio

• Audio Compression: G.711U, G.711A
• Two-way Audio: Support
• Sampling Rate: 8 kHz

Interface

• Audio I/O: 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
• Alarm I/O: 3/2
• Built-in Mic: Support
• Network: 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
  FCC (FCC 47 CFR part 15 B)
• Safety: CE-LVD (EN 62368-1)
  UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529), IK10 (IEC 62262)

Other

• Corridor Mode: Support

General

• Power: DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3bt)
• Built-in DC12V Output: Support
• Power Consumption: Max. 31 W
• Power Interface: Wires with cold-pressed terminals

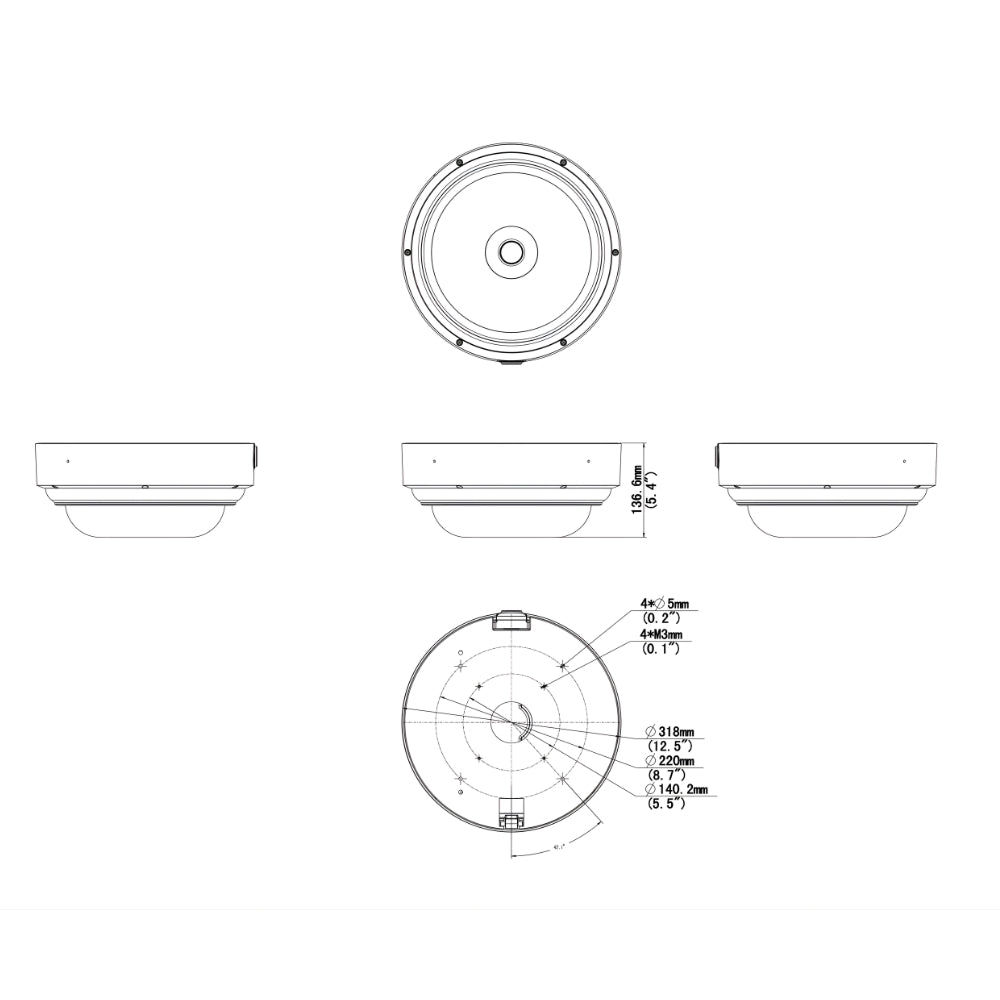

• Dimensions: Ø318 mm × 136.6 mm (Ø 12.52" × 5.38") (Ø × H)
• Weight: 4.77 kg (10.52 lb）
• Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH
• Storage Environment: -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: 5%~95% RH
• Surge Protection: 6 KV
