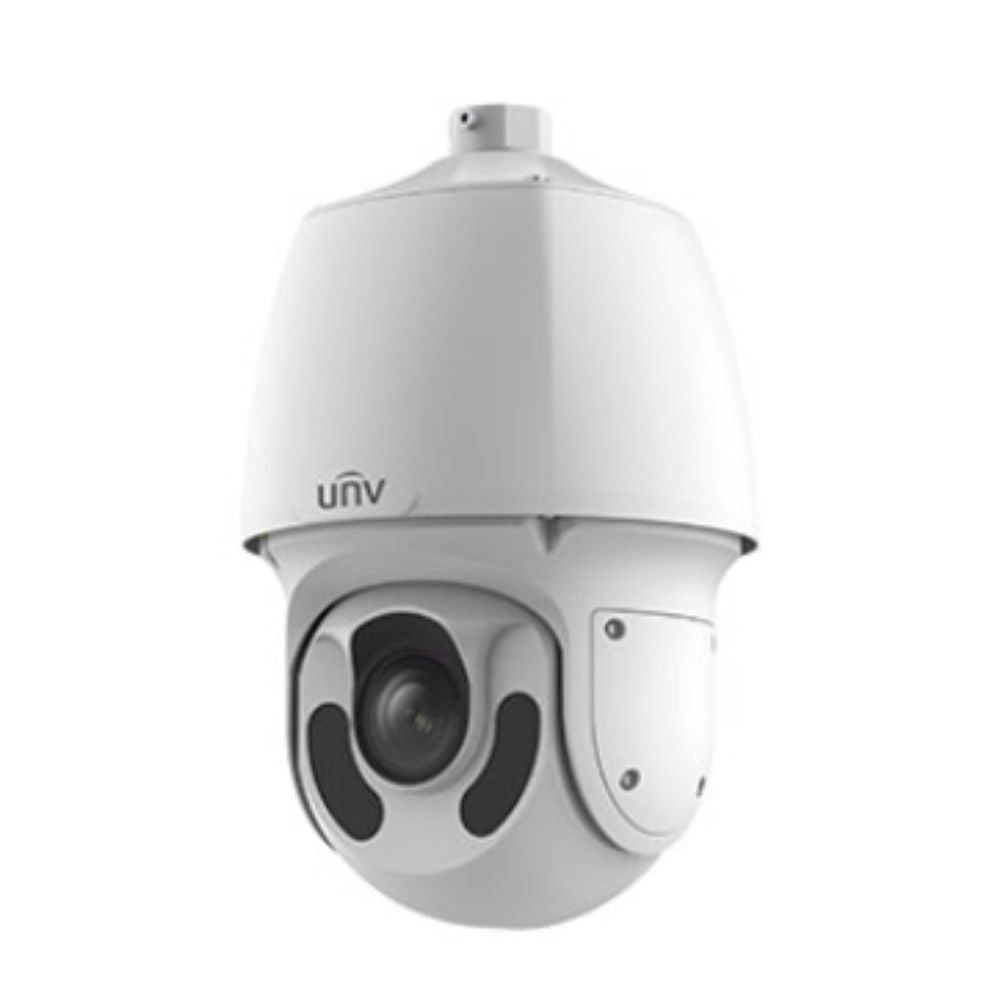

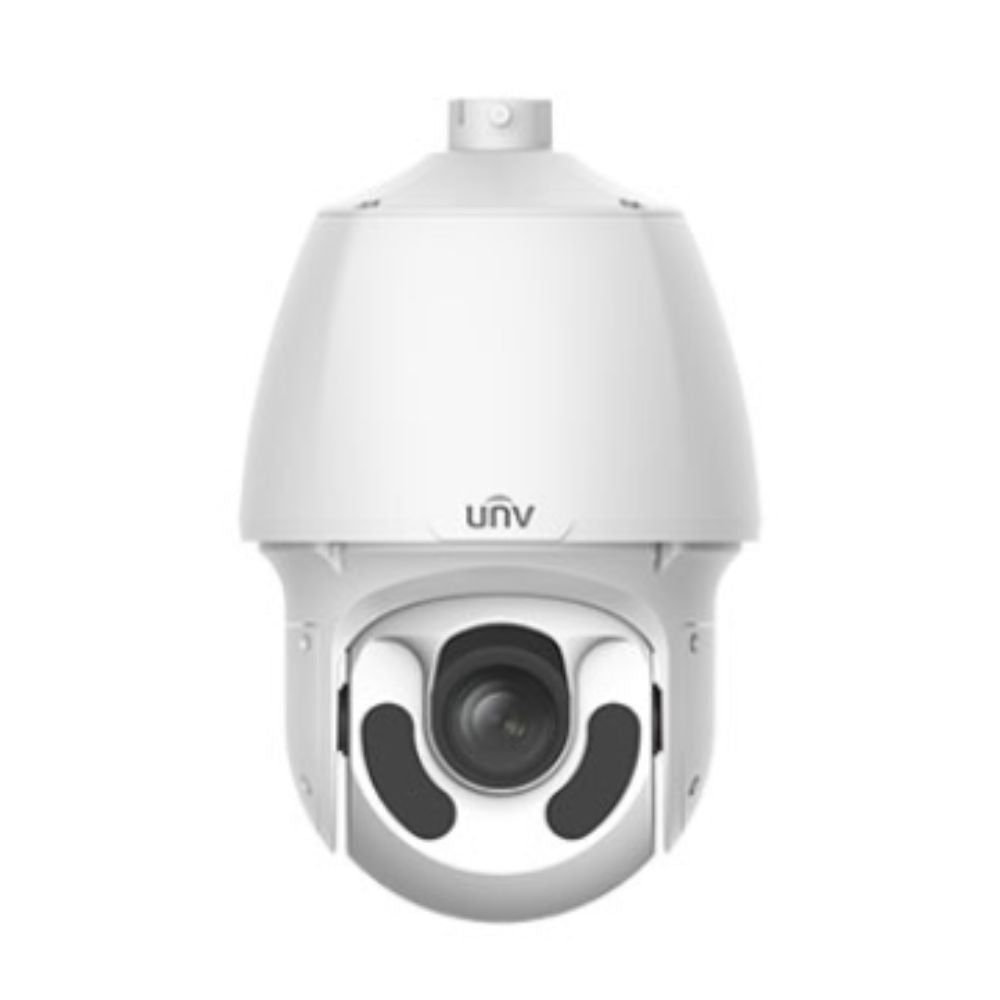

UNV IPC6622SR-X25-VF 2MP 25x Lighthunter Network PTZ Dome Camera

• High quality image with 2MP,1/2.8" CMOS sensor
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 25X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 150m (492 ft) IR distance
• AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP66 ingress protection

• Camera Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
• Min. Illumination: Colour: 0.001 Lux (F1.5, AGC ON); 0 Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto, 1 ~ 1/100000s
• WDR: 120dB
• S/N: >52dB
• Lens: 5.0 ~ 125.0mm, AF automatic focusing and motorized zoom lens
• Digital Zoom: 16
• Optical Zoom: 25
• Iris: Auto; F1.5 ~ F4.0
• Field of View (H): 54.37° ~ 2.68°
• Field of View (V): 32.23° ~ 1.51°
• Field of View (D): 66.88° ~ 3.16°
• DORI Distance:
• IR Range: Up to 150m (492 ft)
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate: Main Stream: 2MP (19201080), Max 60fps; Sub Stream: 2MP (19201080), Max 60fps; Third Stream: D1 (720*576), Max 60fps
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• ROI: Up to 8 areas
• Video stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: 24 areas, up to 4 areas per scene
• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC: Support
• BLC: Support
• Defog: Digital Defog
• Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• People Counting: Support people flow counting and crowd density monitoring
• Basic Detection: Motion detection, Audio detection, Tampering Alarm
• Auto Tracking: Support
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8 kHz
• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR, NAS (NFS)
• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• Client: EZStation, EZLive, EZView
• Web Browser: Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+; Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Pan Range: 360° (endless)
• Pan Speed: 0.1°/s ~ 200°/s; Preset speed: 300°/s
• Tilt Range: –15° ~ 90° (auto reverse)
• Tilt Speed: 0.1°/s ~ 200°/s; Preset speed: 240°/s
• Number of Presets: 1024
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Route Patrol: 16 patrols, up to 32 actions for each patrol
• Recorded Patrol: 16 patrols, up to 128 actions for each patrol
• Patrol Stay Time: 15s ~ 1800s
• Preset Image Freeze: Support
• Home Position: Support
• Audio I/O: 1/1
• Alarm I/O: 2/1
• Serial Port: 1 RS485
• Built-in Mic: N/A
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: 1 BNC
• Certification: EMC CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014), Safety CE LVD (EN 62368-1:2014+A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01), Environment CE-ROHS (2011/65/EU; (EU)2015/863), Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
• Power: AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at); Power consumption: Max 25W
• Power Interface: Wires with cold-pressed terminal
• Dimensions (Ø x H): Ø227 x 384.8mm (Ø8.9” x 15.1”)
• Weight: 5.28kg (11.64lb)
• Working Environment: -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 6KV
• Reset Button: Support
