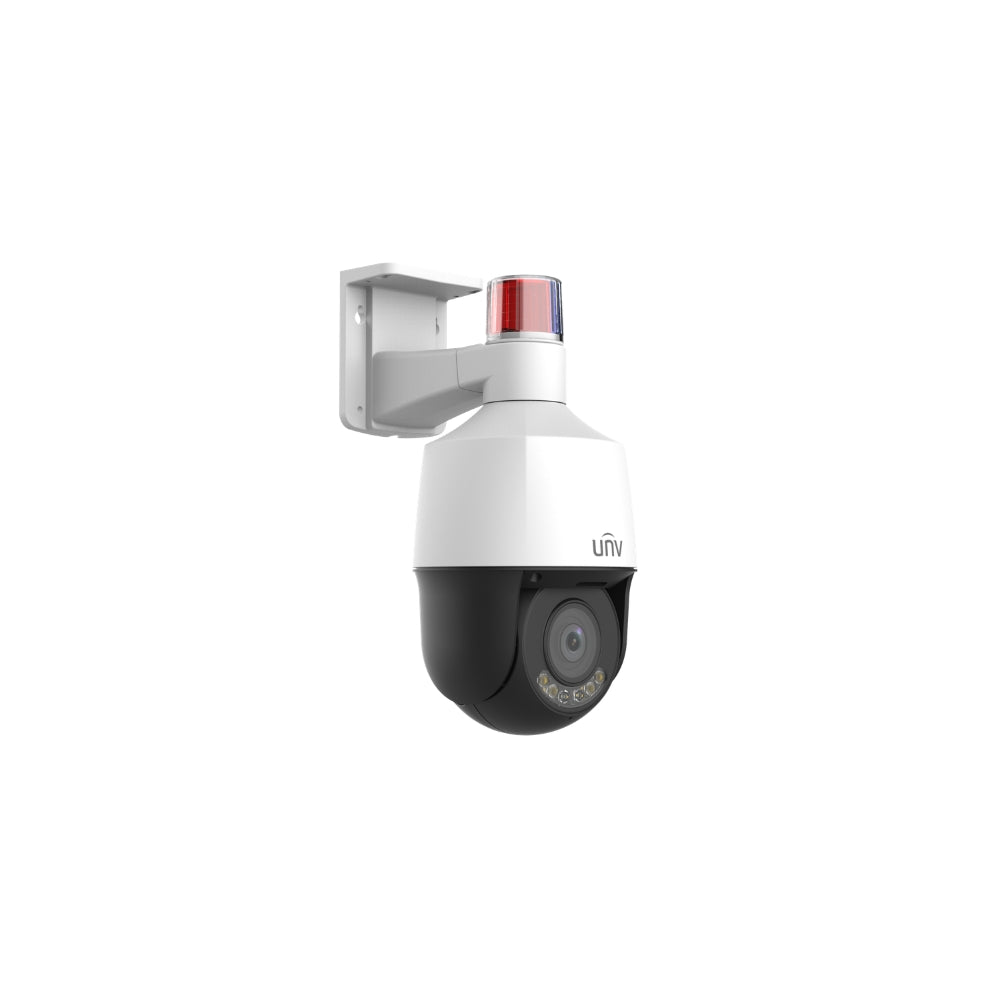

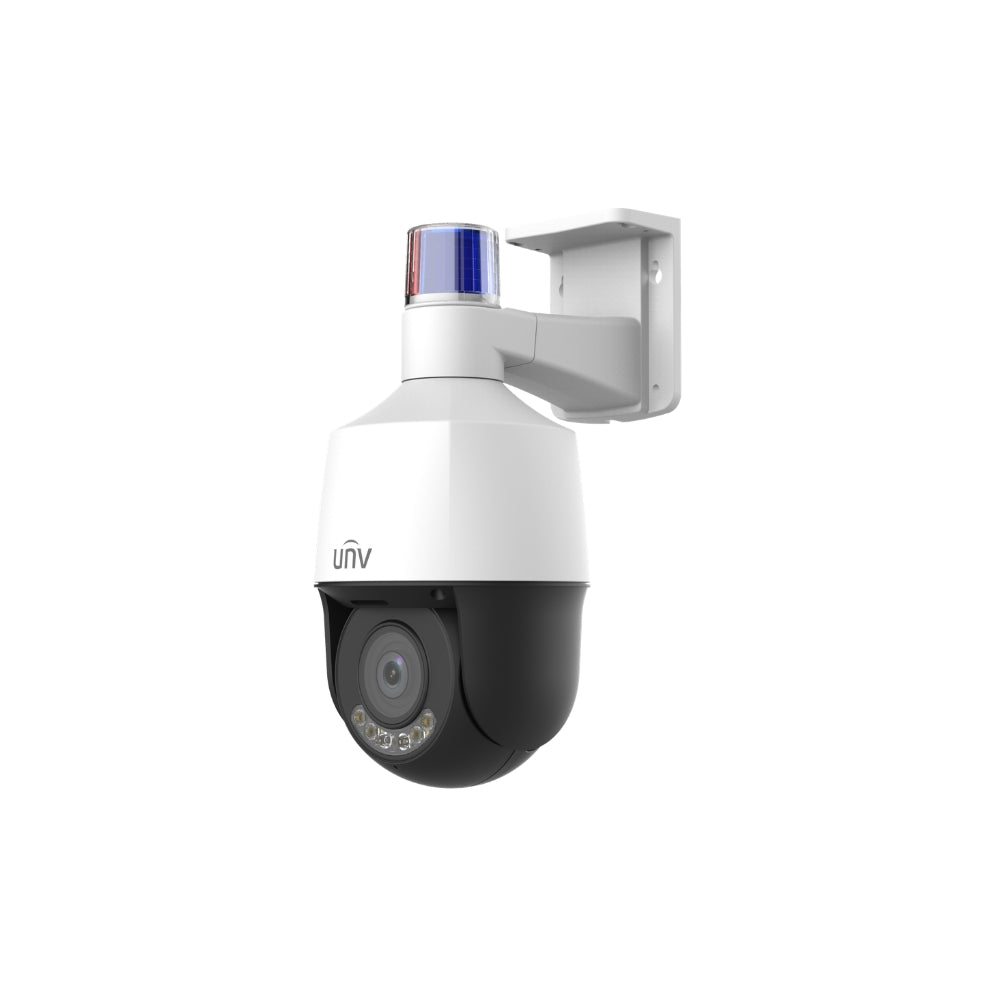

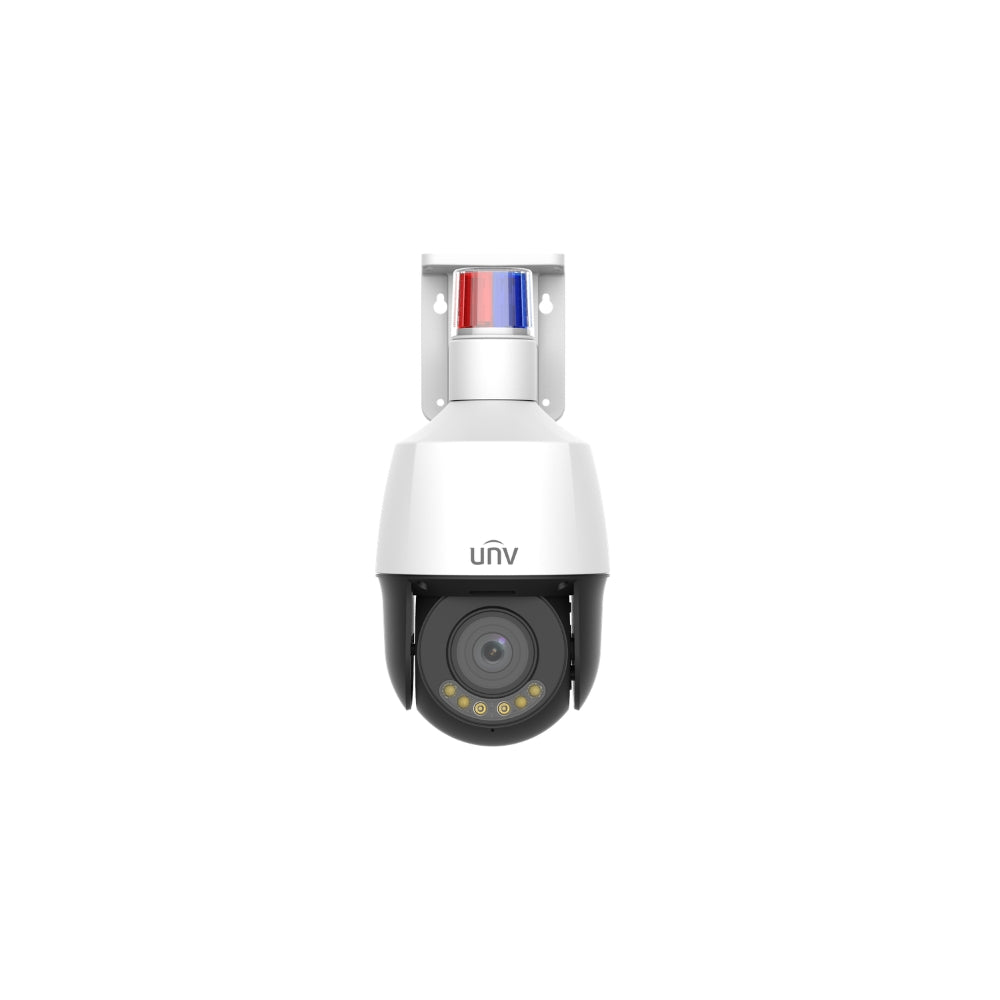

UNV IPC6324LWH-AX5C-VG2 4MP 5X Wise-ISP Tri-Guard Network PTZ Camera

• High-quality image with 4 MP, 1/1.8" CMOS sensor
• Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
• Ultra 265, H.265, H.264, MJPEG
• 2688 × 1520@30 fps in the main stream, 16:9 aspect ratio
• Smart intrusion prevention supports false alarm filtering, cross-line detection, and intrusion detection
• Up to 120 dB WDR (wide dynamic range)
• Built-in mic and speaker
• 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IP66 protection
• DC 12 V, PoE (IEEE 802.3at) power supply

Camera

• Sensor: 1/1.8" CMOS
• Min. Illumination: Color: 0.0005 Lux (F1.2, AGC ON)
• Shutter: Auto/Manual, 1 to 1/100000 s
• WDR: 120 dB
• S/N: >56 dB

Lens

• Focal Length: 2.7 to 13.5 mm
• Optical Zoom: 5X
• Field of View (H): 113.69° to 50.29°
• Field of View (V): 59.46° to 28.45°
• Field of View (D): 156.23° to 59.34°

DORI

• DORI Distance (Lens): 2.7 to 13.5 mm
• DORI Distance (Detect): 98.6 m to 209.9 m (323.3 ft. to 688.7 ft)
• DORI Distance (Observe): 39.4 m to 84.0 m (129.3 ft. to 275.5 ft)
• DORI Distance (Recognize): 19.7 m to 42.0 m (64.7 ft. to 137.7 ft)
• DORI Distance (Identify): 9.9 m to 21.0 m (32.3 ft. to 68.9 ft)

Video

• Privacy Mask: Up to 4 areas
• Frame Rate-Main Stream: 4 MP (2560 × 1440)@25 fps (Default)
  4 MP (2688 × 1520), max. 30 fps;
  4 MP (2560 × 1440), max. 30 fps
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Video Bit Rate: 128 Kbps to 6144 Kbps
• U-code: Support
• ROI: Support
• Video Stream: Triple streams
• OSD: Up to 8 OSDs

Intelligent

• Auto Tracking: Support, target filtering: human only
• Smart Intrusion Prevention: Support false alarm filtering: cross-Line detection, intrusion detection (based on human body and vehicle detection)


• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
• Digital Noise Reduction: 2D/3D DNR
• Flip: Normal, Flip vertical, Flip horizontal, 180°
• HLC: Support
• BLC: Support
• Defog: Digital defog

Illuminator

• Light On/Off Control: Auto/Manual
• Illumination Distance (Warm Light): 40 m

Events

• Basic Detection: Motion detection, Audio detection, Tampering alarm
• Motion Detection: Support
• Tampering Detection: Support
• Audio Detection: Support
• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
• UMD (Ultra Motion Detection): Support

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 128 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8 kHz, 16 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB

Network

• Protocols: TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client: EZStation, EZLive, EZView
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

PTZ

• Number of Presets: 1024
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Patrol Stay Time: 120 s to 1800 s
• Home Position: Support
• Number of Presets (IPC): 1024
• Pan Range: 0° to 345°
• Tilt Range: -10° to 100°
• Pan Speed: 1°/s to 50°/s
• Tilt Speed: 1°/s to 40°/s
• Number of Patrol: 16

Interface

• Audio I/O: 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
• Alarm I/O: 1/1
• Built-in Mic: Support
• Built-in Speaker: Support
• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC: CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130)
  FCC SDoC (47 CFR Part 15; Subpart B)
• Safety: UL (UL 62368-1)
  CUL (CAN/CSA C22.2 No. 62368-1)
  CE-LVD (EN IEC 62368-1)
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
• Protection: IP66 (IEC 60529)

General

• Power: DC 12 V±25%, PoE (IEEE 802.3at)
• Power Consumption: ≤ 25.4 W

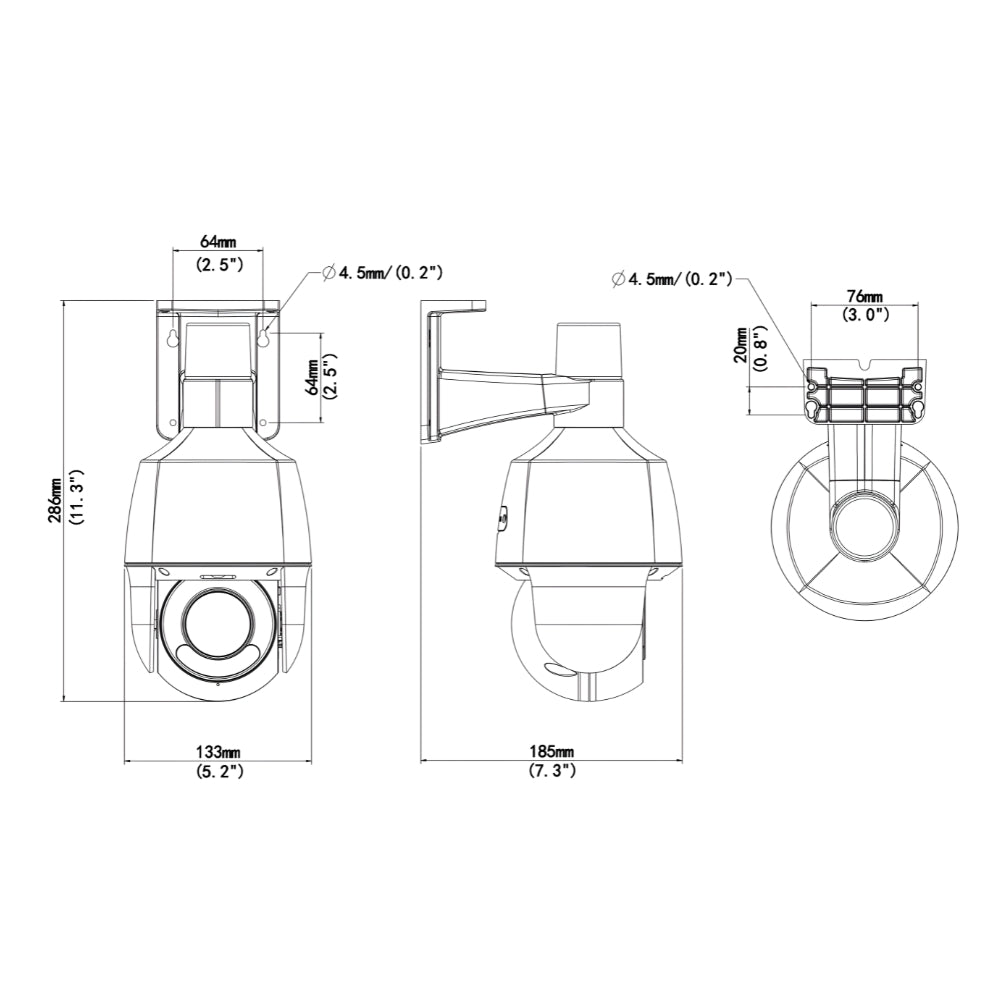

• Weight: 1.33 kg (2.93 lb)
• Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Storage Environment: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
• Surge Protection: 2 KV
• Reset Button: Support
• Material: Metal
• Heater: Support
• Web Client Language: 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Live View

• Maximum Bitstream: 35
• OSD Color: Support
• OSD Character Number: 40
