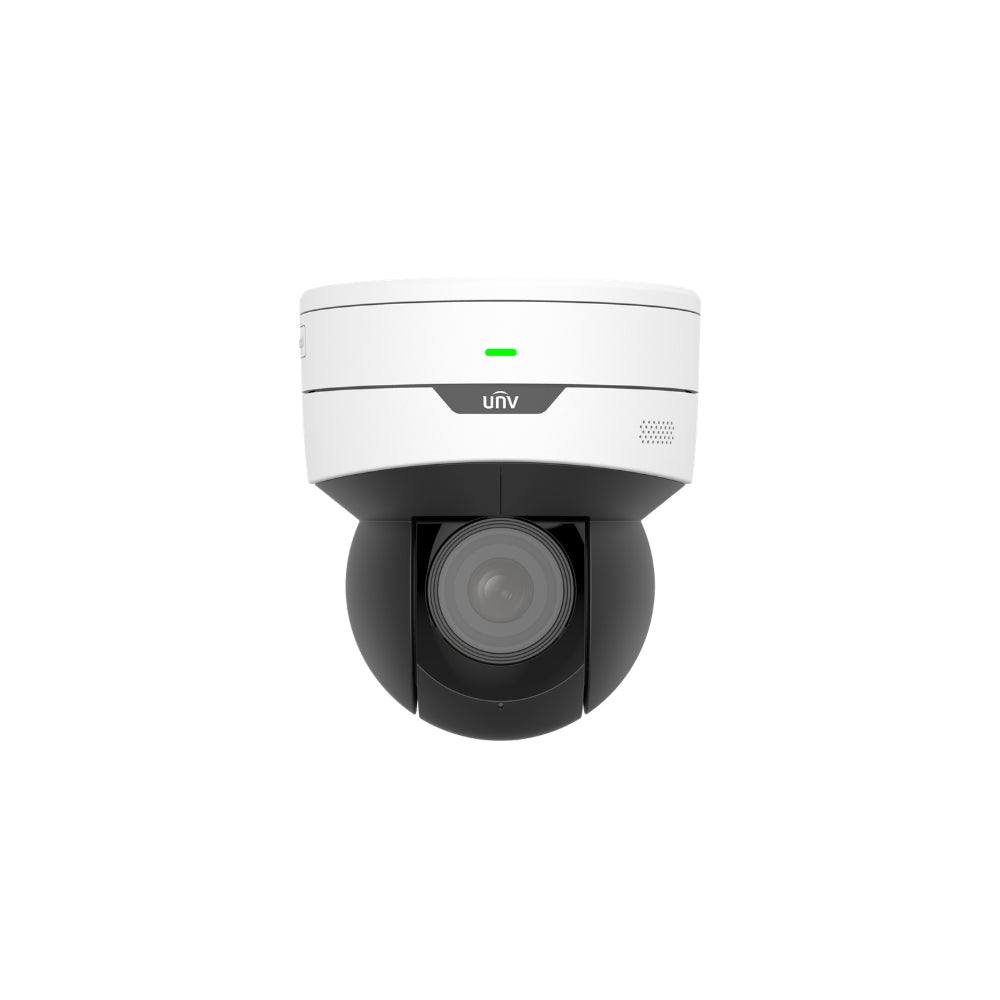

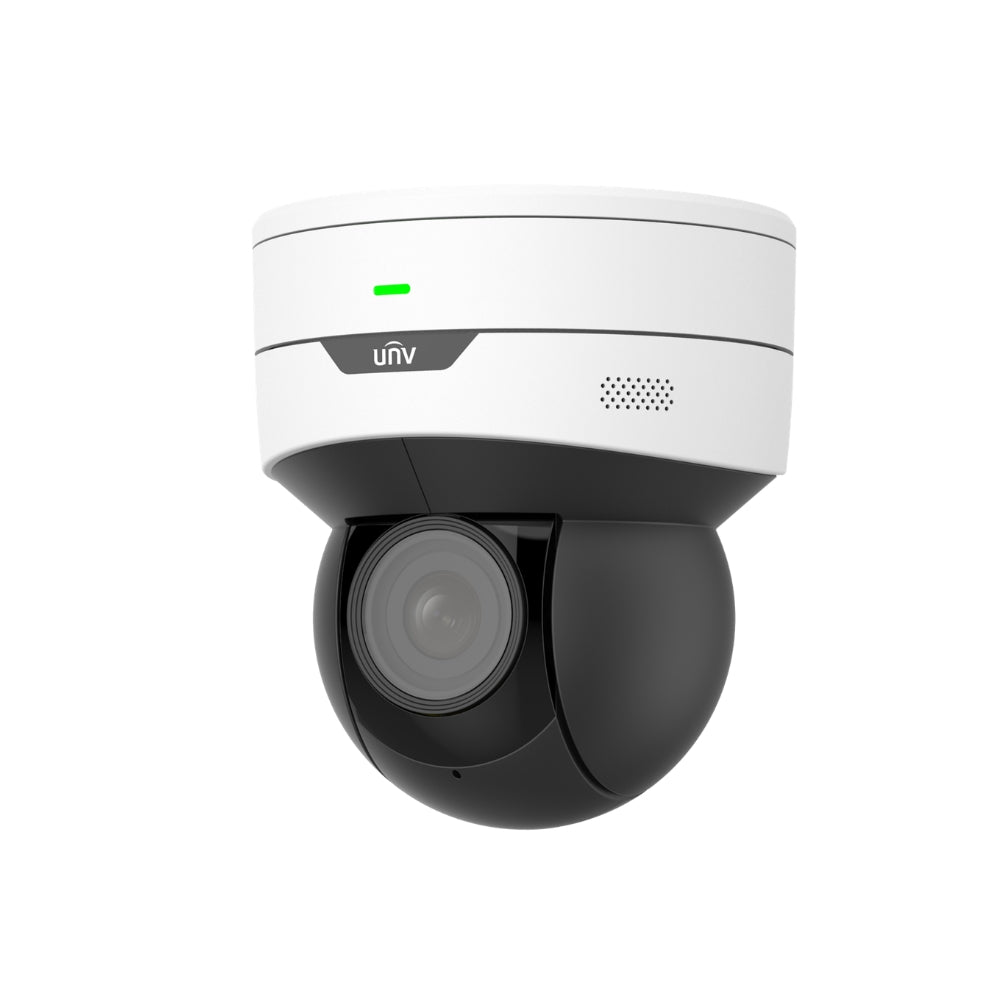

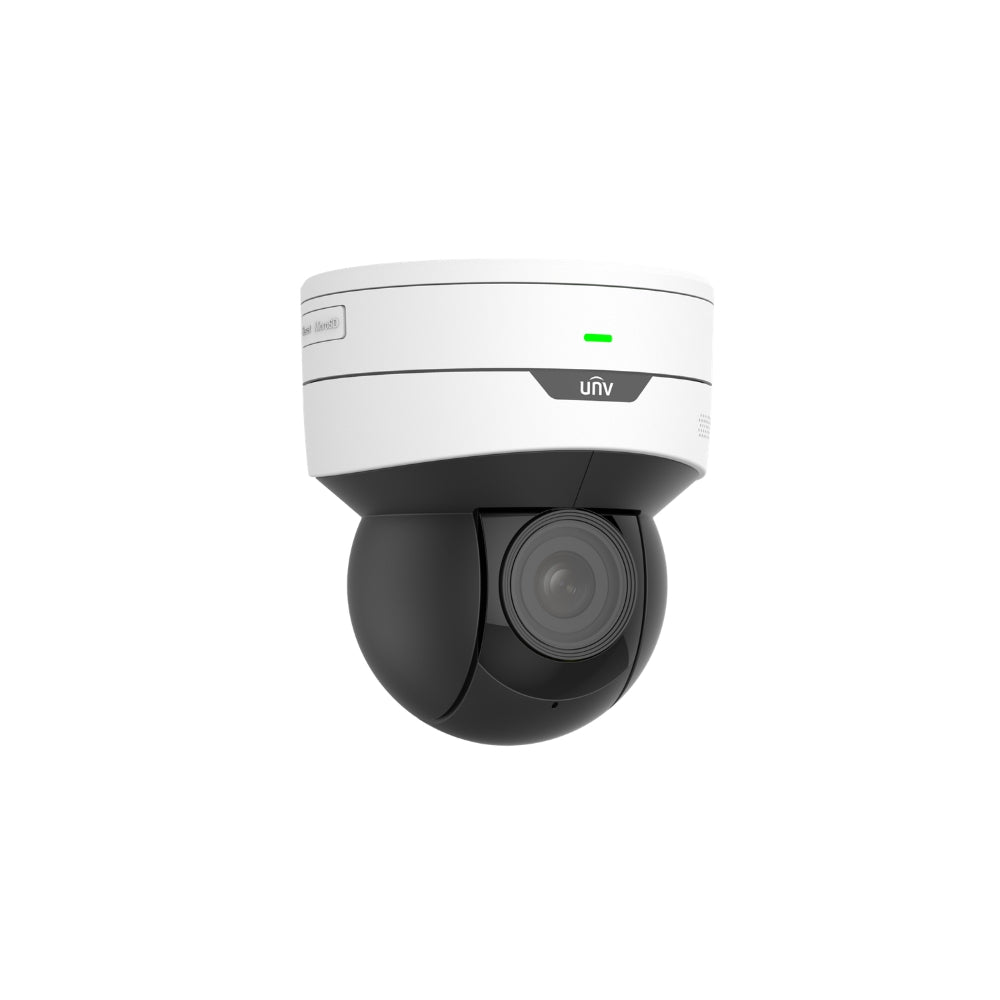

UNV IPC6215SR-X5PAEW-VG 5MP Starlight Wi-Fi IR Network Mini PTZ Camera

• High-quality image with 5 MP, 1/2.7" CMOS sensor
• 2880 × 1620@30 fps in the main stream, 16:9 aspect ratio
• Ultra 265, H.265, H.264, MJPEG
• 5X optical zoom allows for closer viewing of subjects
• Smart intrusion prevention supports false alarm filtering, including cross-line, intrusion, enter area, and leave area detection
• Automatic selection of the best snapshots
• LightHunter technology ensures ultra-high image quality in low illumination environments
• Up to 120 dB optical WDR (wide dynamic range)
• Wi-Fi connection and easy installation
• Built-in mic and speaker, supports two-way audio
• Alarm I/O: 1/1
• Audio I/O: 1/1
• Built-in DC 12 V output
• Smart IR, up to 30 m (98.4 ft) IR distance

Camera

• Sensor: 1/2.7" CMOS
• Min. Illumination: Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 to 1/100000 s
• WDR: 120 dB
• S/N: ＞56dB

Lens

• Focal Length: 2.7 to 13.5 mm
• Optical Zoom: 5X
• Iris: F1.2
• Field of View (H): 104.9° to 30.6°
• Field of View (V): 55.4° to 17.7°
• Field of View (D): 129.0° to 39.8°

DORI

• DORI Distance (Lens): 2.7 to 13.5 mm
• DORI Distance (Detect): 70.9 m to 247.5 m (232.5 ft. to 812.0 ft)
• DORI Distance (Observe): 28.4 m to 99.0 m (93.2 ft. to 324.8 ft)
• DORI Distance (Recognize): 14.2 m to 49.5 m (46.5 ft. to 162.4 ft)
• DORI Distance (Identify): 7.1 m to 24.8 m (23.3 ft. to 81.4 ft)

Video

• Privacy Mask: 24 areas, up to 4 areas per scene
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate: Main Stream: 5 MP (2880 × 1620), max. 30 fps;
  Sub Stream: 720P (1280 × 720), max. 30 fps;
  Third Stream: D1 (720 × 576), max. 30 fps
• Video Bit Rate: 128 Kbps to 16 Mbps
• U-code: Support
• ROI: Support
• Video Stream: Triple streams
• OSD: Up to 8 OSDs

General

• Built-in DC12V Output: Support
• Power: DC 12 V (±25%), PoE+ (IEEE 802.3at)
• Power Consumption: 18 W
• Power Interface: Ø5.5 mm coaxial power plug

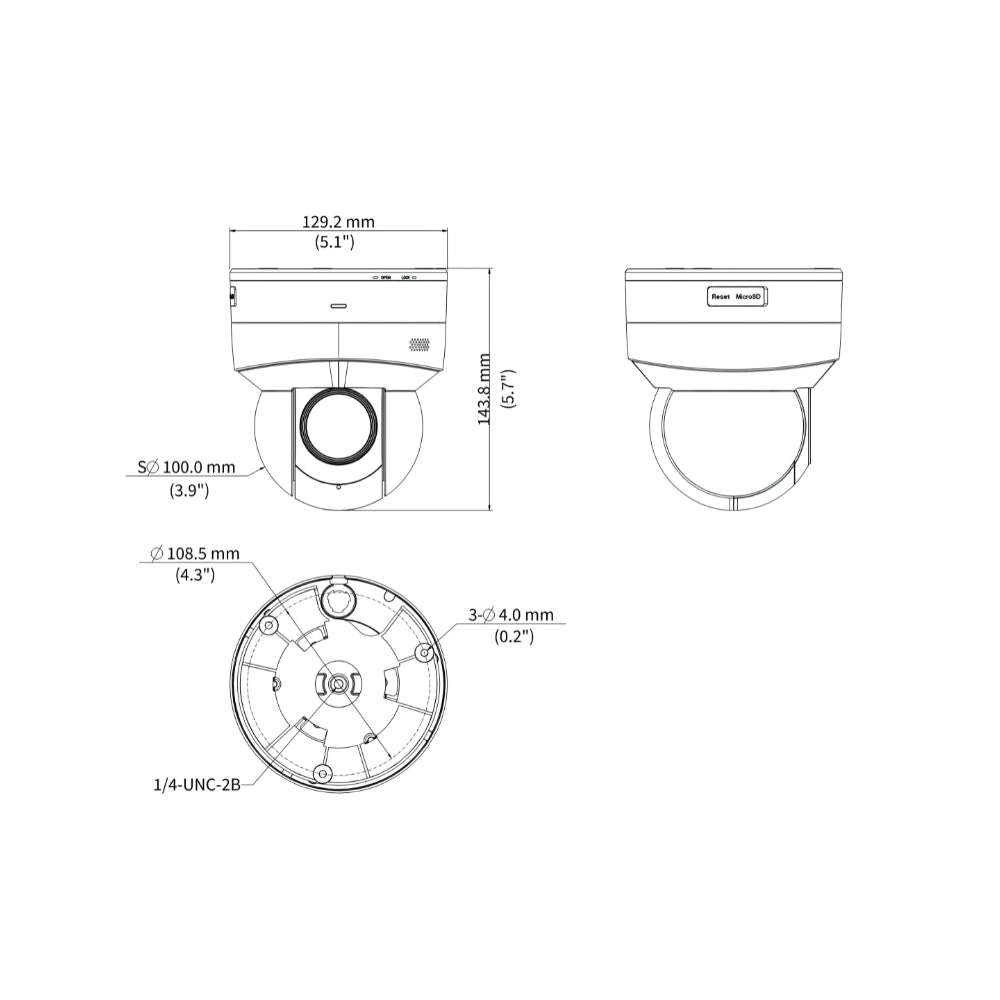

• Dimensions: Ø129 mm × 143.6 mm (Ø5.1" × 5.7") (Ø × H)
• Weight: 780 g (1.72 lb)
• Working Environment: -10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non condensing)
• Storage Environment: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non condensing)
• Surge Protection: 4 KV
• Reset Button: Support
• Material: Plastic
• Web Client Language: 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Intelligent

• Smart Intrusion Prevention: Cross-line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle, and vehicle)
• Exception Detection: Object removed, Object Left Behind, Scene change, Defocus detection


• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
• Digital Noise Reduction: 2D/3D DNR
• Flip: Normal, Flip vertical, Flip horizontal, 180°
• HLC: Support
• BLC: Support
• Smart IR: Support
• Defog: Digital defog

Illuminator

• Light On/Off Control: Auto/Manual
• Wavelength: 850 nm
• Illumination Distance (IR): 30 m (98.4 ft)

Events

• Basic Detection: Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
• General Function: Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 128 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 16 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
  User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
• Security: TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE, and Digest Authentication for ONVIF
• Client: EZStation, UNV-Link, UNV-Link Pro
• Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

PTZ

• Number of Presets: 1024
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Patrol Stay Time: 1800 s to 3600 s
• Home Position: Support
• Pan Range: 350°
• Tilt Range: 0° to 90°
• Pan Speed: 0.1°/s to 60°/s
• Tilt Speed: 0.1°/s to 50°/s

Interface

• Audio I/O: 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
• Alarm I/O: 1/1
• Serial Port: 1 * RS485
• Built-in Mic: Support
• Built-in Speaker: Support
• WIFI: Support
• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC: CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC 61000-3-2: 2019+A1: 2021, EN 50130-4:2011+A1:2014
  FCC（47 CFR Part 15, Subpart B，ANSI C63.4-2014）
• Safety: UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
  CAN/CSA C22.2 NO. 62368-1-14, 2nd Ed., Issue Date:2014-12-01
  EN IEC 62368-1:2020+A11:2020
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Wi-Fi

• Wireless Standards: IEEE802.11b/g/n
• Frequency Range: 2.4 GHz to 2.4835 GHz
• Channel Bandwidth: 20/40 MHz Support
• Transmit Power: 802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9
• Receive Sensitivity: 802.11b: -76 dBm@11 Mbps (Typical) 802.11g: -65 dBm@54 Mbps (Typical) 802.11n: -64 dBm@MCS7_HT20 (Typical)
• Wi-Fi Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK
• Transmission Rate: 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps

Configurable

• P/N: Support
