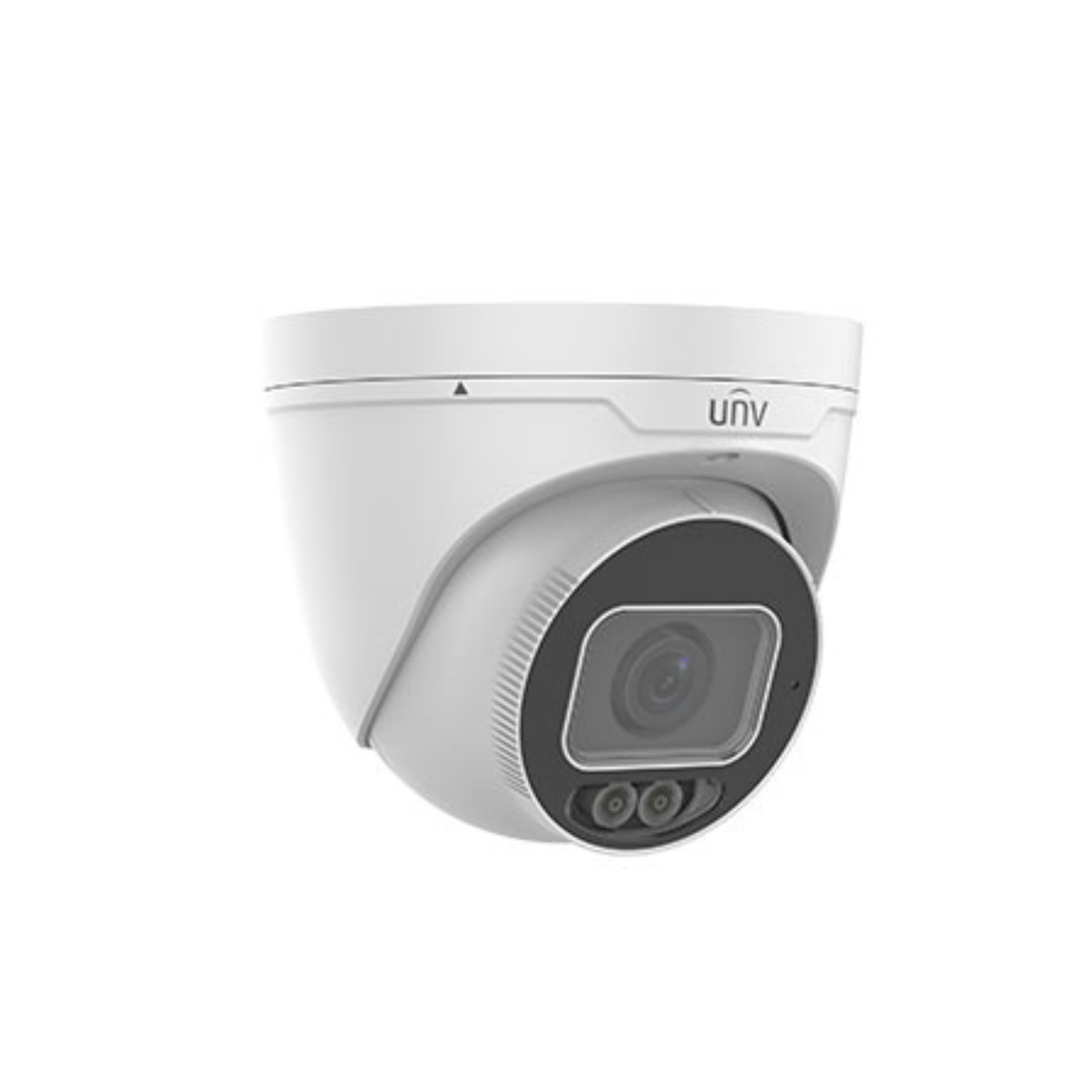

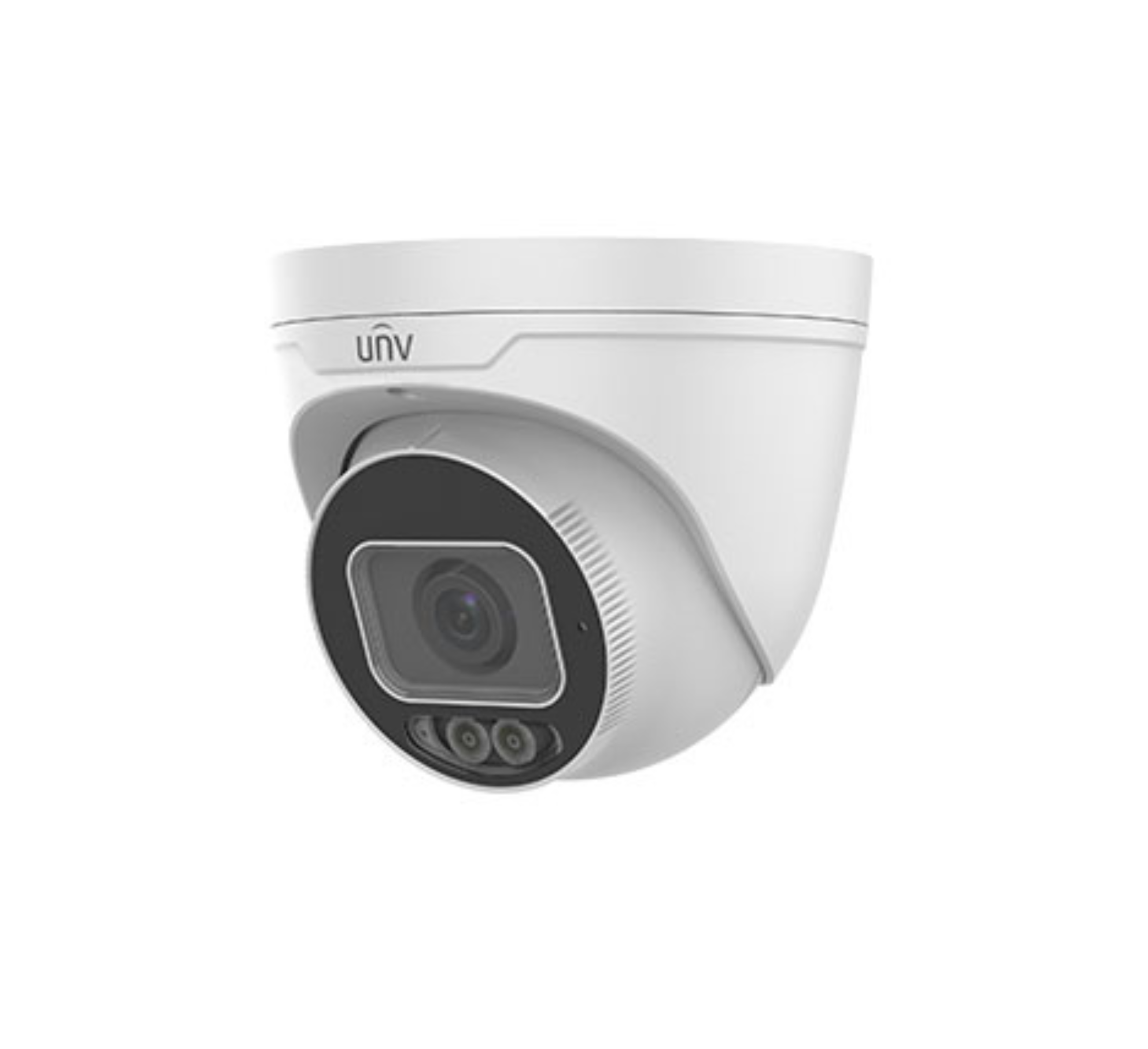

UNV 4MP HD Intelligent Dual Illuminators ColorHunter VF Eyeball Network Camera | UNV-IPC3634SE-ADZK-WL-I0

UNV 4MP HD Intelligent Dual Illuminators ColorHunter VF Eyeball Network Camera | UNV-IPC3634SE-ADZK-WL-I0

This advanced surveillance solution is meticulously engineered to provide exceptional security features and cutting-edge technology. With a high-resolution 4-megapixel sensor, the UNV-IPC3634SE-ADZK-WL-I0 ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.

Features

• High-quality image with 4MP, 1/1.8"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;

• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights etc.
• Intelligent People Flow Counting and Crowd Density Monitoring
• Color hunter technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear images in the strong light scene

• Support 9:16 Corridor Mode

• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G Micro SD card

• IP67 protection
•  IK10 vandal resistant


Technical Specifications

Camera

• Sensor: 1/1.8", 4.0 megapixel, progressive scan, CMOS
• Minimum Illumination:
• Colour: 0.0005Lux ( F1.2, AGC ON)
• Shutter: Auto/Manual, 1 ~ 1/100000s

• Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 72°, Rotate: 0° to 360°
• S/N: >56dB
• WDR: 120dB

Lens

• Lens Type: 2.8mm~ 12mm, AF automatic focusing and motorized zoom lens.
• Iris: Fixed
• Angle Of View (H): 102.4°~ 49.2°

• Angle Of View (V): 54.7°~ 27.8°

• Angle Of View (O): 106.8°~55.0°


DORI

• DORI Distance
• Lens (mm): 2.8
• Detect (m): 43.4
• Observe (m): 17.4
• Recognize (m): 8.7
• Identify (m): 4.3

Illuminator

• LED Distance: Up to 30m (98ft)
• Wavelength: 850nm

• LED On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Supported
• OSD: Up to 8 OSDs

• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple Streams


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported

• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• Recognition: Face capture
• Statistical Analysis: People counting, support people flow counting and crowd density monitoring

Events

• Basic Detection: Cross-line, intrusion(based on human body detection) motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

• Audio Compression: G.711
• Suppression: Supported
• Two-Way Audio: N/A
• Sampling Rate: 8KHZ
• Audio Bitrate: 64Kbps

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR,NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security Password: protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation / EZView / EZLive
• Web Browser:
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

• Audio I/O:
• Input: impedance 35kΩ; amplitude 2V [p-p]
• Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certification

• EMC:
• CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
• FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety:
• CE LVD (EN 62368-1:2014+A11:2017)
• CB (IEC 62368-1:2014)
• UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection:
• IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
• IK10 (IEC 62262:2002)

• Power DC: 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 10.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: (Ø x H) Φ129 x 110 mm (Φ5.1” x 4.3”)
• Weight: 0.69kg (1.52lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A

Product Literature

• UNV-IPC3634SE-ADZK-WL-I0 Datasheet
• UNV-IPC3634SE-ADZK-WL-I0 User Manual
• UNV-IPC3634SE-ADZK-WL-I0 Quick Guide
