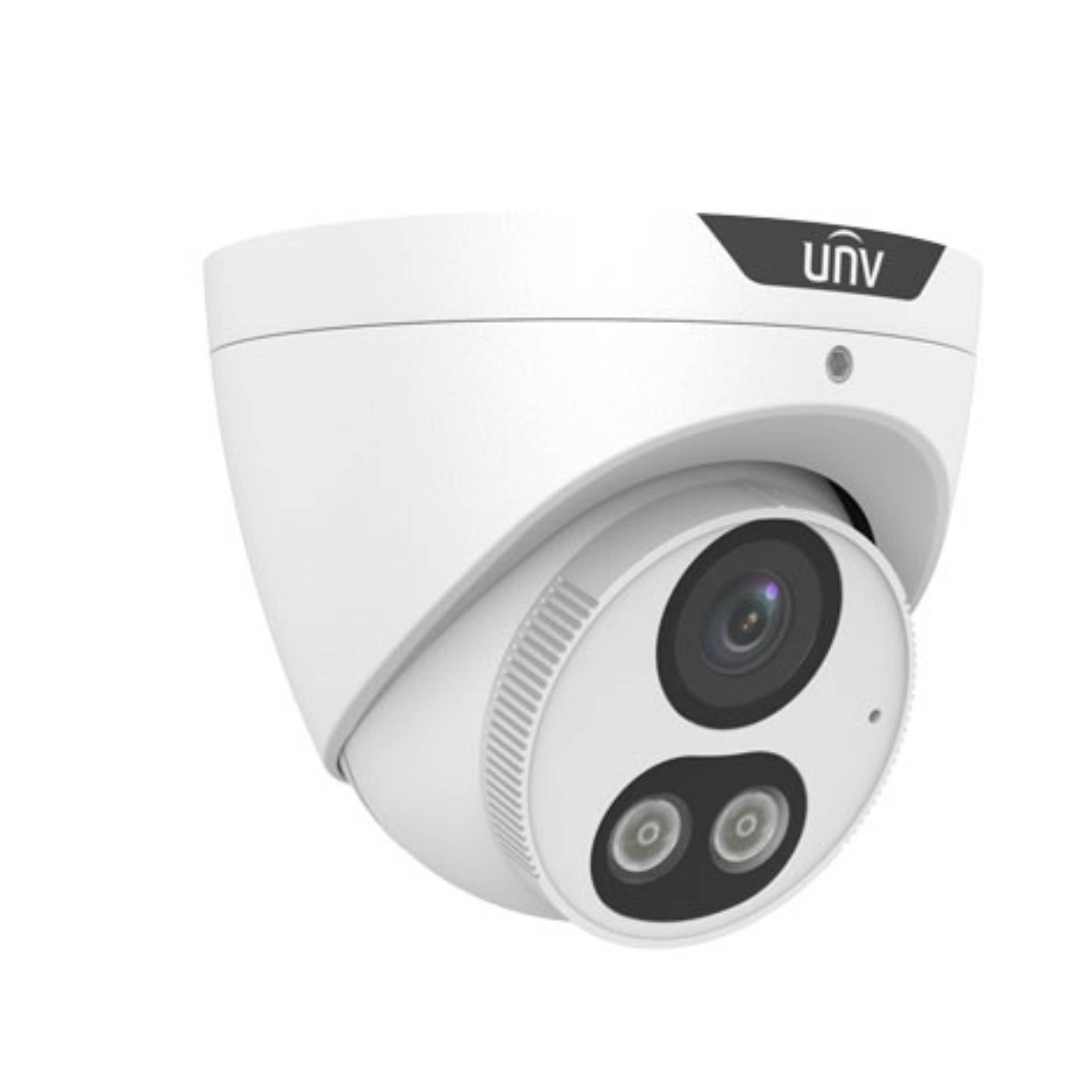

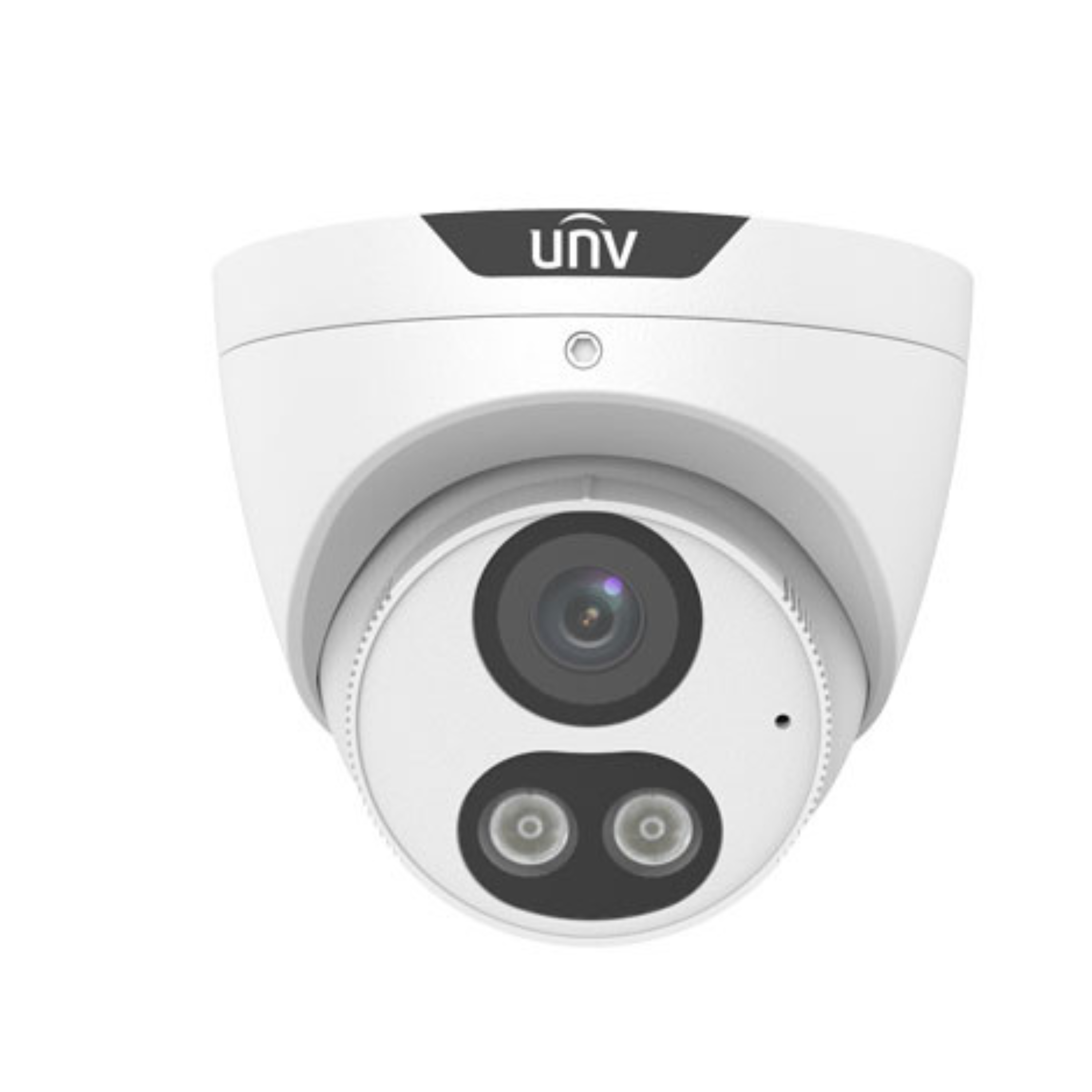

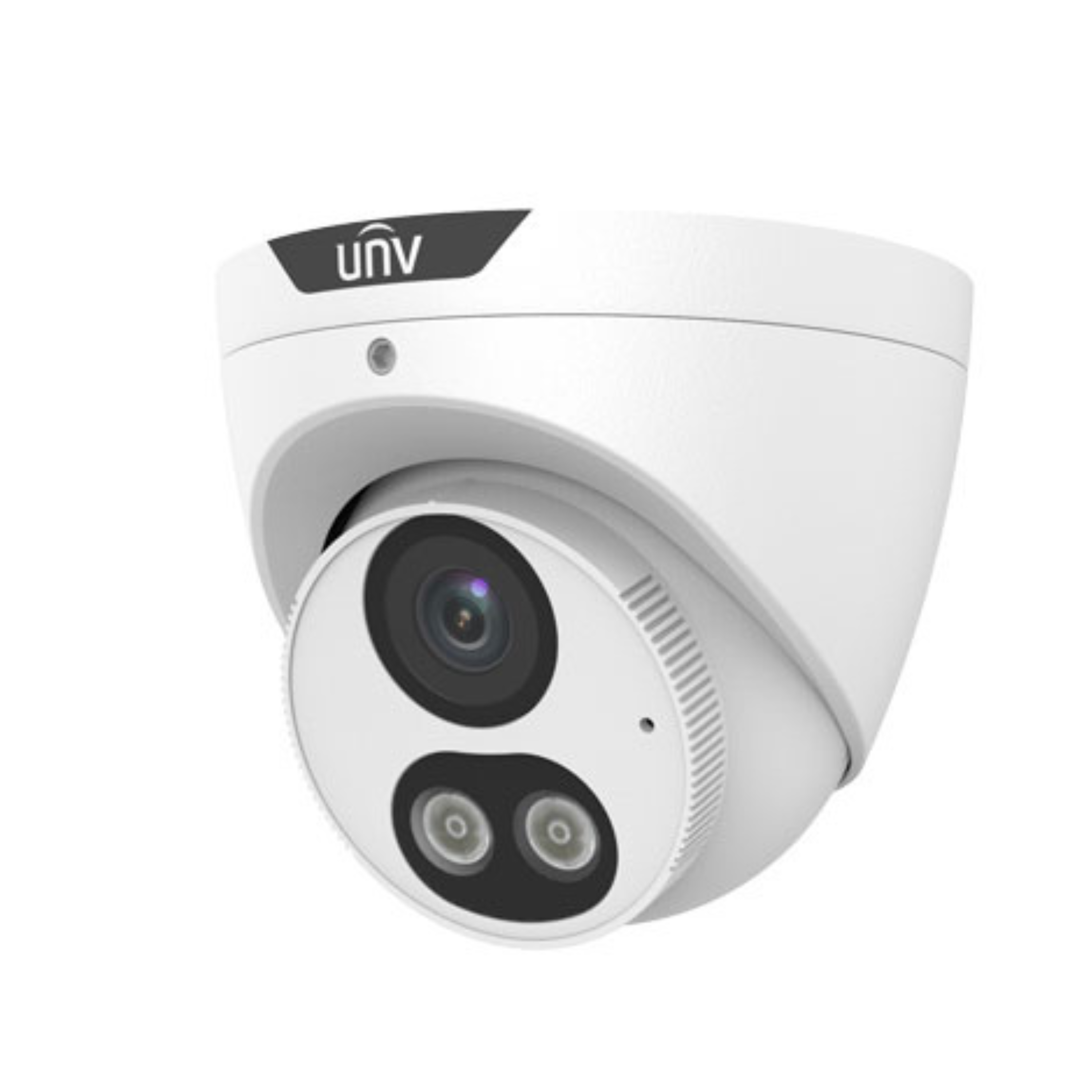

UNV 5MP HD Intelligent ColorHunter Fixed Eyeball Network Camera | UNV-IPC3615SE-ADF28KM-WL-I0

UNV 5MP HD Intelligent ColorHunter Fixed Eyeball Network Camera | UNV-IPC3615SE-ADF28KM-WL-I0

Features

• High quality image with 4MP, 1/3"CMOS sensor
• 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps;3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds lights etc., accurately focuses on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Colorhunter technology ensures 24-hour full-color images120dB true WDR technology enables clear images in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic & Speaker
• Supports 256 G Micro SD card

• IP67 protection
• Support PoE power supply

Technical Specifications

Camera

• Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
• Minimum Illumination:
• Colour: 0.001Lux ( F1.0, AGC ON)
• Shutter: Auto/Manual, 1 ~ 1/100000s

• Adjustment angle: Pan: 3° to 360°, Tilt: 0° to 80°, Rotate: 3° to 360°
• S/N: >56dB
• WDR: 120dB

Lens

• Lens Type: 2.8mm@F1.0
• Angle Of View (H): 102.0°
• Angle Of View (V): 53.4°
• Angle Of View (O): 121.0°

DORI

• DORI Distance
• Lens (mm): 2.8
• Detect (m): 63.0
• Observe (m): 25.2
• Recognize (m): 12.6
• Identify (m): 6.3

Illuminator

• LED Distance: Up to 30m (98ft)
• LEDs Number: 2
• LED On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps;3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; 720P(1280*720), Max 30fps
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Supported
• 9:16 Corridor Mode: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple Streams


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
• Statistical Analysis: People counting, support tripwire people counting and area people counting

Events

• Basic Detection: Cross-line, intrusion(based on human body detection) motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ
• Audio Bitrate: 64Kbps

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR,NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security Password: protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation / EZView / EZLive
• Web Browser:
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

• Audio I/O: N/A
• Alarm I/O: N/A
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certification

• EMC:
• FCC CFR 47 Part 15
• EN 55032:2015
• EN 55024:2010
• EN 61000-3-2:2014
• EN 61000-3-3-2013
• Safety:
• IEC 62368-1
• EN 62368-1
• UL 62368-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection: Ingression protection: IP67 (IEC 60529-2013)

General

• Power DC: 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 7.5W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: (Ø x H) Φ110.5 x 94.1 mm (Φ4.4” x 3.7”)
• Weight: 0.44kg (0.97lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A
• Ingress Protection: IP67
