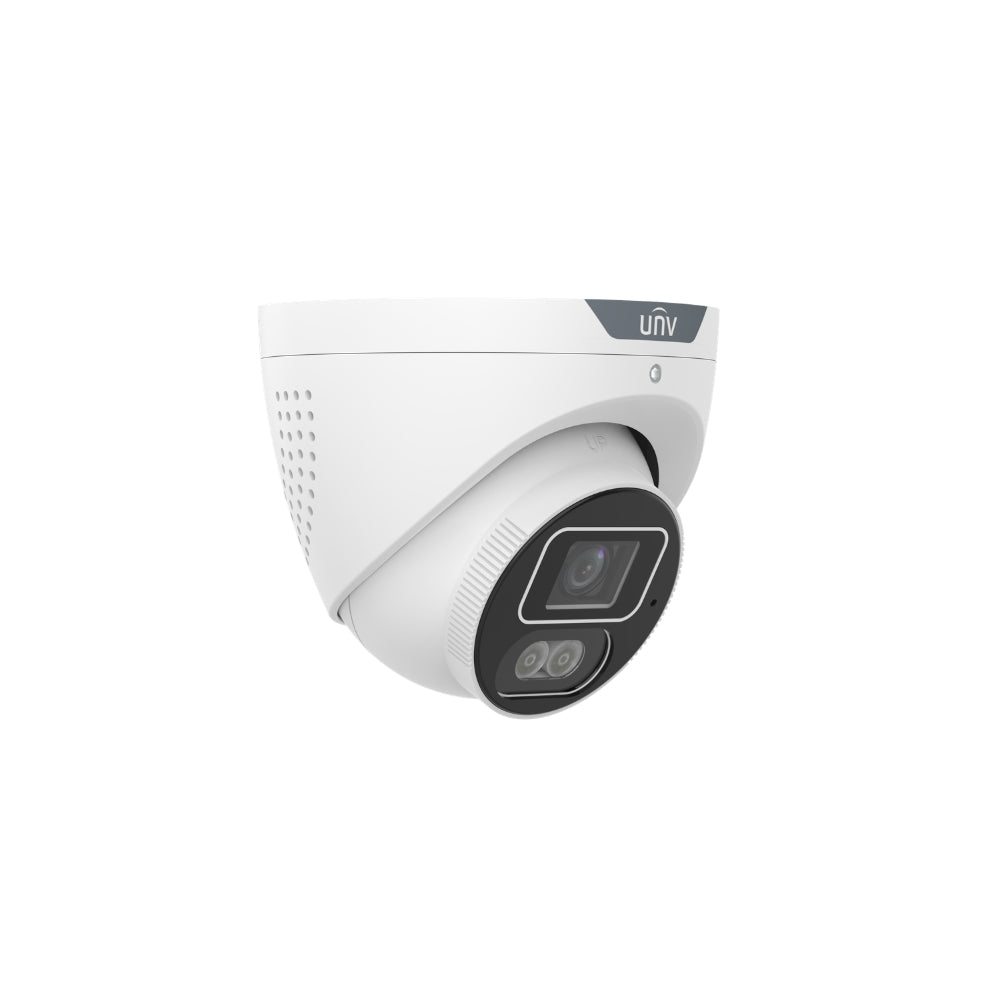

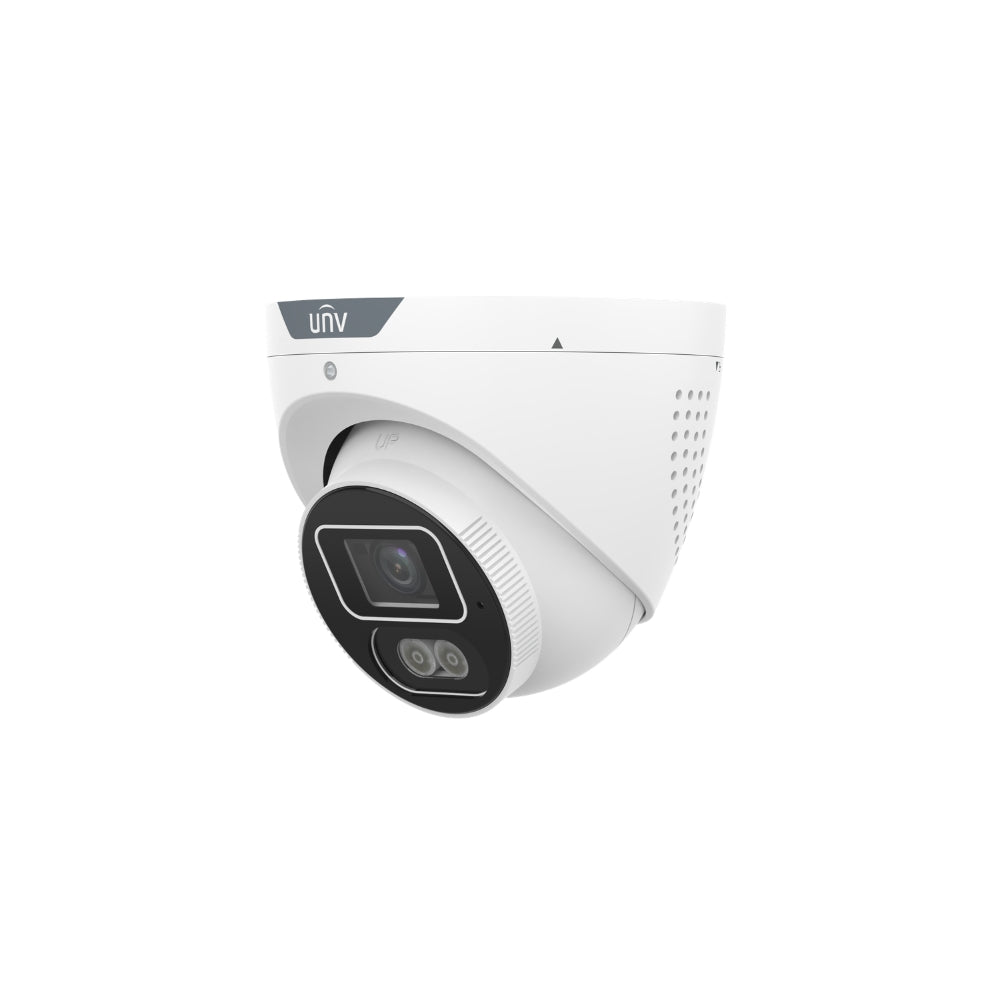

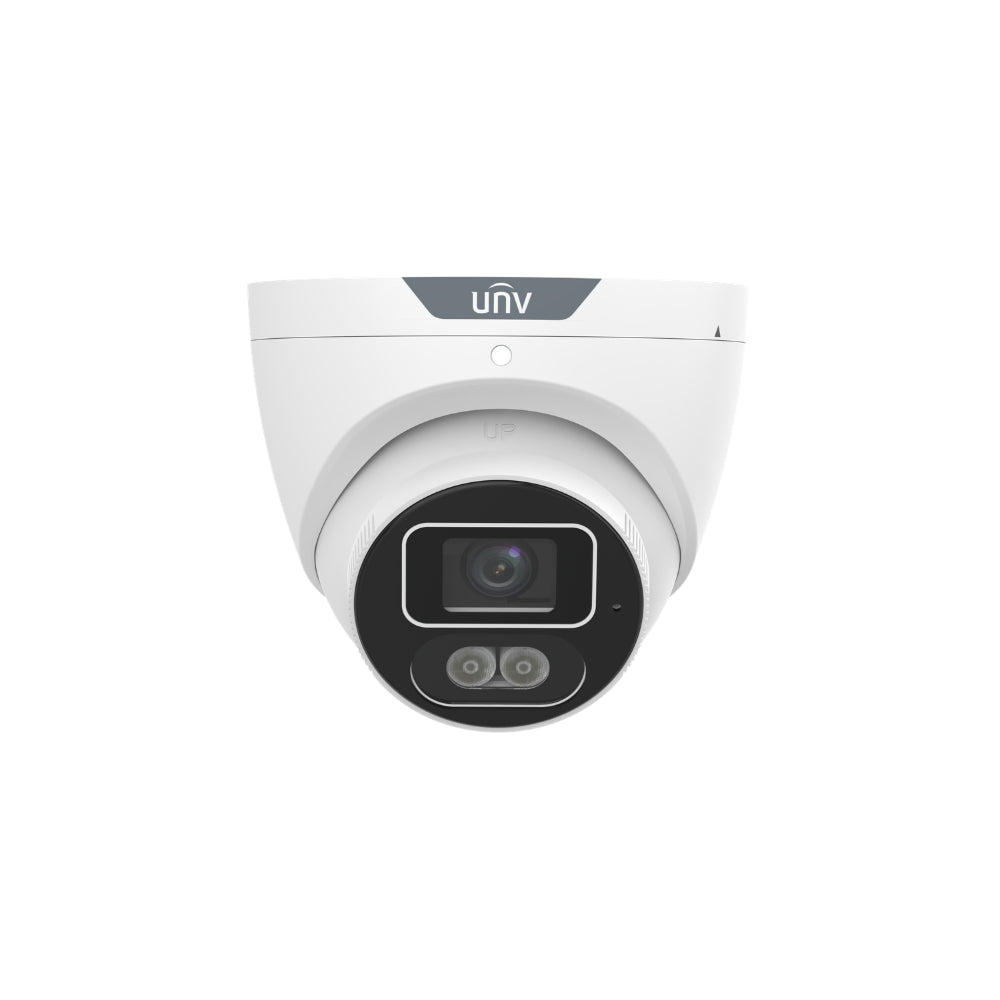

UNV IPC3614SB-ADF28KMC-I1 4MP TriGuard Fixed Eyeball Network Camera (2.8mm Focal)

• High-quality image with 4 MP, 1/2.9" CMOS sensor
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross-line, intrusion, enter area, and leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lighting, accurately focusing on humans, vehicles, and non-motorized vehicles
• Intelligent people flow counting and crowd density monitoring
• 130 dB true WDR technology ensures a clear image in a strong backlight scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection

Camera

• Max Resolution: 4 MP
• Sensor: 1/2.9" CMOS
• Min. Illumination: Color: 0.002 Lux (F1.4, AGC ON), 0 Lux with light
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 to 1/100000 s
• Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
• S/N: > 56 dB
• WDR: 130 dB

Lens

• Focal Length: 2.8 mm
• Iris: F1.4
• Field of View (H): 101.1°
• Field of View (V): 57.1°
• Field of View (D): 117.7°
• Lens Type: Fixed
• Iris Type: Fixed

DORI

• DORI Distance (Lens): 2.8 mm
• DORI Distance (Detect): 63.0 m (206.7 ft.)
• DORI Distance (Observe): 25.2 m (82.7 ft.)
• DORI Distance (Recognize): 12.6 m (41.3 ft.)
• DORI Distance (Identify): 6.3 m (20.7 ft.)

Illuminator

• Illumination Distance (IR): 30 m (98.4 ft)
• Illumination Distance (Warm Light): 30 m (98.4 ft)
• IR On/Off Control: Auto/Manual
• Wavelength: 850 nm
• Light On/Off Control: Auto/Manual
• Supplemental Light: Dual light

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate: Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
  Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps;
  Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
• Video Bit Rate: 128 Kbps to 16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Support
• Video Stream: Triple streams


• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital defog

Intelligent

• Smart Intrusion Prevention: Cross-line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle, and vehicle)
• Statistical Analysis: N/A
• People Counting: Support people flow counting and crowd density detection
  Events
• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
• Client: EZStation, APP
• Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Audio I/O: N/A
• Alarm I/O: N/A
• Serial Port: N/A
• Built-in Mic: Support
• Built-in Speaker: Support
• WIFI: N/A
• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
• Video Output: N/A

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
  FCC (FCC 47 CFR part 15 B)
• Safety: CE-LVD (EN 62368-1)
  UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529)

General

• Power: DC 12 V±25%, PoE (IEEE 802.3af)
• Power Consumption: Max. 11.0 W
• Power Interface: Ø5.5 mm coaxial power plug

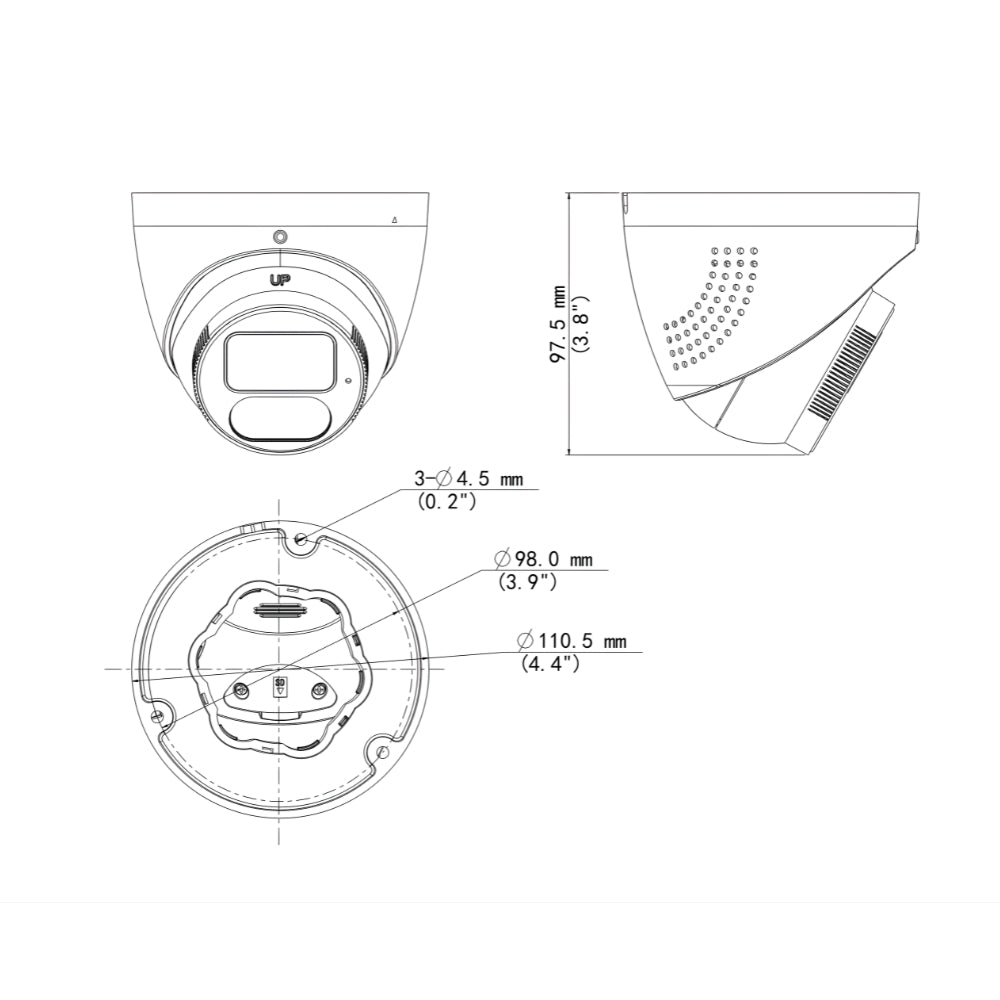

• Dimensions: Ø111 mm × 98 mm (Ø4.4" × 3.8") (Ø × H)
• Weight: 0.47 kg (1.04 lb)
• Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Material: Metal
• Surge Protection: 4 KV
• Reset Button: N/A
• Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
