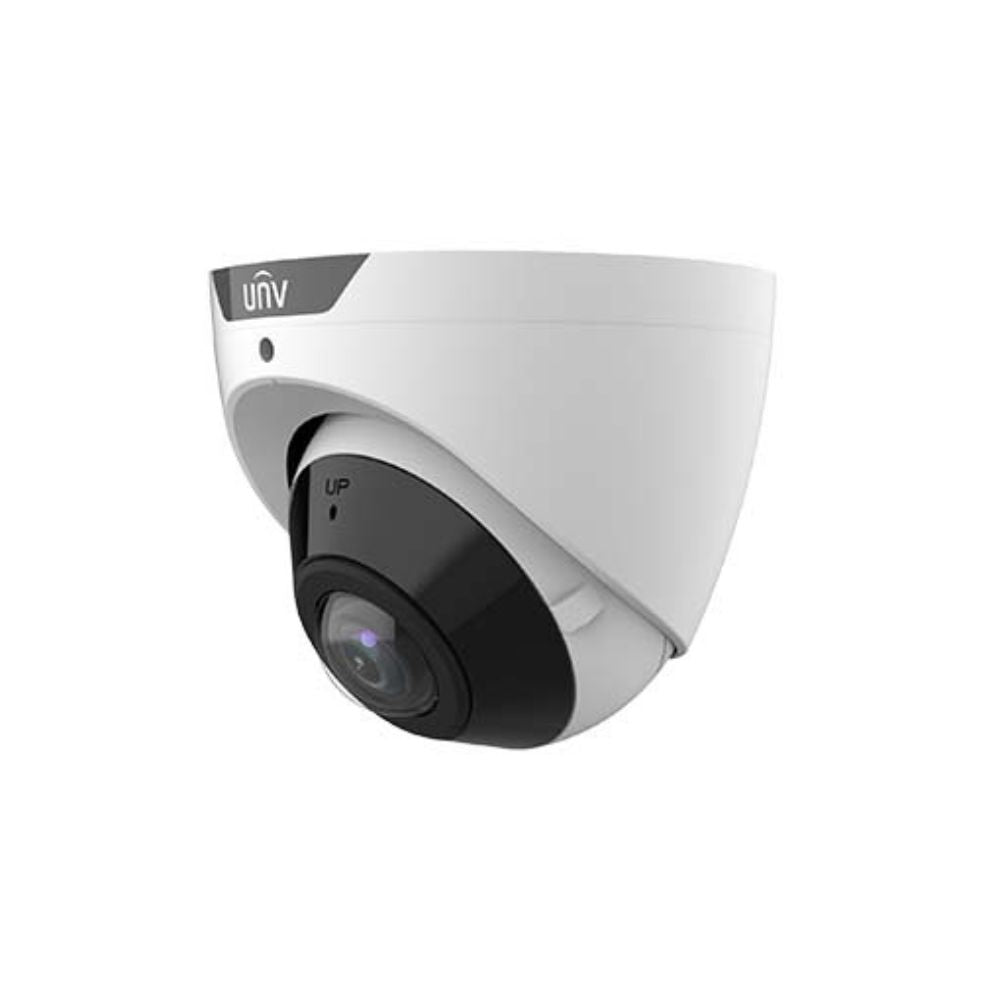

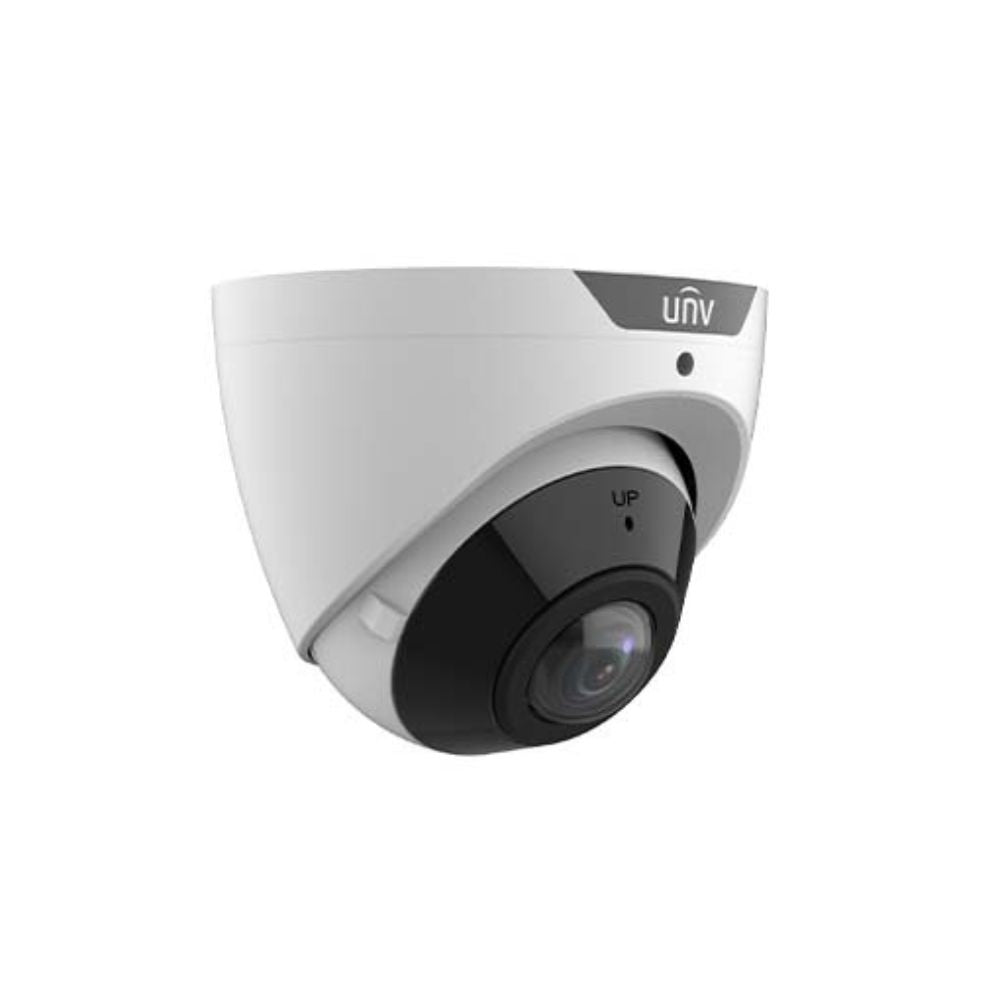

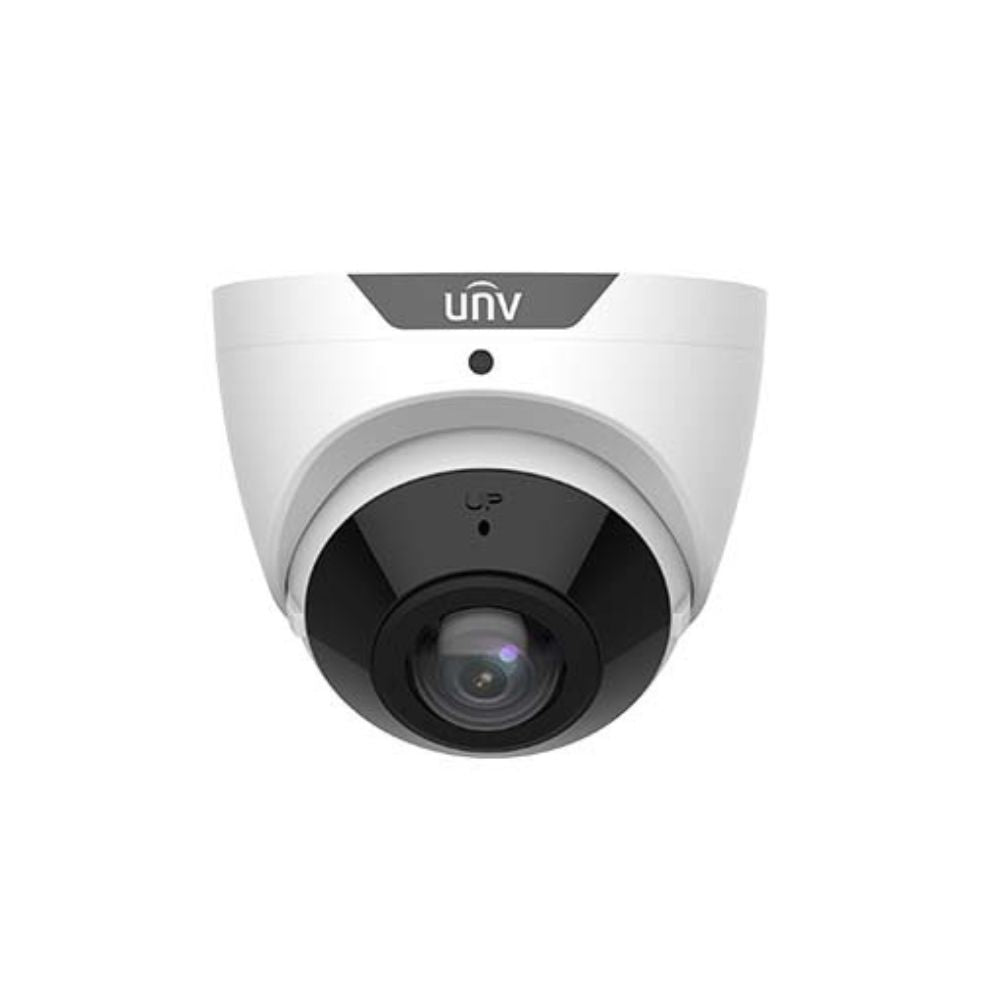

UNV 5MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera | UNV-IPC3605SB-ADF16KM-I0

Free US Shipping
UNVSKU: UNV-IPC3605SB-ADF16KM-I0

Price:
Sale price$439.00

Estimate shipping

UNV 5MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera | UNV-IPC3605SB-ADF16KM-I0

Introducing the UNV 5MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera, a powerful surveillance solution designed to provide high-quality imaging and intelligent features for comprehensive security monitoring.

 Features
  • High quality image with 5MP, 1/2.7"CMOS· sensor
  • 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
  • Wide Angle technology realize the horizontal viewing angle of 180°
  • The dewarp level can be configured in the range of 1-9
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights, etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • 120dB true WDR technology enables clear images in a strong light scene
  • Built-in Mic
  • Smart IR, up to 20m (66ft) IR distance
  • Supports 256 GB Micro SD card
  • IP67 protection
  • IK10 vandal resistant
Technical Specifications

Camera

  • Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
  • Minimum Illumination: Colour: 0.01lux (F2.0, AGC ON). 0 lux with IR on
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Adjustment angle
    • Pan: 0° ~ 360°
    • Tilt: 0° ~ 75°
    • Rotate: 0° ~ 360°
  • WDR: 120dB
  • S/N: >56dB

Lens

  • Lens: 1.68mm@F2.0
  • Iris: Fixed
  • Field of View (H): 180°
  • Field of View (V): 100°
  • Field of View (O): 180°

DORI

  • DORI Distance
    • Lens (mm): 1.68
    • Detect (m): 37.8(124.0ft)
    • Observe (m): 15.1(49.6ft)
    • Recognize (m): 7.6(24.8ft)
    • Identify (m): 3.8(12.4ft)

Illuminator

  • IR Range: Up to 20m (66ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual

Video

  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • H.264 code profile: Baseline profile, Main profile, High profile
  • Frame Rate
    • Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
    • Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    • Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Video Bit Rate: 128 Kbps~10 Mbps
  • U-code: Support
  • OSD: Up to 8 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 8 areas
  • Video Stream: Triple streams


  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Digital Noise Reduction: 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal/ Flip Vertical/ Flip Horizontal/180°
  • Dewarping: Support
  • HLC: Support
  • BLC: Support
  • Defog: Digital Defog

Intelligent

  • Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Events

  • Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
  • General Function: Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication

Audio

  • Audio Compression: G.711U, G.711A
  • Audio Bitrate: 64 Kbps
  • Two-way audio: N/A
  • Suppression: Support
  • Sampling Rate: 8KHZ

Storage

  • Edge Storage: Micro SD, up to 256GB
  • Network Storage: ANR, NAS(NFS)

Network

  • Protocols: IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
  • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
  • Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
  • Client: EZStation, EZView, EZLive
  • Web Browser
    • Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
    • Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

  • Audio I/O: N/A
  • Alarm I/O: N/A
  • Serial Port: N/A
  • Built-in Mic: Support
  • Built-in Speaker: N/A
  • WIFI: N/A
  • Network: 1 RJ45 10M/100M Base-TX Ethernet
  • Video Output: N/A

Certifications

  • EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035). FCC (FCC 47 CFR part15 B)
  • Safety
    • CE LVD (EN 62368-1)
    • CB (IEC 62368-1)
    • UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
  • Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
  • Protection
    • IP67 (IEC 60529)
    • IK10 (IEC 62262)

General

  • Power: DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 5.5W
  • Power Interface: Ø 5.5mm coaxial power plug
  • Dimensions (Ø x H): Φ111 x 93mm (Φ4.4”x 3.7”)
  • Weight: 0.48kg (1.06lb)
  • Material: Metal
  • Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 4KV
  • Reset Button: Support
