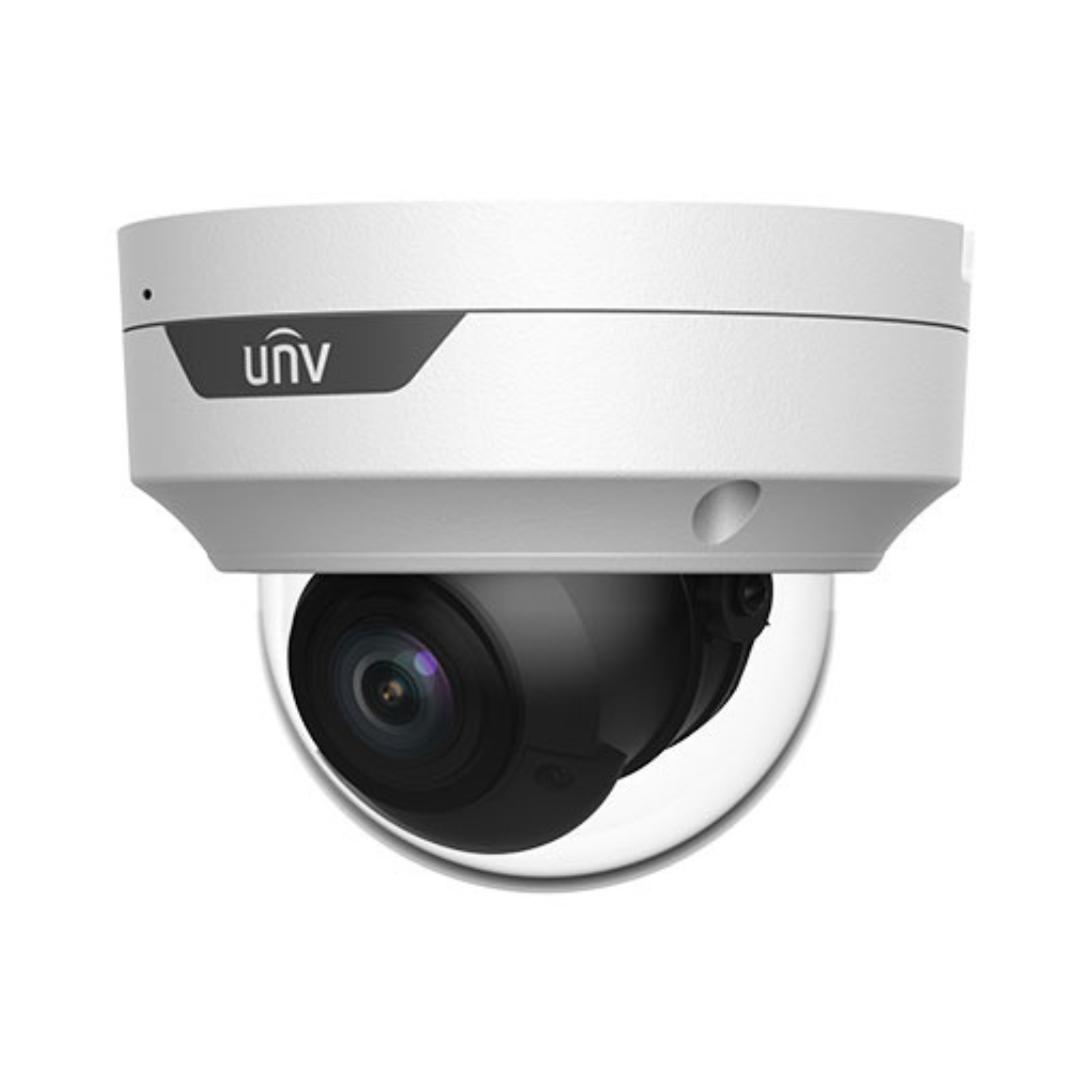

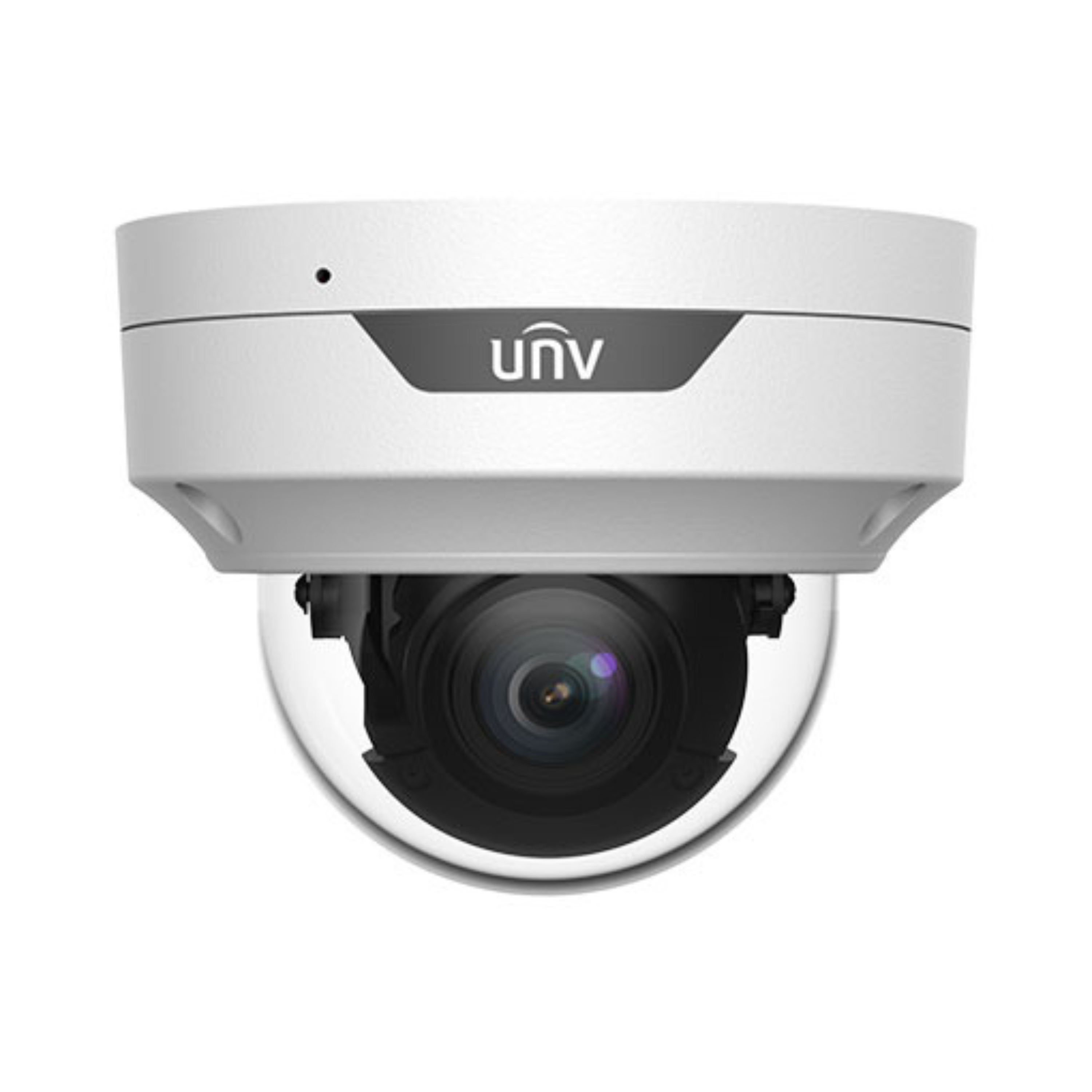

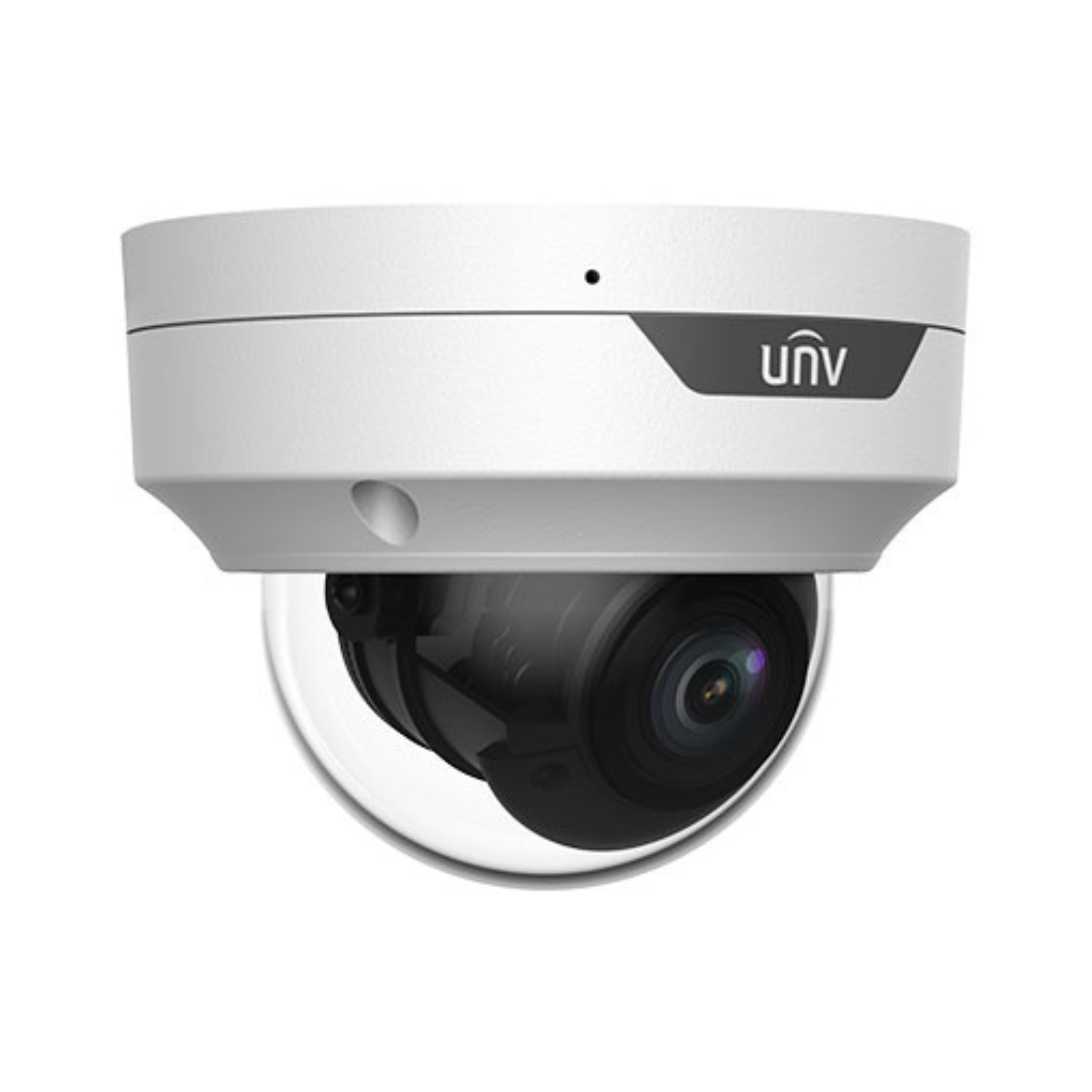

UNV 4MP HD IR VF Dome Network Camera | UNV-IPC3534SR4-ADZK-H

UNV 4MP HD IR VF Dome Network Camera | UNV-IPC3534SR4-ADZK-H

Experience unparalleled surveillance capabilities with the UNV 4MP HD IR VF Dome Network Camera, model UNV-IPC3534SR4-ADZK-H. This advanced camera combines high-definition imaging, intelligent features, and versatile design to provide a robust security solution for a wide range of applications.

Features

• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520) @25/20fps; 4MP (2560*1440) @25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear images in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• IK10 protection
• Support PoE power supply
• 3-Axis

Camera

• Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
• Minimum Illumination:
• Colour: 0.003 lux (F1.6, AGC ON)
• 0 lux with IR on
• Day/Night:  IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
• Adjustment angle:
• Pan: 3° ~ 360°
• Tilt: 0° ~ 70°
• Rotate: 3° ~ 360°
• WDR: 120dB
• S/N: >52 dB

Lens

• Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
• Iris Fixed
• Field of View (H) 86.3°~35.2°
• Field of View (V) 47.1°~17.0°
• Field of View (D) 91.9°~38.6°

DORI Distance:

• Lens (mm): 2.8 - 12
• Detect (m): 63(206.7ft) - 270.0(885.8ft)
• Observe (m): 25.2(82.7ft) - 108.0(354.3ft)
• Recognize (m):  12.6(41.3ft) - 54.0(177.2ft)
• Identify (m): 6.3(20.7ft) -  27.0(88.6ft)

Illuminator

• IR Range Up to 40m (131ft) IR range
• Wavelength 850nm
• IR On/Off Control Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile:  Baseline profile, Main profile, High profile
• Frame Rate:  Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
• Video Bit Rate: 128 Kbps~6 Mbps
• U-code: Support
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI Up: to 8 areas
• Video Stream: Dual streams


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise: Reduction 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Events

• Basic Detection Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
• General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication

Audio

• Audio Compression G.711U, G.711A
• Audio Bitrate 64 Kbps
• Two-way Audio N/A
• Suppression Support
• Sampling Rate 8KHZ

Storage

• Edge Storage Micro SD, up to 256GB
• Network Storage ANR, NAS(NFS)

Network

• Protocols: IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client:
• EZStation
• EZView
• EZLive
• Web Browser:
• Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio: I/O N/A
• Alarm: I/O N/A
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC:

• CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
• FCC (FCC 47 CFR part15 B)
• Safety:
• CE LVD (EN 62368-1)
• CB (IEC 62368-1)
• UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
• Protection
• IP67 (IEC 60529)
• IK10 (IEC 62262)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 8.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions :(Ø x H) Φ128mmx100mm (Ø5.0” x 3.9”)
• Weight: 0.66kg(1.46lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 6KV
• Reset Button: Support

Accessories

• TR-WM03-B-IN
• TR-UP06-IN
• TR-A01-INP
• TR-JB03-H-IN
• TR-SE24-IN
• TR-SE24-A-IN
• TR-CM24-IN
• TR-JB07/WM03-F-IN
