Name: UNV IPC3528SR-ADF28KM-WP 8MP Owlview Fixed Wise-ISP Dome Network Camera (2.8mm Focal)
Brand: UNV
SKU: UNV-IPC3528SR-ADF28KM-WP
Price: 539.0 USD
Availability: InStock

UNV IPC3528SR-ADF28KM-WP 8MP Owlview Fixed Wise-ISP Dome Network Camera (2.8mm Focal) | All Security Equipment

Roll over image to zoom in Click on image to zoom

PromotionEnjoy Instant Savings at Checkout — Or Unlock Even Greater Benefits as a Pro Member!

Country

Province

Zip code

UNV IPC3528SR-ADF28KM-WP 8MP Owlview Fixed Wise-ISP Dome Network Camera (2.8mm Focal)

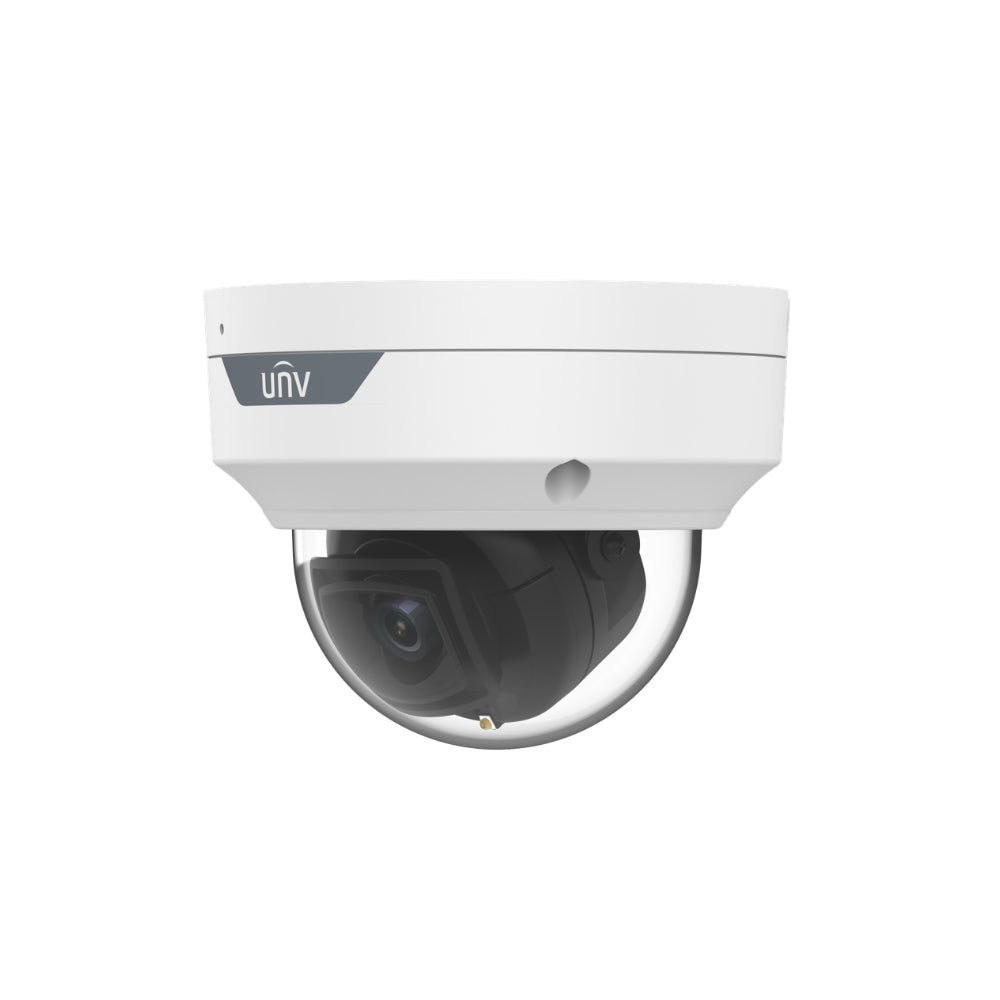

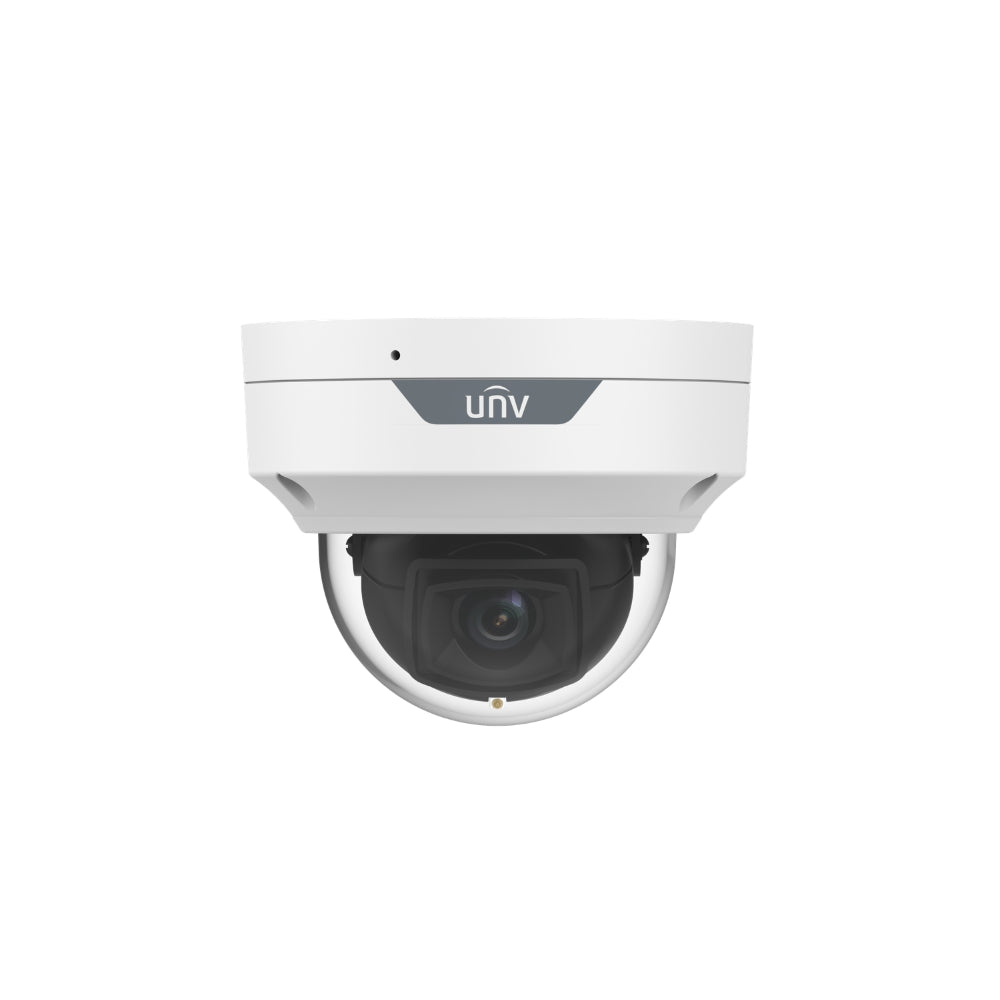

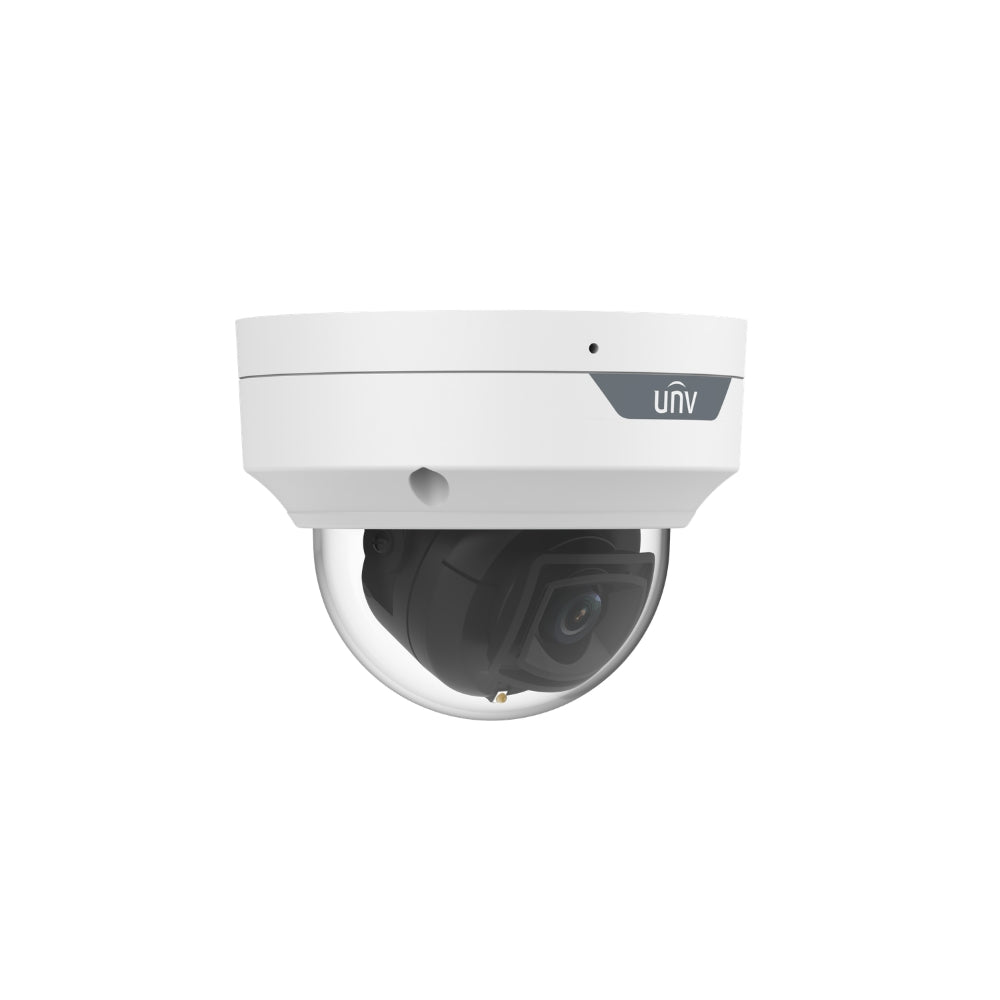

The UNV IPC3528SR-ADF28KM-WP is an 8MP (4K) fixed dome camera that represents the next generation of Uniview's low-light imaging. Part of the OwlView series, this camera is built around the revolutionary Wise-ISP engine and a massive 1/1.8" sensor, allowing it to deliver vivid, full-color images in near-total darkness without the "grain" found in traditional night vision.

Constructed with a heavy-duty metal housing, this dome is designed for both high-end aesthetics and industrial-grade durability. It features ColorHunter technology with integrated Warm White Light LEDs, ensuring 24/7 color capture. Whether it's identifying the exact color of a vehicle or a suspect's clothing, this camera provides the forensic detail that 4K users demand.

Camera

Max Resolution: 8 MP
Sensor: 1/1.8" CMOS
Min. Illumination: Color: 0.0003 Lux (F1.0, AGC ON)
Shutter: Auto/Manual, 1 to 1/100000 s
Adjustment Angle: Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
S/N: > 52 dB
WDR: 120 dB

Lens

Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F1.0
Field of View (H): 111.0°
Field of View (V): 63.0°
Field of View (D): 131.0°
Lens Type: Fixed

DORI

DORI Distance (Lens): 2.8 mm
DORI Distance (Detect): 63.0 m (206.7 ft)
DORI Distance (Observe): 25.2 m (82.7 ft)
DORI Distance (Recognize): 12.6 m (41.3 ft)
DORI Distance (Identify): 6.3 m (20.7 ft)

Illuminator

Supplemental Light: Warm light
Illumination Distance (Warm Light): 30 m (98.4 ft)
Light On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate: 128 Kbps to 16 Mbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart Illumination: Support
Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog

Events

Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Smart Intrusion Prevention (Lite): Intrusion, crossline detection (both detections are based on human body and vehicle detection)

Audio

Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB
Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE, and Digest Authentication for ONVIF
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification

EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)
IK10 (IEC 62262)

General

Power: DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 5.0 W
Power Interface: Ø5.5 mm coaxial power plug

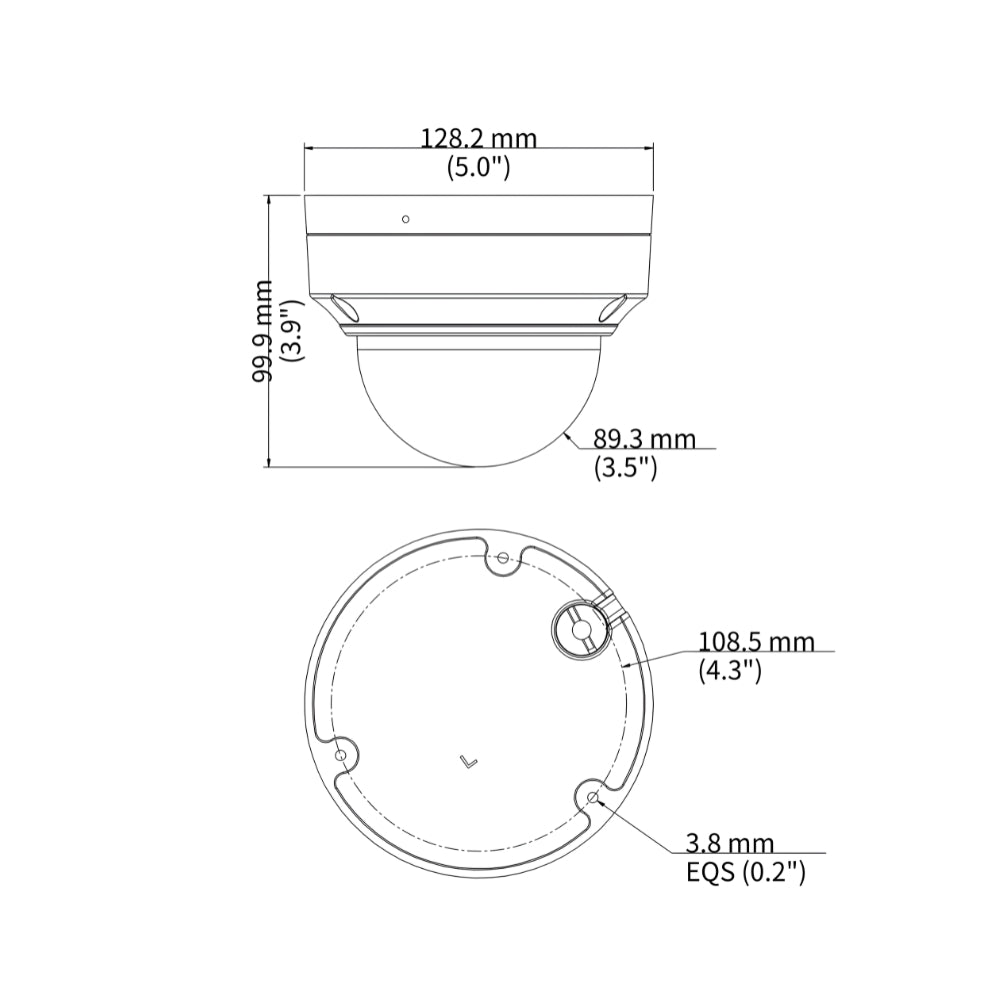

Dimensions: Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight: 0.61 kg (1.34 lb)
Material: Metal
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: Support
Web Client Language: 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
