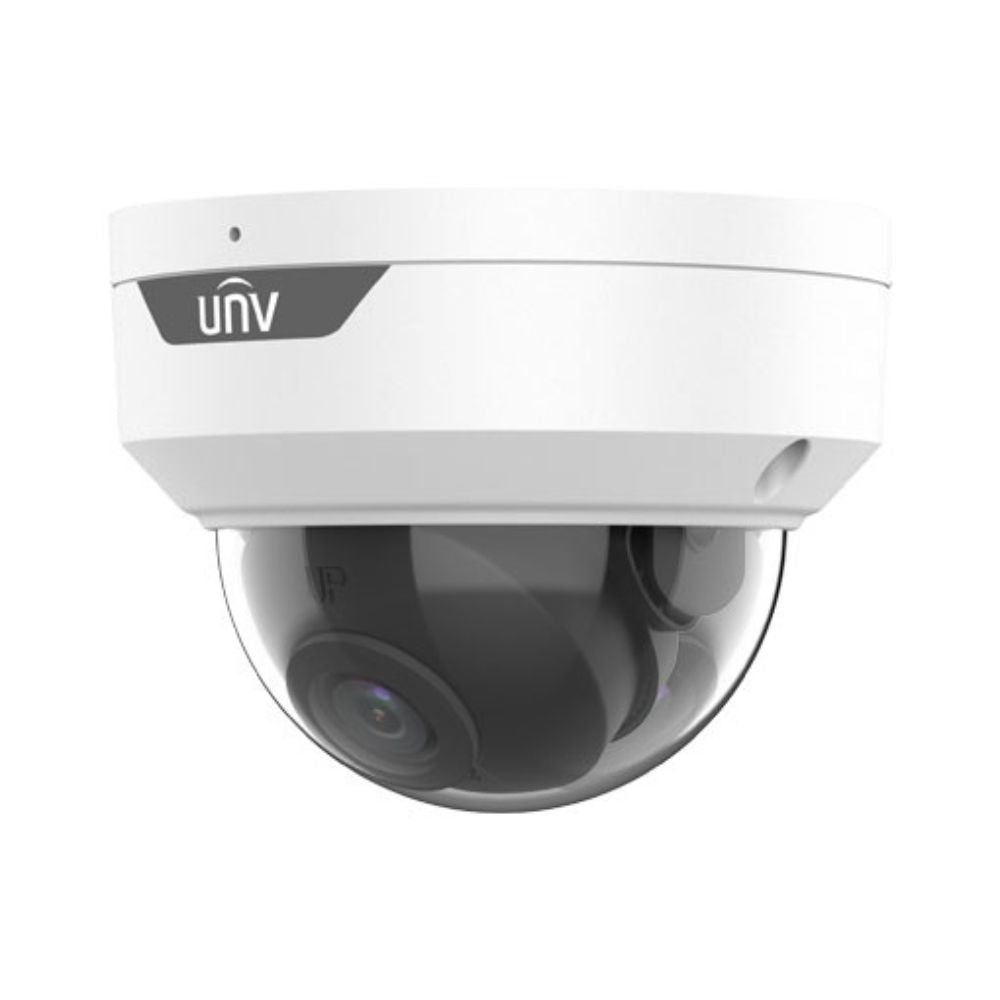

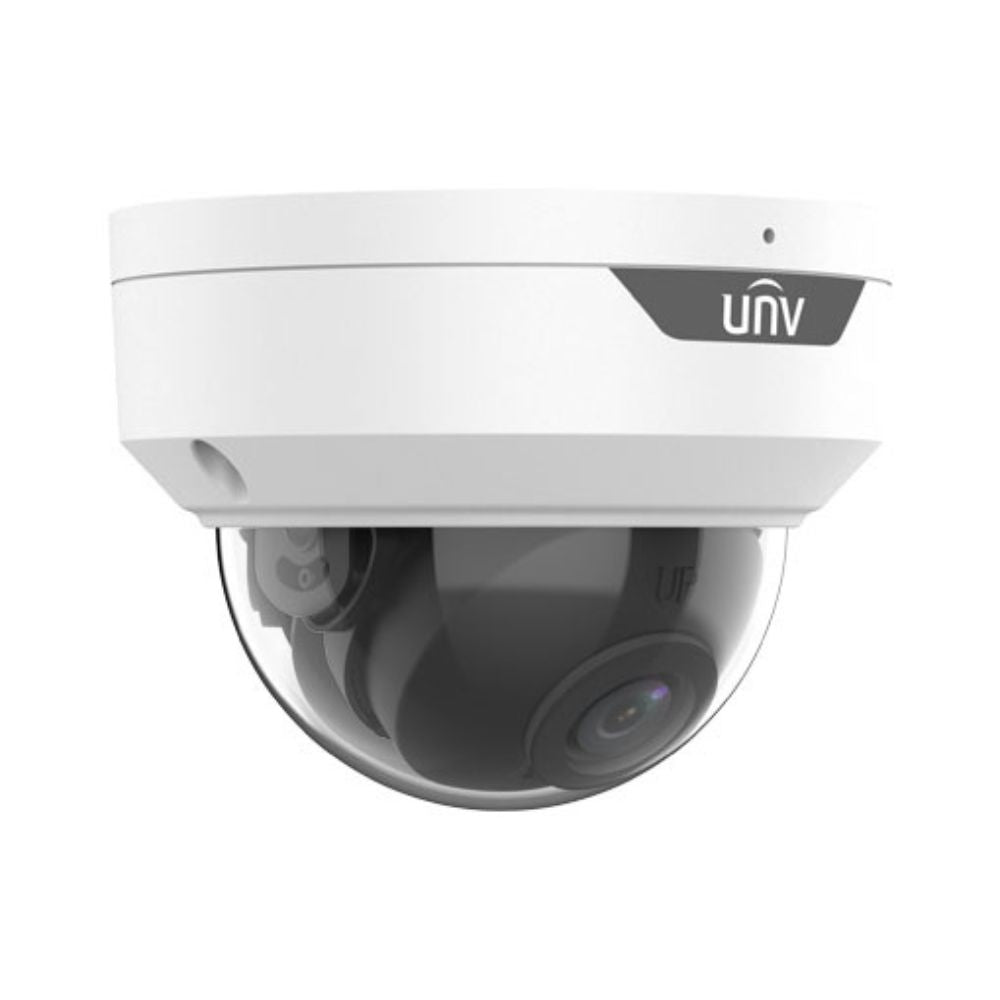

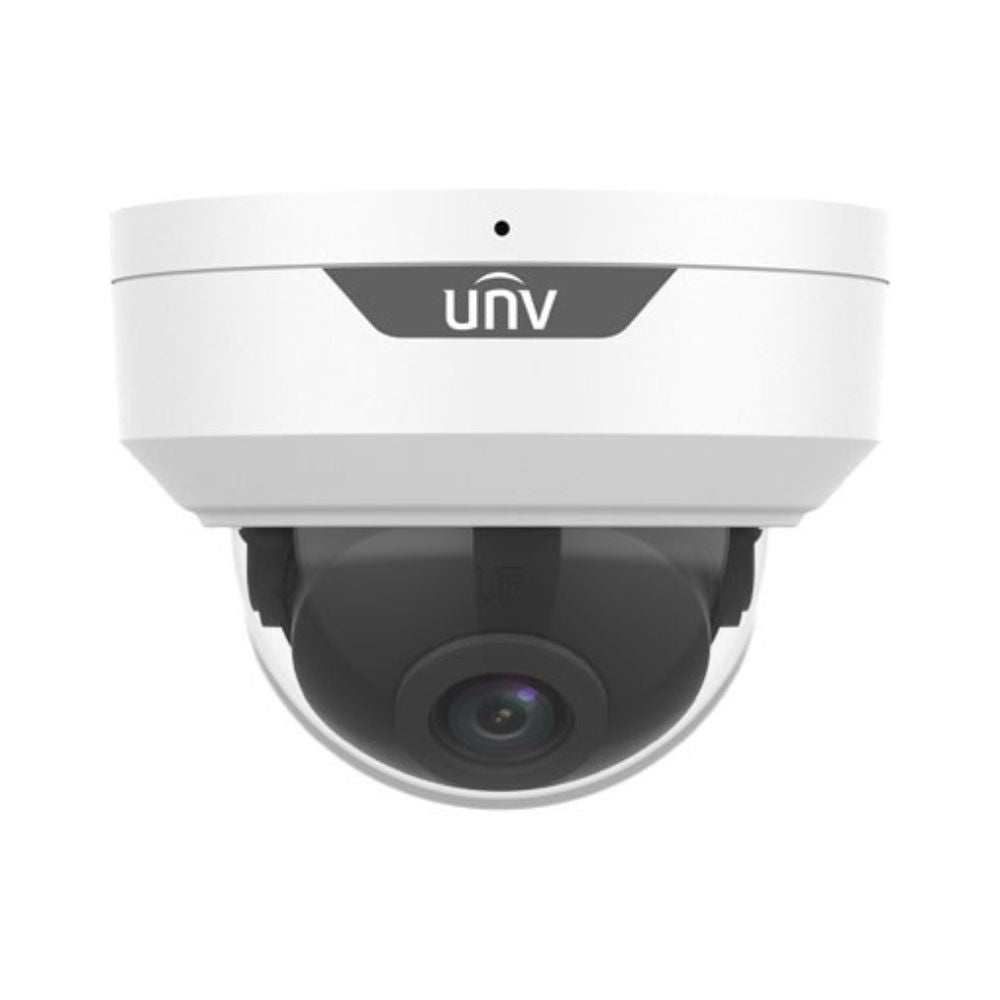

UNV 4K HD Vandal-resistant IR Fixed Dome Network Camera (Only for USA) | UNV-IPC328SR3-ADF40KM-G

UNV 4K HD Vandal-resistant IR Fixed Dome Network Camera (Only for USA) | UNV-IPC328SR3-ADF40KM-G

Allow us to introduce the formidable UNV 4K HD Vandal-resistant IR Fixed Dome Network Camera (Only for USA) - UNV-IPC328SR3-ADF40KM-G, a pinnacle of surveillance technology designed exclusively for the United States market. This exceptional dome camera is engineered to deliver unwavering security and surveillance performance, setting new standards in safeguarding your premises.

Features

• High-quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures high image quality in a low illumination environment
• 120dB true WDR technology enables a clear image in a strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis

Technical Specifications

Camera

• Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS
• Minimum Illumination
• Support LightHunter: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle
• Pan: 8° to 360°
• Tilt: 0° to 68°
• Rotate: 10° to 360°
• WDR: 120dB
• S/N: >56dB
• Lens Type: 2.8mm and 4.0mm @1.6, Fixed-focal
• Lens Mount: M12
• Angle of View (H): 91.2°
• Angle of View (V): 47.9°
• Angle of View (O): 95.9°
• DORI Distance
• Lens (mm): 4.0
• Detect (m): 120
• Observe(m): 48
• Recognize (m): 24
• Identify (m): 12
• IR Range: Up to 30m (98ft)
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline Profile, Main Profile, High Profile
• Frame Rate
• Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
• Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Supported
• 9:16 Corridor Mode: Supported
• ROI: Up to 8 areas
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Motion Detection: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by the web browser
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Events

• Basic Detection
• Cross line, intrusion (based on human body detection)
• Motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

• Audio Compression: G.711
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client: EZStation/EZView/EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

Interface

• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Built-in Mic: Supported

Certifications

• EMC: FCC Part 15
• Safety
• CE: EN 60950-1
• UL: UL60950-1
• IEC 60950-1

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 4.5W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ109 x 83mm (Φ4.3” x 3.3”)
• Weight: 0.37kg (0.82lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Ingress Protection: IP67
• Vandal resistant: IK10
• Reset Button: Supported
