UNV IPC325SR-ADF28KM-H 5MP HD WDR Three Axis Fixed IR Mini Dome Network Camera (2.8mm Focal)

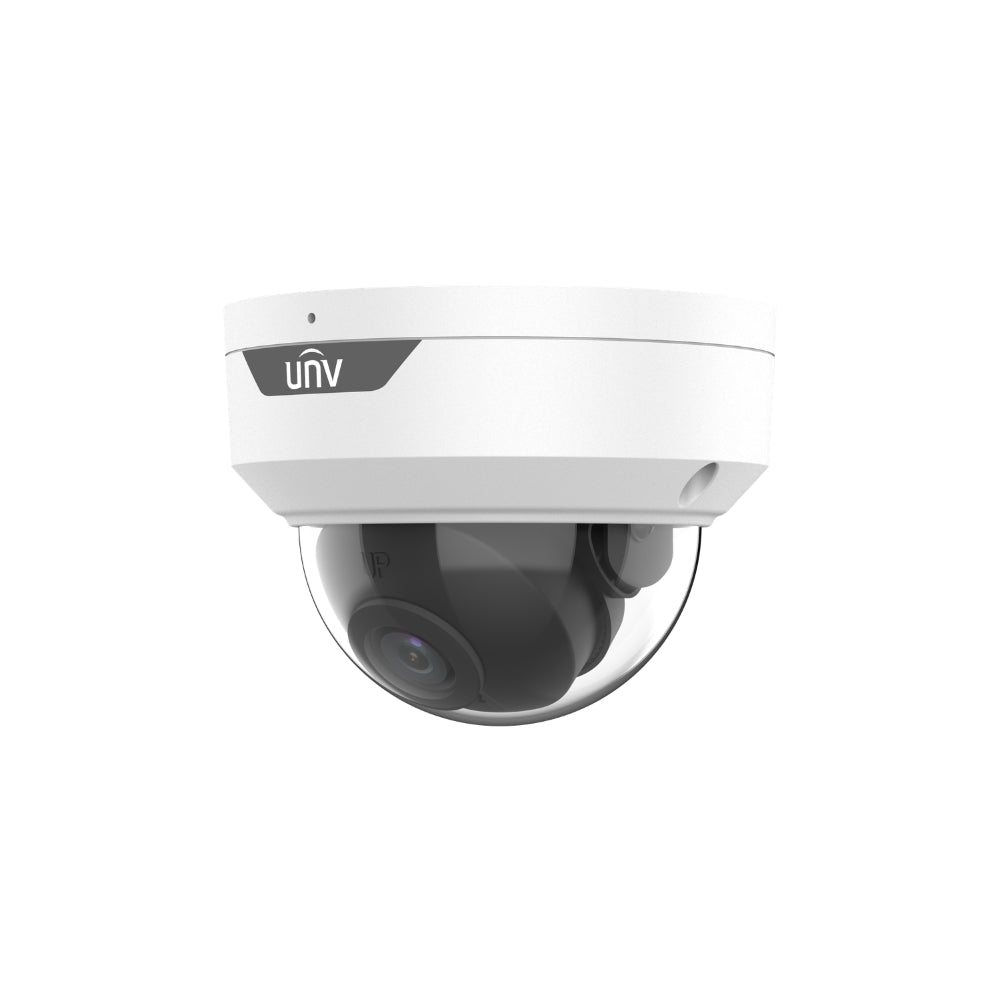

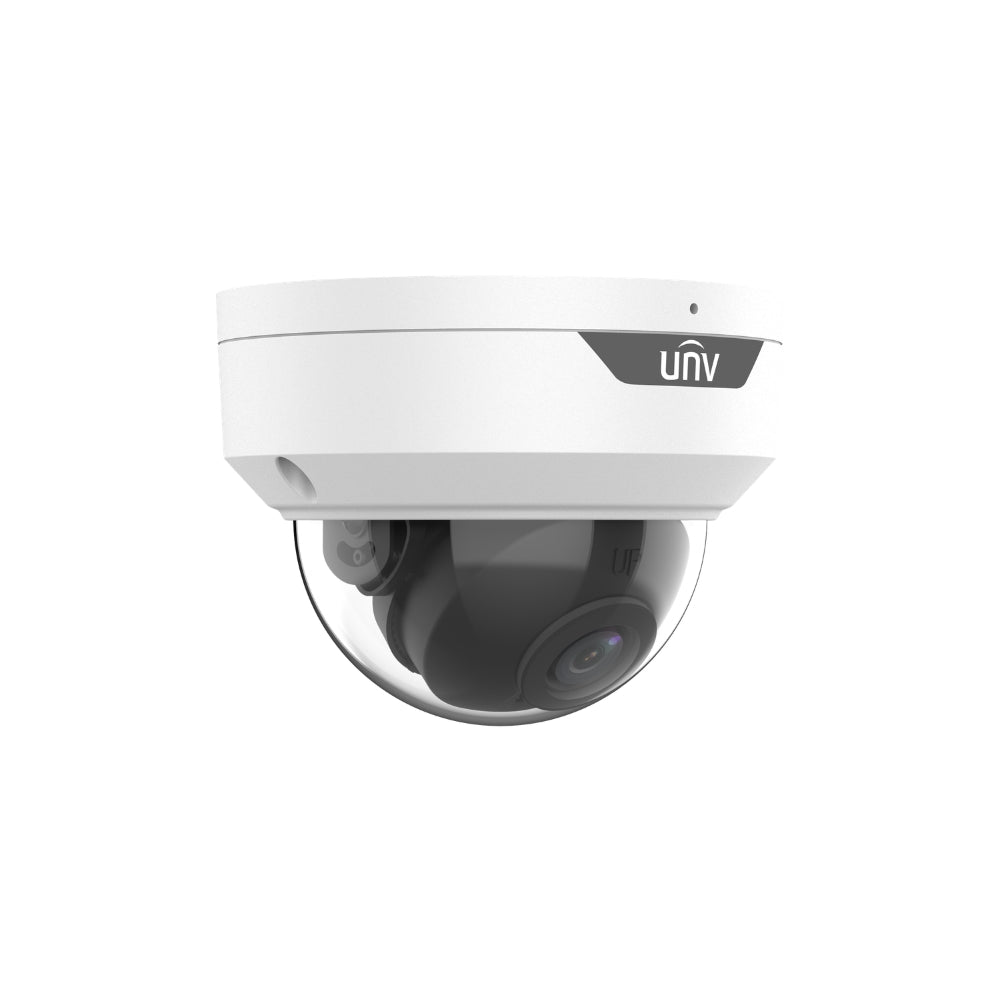

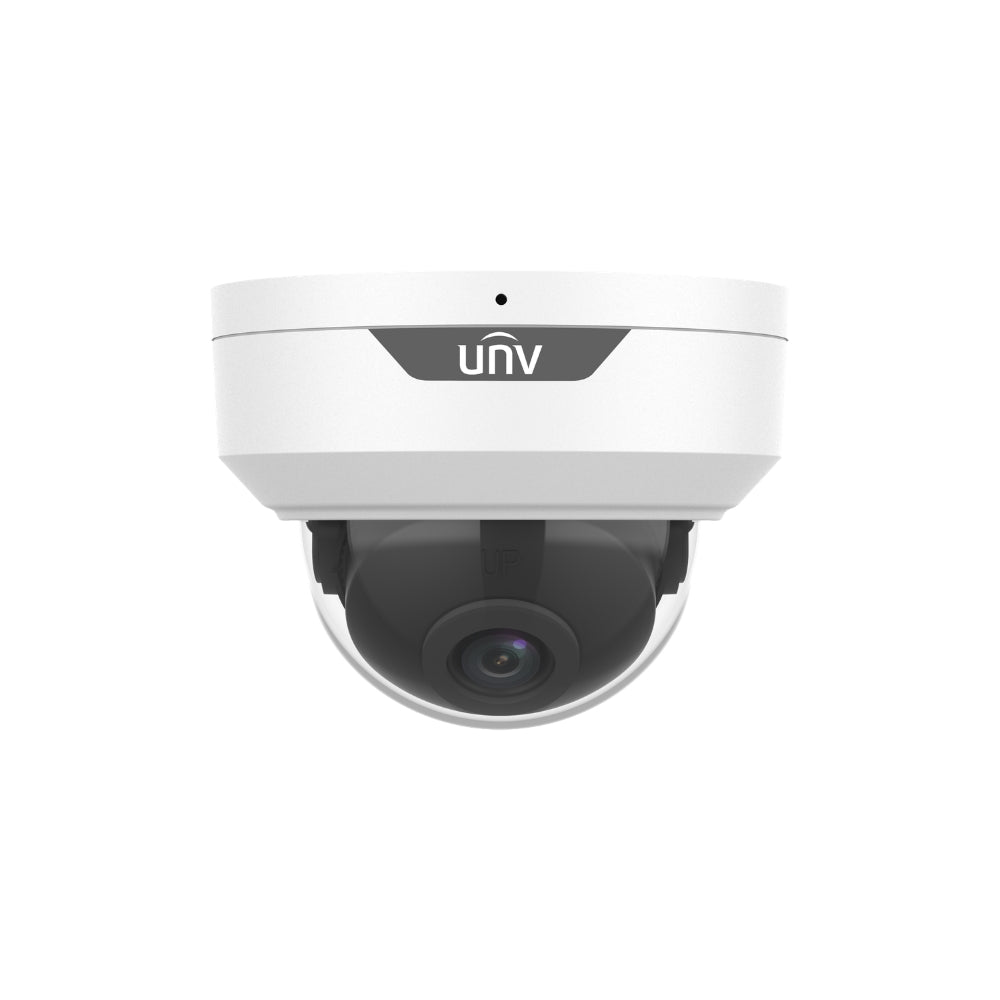

The UNV IPC325SR-ADF28KM-H is a high-resolution 5MP mini dome camera that strikes the perfect balance between discreet design and powerful performance. Featuring Uniview’s proprietary EasyStar technology, this camera is engineered to deliver high-quality color images in significantly lower light levels than standard 5MP sensors, ensuring superior clarity before transitioning to infrared mode.

This model is built with a three-axis adjustment mechanism, providing ultimate flexibility for installers to achieve the perfect viewing angle. With 120dB True WDR, it handles high-contrast lighting, ensuring that every frame remains clear and balanced.

Camera

Max Resolution: 5 MP
Sensor: 1/2.7" CMOS
Min. Illumination: Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
S/N: >52 dB
WDR: 120 dB

Lens

Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 110.0°
Field of View (V): 58.7°
Field of View (D): 130°

DORI

DORI Distance (Lens): 2.8 mm
DORI Distance (Detect): 63.0 m (206.7 ft)
DORI Distance (Observe): 25.2 m (82.7 ft)
DORI Distance (Recognize): 12.6 m (41.3 ft)
DORI Distance (Identify): 6.3 m (20.7 ft)

Illuminator

Supplemental Light: IR
Illumination Distance (IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 5 MP (2880 × 1620), max. 30 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate: 128 Kbps to 6144 Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog

Events

Basic Detection: Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB
Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE, and Digest Authentication for ONVIF
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification

EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part 15 B)
Safety: CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529) ; IK10 (IEC 62262)

General

Power: DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 4.4 W
Power Interface: Ø5.5 mm coaxial power plug

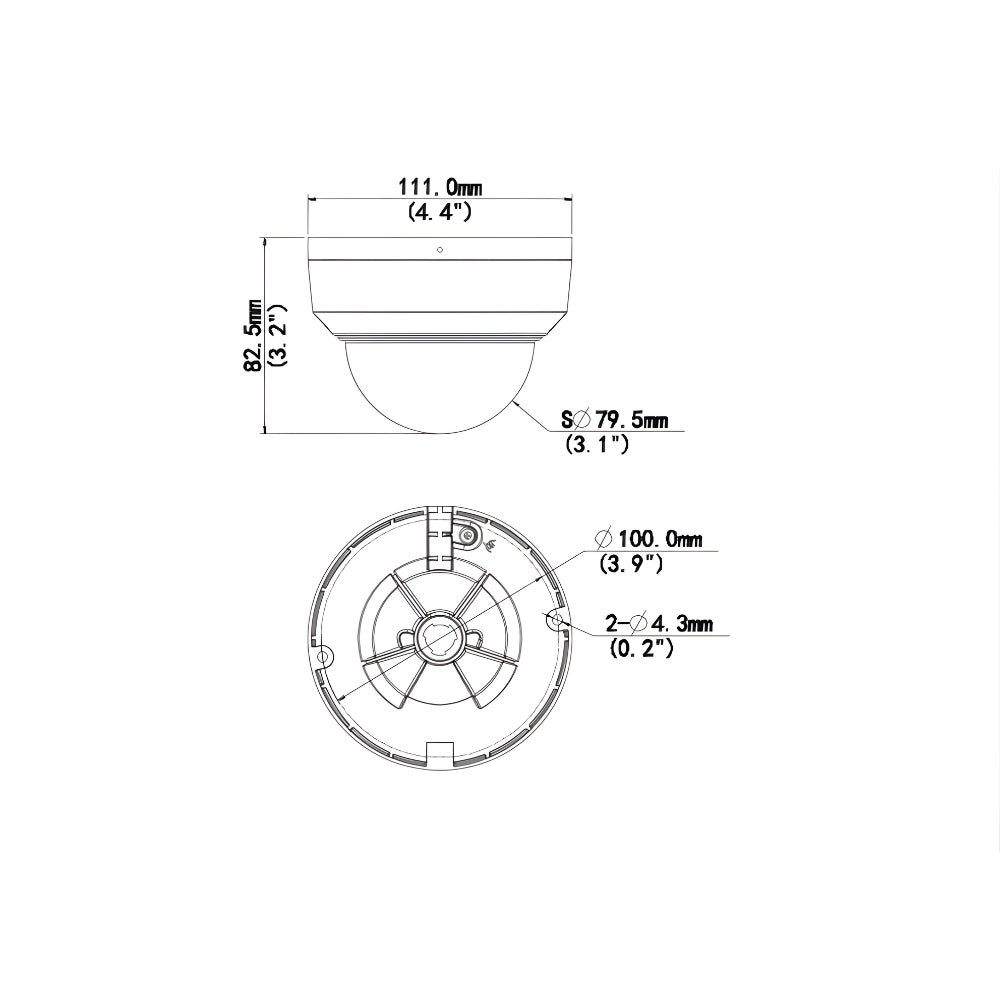

Dimensions: Ø111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight: 0.35 kg (0.77 lb)
Material: Metal
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non condensing)
Surge Protection: 4 KV
Reset Button: Support
Web Client Language: 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
