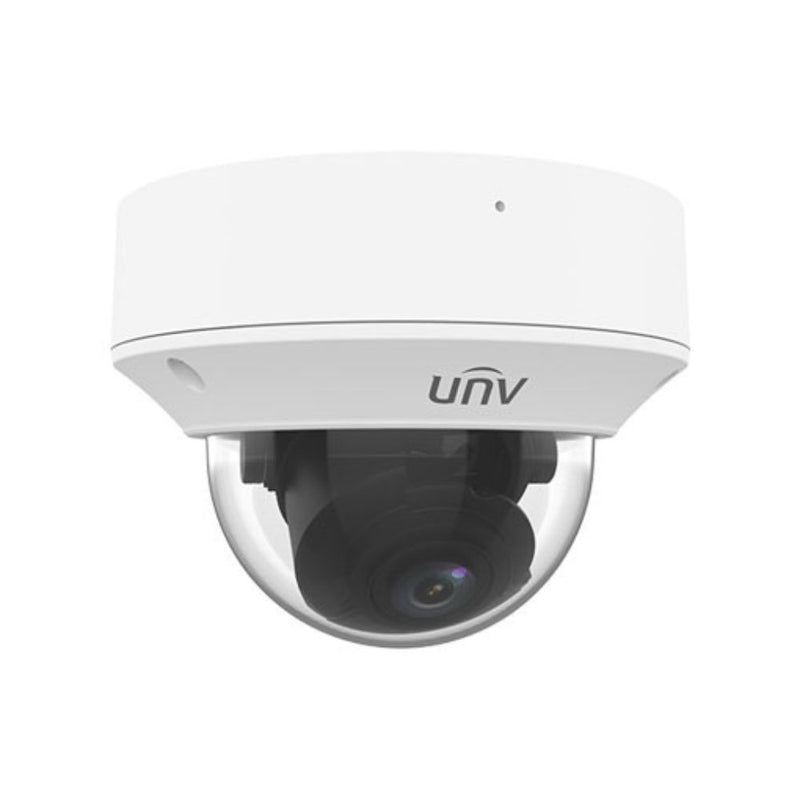

UNV 5MP HD Intelligent LightHunter IR VF Dome Network Camera (Kuwait Only) | UNV-IPC3235SB-ADZK-I0
Introducing the UNV 5MP HD Intelligent LightHunter IR VF Dome Network Camera, exclusively designed for Kuwait - model UNV-IPC3235SB-ADZK-I0. This advanced surveillance solution is meticulously crafted to provide exceptional security features and cutting-edge technology. With a high-resolution 5-megapixel sensor, the UNV-IPC3235SB-ADZK-I0 ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.
Features
- High-quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection includes cross-line intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds, lights, etc., accurately focusing on human, motor vehicle, and non-motor vehicle
- LightHunter technology ensures ultra-high image quality in a low-illumination environment
- 120dB true WDR technology enables a clear image in a strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
Technical Specifications
Camera
- Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
- Lens: 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
- DORI Distance
- Lens (mm): 2.7~13.5
- Detect (m): 60.8~303.8
- Observe (m): 24.3~121.5
- Recognize (m): 12.2~60.8
- Identify (m): 6.1~30.4
- Angle of View (H): 106.25°~ 30.42°
- Angle of View (V): 56.36°~ 17.22°
- Angle of View (D): 110.34°~34.18°
- Adjustment angle
- Pan: 0° ~ 355°
- Tilt: 0° ~ 80°
- Rotate: 0° ~ 355°
- Shutter: Auto/Manual, 1/3 ~ 1/100000s
- Minimum Illumination: Colour:0.002 Lux (F1.2, AGC ON) 0Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Digital Noise Reduction: 2D/3D DNR
- S/N: >56dB
- IR Range: Up to 40m (131ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Defog: Digital Defog
- WDR: 120dB
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main Profile, High profile
- Frame Rate
- Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Motion Detection: Up to 4 areas
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
Audio
- Audio Compression: G.711
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR
Intelligent
- Smart intrusion prevention: Cross line, intrusion, enter area, leave area detection
Events
- Basic Detection: Motion detection, tampering alarm, audio detection Loitering, and people gathering
- General Function: Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication.
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
- Client: EZStation/EZView/EZLive
- Web Browser
- Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
- Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
- Audio I/O
- Input: impedance 35kΩ; amplitude 2V [p-p]
- Output: impedance 600Ω; amplitude 2V [p-p]
- Alarm I/O: 1/1
- RS485: N/A
- Built-in Mic: Supported
- Network: 1 RJ45 10M/100M Base-TX Ethernet
Certifications
- CE: EN 60950-1
- UL: UL60950-1
- FCC: FCC Part 15
General
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power consumption: Max 7.0 W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (Ø x H): Φ148.0 x 111.4mm (Ø5.8” x 4.4”)
- Weight: 0.97kg (2.12lb)
- Material: Metal + Plastic
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 6KV
- Reset Button: Supported
- Ingress Protection: IP67
