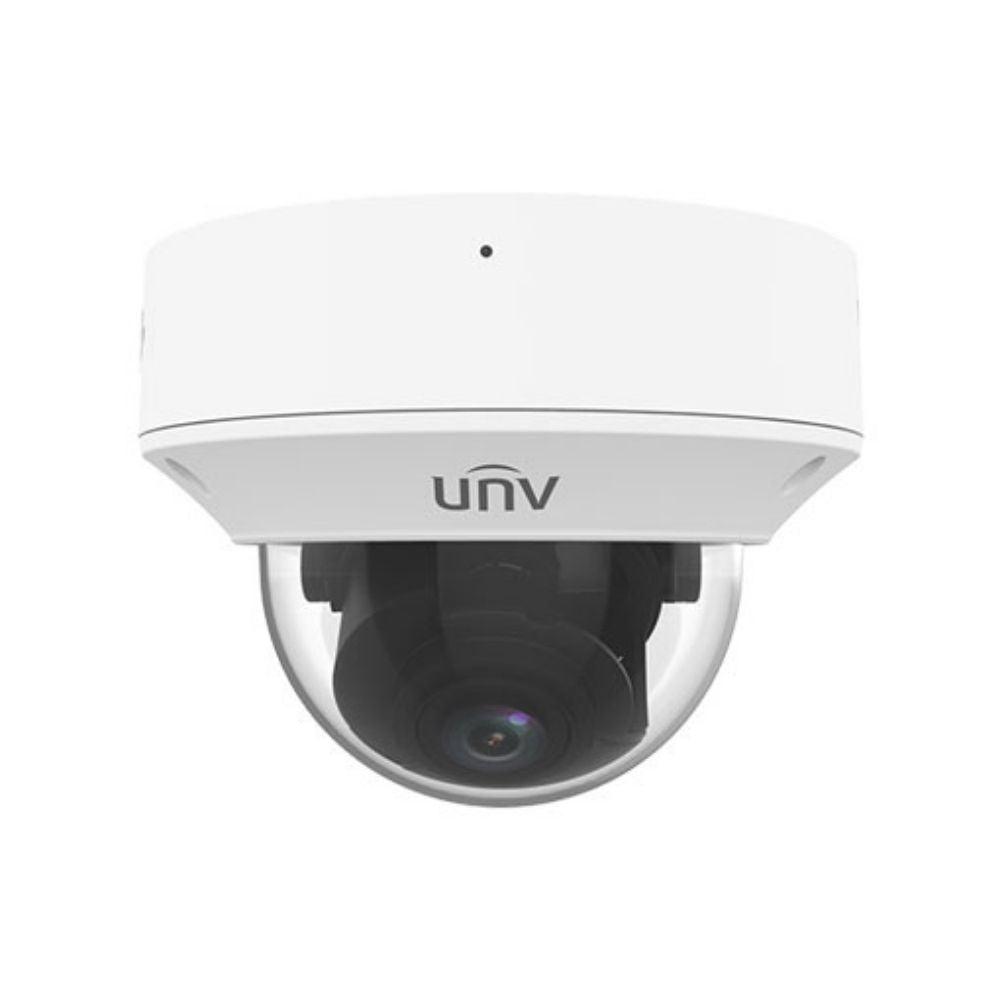

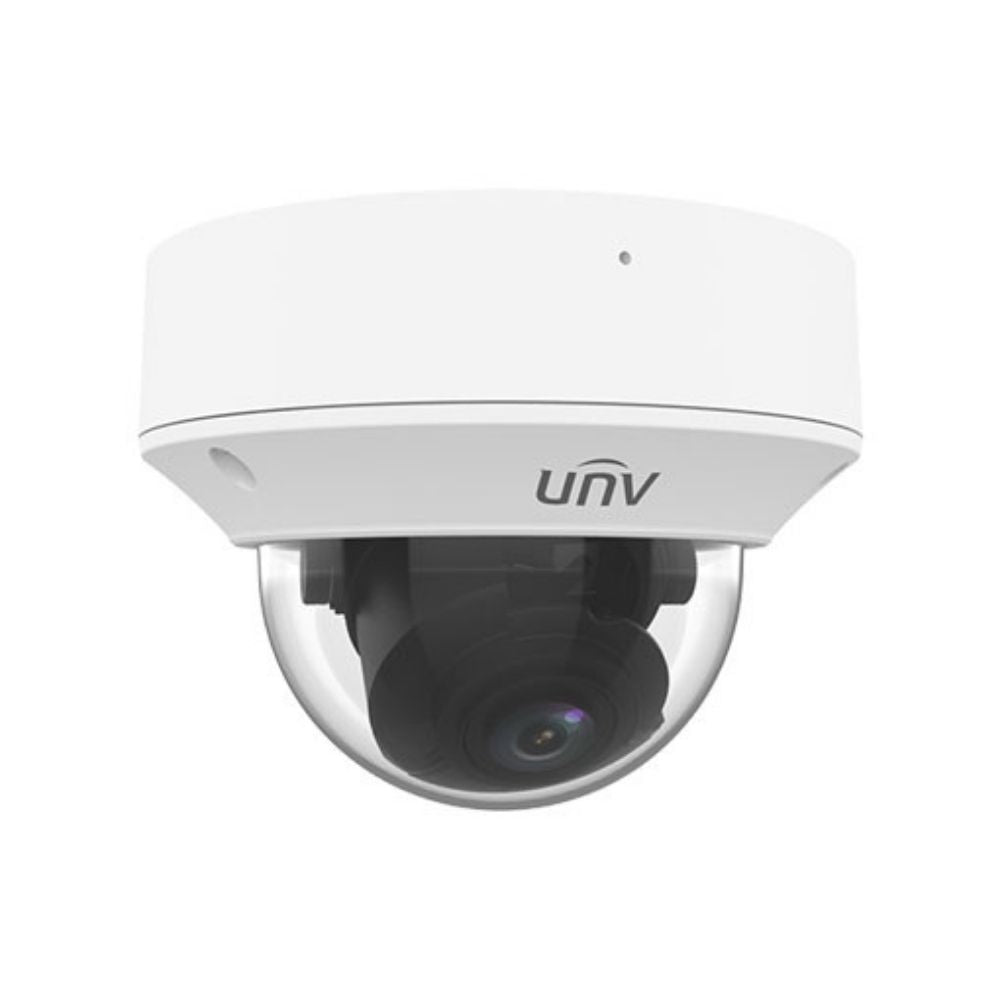

UNV 2MP WDR Lighthunter IR Network Dome Camera | UNV-IPC3232SB-AHDZK-I0

UNV 2MP WDR Lighthunter IR Network Dome Camera | UNV-IPC3232SB-AHDZK-I0

Features

• High-quality image with 2MP,1/2.8’’ CMOS sensor.
• 1920*1080@60fps in the mainstream, deliver detailed live while 60fps keeping it smooth and closer to the real image.
• Ultra 265, H.265, H.264, MJPEG
• 5X optical zoom allows for closer viewing of subjects.
• Lighthunter product technology ensures ultra-high image quality in a low illumination environment.
• Up to 120 dB Optical WDR (Wide Dynamic Range).
• DC12V or PoE (IEEE 802.3af) power supply
• Wide voltage range of ±25% in DC
• Audio 1 in and 1 out, Alarm 2 in and 1 out 

Technical Specifications

Camera

• Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
• Minimum Illumination: Colour: 0.001 lux (F1.2, AGC ON) 0 lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
• Adjustment angle: Pan: 0° to 355°, tilt: 0° to 70°, rotate 0° to 355°
• WDR: 120dB
• S/N: >52dB
• Lens: 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens
• Iris: Fixed
• Angle of View (H): 98.2°~30.6°
• Angle of View (V): 53.3°~ 17.3°
• Angle of View (O): 127.7°~37.6°
• DORI Distance
• Lens: 2.7
• Detect (m): 70.9 (232.5ft)
• Observe (m): 28.4 (93.0ft)
• Recognize (m): 14.2 (46.5ft)
• Identify (m): 7.1 (23.3ft)
• IR Range: Up to 50m (164 ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 1080P (1920*1080),Max 60fps;
• Sub Stream: 1080P (1920*1080), Max 60fps;
• Third Stream: D1 (720*576), Max 60fps
• Video Bit Rate: 128 Kbps~16 Mbps
• ROI: Up to 8 areas
• Video stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Events

• Basic Detection: Motion detection, Audio detection, Tampering alarm
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711, G.711A
• Audio Bitrate: 64 Kbps
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client: GuardStation/GuardLive/Guardview

• Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Interface

• Audio I/O: 1/1
• Alarm I/O: 2/1
• Serial Port: 1 RS485
• Built-in Mic: Support
• Video output: 1 BNC(For debugging)
• Network: 1 * RJ45 10M/100M Base-TX Ethernet

Certifications

• EMC
• FCC CFR 47 Part 15
• EN 55032:2015
• EN 55024:2010
• EN 61000-3-2:2014
• EN 61000-3-3-2013
• Safety
• IEC 62368-1
• EN 62368-1
• UL 60950-1
• Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

• Power: DC12V (±25%), PoE (IEEE 802.3af)
• Power consumption: Max 8.5W
• Power Interface: 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ148.0 x 111.4mm (Φ5.8” x 4.4”)
• Net Weight: 0.93kg (2.16lb)
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Storage Environment: -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 6KV
• Ingress Protection: IP67
• Vandal Resistant: IK10
• Reset Button: Support
