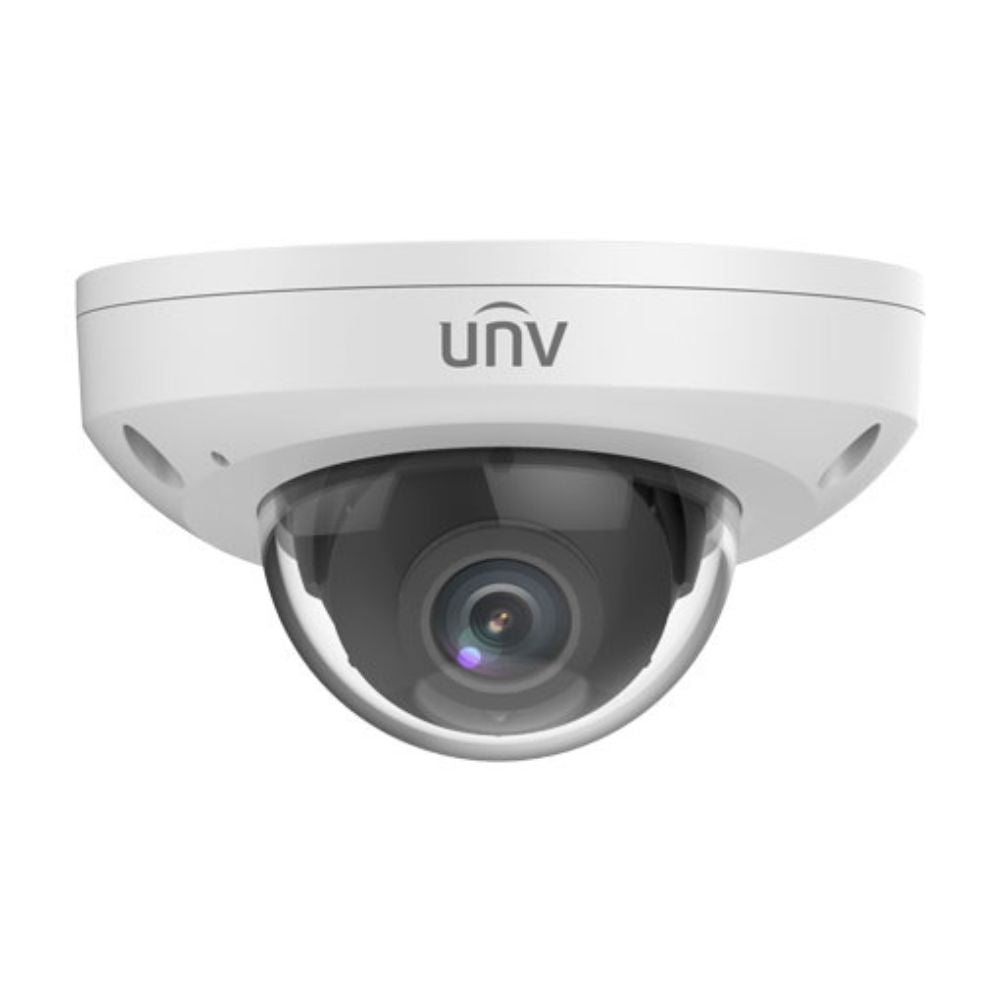

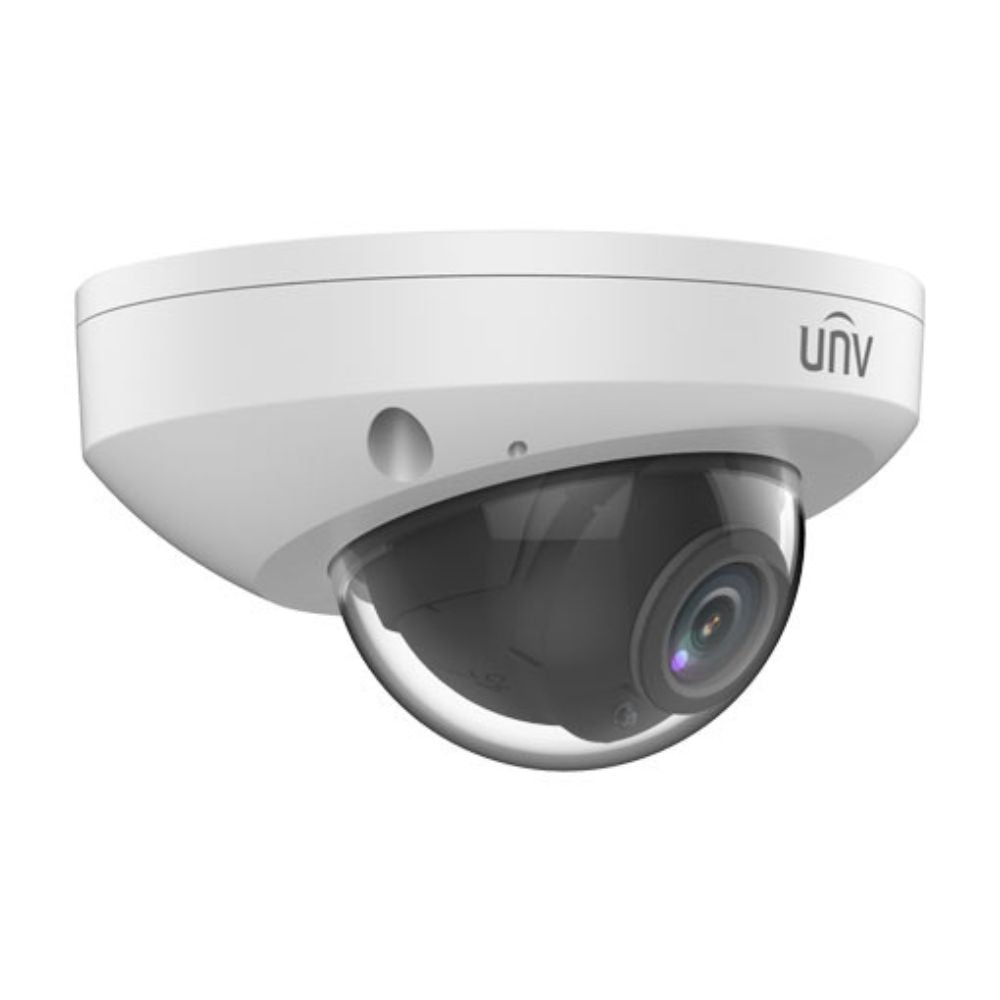

UNV 4MP HD Intelligent LightHunter IR Fixed Mini Dome Camera | UNV-IPC314SB-ADF28K-M12-I0
Features
- High-quality imaging with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention includes cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds, and lights, etc., accurately focusing on human and, motor vehicle, and non-motor vehicle
- LightHunter technology ensures ultra-high image quality in a low illumination environment
- 120dB true WDR technology enables clear imaging in a strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- M12 D-Coding 10M/100M Base-TX Ethernet
- IK10 vandal resistant
- IP67 protection
- 3-Axis
Technical Specifications
Camera
- Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination: Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment angle
- Pan: 0° ~ 90°
- Tilt: 0° ~ 68°
- Rotate: 0° ~ 360°
- WDR: 120dB
- S/N: >56dB
- Lens type: 2.8mm@F1.6
- Iris: Fixed
- Field of View (H): 101.1°
- Field of View (V): 55.3°
- Field of View (D): 111.1°
- DORI Distance
- Lens (mm): 2.8
- Detect (m): 63
- Observe (m): 25.2
- Recognize (m): 12.6
- Identify (m): 6.3
- Illuminator
- IR Range: Up to 30m (98ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main Profile, High profile
- Frame Rate
- Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Triple streams
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- Dewarping: N/A
- HLC: N/A
- BLC: Supported
- Defog: Digital Defog
Intelligent
- Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area Detection
- Statistical Analysis: People counting, support people flow counting, and crowd density monitoring
Events
- Basic Detection: Motion detection, tampering alarm, audio detection
- General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication.
Audio
- Audio Compression: G.711
- Audio Bitrate: 64 Kbps
- Two-way audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS (NFS)
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 2 user levels: administrator and common user
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
- Client: EZStation/EZView/EZLive
- Web Browser
- Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
- Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
- Audio I/O
- 1 Input: impedance 35kΩ; amplitude 2V [p-p]
- 1 Output: impedance 600Ω; amplitude 2V [p-p]
- Alarm I/O: N/A
- RS485: N/A
- Built-in Mic: Supported
- Built-in Speaker: N/A
- WIFI: N/A
- Network: 1 M12 D-Coding 10M/100M Base-TX Ethernet
- Video Output: N/A
Certifications
- EMC
- CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020)
- FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety
- CE LVD (EN 62368-1:2014+A11:2017)
- CB (IEC 62368-1:2014)
- UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection
- IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
- IK10 (IEC 62262:2002)
General
- Power: DC 12V±25%
- Power consumption: Max 6.0W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (Ø x H): Φ110 x 61mm (Ø4.3” x 2.4”)
- Weight: 0.37kg (0.82lb)
- Material: Metal
- Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: N/A
