UNV IPC2B18SE-ADF28KMC-WP-I1 8MP TriGuard Warning Bullet Network Camera

The UNV IPC2B18SE-ADF28KMC-WP-I1 is a high-performance 8MP bullet camera that represents the pinnacle of proactive security. As part of the Tri-Guard 3.0 series, it combines three essential security pillars: Smart Intrusion Prevention (SIP), ColorHunter low-light technology, and Active Deterrence. Featuring the revolutionary Wise-ISP engine, this camera delivers vivid full-color images 24/7, effectively turning night into day even in extreme low-light conditions.

Beyond standard recording, this camera is designed to prevent incidents before they occur. Upon detecting an intruder, it can trigger Red and Blue flashing lights and high-volume audible warnings to deter unauthorized activity. With its 4K resolution and elite optics, it provides the legal-grade evidence needed for any industrial or commercial application.

Camera

Max Resolution: 8 MP
Sensor: 1/1.8" CMOS
Min. Illumination: Color: 0.0005 Lux (F1.0, AGC ON)
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 to 1/100000 s
Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N: > 56 dB
WDR: 130 dB

Lens

Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F1.0
Field of View (H): 108.1°
Field of View (V): 59.5°
Field of View (D): 130.2°
Lens Type: Fixed

DORI

DORI Distance (Lens): 2.8 mm
DORI Distance (Detect): 63.0 m (206.7 ft.)
DORI Distance (Observe): 25.2 m (82.7 ft.)
DORI Distance (Recognize): 12.6 m (41.3 ft.)
DORI Distance (Identify): 6.3 m (20.7 ft.)

Illuminator

Supplemental Light: Dual light
Illumination Distance (IR): 40 m (131.2 ft)
Illumination Distance (Warm Light): 40 m (131.2 ft)
IR On/Off Control: Auto/Manual
Wavelength: 850 nm
Light On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate-Main Stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Frame Rate-Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate-Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate: 128 Kbps to 16 Mbps
U-code: Support
OSD: Up to 8 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Triple streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart Illumination: Support
Auto Scene Match (ASM): Support
Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog

Intelligent

Smart Intrusion Prevention: Cross-line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle, and vehicle)
Statistical Analysis: N/A
People Counting: Support people flow counting and crowd density detection
Attribute Collection: SIP with color retrieval

Events

Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Audio

Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: Support
Suppression: Support
Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB
Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
Client: EZStation, APP
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O: 1/1
Serial Port: N/A
Built-in Mic: Built-in dual-mic
Built-in Speaker: Support
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification

EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
FCC (FCC 47 CFR part 15 B)
Safety: CE-LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU ; (EU) 2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)
IK10 (IEC 62262)
NEMA 4X

General

Power: DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 6.2 W
Power Interface: Ø5.5 mm coaxial power plug

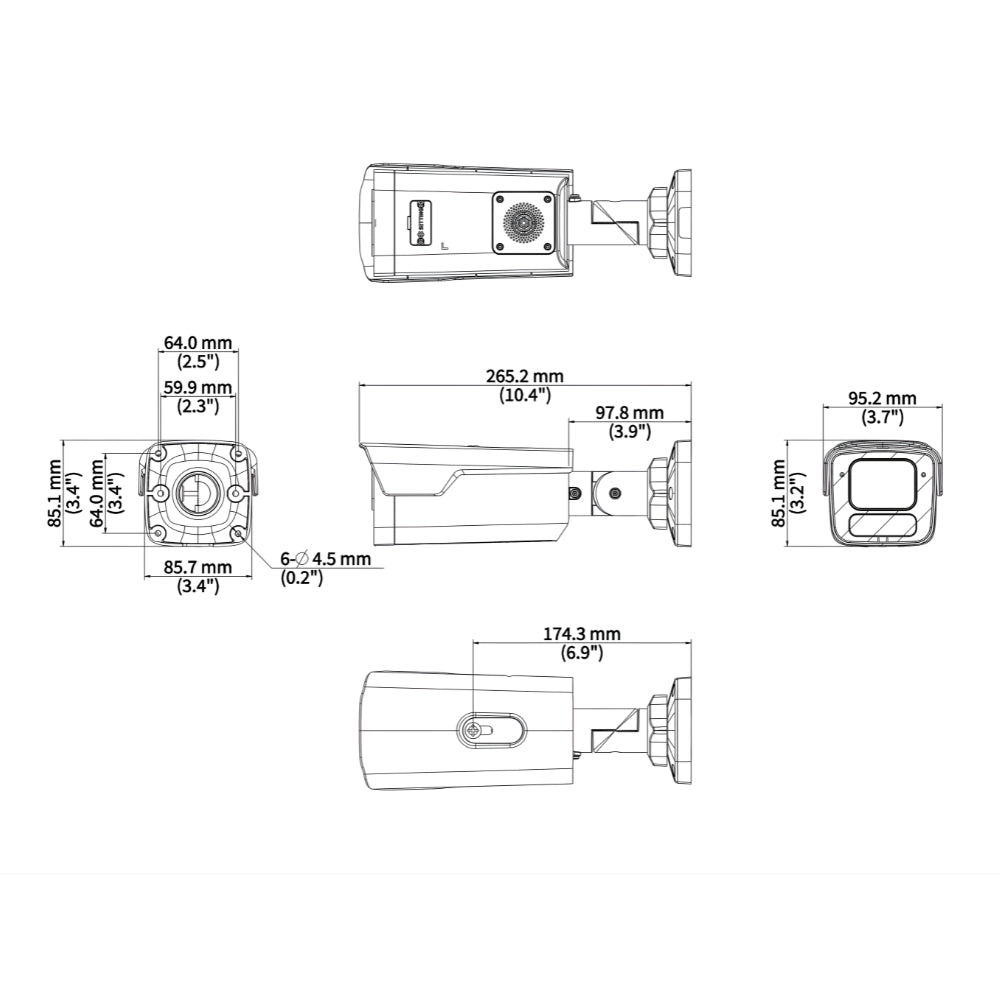

Dimensions: 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) (L × W × H)
Weight: 0.92 kg (2.03 lb)
Material: Metal + Plastic
Working Environment: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: Support
Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
