UNV IPC2A14LP-ADF40KC-4G-US 4MP 4G Fixed Bullet Network Camera

The UNV IPC2A14LP-ADF40KC-4G-US is the high-definition surveillance solution for remote and off-grid locations. Featuring a built-in 4G LTE module, this camera operates anywhere with cellular service, eliminating the need for traditional wired internet or Wi-Fi.

Equipped with ColorHunter technology and a specialized dual-light system, this camera delivers vivid 4MP full-color video 24/7—even in complete darkness. Designed for reliability in challenging environments, its IP67-rated housing is built to withstand extreme temperatures, dust, and rain, making it perfect for construction sites, rural properties, and large parking facilities.

Camera

Max Resolution: 4 MP
Sensor: 1/3.0" CMOS
Min. Illumination: Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 to 1/100000 s
S/N: > 52 dB
WDR: 120 dB

Lens

Focal Length: 4.0 mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 79.0°
Field of View (V): 42.3°
Field of View (D): 85.1°
Lens Type: Fixed

DORI

DORI Distance (Lens): 4 mm
DORI Distance (Detect): 63.0 m (206.7 ft.)
DORI Distance (Observe): 25.2 m (82.7 ft.)
DORI Distance (Recognize): 12.6 m (41.3 ft.)
DORI Distance (Identify): 6.3 m (20.7 ft.)

Illuminator

Supplemental Light: Dual light
Illumination Distance (IR): 50 m (164.0 ft)
Illumination Distance (Warm Light): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate: 128 Kbps to 2048 Kbps
U-code: Support
OSD: Up to 8 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog

Events

Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Intelligent

Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle, and vehicle)

Audio

Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: Support
Suppression: Support
Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB
Network Storage: ANR

Network

4G Network Frequency: LTE-FDD: Band 2/4/5/12/13/14/66/71
4G Network Standard: LTE-FDD
4G Card Type: Nano-SIM
Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SMTP, 802.1x, SSL/TLS, SNMP, SSH
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE, and Digest Authentication for ONVIF
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O: 1/1
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: Support
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification

Protection: IP67 (IEC 60529)

General

Power: DC 12 V±25%
Power Consumption: Max. 9.0 W
Power Interface: Ø5.5 mm coaxial power plug

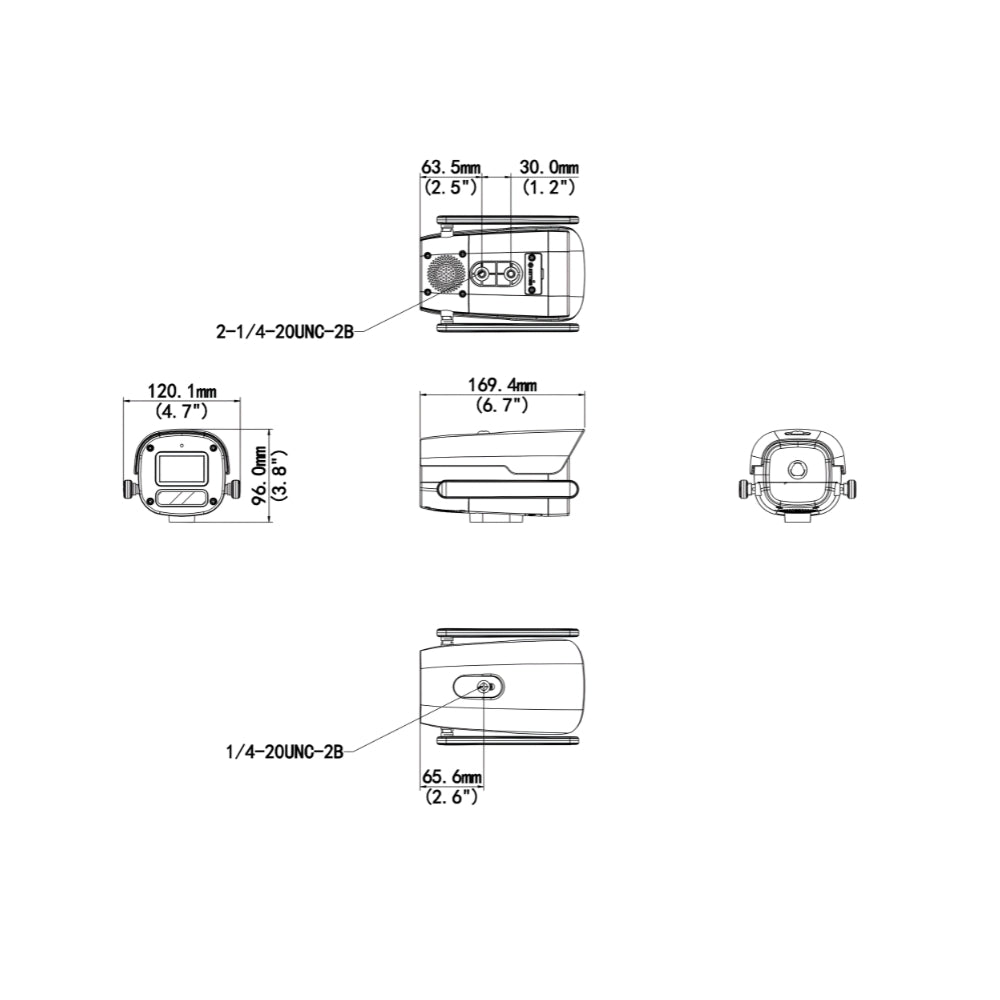

Dimensions: 169 mm × 113 mm × 96 mm (6.7" × 4.4" × 3.8") (L × W × H)
Weight: 0.47 kg (1.04 lb)
Material: Graphene + Metal
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non condensing)
Surge Protection: 4 KV
Reset Button: Support
Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
