UNV IPC2324SE-ADZK-WL-I0 4MP VF Dual-Light Bullet Network Camera

The UNV IPC2324SE-ADZK-WL-I0 is a surveillance solution that eliminates the "grainy black-and-white" night footage of the past. Combining ColorHunter technology with a powerful 1/1.8" large-aperture sensor, this camera is engineered to deliver vivid, full-color 4MP video even in near-total darkness.

Equipped with a 2.8mm to 12mm motorized varifocal lens, you can remotely adjust your field of view from a wide-angle 102° to a zoomed-in 49° to capture specific details like license plates or faces at a distance. With Smart Dual-Light capability, the camera can stay discreet using IR light and instantly switch to warm white light upon detecting a human or vehicle, ensuring you get the color evidence needed for positive identification.

Camera

Max Resolution: 4 MP
Sensor: 1/1.8" CMOS
Min. Illumination: Color: 0.0005 Lux (F1.2, AGC ON)
Shutter: Auto/Manual, 1 to 1/100000 s
Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N: >56 dB
WDR: 120 dB

Lens

Focal Length: 2.8 to 12 mm
Iris Type: Fixed
Iris: F1.2
Field of View (H): 102.4° to 49.2°
Field of View (V): 54.7° to 27.8°
Field of View (D): 106.8° to 55.0°

DORI

DORI Distance (Lens): 2.8 to 12 mm
DORI Distance (Detect): 43.4 m to 186.2 m (142.4 ft. to 610.9 ft)
DORI Distance (Observe): 17.4 m to 74.5 m (57.1 ft. to 244.4 ft)
DORI Distance (Recognize): 8.7 m to 37.2 m (28.5 ft. to 122.1 ft)
DORI Distance (Identify): 4.3 m to 18.6 m (14.1 ft. to 61.0 ft)

Illuminator

Supplemental Light: Dual light
Illumination Distance (IR): 30 m (98.4 ft)
Illumination Distance (Warm Light): 30 m (98.4 ft)
Wavelength: 850 nm
Light On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
Frame Rate-Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps
Frame Rate-Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Frame Rate-Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
H.264 Code Profile: Baseline profile, Main profile, High profile
Video Bit Rate: 128 Kbps to 16 Mbps
U-code: Support
OSD: Up to 8 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Triple streams


White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Smart IR: Support
Digital Noise Reduction: 2D/3D DNR
Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog

Intelligent

Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis: N/A
People Counting: Support people flow counting and crowd density detection

Events

Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Audio

Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: Support
Suppression: Support
Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB
Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client: EZStation, APP
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O: 1/1
Serial Port: N/A
Built-in Mic: Built-in dual-mic
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification

EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety: CE LVD (EN 62368-1:2014+A11:2017); CB (IEC 62368-1:2014); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)

General

Power: DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 11.5 W
Power Interface: Ø5.5 mm coaxial power plug

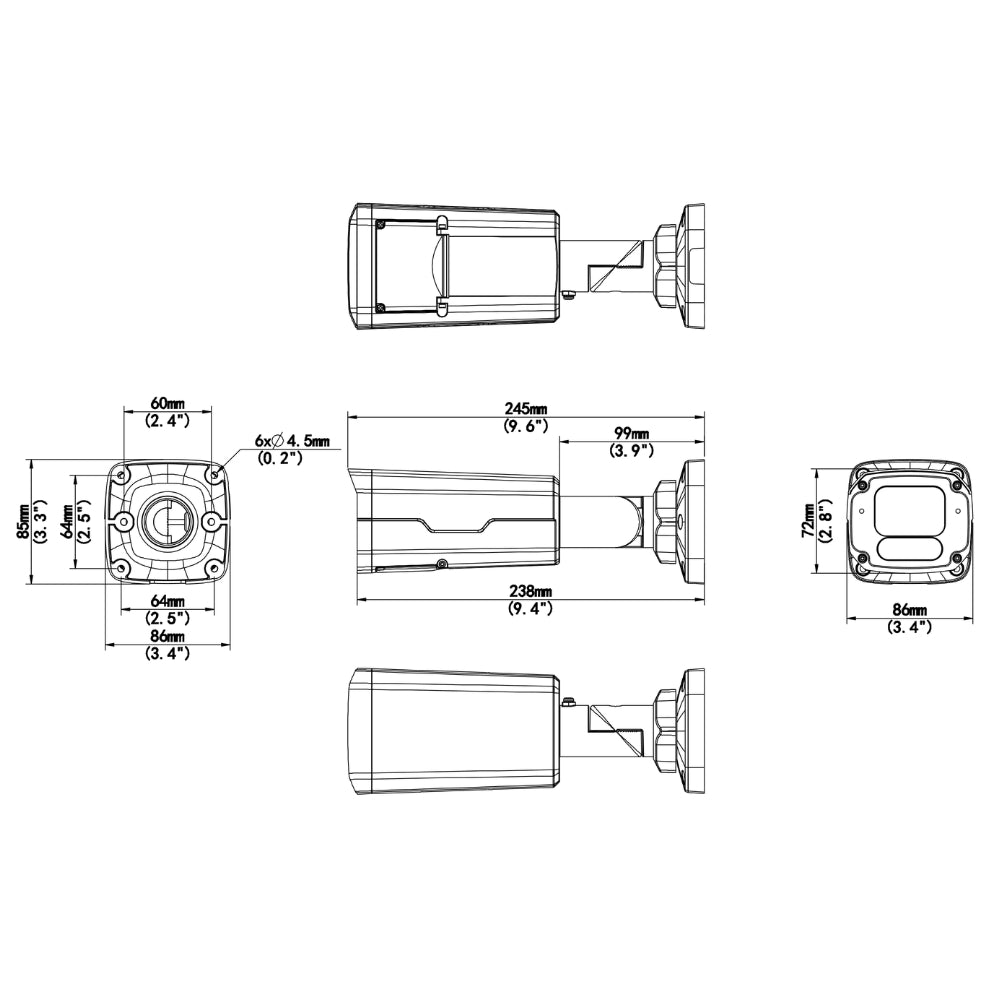

Dimensions: 245 mm × 86 mm × 85 mm (9.6" × 3.4" × 3.3" ) (L × W × H)
Weight: 0.9 kg (1.98 lb)
Material: Metal
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 6 KV
Reset Button: Support
Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
