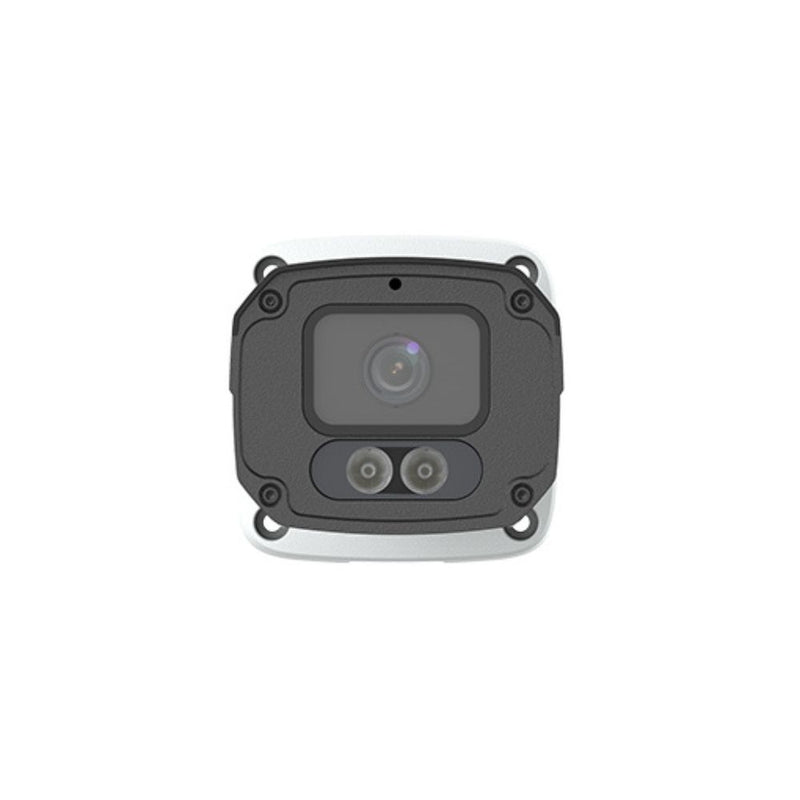

UNV 4K HD Intelligent ColorHunter Fixed Bullet Network Camera | UNV-IPC2228SE-DF40K-WL-I0

UNV 4K HD Intelligent ColorHunter Fixed Bullet Network Camera | UNV-IPC2228SE-DF40K-WL-I0

Elevate your surveillance with the UNV 4K HD Intelligent ColorHunter Fixed Bullet Network Camera, providing advanced features, high-quality imaging, and robust performance for a wide range of security applications. Trust in its reliability and versatility to enhance your security monitoring capabilities.

Features

• High-quality image with 8MP, 1/1.8"CMOS sensor
• 8MP (3840*2160)@ 30(AI off)/25fps; 5.3MP (3072*1728)@ 30/25fps; 3.6MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention includes cross-line intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds, lights, etc., accurately focusing on human, motor vehicle, and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Colorhunter technology ensures 24-hour full-color images
• 120dB true WDR technology enables a clear image in a strong light scene
• Support 9:16 corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

Technical Specifications

Camera

• Sensor: 1/1.8", 8.0 megapixel, progressive scan, CMOS
• Minimum Illumination: Colour: 0.0005 lux (F1.0, AGC ON)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle
• Pan: 0° ~ 360°
• Tilt: 0° ~ 90°
• Rotate: 0° ~ 360°
• WDR: 120dB
• S/N: >56dB
• Lens type: 4.0mm@F1.0
• Iris: Fixed
• Field of View (H): 94.29°
• Field of View (V): 49.73°
• Field of View (D): 115.97°
• DORI Distance
• Lens (mm): 4.0
• Detect (m): 90.0
• Observe (m): 36.0
• Recognize (m): 18.0
• Identify (m): 9.0
• Illuminator
• LED Distance: Up to 30m (98ft)
• LEDs Number: 2
• LED On/Off Control: Auto/Manual

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main Profile, High profile
• Frame Rate
• Main Stream: 8MP (3840*2160), Max 30fps;5.3MP (3072*1728), Max 30fps; 3.6MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
• Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF (352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple streams


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart Illumination: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Intelligent

• Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area Detection
• Statistical Analysis: People counting, support people flow counting, and crowd density monitoring

Events

• Basic Detection: Motion detection, Tampering alarm, Audio Detection
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication.

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
• Client: EZStation/EZView/EZLive
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

Interface

• Audio I/O
• Input: impedance 35kΩ; amplitude 2V [p-p]
• Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Supported
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC
• CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020)
• FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety
• CE LVD (EN 62368-1:2014+A11:2017)
• CB (IEC 62368-1:2014)
• UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection
• IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
• IK10 (IEC 62262:2002)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 11W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (L × W × H): 245× 86 × 85mm (9.6” × 3.4” × 3.3”)
• Weight: 0.86kg (1.89lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A
