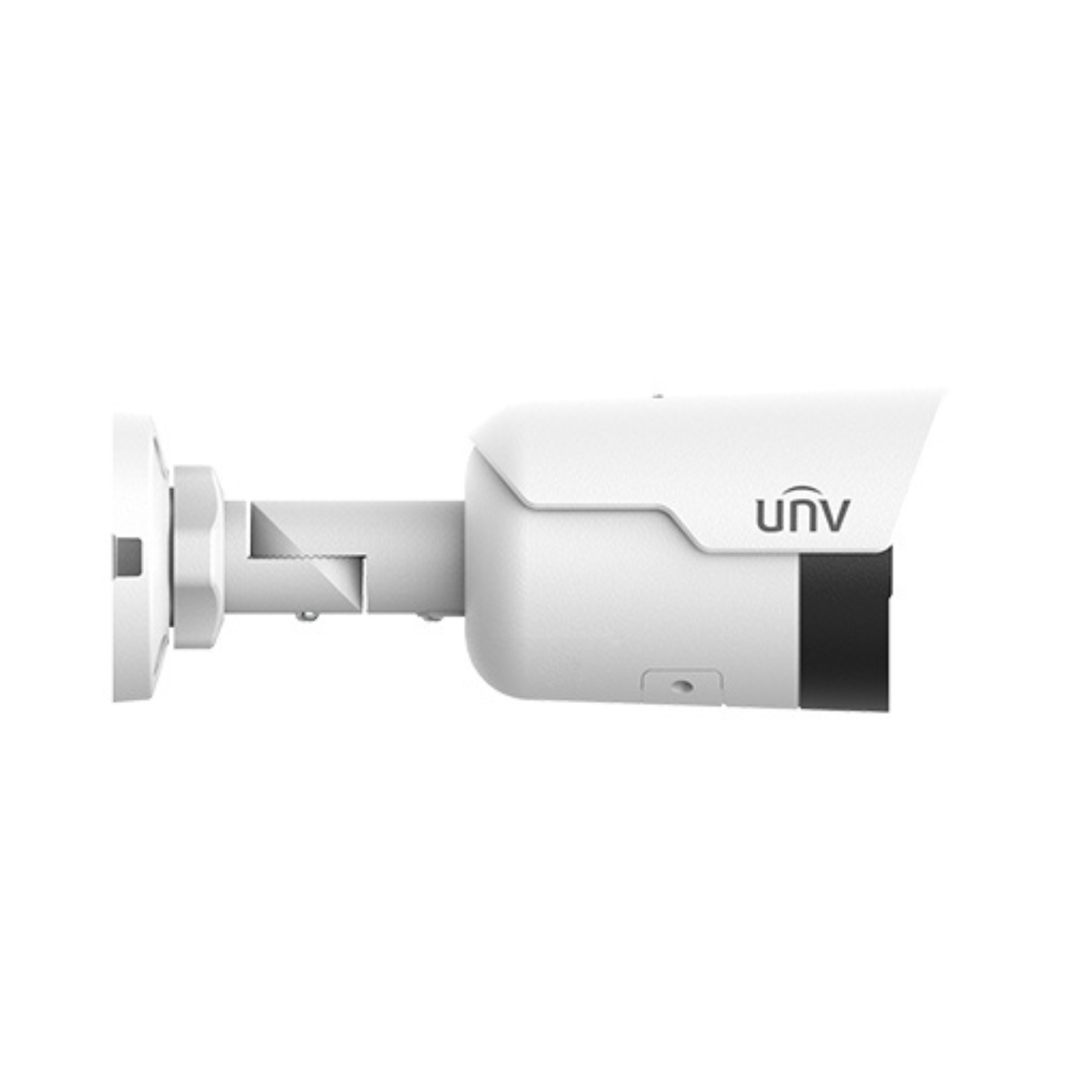

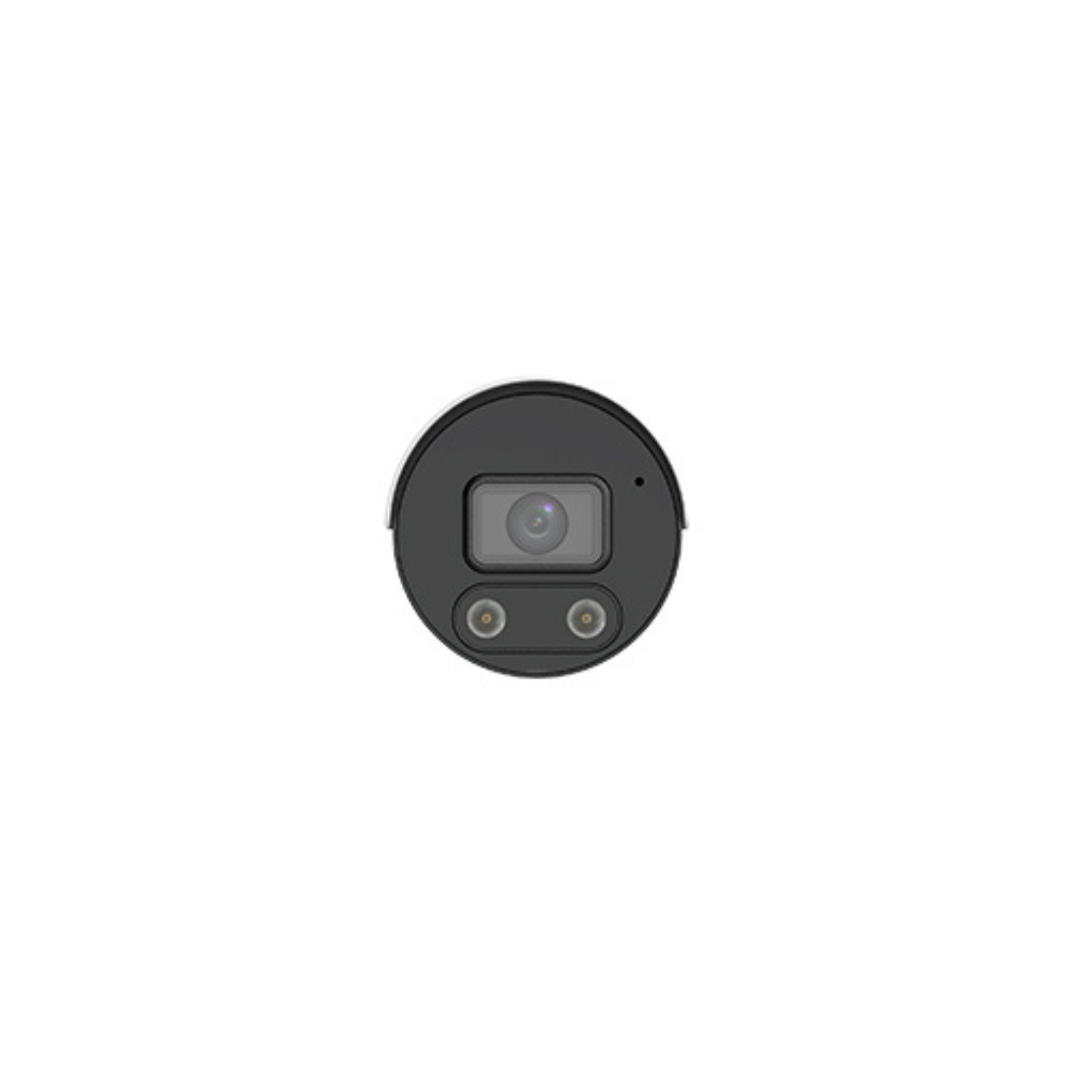

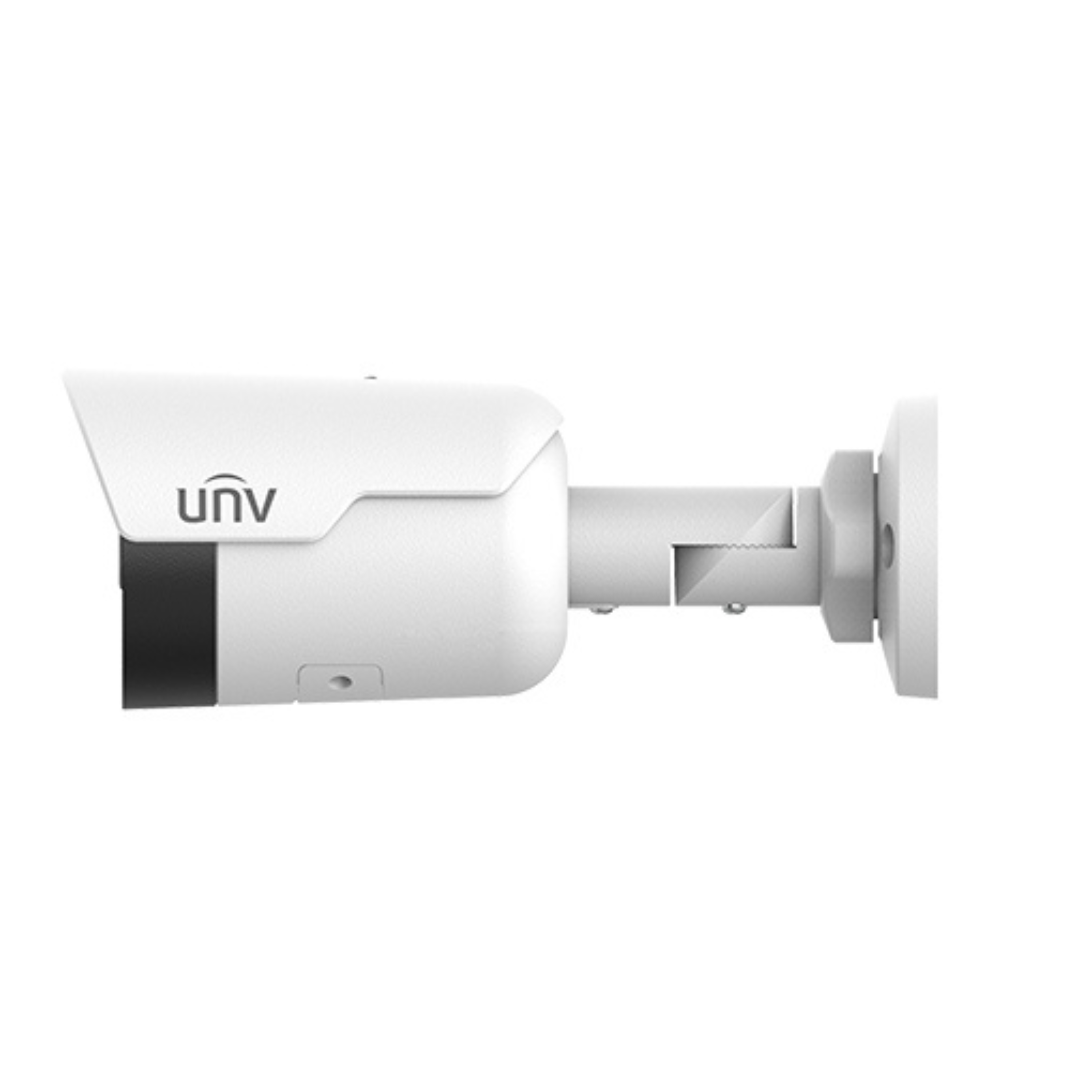

UNV 8MP HD Intelligent ColorHunter Fixed Bullet Network Camera | UNV-IPC2128SE-ADF28KM-WL-I0

• High-quality image with 8MP, 1/2.8"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarms caused by leaves, birds and lights, etc., accurately focus on human and, motor vehicle, and non-motor vehicle
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• 120dB true WDR technology enables clear images in the strong light scene

• Support 9:16 Corridor Mode
• Built-in Mic
• Smart Illuminator, Up to 30m (98 ft) white light range
• Supports 256 G Micro SD card

• IP67 protection

Technical Specifications

Camera

• Sensor: 1/2.8", 8.0 megapixel, progressive scan, CMOS
• Adjustment Angle: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination:
• Support LightHunter: Colour: 0.005Lux ( F1.0, AGC ON)
• 0 Lux with IR on
• S/N: >56dB

• WDR: 120dB


Lens

• Lens: 2.8mm@F1.6
• Angle Of View: (H) 112.9°
• Angle Of View: (V) 59.1°
• Angle Of View: (O) 121.2°

Dori

• DORI Distance:
• Lens (mm):  2.8
• Detect (m):  63.0
• Observe (m):  25.2
• Recognize (m):  12.6
• Identify (m):  6.3

Illuminator

• Illuminator: Range Up to 30m (98 ft) white light range
• LED: On/Off Control Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate: Main Stream: Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple Streams



• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart Illumination: Supported
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: Supported
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• Statistical Analysis People: counting, support people flow counting and crowd density monitoring

Events

• Basic Detection: Motion detection, Ultra motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way: audio N/A
• Suppression: Supported
• Sampling: Rate 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• Client:
• EZStation
• EZView
• EZLive
• Web Browser:
• Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in:free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

• Audio: I/O N/A
• Alarm: I/O N/A
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video: Output N/A

• EMC:
• CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
• FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety:
• CE LVD (EN 62368-1:2014+A11:2017)
• CB (IEC 62368-1:2014)
• UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 8.0W
• Dimensions(L × W × H): 191× 75 × 74mm (7.5” × 3.0” × 2.9”)

• Net Weight: 0.41kg (0.90lb)
• Material: Metal
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A
