Name: UNV IPC2124SR-ADF28KM-H 4MP WDR Fixed IR Mini Bullet Network Camera (2.8mm Focal)
Brand: UNV
SKU: UNV-IPC2124SR-ADF28KM-H
Price: 299.0 USD
Availability: InStock

UNV IPC2124SR-ADF28KM-H 4MP WDR Fixed IR Mini Bullet Network Camera | All Security Equipment

Roll over image to zoom in Click on image to zoom

Country

Province

Zip code

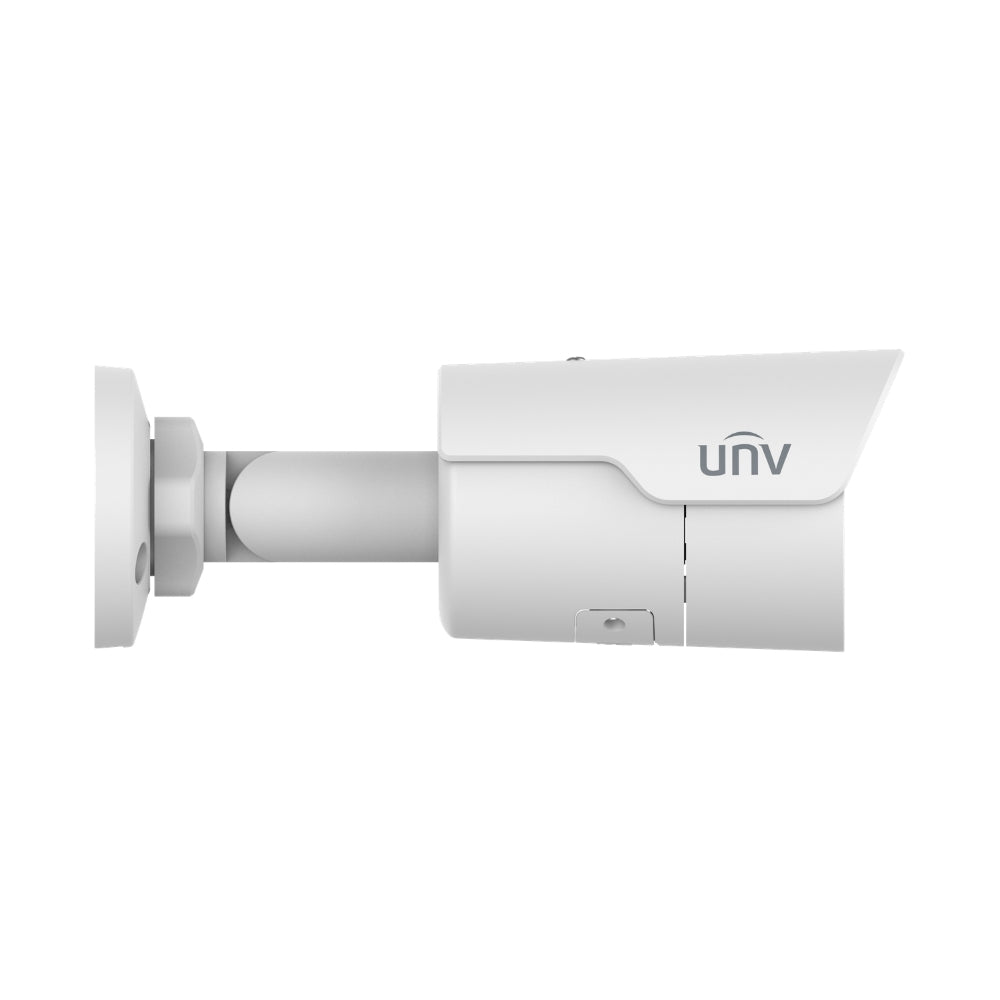

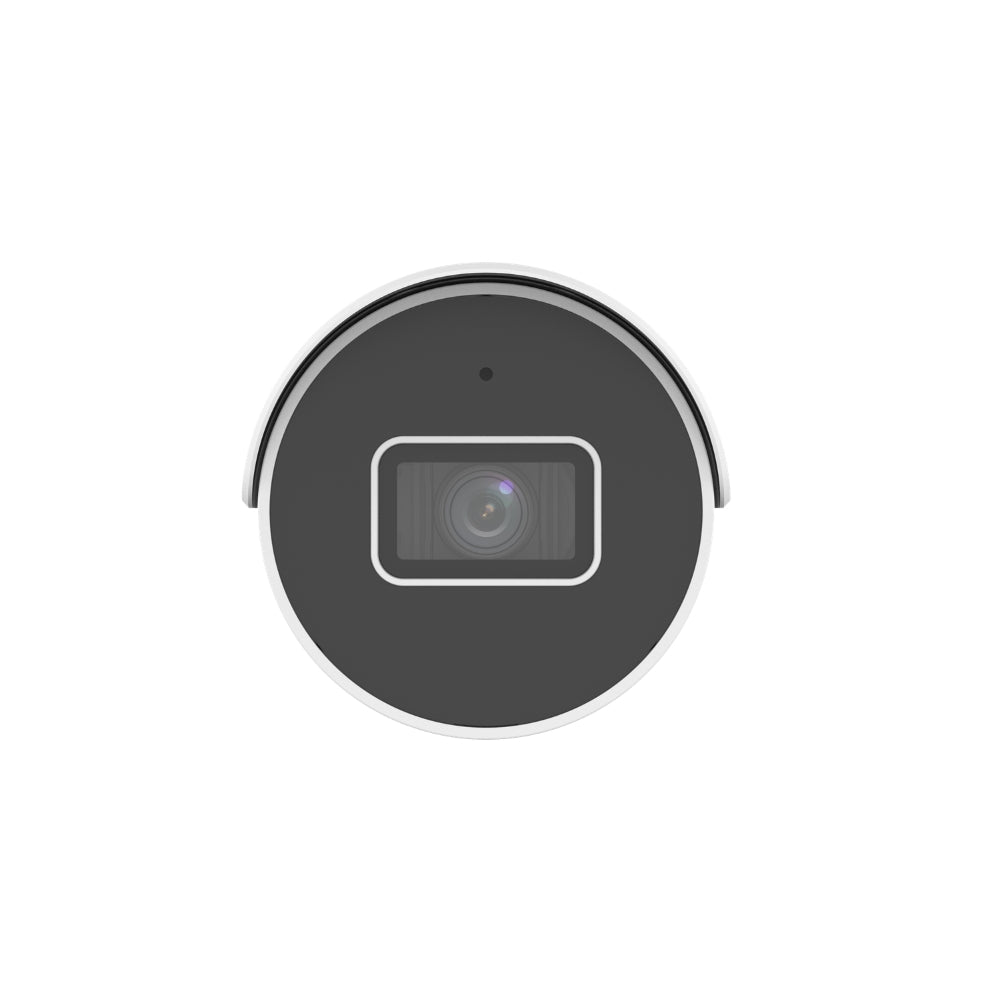

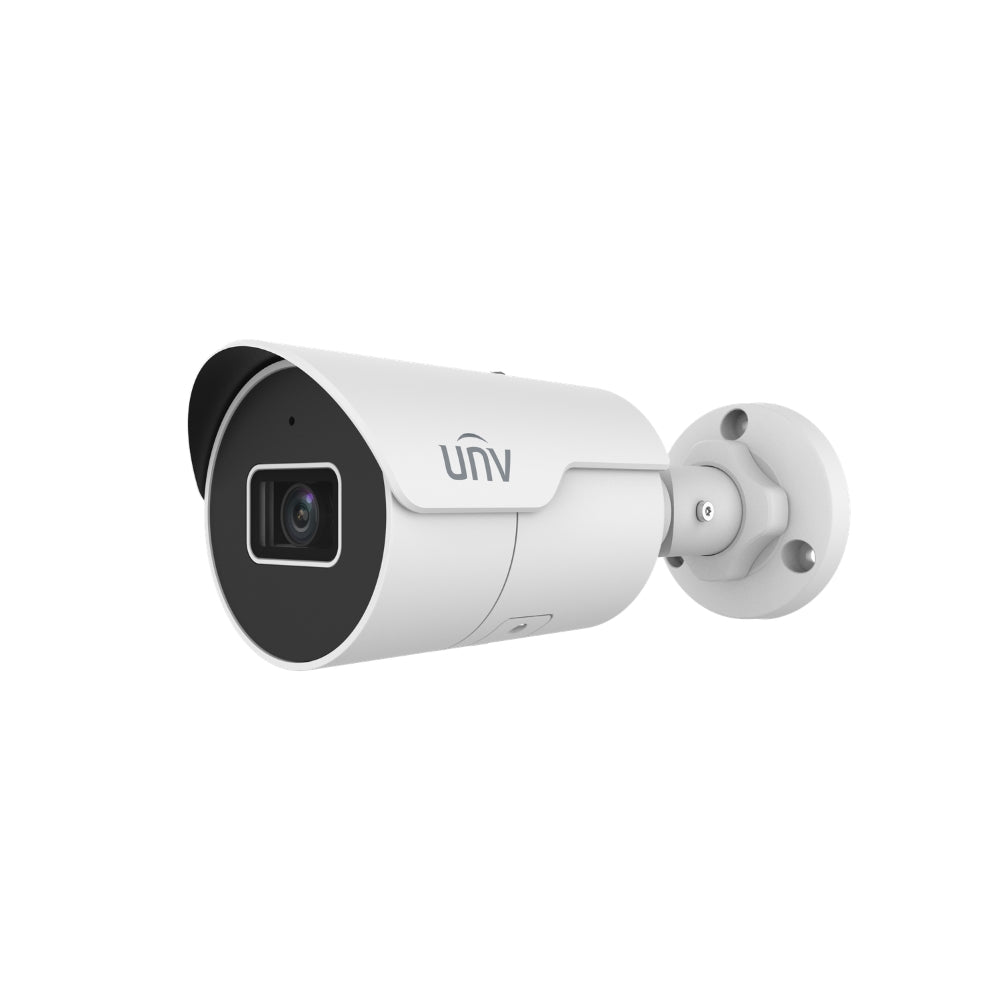

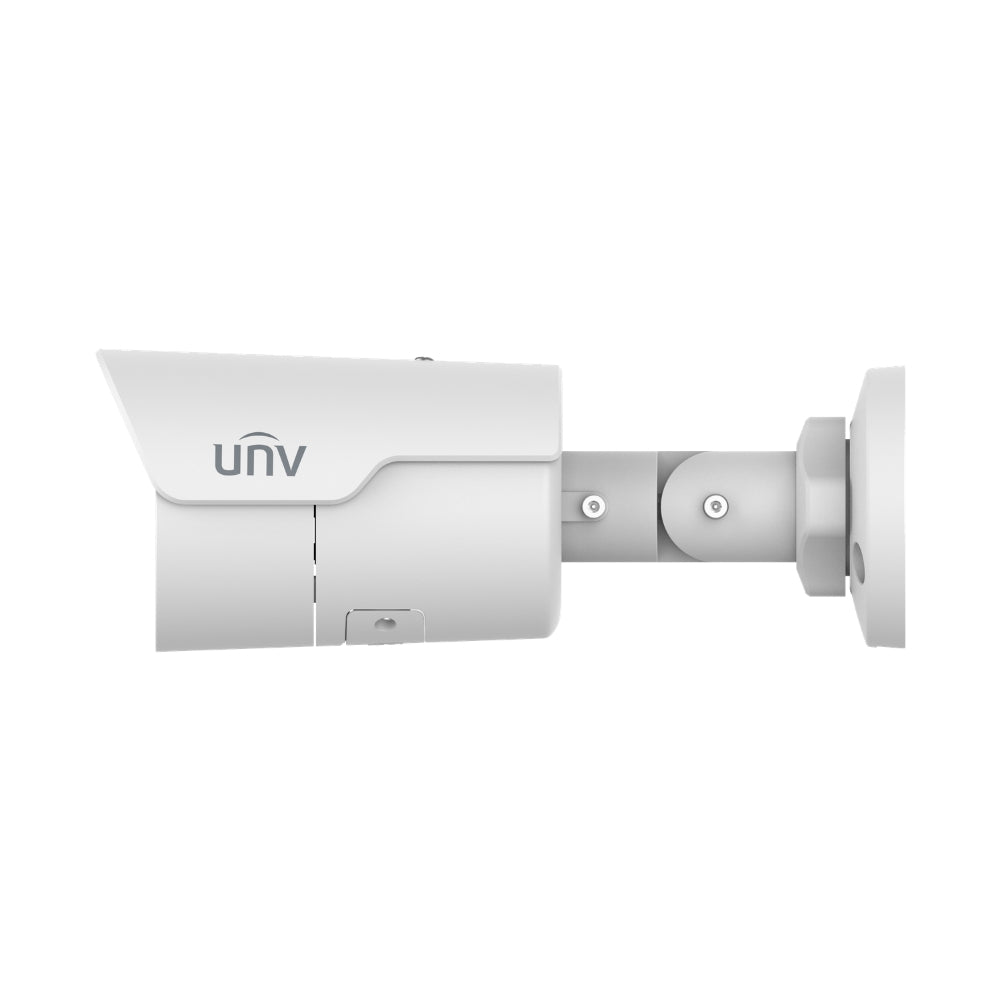

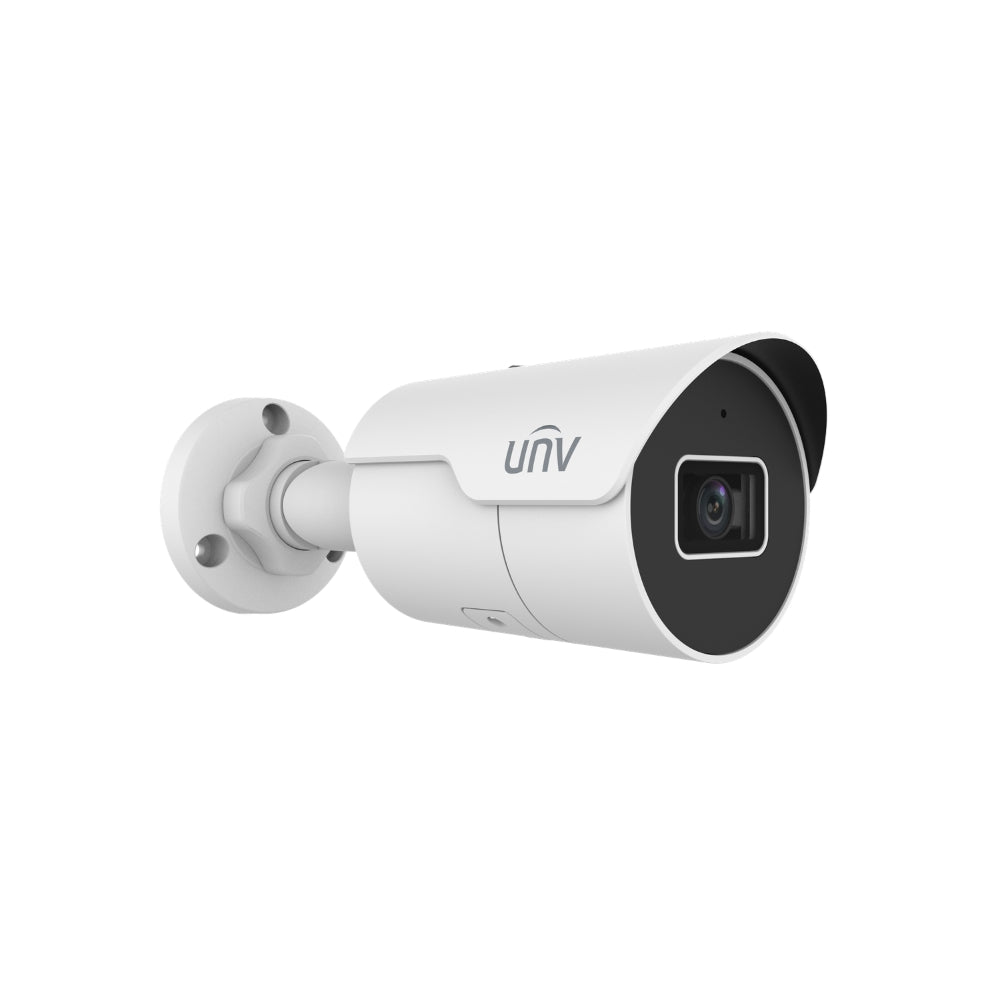

UNV IPC2124SR-ADF28KM-H 4MP WDR Fixed IR Mini Bullet Network Camera (2.8mm Focal)

The UNV IPC2124SR-ADF28KM-H is a compact yet powerful 4MP mini bullet camera designed to provide high-definition surveillance with exceptional low-light performance. Featuring Uniview’s proprietary EasyStar technology, this camera delivers clear color images in significantly lower light levels than standard sensors, ensuring you don't lose vital color details as the sun goes down.

Equipped with a 2.8mm wide-angle lens, it offers an expansive field of view, making it an excellent choice for monitoring driveways, building perimeters, and storefronts. With 120dB True WDR, it effortlessly balances scenes with difficult lighting to maintain consistent image quality across the entire frame.

Camera

Max Resolution: 4 MP
Sensor: 1/3.0" CMOS
Min. Illumination: Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N: >52 dB
WDR: 120 dB

Lens

Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 97.0°
Field of View (V): 52.2°
Field of View (D): 107.5°

DORI

DORI Distance (Lens): 2.8 mm
DORI Distance (Detect): 63.0 m (206.7 ft)
DORI Distance (Observe): 25.2 m (82.7 ft)
DORI Distance (Recognize): 12.6 m (41.3 ft)
DORI Distance (Identify): 6.3 m (20.7 ft)

Illuminator

Supplemental Light: IR
Illumination Distance (IR): 50 m (164.0 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;
Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate: 128 Kbps to 6144 Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog

Events

Basic Detection: Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB
Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user, and operator
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE, and Digest Authentication for ONVIF
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A

Certification

EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part 15 B)
Safety: CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)

General

Power: DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 5.6 W
Power Interface: Ø5.5 mm coaxial power plug

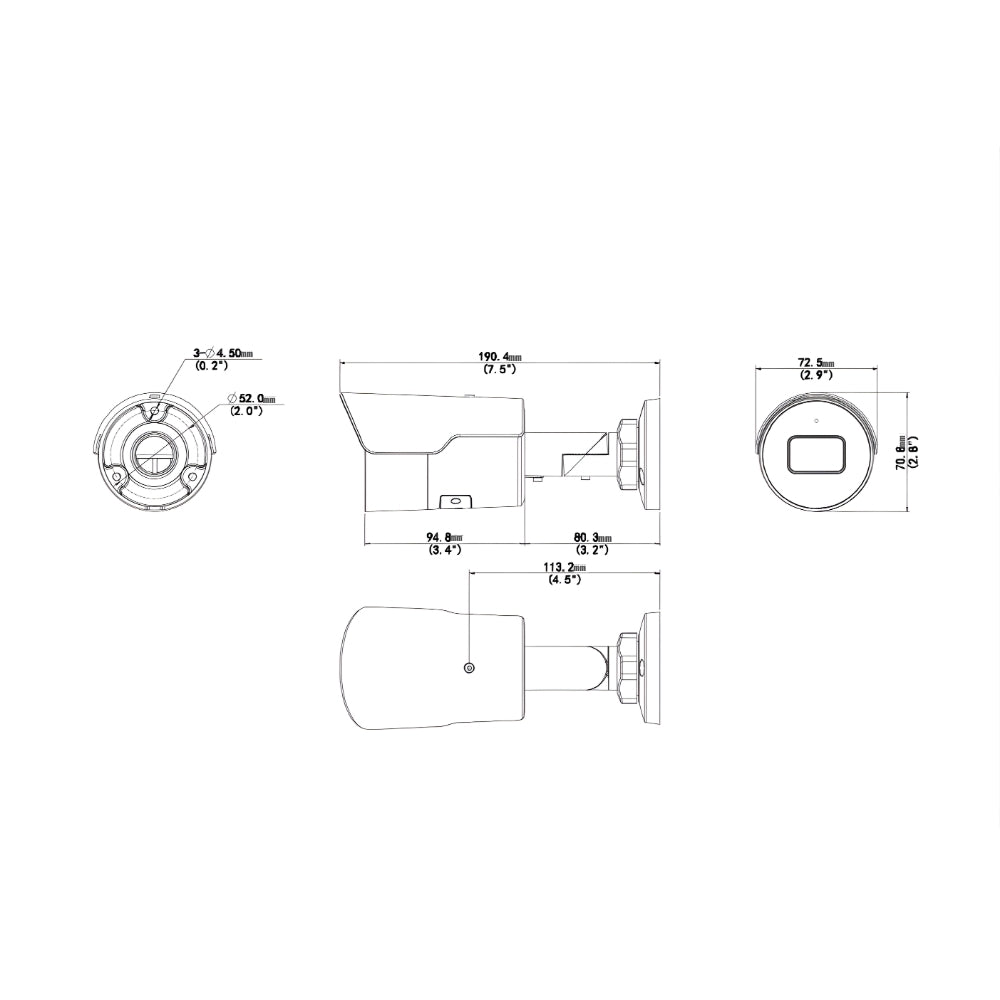

Dimensions: 190 mm × 73 mm × 71 mm (7.5" × 2.9" × 2.8") (L × W × H)
Weight: 0.40 kg (0.88 lb)
Material: Graphene + Metal
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: Support
Web Client Language: 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

UNV IPC2124SR-ADF28KM-H 4MP WDR Fixed IR Mini Bullet Network Camera (2.8mm Focal)
