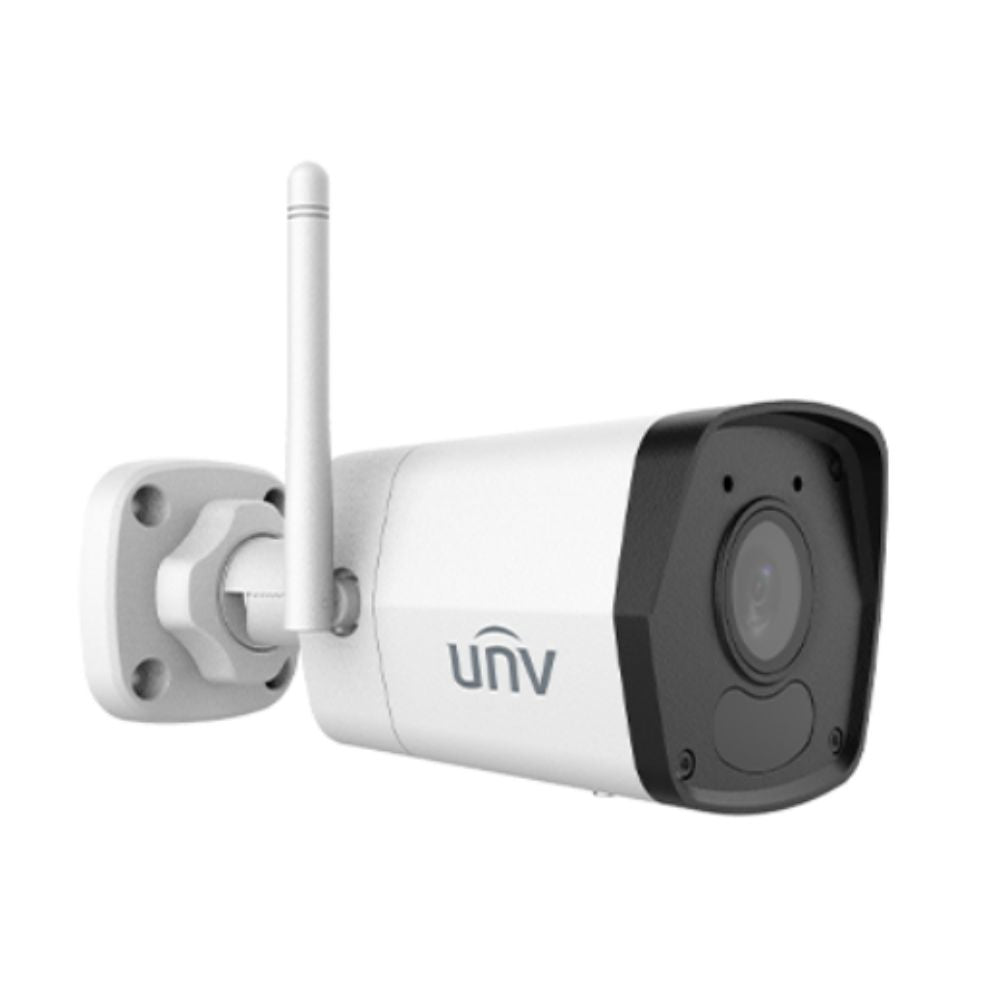

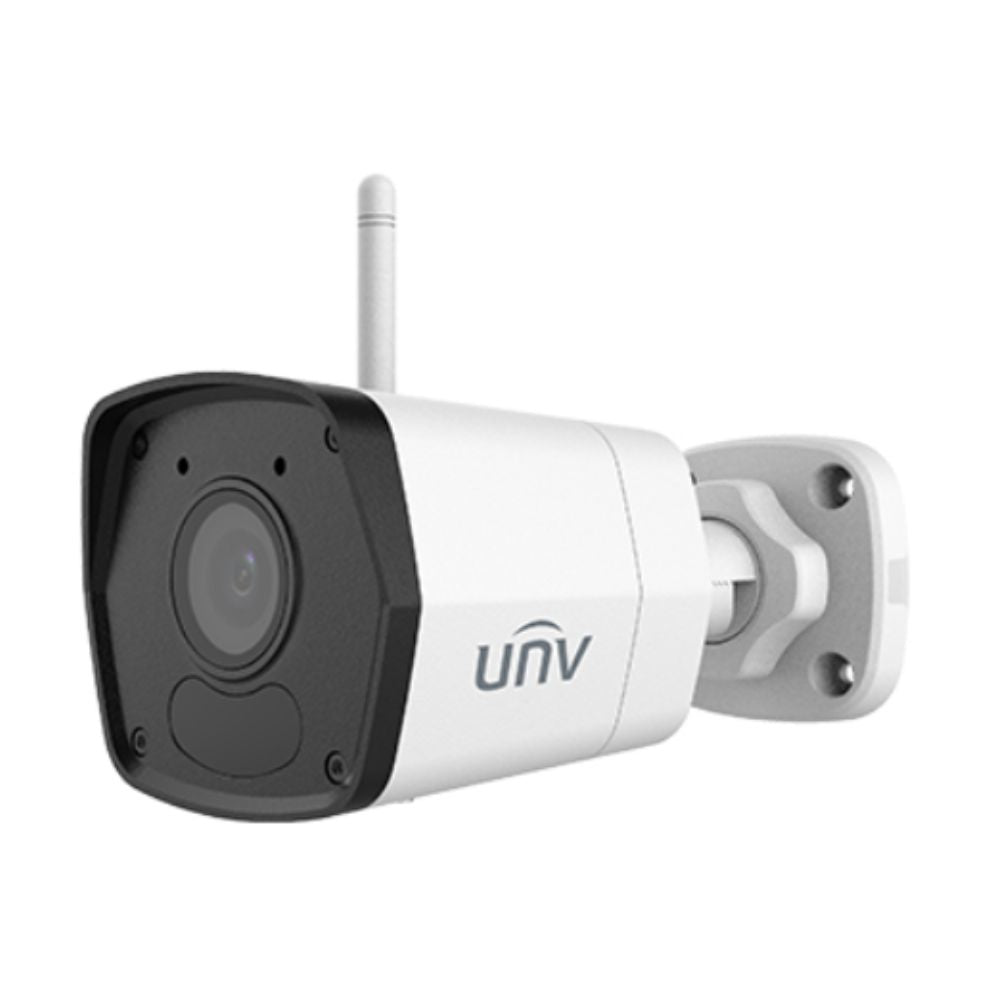

UNV IPC2122LB-AF28WK-G 2MP HD WIFI Bullet Network Camera

• High quality image with 2MP, 1/2.9"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 128 G Micro SD card
• IP67 protection
• 3-Axis

• Sensor: 1/2.9", 2.0 megapixel, progressive scan, CMOS
• Minimum Illumination
• Colour: 0.01 lux (F2.0 AGC ON) 0 lux with IR on
  Day/Night
• IR-cut filter with auto switch (ICR)
  Shutter: Auto/Manual, 1~1/100000
• Adjustment Angle Pan: 0° ~ 360°
• Tilt: 0° ~ 90°
• Rotate: 0° ~ 360°
• S/N >52dB
• WDR: DWDR
• Lens Type: 2.8mm@F2.0 4.0mm@F2.0
• Iris: Fixed
• Field of View (H): 101.1° 83.7°
• Field of View (V): 55.0° 44.6°
• Field of View (D):111.0° 89.1°
• DORI Distance 2.8mm 45.0 18.0 9.0 4.5
  4.0mm 64.3 25.7 12.9 6.4
• Illuminator: IR Range Up to 30m (98 ft) IR range
• Wavelength: 850nm
• IR: On/Off Control- Auto/Manual
• Video Compression: Ultra 265, H.265, H.264, MJPEG H.264 code profile - Baseline profile, Main profile, High profile
• Frame Rate: Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub
• Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~6 Mbps
• U-code: Support OSD up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video stream: Dual streams
• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support Flip Normal/Vertical/Horizontal/180°
• Dewarping: N/A
• HLC Support
• BLC Support
• Defog:Digital Defog
• Basic Detection: Human body detection, Motion detection, tampering alarm, audio detection
• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: N/A
• Suppression: Support
• Sampling Rate: 8KHZ
• Storage: Edge Storage Micro SD, up to 128GB
• Network Storage: ANR,NAS(NFS)
• Network Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API , SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation EZView EZLive
• Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
• Wireless Standards: IEEE802.11b/g/n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Wireless Range: Up to 130 m (The performance varies based on actual environment)
• Channel Bandwidth: 20 MHz Support
  Modulation Mode: 802.11b: CCK, QPSK, BPSK
  802.11g/n: OFDM/HT
• Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK
• Transmit Power: 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps
• Receive Sensitivity: 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical)
  802.11n: -74dBm @150Mbps (Typical)
• Transmission Rate: 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps
• Power: DC 12V±25%
• Power consumption: Max 4.0 W
• Power Interface: Ø 5.5mm coaxial power plug
• Material: Metal + Plastic
• Working Environments: -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
• Strorage Environment: -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
