Name: UNV EK-S31P8DLT46T2 8CH NVR and Eyeball Network Camera Kit
Brand: UNV
SKU: UNV-EK-S31P8DLT46T2
Price: 1399.0 USD
Availability: InStock

UNV EK-S31P8DLT46T2 8CH NVR and Eyeball Network Camera Kit | All Security Equipment

Roll over image to zoom in Click on image to zoom

Country

Province

Zip code

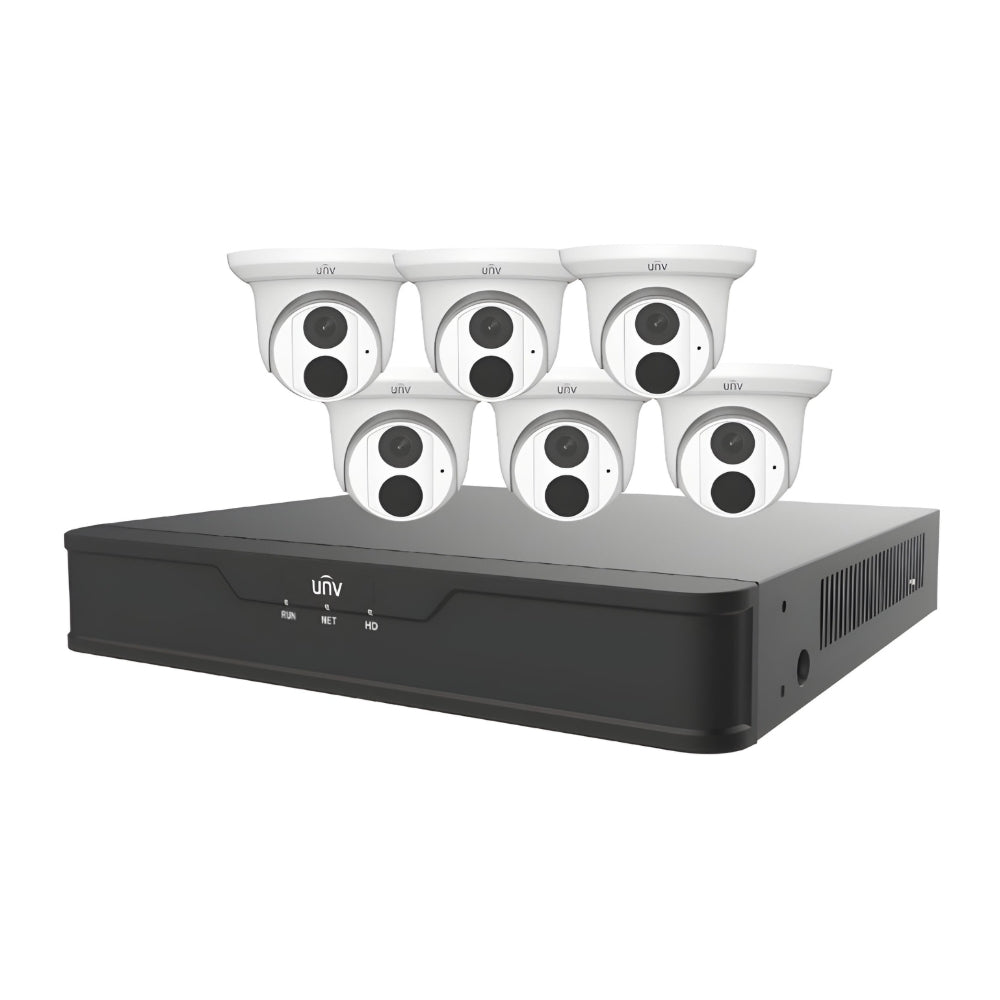

UNV EK-S31P8DLT46T2 8CH NVR and Eyeball Network Camera Kit

The UNV EK-S31P8DLT46T2 is an all-in-one surveillance solution designed for small-to-medium businesses and residential properties. This comprehensive "6+1" kit features a powerful 8-channel 4K NVR and six 4MP Dual-Light turret cameras, providing elite coverage right out of the box.

Equipped with Uniview’s Dual-Light technology, these cameras use infrared for discreet night monitoring and switch to warm white light upon detecting motion to capture full-color evidence in total darkness. With a pre-installed 2TB surveillance-grade hard drive and Plug-and-Play PoE connectivity, this system offers a seamless balance of high-end features and simplified installation.

Includes

1x NVR301-08S3-P8 - 8-ch Network Video Recorder
6x EC-T4F28M-V3 - 4MP Eyeball Network Camera

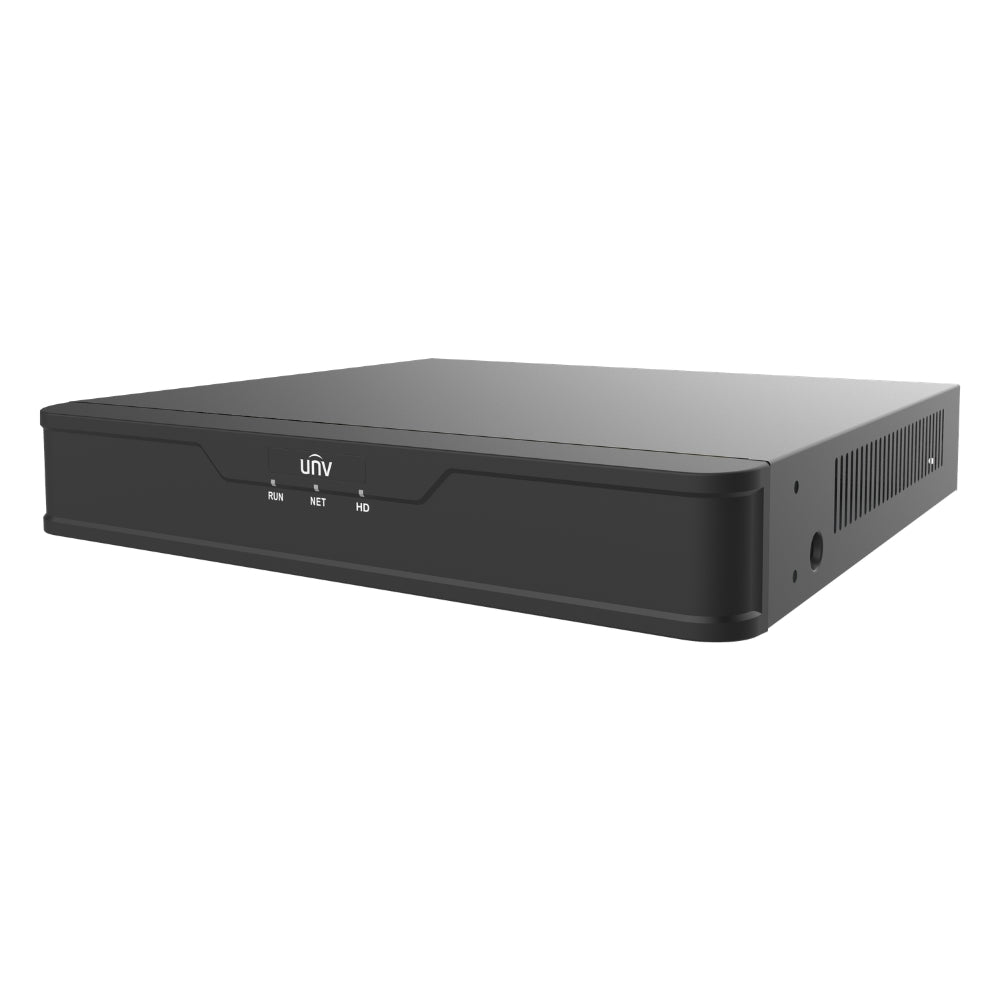

NVR301-08S3-P8

Video/Audio Input

IP Video Input: 8-ch

Network

Incoming Bandwidth: 64Mbps
Outgoing Bandwidth: 48Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP

Video/Audio Output

HDMI/VGA Output:
HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution: 4K/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Audio Output: 1-ch, RCA
Audio Compression: G.711A, G.711U
Synchronous Playback: 8-ch
Liveview display: 1/4/6/8/9
Corridor Mode Screen: 3/4/5/7/9

Snapshot

FTP/Schedule/Event Snapshot: 1-ch snapshot, up to D1 resolution

Decoding

Decoding format: Ultra 265/H.265/H.264
Live view/Playback: 4K/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF /CIF
Capability: 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30

Hard Disk

SATA: 1 SATA interfaces
Capacity: Up to 8TB for each disk (The maximum HDD capacity varies with environmental temperature)

Smart

VCA Detection by Camera: Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA Search: Face Search, Behavior Search

General Alarm

General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

Network Interface: 1 RJ-45 10M/100Mself-adaptive Ethernet Interface
USB Interface: Rear panel: 2 x USB2.0
RS232: NA
RS485: NA
Alarm In: NA
Alarm Out: NA

PoE

Interface: 8 RJ-45 10M/100Mself-adaptive Ethernet Interface
Max Power:
Max 30W for single port
Max 75W in total
Supported Standards: IEEE 802.3at, IEEE 802.3af

General

Power Supply:
52V DC
Power Consumption: ≤9 W (without HDD)
Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H): 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")
Weight (without HDD): ≤1.1kg (2.43lb)

Certification

Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC: Part 15 Subpart B, ANSI C63.4

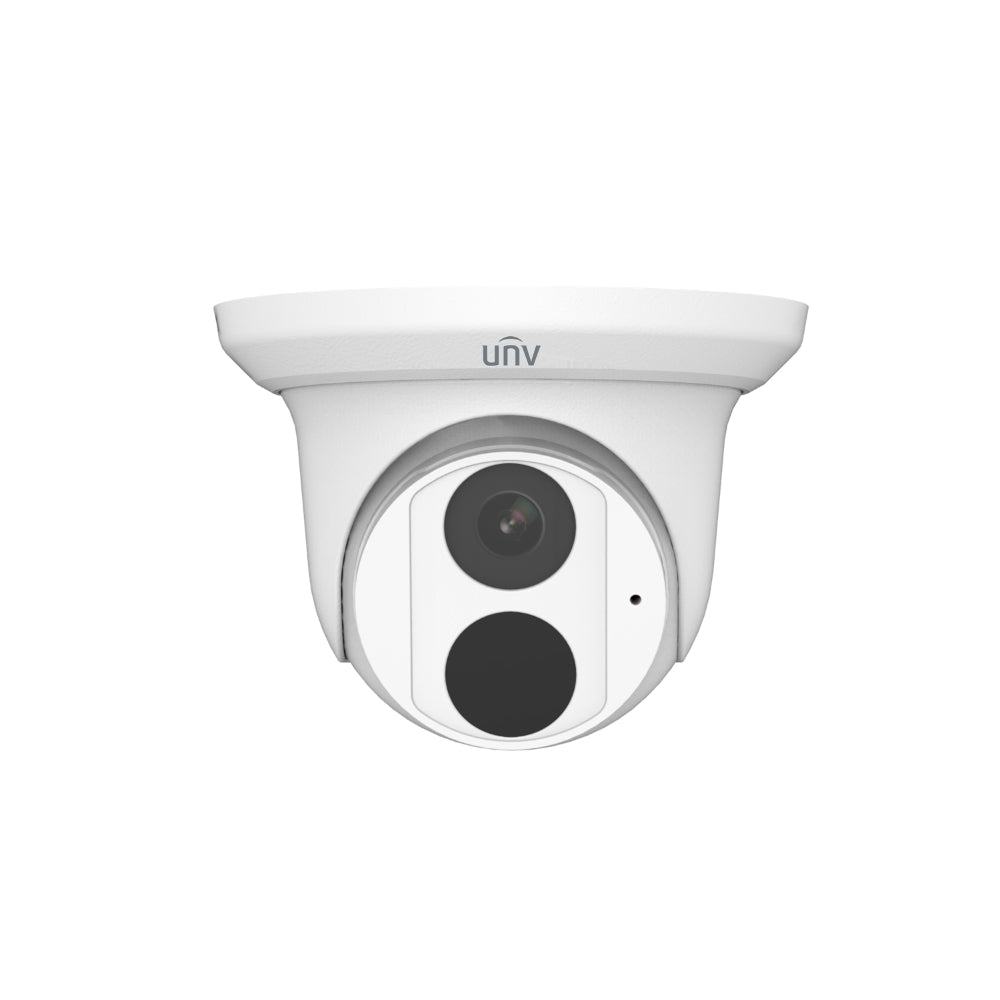

EC-T4F28M-V3

Camera

Sensor: 1/2.9", 4.0 megapixel, progressive scan, CMOS
Min. Illumination:
Colour: 0.01 lux (F2.0, AGC ON)
0 lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360°
S/N: >52dB
WDR: 120dB

Lens

Lens Type: 2.8mm @F2.0
Iris: Fixed
Field of View (H): 101.5°
Field of View (V): 55.6°
Field of View (D): 111.6°

DORI

DORI Distance Lens (mm): 2.8
DORI Distance Detect (m): 63.0
DORI Distance Observe (m): 25.2
DORI Distance Recognize (m): 12.6
DORI Distance Identify (m): 6.3

Illuminator

IR Range: Up to 30m (98ft)
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate: 128 Kbps~6144 kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams


White Balance: Auto/ Outdoor/ Fine Tune/ Sodium Lamp/ Locked/ Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/ Vertical/ Horizontal/ 180°/ 90°Clockwise/ 90°Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog

Events

Basic Detection: Motion detection, Tampering alarm, Audio detection, Cross-line, and Intrusion
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Storage

Edge Storage: Micro SD, up to 128GB
Network Storage: ANR, NAS(NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF
Client:
EZStation
EZView
EZLive
Web Browser:
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A

Certification

EMC:
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part 15 B)
Safety:
CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)

General

Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (Ø x H): Φ126 x 94mm (Φ5.0” x 3.7”)
Weight: 0.30kg (0.66lb)
Material: Metal+Plastic
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KVs
Reset Button: N/A
