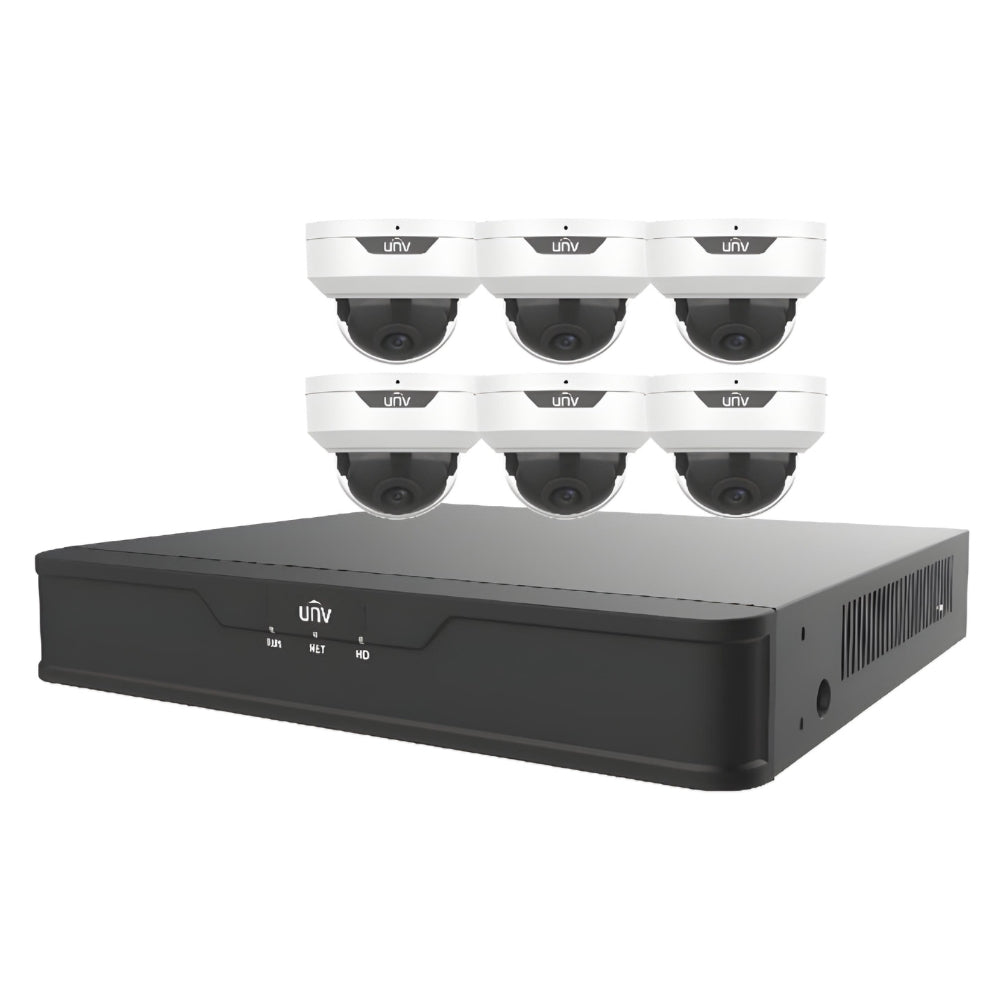

UNV EK-S31P8D46T2-V3 8CH NVR and Dome Network Camera Kit

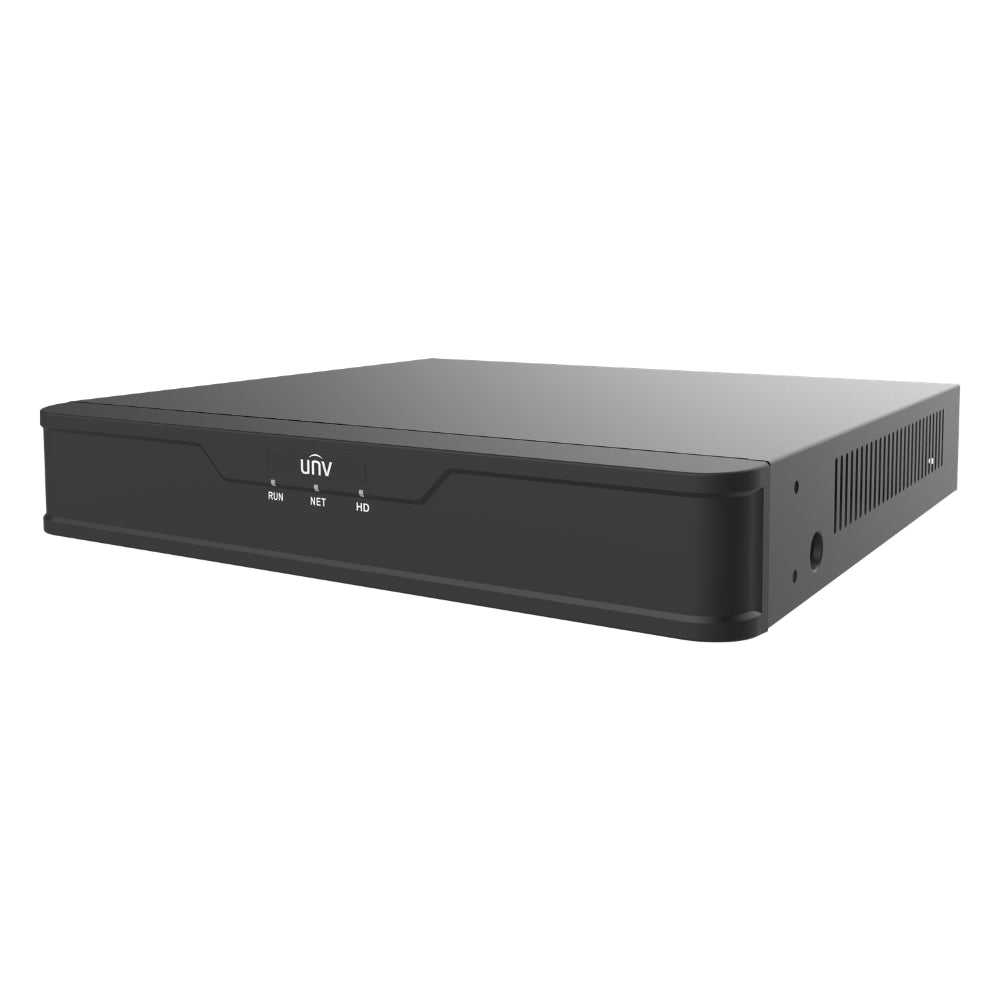

NVR301-08S3-P8

• Support Ultra 265/H.265/H.264 video formats
• 8-channel input
• Plug & Play with 8 independent PoE network interfaces
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI, 1-ch VGA
• HDMI and VGA simultaneous output
• Up to 8MP resolution recording
• 1 SATA HDD
• Support cloud upgrade

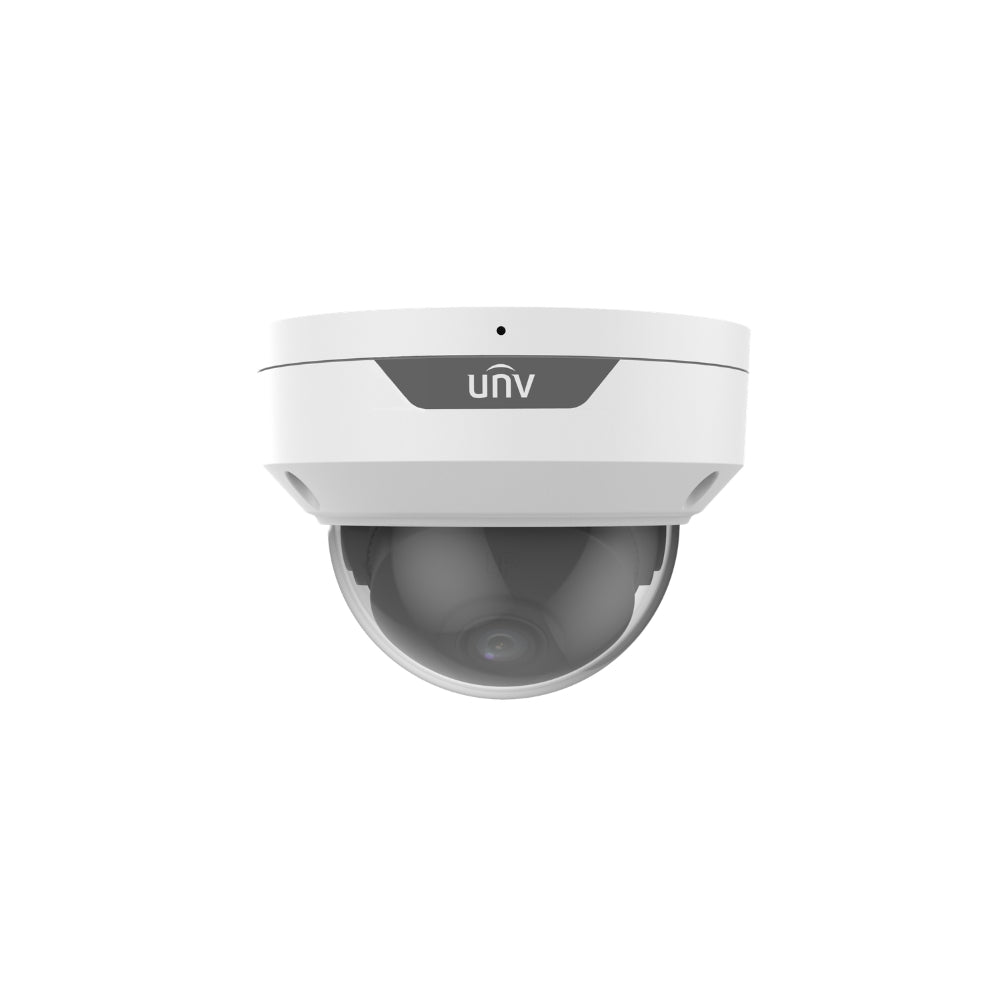

EC-D4F28M-V3

• Day/night functionality
• Smart IR, up to 30 m (98 ft) IR distance
• 2D/3D DNR (Digital Noise Reduction)
• Ultra 265, H.265, H.264, MJPEG
• ONVIF Conformance
• Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
• Wide voltage range of ±25%
• IK10 vandal resistant
• IP67

Model: NVR301-08S3-P8

Video/Audio Input

• IP Video Input: 8-ch

Network

• Incoming Bandwidth: 64Mbps
• Outgoing Bandwidth: 48Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP

Video/Audio Output

• HDMI/VGA Output:
  HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Recording Resolution: 4K/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
• Audio Output: 1-ch, RCA
• Audio Compression: G.711A, G.711U
• Synchronous Playback: 8-ch
• Liveview display: 1/4/6/8/9
• Corridor Mode Screen: 3/4/5/7/9

Snapshot

• FTP/Schedule/Event Snapshot: 1-ch snapshot, up to D1 resolution

Decoding

• Decoding format: Ultra 265/H.265/H.264
• Live view/Playback: 4K/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
• Capability: 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30

Hard Disk

• SATA: 1 SATA interfaces
• Capacity: Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)

Smart

• VCA Detection by Camera: Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
• VCA Search: Face Search, Behavior Search

General Alarm

• General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
• Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface: 1 RJ-45 10M/100Mself-adaptive Ethernet Interface
• USB Interface: Rear panel: 2 x USB2.0
• RS232: NA
• RS485: NA
• Alarm In: NA
• Alarm Out: NA

PoE

• Interface: 8 RJ-45 10M/100Mself-adaptive Ethernet Interface
• Max Power: Max 30W for single port; Max 75W in total
• Supported Standard: IEEE 802.3at, IEEE 802.3af

General

• Power Supply: 52V DC
• Power Consumption: ≤9 W (without HDD)
• Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H): 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")
• Weight (without HDD): ≤1.1kg (2.43lb)

Certification

• Certification: CE, FCC, UL, RoHS, WEEE
• CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
• FCC: Part15 Subpart B, ANSI C63.4

Model EC-D4F28M-V3

Camera

• Sensor: 1/2.9", progressive scan, 4.0 megapixel, CMOS
• Minimum Illumination: Colour: 0.01 lux (F2.0, AGC ON) ; 0 lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment Angle: Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
• S/N: >52dB
• WDR: 120dB

Lens

• Lens: Type 2.8mm @F2.0
• Iris: Fixed
• Field of View (H): 101.5°
• Field of View (V): 55.6°
• Field of View (D): 111.6°

DORI

• DORI Distance (Lens): 2.8 mm
• DORI Distance (Detect): 63.0 m (206.7 ft)
• DORI Distance (Observe): 25.2 m (82.7 ft)
• DORI Distance (Recognize): 12.6 m (41.3 ft)
• DORI Distance (Identify): 6.3 m (20.7 ft)

Illuminator

• IR Range: Up to 30m (98ft)
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720),
  Max 30fps
  Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~6144 kbps
• U-code: Support
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video stream: Dual streams


• White Balance: Auto/ Outdoor/ Fine Tune/Sodium Lamp/ Locked/ Auto2
• Digital noise reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal/ Vertical/ Horizontal/1 80°/ 90°Clockwise/ 90°Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Events

• Basic Detection: Motion detection, Tampering alarm, Audio detection, Cross line and Intrusion
• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Storage

• Edge Storage: Micro SD, up to 128GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API , SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation; EZView; EZLive
• Web Browser:
  Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
  Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio: I/O N/A
• Alarm: I/O N/A
• Serial Port: N/A
• Built-in: Mic Support
• Built-in: Speaker N/A
• WIFI: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certification

• EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035), FCC (FCC 47 CFR part15 B)
• Safety: CE LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529); IK10 (IEC 62262)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 4.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions: (Ø x H) Φ109 x 83mm (Ø4.3” x 3.3”)
• Weight: 0.36kg (0.79lb)
• Material: Metal + Plastic
• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A
