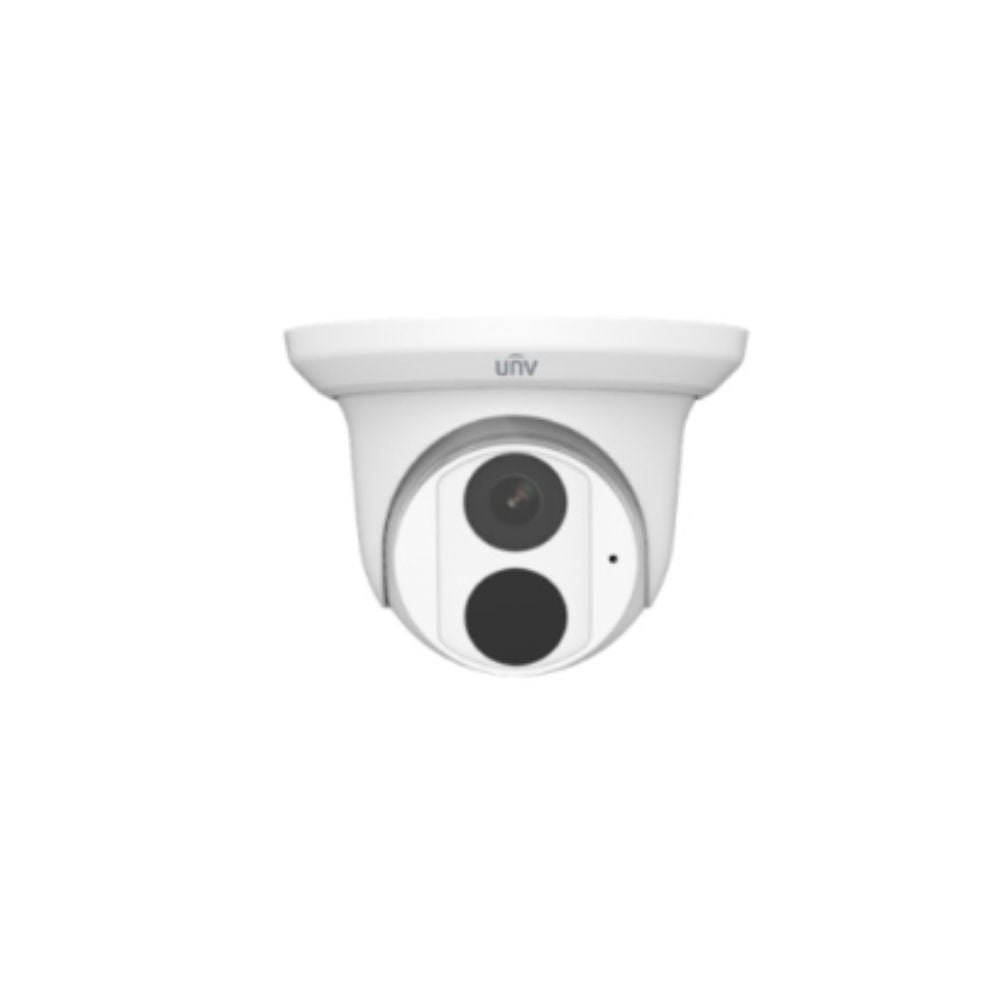

UNV EC-T8F28M 8MP HD Fixed Eyeball Network Camera

Record with exceptional detail with this UNV high-resolution camera Fixed Eyeball Network Camera. Achieve stunning 8MP HD images and a wide field of view. Its compact design and powerful infrared illumination make it essential for various security applications.

Camera Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS
Minimum Illumination: Color: 0.01 lux (F1.6, AGC ON), 0 lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N Ratio: >56dB
Wide Dynamic Range (WDR): 120dB
Lens: Lens Type 2.8mm@1.6, Fixed-focal, Field of View (H)112.9°, Field of View (V)59.1°, Field of View (D)121.2°
Distance: Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 63.0 25.2 12.6 6.3
Illuminator: IR Range Up to 30m (98ft) IR range, Wavelength 850nm, IR On/Off Control Auto/Manual
Video: Video Compression H.265, H.264, MJPEG, H.264 code profile Baseline profile, Main profile, High profile, Frame Rate Main Stream: 8MP (38402160)@15fps ; 5MP (28801620)@25/20fps ;4MP (25601440)@25/20fps; 3MP (23041296)@30/25fps; 2MP (19201080)@30/25fps, Sub Stream: 720P (1280720)@30/25fps; D1 (720576), Max 30fps; 640360,Max 30fps, Video Bit Rate 128 Kbps~16384 kbps, Smart Encoding Supported, OSD Up to 4 OSDs, Privacy Mask Up to 4 areas, ROI Up to 8 areas, Motion Detection Up to 4 areas
Image: White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2, Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser, Digital noise reduction 2D/3D DNR, Smart IR Support, Flip Normal/Vertical/Horizontal/180°/90° Clockwise/90° Anti-clockwise, Dewarping N/A, HLC Supported, BLC Supported, Defog Digital Defog
Events: Behavior Detection Cross line, intrusion(based on human body detection), Motion detection, tampering alarm, audio detection
General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio: Audio Compression G.711A,G.711U, Suppression Supported, Sampling Rate 8KHZ
Storage: Edge Storage Micro SD, up to 256GB, Network Storage NAS(NFS)
Network: Protocols IPV4, IPV6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL, TLS, SSH, Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK, User/Host Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface: Audio I/ON/A, Alarm I/ON/A, RS485 N/A, Built-in Mic Support, Built-in Speaker N/A, WIFI N/A, Network 1 RJ45 10M/100M Base-TX Ethernet, Video Output N/A
Certification: EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014), Safety CE LVD (EN 62368-1:2014+A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006), Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013), General Power DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 4.0W, Power Interface Ø 5.5mm coaxial power plug, Dimensions (Ø x H) Φ118 x 97mm (Φ4.6” x 3.8”), Weight 0.30kg (0.66lb), Material Metal, Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing), Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing), Surge Protection 4KV, Reset Button N/A
