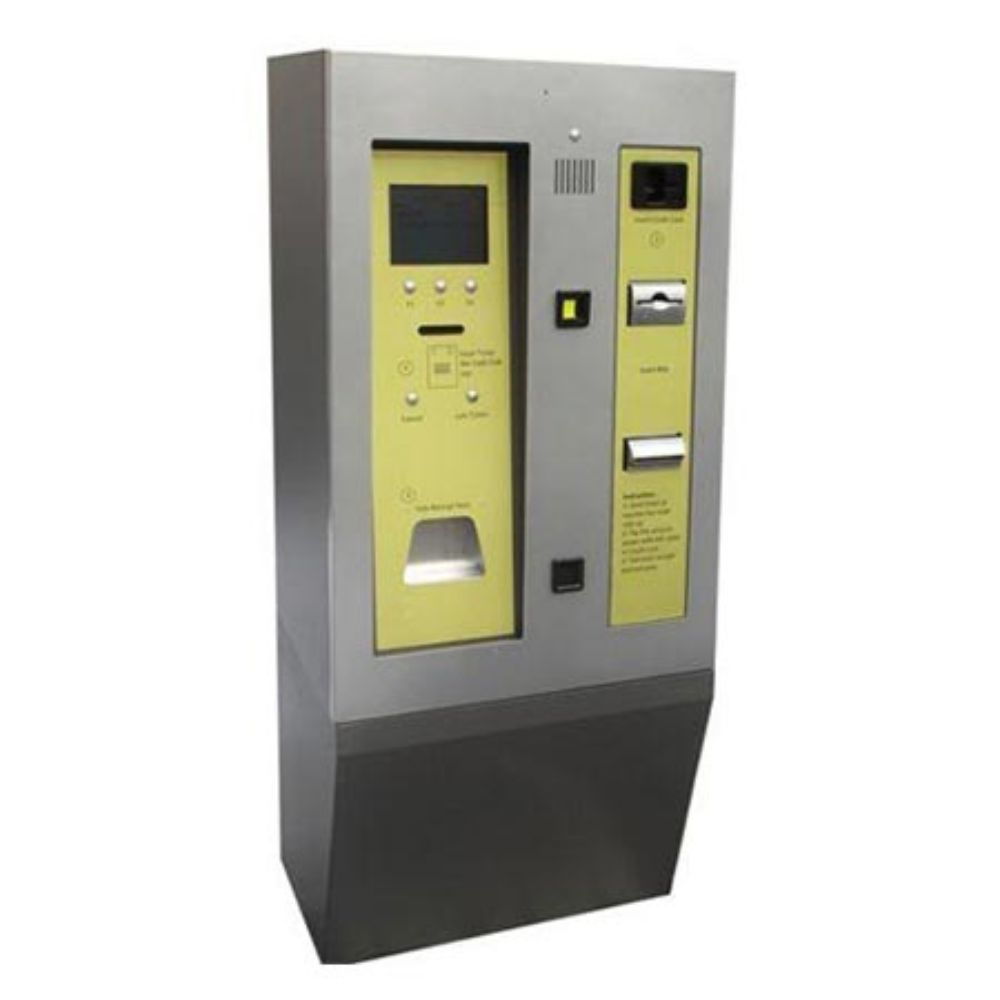

SysParc Pay Parking Station (Model PS-2020) | SYS-PS2020
Barcode Automated Pay Station, basic unit with pedestal base
The SysParc Model PS-2020 Pay Station is a revenue control device that provides for rapid and accurate collection of the parking fee due prior to exit from the parking facility. The parking fee is satisfied through the use of the parking patron’s credit card or currency and is accomplished without the need for an attendant or cashier. Upon completion of the payment transaction, a "validated” ticket is issued to the patron for use at an exit lane Exit Verifier, which will cause a lift-arm barrier gate to activate, and allow egress from the facility. Please call for special pricing at (800) 730-8382.
Features
- Completely unattended operation
- Multiple Operational Use
- With Credit Card
- Note Acceptor w/ self-replenishing dispenser
- Coin Acceptor w/ self-replenishing dispenser
- Ideal for “Pre-Pay” or “Pay In Lane” applications
- Rust-resistant zinc-plated steel heavy-duty construction
- Built-In thermostatically controlled heater.
- Large full color CRT screen displays instructions, Date & Time, Fee Due, and optional programmable message(s).
- Optional (recommended) Intercom
- On-Line Operation or Stand-Alone Off-Line Operation
- Accepts 4 or 7 mil thick tickets, from TD-6030/TD-6040 Ticket Machines
- PCI compliant
Functions
- Inserting the barcode ticket into the device’s barcode scanner transport mechanism activates the PS-2020 Pay Station. This is the ticket that was issued to the parking patron upon entry into the facility.
- The SysParc Model PS-2020 Pay Station reads the barcode ticket, then calculates and displays the parking fee due to the parking patron. It then instructs the patron to insert their credit card or insert US currency to satisfy the fee due.
- After correctly inserting and removing their magnetically encoded credit card within the PS-2020, or inserting the US currency sufficient to satisfy the fee due, the Pay Station will produce a detailed paper receipt for the patron and reissue the barcode ticket for the patron’s use within the exit lane’s Exit Verifier.
Technical Specifications
- Dimensions: 27" wide, by 17.5" deep, by 60" in height
- Weight: 295 lbs.
- Electrical Power Requirements: 115VAC at 60Hz, or 220VAC at 50Hz (An internal UL-approved stepdown transformer converts this current into the 24VDC required to power all of the electrical circuitry within the device)
- Construction: Heavy-duty rolled steel (which is zinc plated for rust inhibition, and then powder coated with sealing rust-resistant paint)
- Standard color: White (but the device may be ordered with special paint colors)
