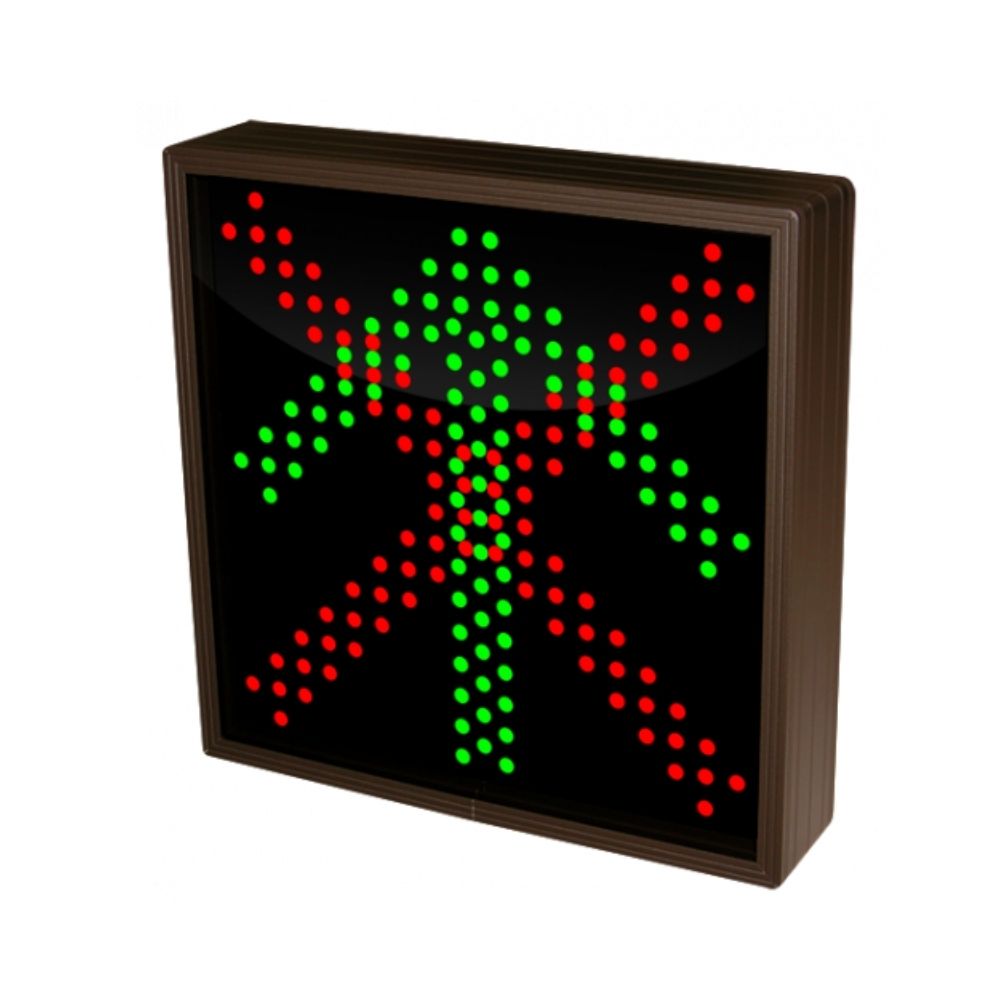

Signal-Tech X | Up Arrow TCL1010RG-I904TS/12-24VDC | SIG-47632

This TCL Series X | Up Arrow (12-24VDC) outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum, and ships with our Lift'N Shift back for wall mounting. Ceiling, post, and wall-projection mountings are available. The standard cabinet finish is Duranodic Bronze; custom paint finishes are available. The sign can be controlled by a switch or third-party relay. Control switches can be purchased separately. UL/cUL Listed for wet locations.

Includes
  • Built-in Lift'N Shift Wall Mount
Technical Specifications
  • Product #: 47632
  • Product Line: TCL (Outdoor Blank-out LED Direct-view Sign)
  • Model: TCL1010RG-I904TS/12-24VDC
  • Dimensions: 10" H x 10" W x 2.5" D
  • Weight: 3.495 lbs.
  • Faces: Single Face
  • Face Material: 1/8" Smoked Polycarbonate(5109)
  • Illumination: TCL LED
  • Input Voltage: 12-24 VDC
  • LED Viewing Angle: Wide Angle LEDs
  • UL/cUL Listed: Wet Locations
  • Finish: Duranodic Bronze
    Mounting Channel: None
  • Mounting Channel: None
  • Flashing: Not Included
  • Cabinet: Combo 2.5"
Messages Message Color Character Height
X Red Wide Angle LED 8.375"
Up Arrow Green Wide Angle LED  8.125"

Manufacturer's Warranty
  • 5 Years
