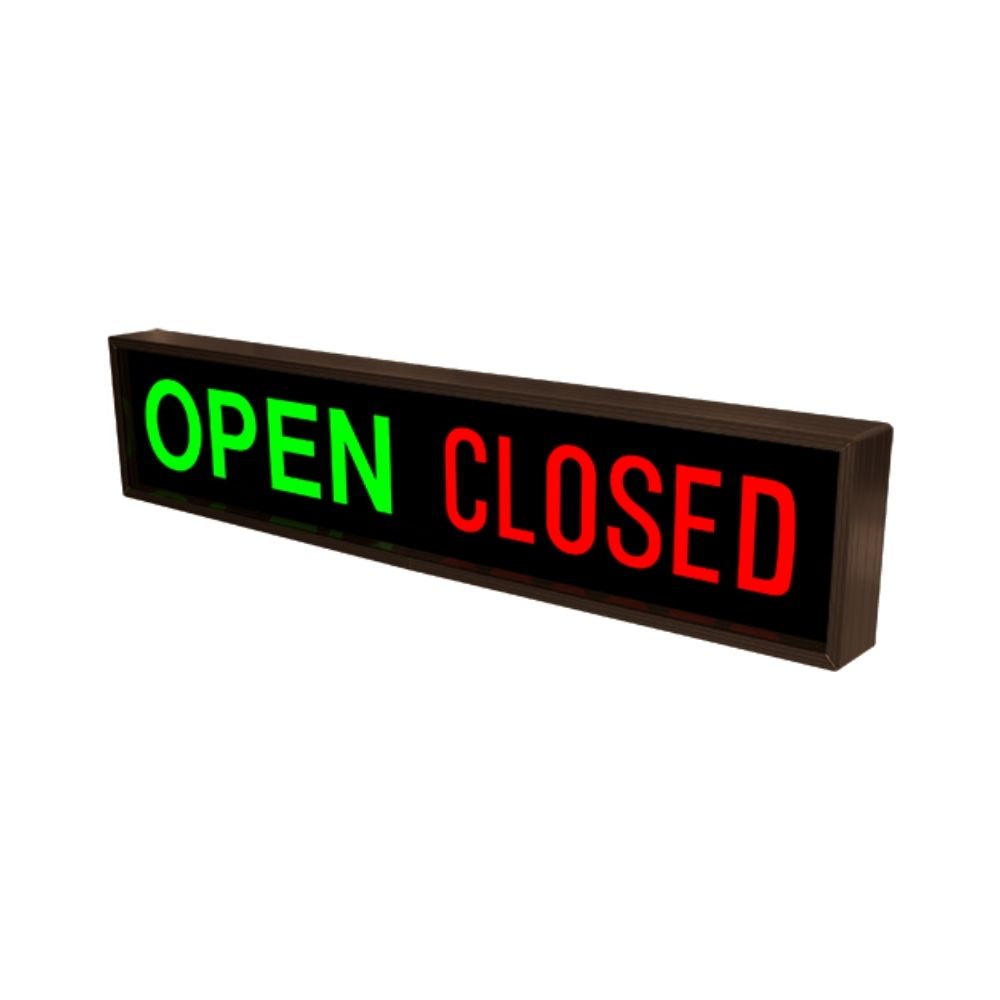

Signal-Tech OPEN | CLOSED PHX734GR-100/120-277VAC | SIG-25883
This PHX Series OPEN | CLOSED outdoor, blank-out sign is designed with high-intensity, LED reflected, backlit illumination, and a block letter-style message face. The sign message illuminates when turned on and blanks out or extinguishes when off. PHX Series signs are guaranteed readable in direct sunlight.
It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum, and ships with our Lift'N Shift back for wall mounting. Ceiling, post, and wall-projection mountings are available. The standard cabinet finish is Duranodic Bronze; custom paint finishes are available. The sign can be controlled by a switch or third-party relay. Control switches can be purchased separately. UL/cUL Listed for wet locations.
Includes
- Built-in Lift'N Shift Wall Mount
Technical Specifications
- Product #: 25883
- Product Line: PHX (Outdoor Blank-out LED Backlit Sign)
- Model: PHX734GR-100/120-277VAC Dimensions: 7" H x 34" W x 2.5" D
- Weight: 7.182 lbs.
- Faces: Single Face
- Graphic: Printed
- Color: Black Blockout
- LED Viewing Angle: Wide Angle LEDs Face Material: 1/8" Dark Grey Diffused Acrylic
- UL/cUL Listed: Wet Locations
- Finish: Duranodic Bronze
- Illumination: PHX LED
- Mounting Channel: None
- Input Voltage: 120-277 VAC
- Flashing: Not Included
- Cabinet: Combo 2.5"
- Warranty: 5 Year Warranty
Messages | Message Color | Character Height |
OPEN | Green Wide Angle LED | 3.75" |
CLOSED | Red Wide Angle LED | 3.75" |
Manufacturer's Warranty
- 5 Years
