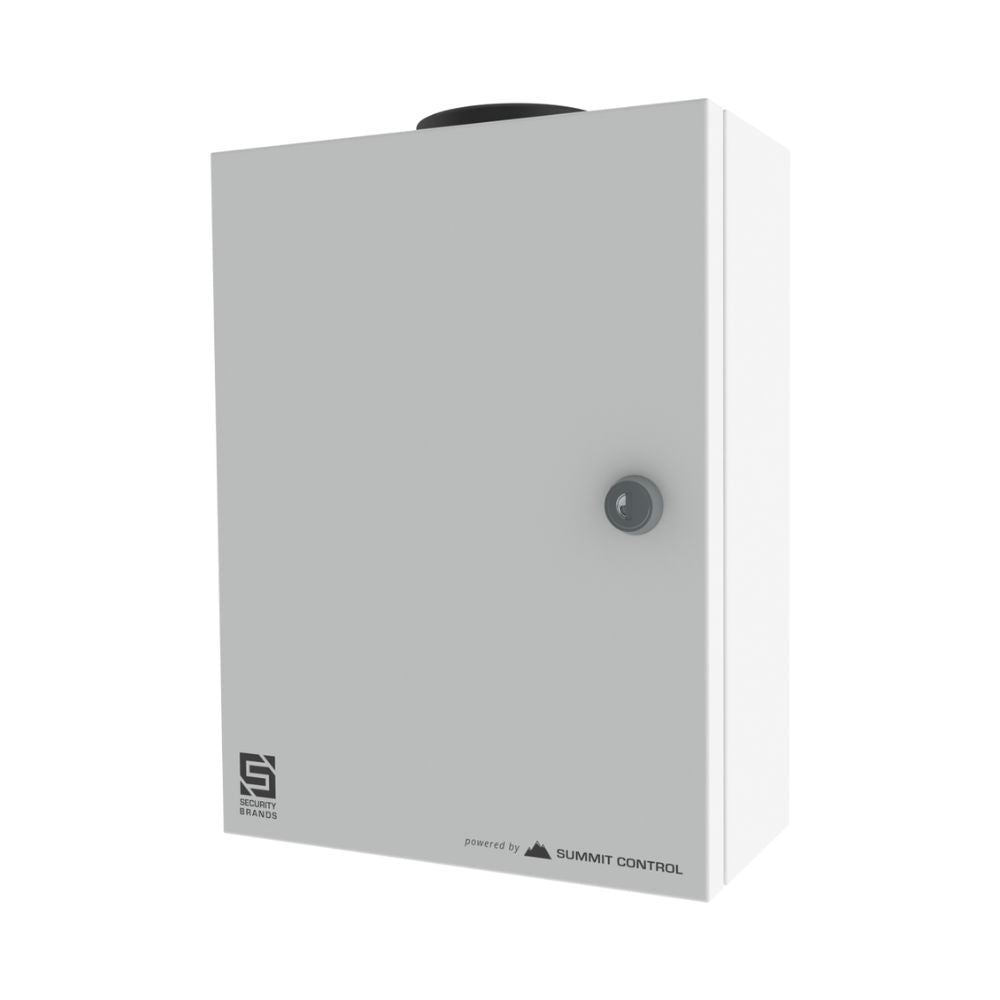

Security Brands Ascent C2 - Two-Door Cellular Access Control System | SEC-25-C2
Our cellular door controllers are backed by robust cellular technology and are powered by our best-in-class, cloud-based Summit Control software platform.
Ascent C2 gives you the option to add 2 accessory devices with its 2 Wiegand inputs. This unit features app, text, and voice control.
Includes
- GSM SIM card ready for activation
- 12-VDC AC/DC adapter (PS-12DC1)
Features
- Full cellular with auto network selection
- Control up to 2 gates/doors
- 2 Wiegand inputs
- Up to 10,000 app, text, and voice users (Maximum number is dependent on plan)
- Push and/or email event and status notifications
- Cloud-based access control management
- Made in the USA from Global Materials
Other Great Features
- Weekly Event Schedule
- Audit trail with detailed reports
- IP67-rated polycarbonate enclosure
Modular & Configurable
Build and configure the ideal setup to fit your unique needs with two Wiegand inputs.
Powerfully Expandable
A multi-door access control solution that grows. Network multiple units together and control multiple doors via Summit Control.
Open or Closed?
Check the current status of your doors or access points remotely and quickly.
Rugged & Durable
Engineered to handle whatever is thrown its way flawlessly—this unit will stand up to the harshest elements for years to come.
Manufacturer's Warranty Period
- 2-Year Limited Warranty
Technical Specifications
- Dimensions: 13.00″(H) x 8.50″(W) x 6.00″(D)
- Shipping Weight: 4 lbs.
- Electrical Input: 12–24 VAC/DC (12-VDC power supply included (PS-12DC1))
- Current Draw: less than 180 mA @ 12 VDC | less than 150 mA @ 24 VDC (with relay latched)
- Contact Rating: 10 A @ 120 VAC / 24 VDC
- Max Switching Voltage: 250 VAC / 30 VDC
- Max Switching Current: 15 A
- Max Switching Power: 240 W / 2,770 VA
- Cellular Network: 4G LTE
- Operating Temperature: -15 to 158 °F
- Enclosure Weather Rating: IP65
- Control it your way: App, Text, Voice, Wiegand Devices
