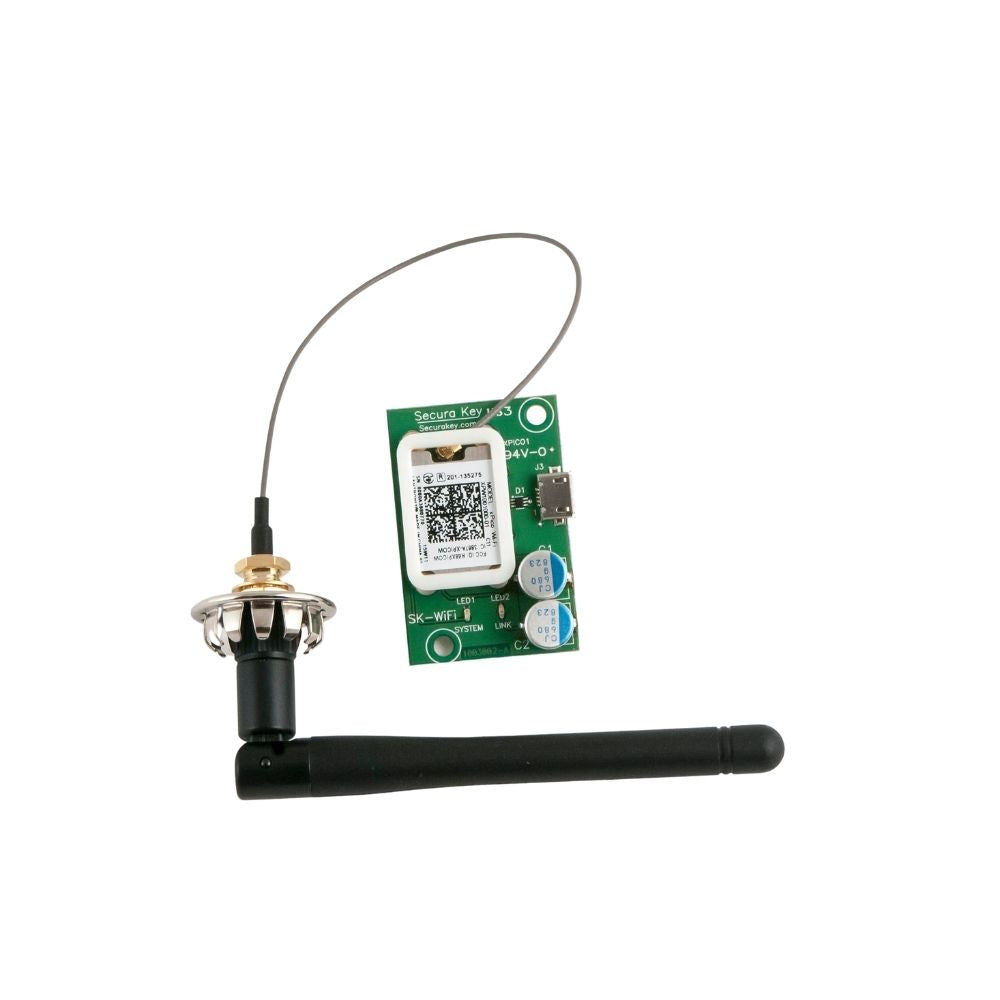

SecuraKey 802.11 b/g LAN Interface (Wireless Adaptor) | SKY-SK-WLSE-MOD
802.11 b/g Wireless interface, plugs into 'J6' of SK-MRCP or into 'J12' of SK-ACPE.
The wireless module uses the widely accepted 802.11g protocol to connect to the wireless infrastructure and is fully compatible with 802.11b wireless networks. The module includes power and status LEDs.
Note: We recommend using a 40 VA transformer to power the SK-ACP when using this module.
Features:
- Powered by SK-ACP – needs no external power supplies
- High-performance data throughput
- 802.11g/b compatible
- Enclosure mounted antenna
Technical Specification
- Dimensions (L x W x H): 2” x 2.2” x 0.825” (50.80 x 55.88 x 20.95mm)
- Mounting: Install at J9 on SK-ACP circuit board (remove the jumper from J9) Includes stabilizer pin – fits into a hole in the PCB
- Weight: Module: 1.55 oz. (43.9 gm); Antenna: 0.40 oz (11.34 gm)
- Power Requirements: 120 mA*
- Panel Compatibility: SK-ACP Rev N or later – use SK-LAN for earlier models
- Status LED: Blue – Power, Red - Disconnected, Green - Connected
- Network Interface: Wireless 802.11b; 802.11g
- Compatibility: NA
- EMI Compliance: FCC Part 15-B Class B EN300 328 EN301 489 -17 & EN 489-1 Industry Canada RSS-210
- Product Safety: UL / CSA / EN / IEC 60950-1
- Range: Up to 328’ (100m) indoors
- Frequency Range: 2.412 – 2.484 GHz
- Environmental: Operating Temperature: -22° F to +158° F (-30° C to +70° C)
- Relative Humidity: 0-90% Non-Condensing
- Warranty: These Secura Key products are warranted against defects in materials and workmanship for two years. Secura Key will replace any Secura Key manufactured product that fails to perform as intended. This warranty does not include freight, taxes, duties, or installation expenses. See price list for complete terms and conditions
