SecuraKey eTag Contactless Smart Card Reader Mid-range Black | SKY-ET9-RO-W-MR

SecuraKeySKU: SKY-ET9-RO-W-MR

Price:
Sale price$130.99

Estimate shipping

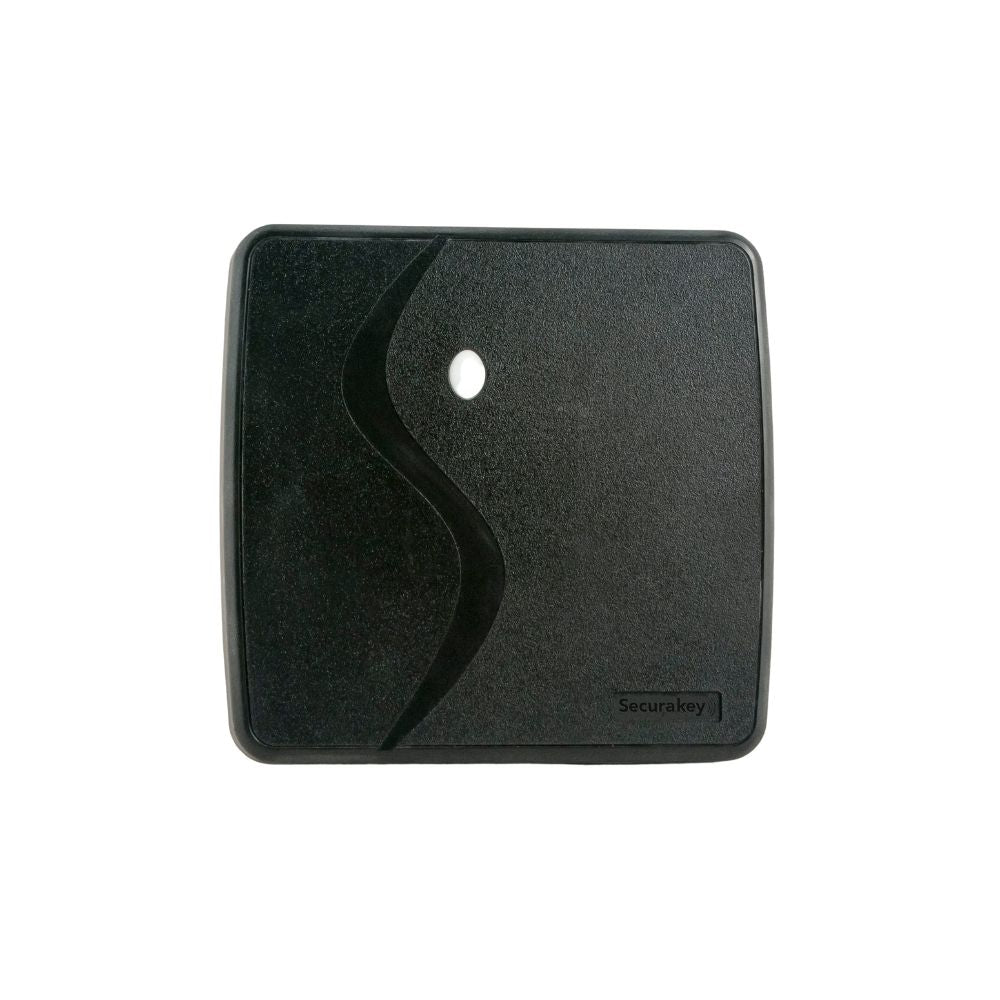

SecuraKey eTag Contactless Smart Card Reader Mid-range Black | SKY-ET9-RO-W-MR

Secura Key’s new e*Tag® Midrange Reader creates a new product category of cost-effective extended read range products for the contactless smart card reader market. The e-Tag® Midrange Reader provides up to an 8” read range for about the same price as competing wall-switch readers.

Contactless Smart Card technology is ideally suited for access control, time and attendance, membership/loyalty programs, logical (PC) access, storage of biometric templates, parking, ePurse, and many other applications requiring secure and reliable read/write cards.

Features
  • ISO 15693 13.56 MHz Technology
  • Card Data Encrypted Using DES with Diversified Keys
  • SIA Standard Wiegand Output – Works with any Standard Access Control Panel
  • Epoxy Potted for Superior Weather Resistance
  • Single 2S or Dual 4S US J-Box mounting or European J-Box mounting
  • Industry Standard Wire Colors and Functions for Easy Upgrade
  • External LED and Buzzer Controls
  • Low Voltage and Low Current Draw
  • UL294, FCC, and CE Regulatory Approvals
  • High-performance 32-bit ARM Cortex microcontroller
Technical Specifications
  • Dimensions (L x W x H): 5.95” x 6.1” x 0.95” 15.1 x 15.5 x 2.41 cm
  • Mounting: US single or dual-gang box, European J-Box, wall, post
  • Weight: 15.4 oz (436.58 gm)
  • Material: Polycarbonate
  • Color: Black
  • Power Requirements: 100/200 mA avg/max. @ 5-14VDC
  • Bi-Color LED: Red and Green – Ground to Activate
  • Buzzer Control: Ground to Activate
  • Hold Line: Ground to Activate
  • Communications: Wiegand
  • Cable Required: Up to 500 ft., 5-10 conductor (depending on options used); 18-22 AWG Shielded
  • Environmental: Operating Temperature: 40° F to +158° F (40° C to +70° C) Relative Humidity: 0-100% Non-Condensing
  • Operating Frequency: 13.56 MHz
  • Reading Distance: ISO card up to 8” (20.32 cm) Key tag up to 5” (12.7 cm)
  • ISO Standard: 15693
  • Data Encryption: DES with diversified keys
  • Operating modes: Read-only card data
  • Compatible Cards: ETCI (ISO), ETST (key tag), ETAT (adhesive label)
  • Regulatory Approvals: UL/cUL294, Part 15 Class B FCC, CE Mark, Canada Radio
  • Warranty: These Secura Key products are warranted against defects in materials and workmanship for life. Secura Key will replace any Secura Key manufactured product that fails to perform as intended. This warranty does not include freight, taxes, duties, or installation expenses. See the price list for complete terms and conditions, the pricelist for complete terms and conditions.
