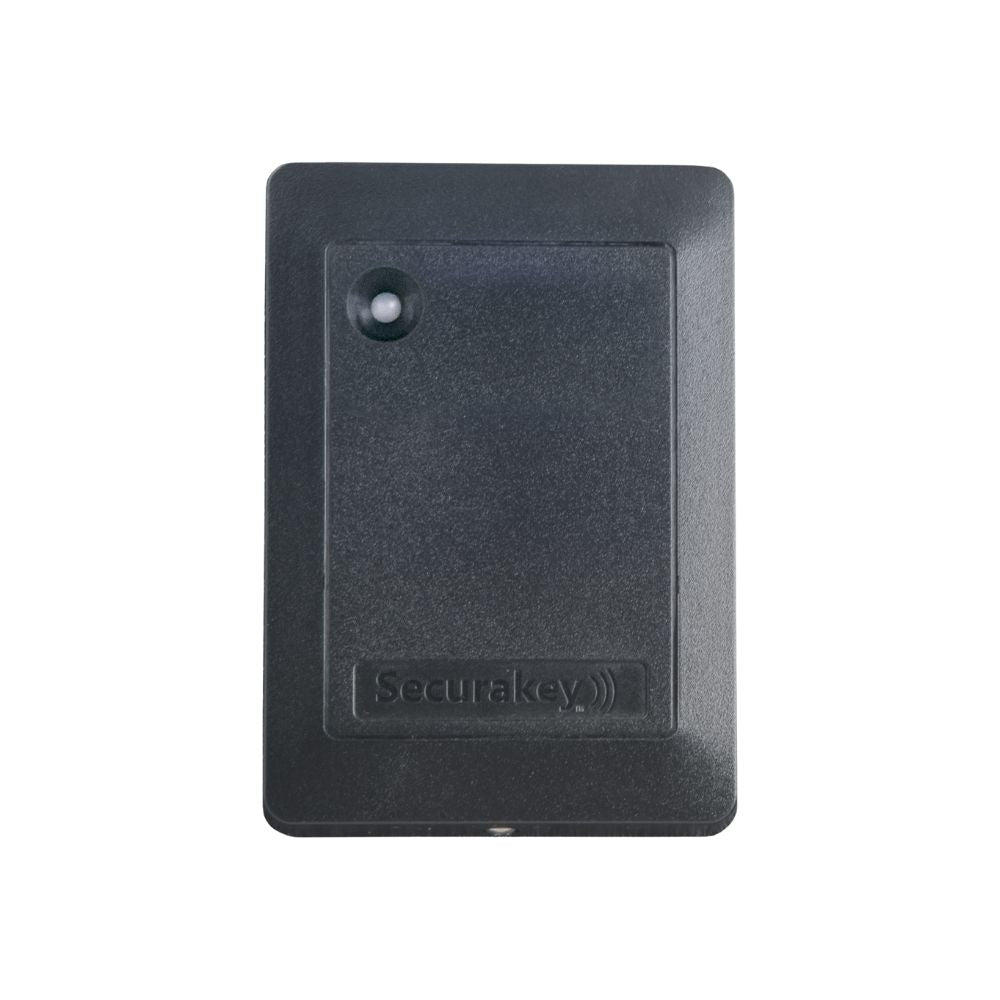

SecuraKey eTag Contactless Smart Card Reader/Writer | SKY-ET-WXS


Sale price$190.00
Add to cart

SecuraKey eTag Contactless Smart Card Reader/Writer | SKY-ET-WXS

The ET-WXS is the next generation of SecuraKey’s ET series of Wiegand/485 readers in its 13.56MHz (HF) reader line. Enhancements deliver the same operability; however, the upgrade provides even better reliability and dependability in the field. The onboard RS485 port allows read/write applications and is suitable for use with a variety of RFID transponders. The readers are compliant with both ISO 14443 and 15693 standards and also provide MiFare compatibility.

Note: ET-WXS (Replaces the ET4-WXS)

  • Reads (HF) 13.56MHz SecuraKey e*Tag cards
  • MiFare Compatible
  • DES encryption for secure data delivery
  • RS-485 and Wiegand
  • Readers also have an RS485 port allowing two-way data transfer for reading/write applications
  • Designed to withstand extreme environmental conditions
  • Vandal-resistant
  • External LED and buzzer controls
  • A convenient wiring harness is included allowing the reader to be plugged in when the installation is complete
  • Includes an industry-standard SIA Wiegand output and is compatible with most access control panels including SecuraKey’s SK-ACPE
Technical Specifications
  • Operating Frequency: 13.56MHz
  • ISO Standard: 14443 and 15693 compliant
  • Data Encryption: DES
  • Description: Switchplate
  • Color: Black
  • Material: Polycarbonate
  • Read Range*: ISO Card 15.24 cm (up to 6”) Key Tag 3.5 cm(up to 3.5”)
  • Dimensions: 11.43 x 8.13 x 2.13 cm (4.50” x 3.20” x 0.84”)
  • Power: 5-14VDC @ 50-90mA
  • Tri-Color LED: Blue/Red/Green - Ground to Activate
  • Buzzer Control: Ground to Activate
  • Hold Line: Ground to Activate
  • Communications: Wiegand, RS-485
  • Operating Modes: (RO) Read-only card data, UID Wiegand • (RW) Read-Write (host managed) RS-485
  • Cabling (Wiegand): Up to 500’, 5-10 Conductor, 18-22 AWG-Shielded
  • Cabling (RS-485): Up to 4000’, Cat 5/6
  • Operating Temperature (Range): -40 to +70 C (-40 to +158 F)
  • Relative Humidity (Range): 0 - 100% Non-Condensing
  • Indoor/Outdoor: Electronics completely potted for extreme weather considerations
  • IP Rating: IP67 (Internal Testing)
  • Certifications: FCC • UL • CE Mark • Canada Radio
  • Panel: Has SIA standard Wiegand output and compatible with most AC panels as well as Secura Key’s SK-ACPE 2 Door Panel
  • Credentials: ETCI04 (ISO Card) ETST03 (Compact Key Tag) ETKT03 (Bullnose Key Tag) ETAT03 (Adhesive Tag) Encrypted, Wiegand Data (26 or 32-bit formats available) Custom Graphics are available for card and key tags *Read Range depends on the installation environment
Limited Warranty

Secura Key products are warranted against defects in materials and assembly for three (3) years. In the event that any Secura Key product fails to perform as intended during the warranty period, Secura Key will replace the defective product with a new or refurbished product. This is subject to the equipment being installed in accordance with the instructions and used appropriately in suitable conditions. The warranty period begins on the date of shipment from our factory or if sold through Distribution on the date of sale (original receipt or documentation is required). This warranty does not include the cost of taxes, duties, or installation expenses.

Product Literature
