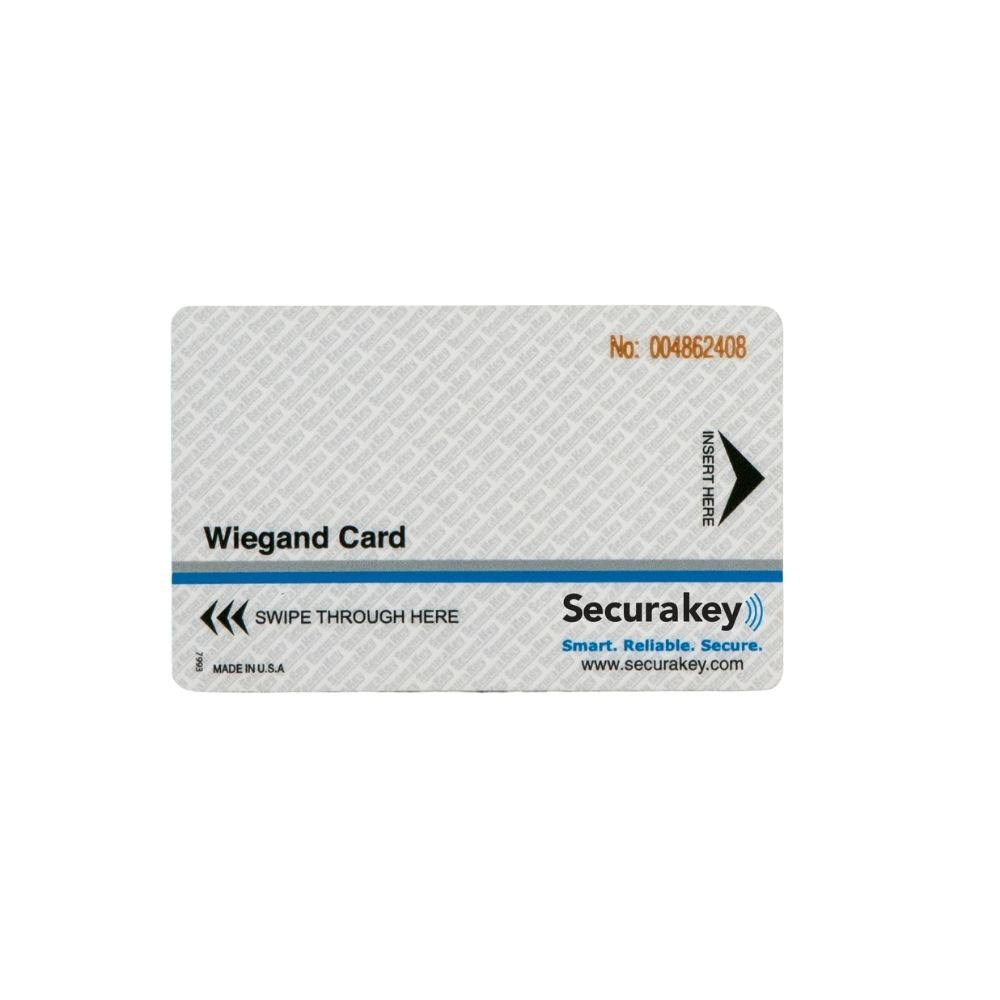

SecuraKey 37-mil Wiegand/HF Card (Pack of 100) | SKY-WCCI-20-XXXXXXXX-100


Sale price$1,344.29
  • Final sale. No returns or exchanges.

Estimate shipping

SecuraKey 37-mil Wiegand/HF Card (Pack of 100) | SKY-WCCI-20-XXXXXXXX-100

Secura Key Wiegand Cards (WCCI) are fully compatible with HID and Sensor Engineering Wiegand-effect swipe and insert readers, and are available in the popular SIA 26-bit Wiegand format, as well as other Wiegand formats up to 40 bits.

Secura Key Wiegand Cards are strong and flexible, resistant to breaking, and extremely reliable over a broad range of temperature and humidity ranges. They can be carried with credit cards in a wallet or purse.

  • Please add in the notes at check out your facility code and sequence. If you don't have it we will send the first available
  • Pack of 100 cards
  • Compatible with HID® and Sensor Engineering swipe and insert readers.
  • Cards encoded in popular 26-bit SIA Wiegand format as well as other Wiegand formats up to 40 bits.
  • The Multi-technology version is available with Proximity or Contactless Smart Card technologies, such as eTag®, MIFARE, and DESFire.
  • A variety of thicknesses are available for various applications.
  • Carry it with your credit cards in your wallet or purse.
  • Strong and flexible for resistance to breaking.
  • Custom multi-color graphics are available.
  • Available with a high coercivity magnetic stripe.

Note: This product is non-returnable and non-refundable.

Technical Specification
  • Dimensions (CR-80): 2.125” x 3.375”x 0.037” (5.40 cm x 8.57 cm x 0.094 cm) 0.037” is the standard thickness. Other thicknesses are available - see the ordering chart below.
  • Weight: 0.20 oz (5.67 gm)
  • Card Construction: Thin, flexible polyvinyl chloride (PVC) laminate
  • Operating Temperature: -40° to 158° F (-40° to 70° C)
  • Operating Humidity: 5-95% non-condensing
  • Card Data: 40 bits max
  • Magnetic Stripe (optional): Unencoded 2750 Oersted
