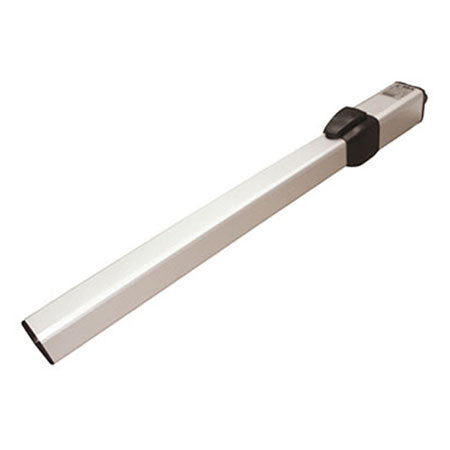

SEA Mini Tank SC 110V Hydraulic Swing Gate Operator (Replacement Actuator Arm Only) | SEA-101SC2S0

SEA Mini Tank SC 110V Hydraulic Swing Gate Operator (Replacement Actuator Arm Only) | SEA-101SC2S0

Hydraulic swing gate operator for residential use or small multifamily for leaf length up to 3M / 10 feet. Max Cycles 40 Per Hour.

Upon request, this gate opener is also available in 220V. Please contact us if interested.

Features

• SEA Total Quality: All parts are manufactured and tested IN-HOUSE
• The hydraulic system grants high and long-term performances.
• By-pass valves as an Anti-Crush safety system
• Electronic slow-down in opening and closing(control board GATE 2 GD)
• Concealed positive stops in option
• Manual release with key in case of power failure.
• Linear encoder for the best setting on reverse and position management(optional)
• Operator with external, hydraulic locks for easy replacement
• Standard version with lock-in closing (SC)
• Piston stroke 270 mm / 10.6 inches *Duty Cycles depend on gate size and installation.

Technical Specifications

• Max Leaf Weight: 800 lbs.
• Max Leaf Length: 10 feet
• Max Opening Degree: 120 degrees
• Max Cycles / Hour: 40
• PCS Per Pallets: 40

Product Literature

• SEA Mini Tank Hydraulic Swing Gate Operator Specs
