SCP Lutron Compatible Control Cable Plenum - White (1000 ft. Spool) | SCP-LUT-QS-P-1000
LUTRON* COMPATIBLE CONTROL CABLE - PLENUM (COMPARE TO QSH-CBL-M-500) 2C/16 AWG + 2C/22 AWG SHIELDED PLUS DRAIN, CMP PLENUM JKT- WHITE 1000FT/305M SPOOL
Features
SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables which are available in PVC-rated CM, Plenum CMP, and Low Smoke Zero Halogen (LSZH/LSOH) for commercial, marine, and institutional applications.
- UL listed, NEC: CL3P rated, CEC: CMG FT6, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.
Applications
SCPs LUT-QS-P cable is for use with Lutron* Quantum Systems®, Grafik Eye®, Grafix Integrale®, and Homeworks® systems. The SCP LUT-QS-P is comparable to the Lutron* QSH-CBL-M-500 cable. The SCP LUT-QS applications include data/communications and controls.
SCP Standard Limited Warranty
- Lifetime Limited Warranty

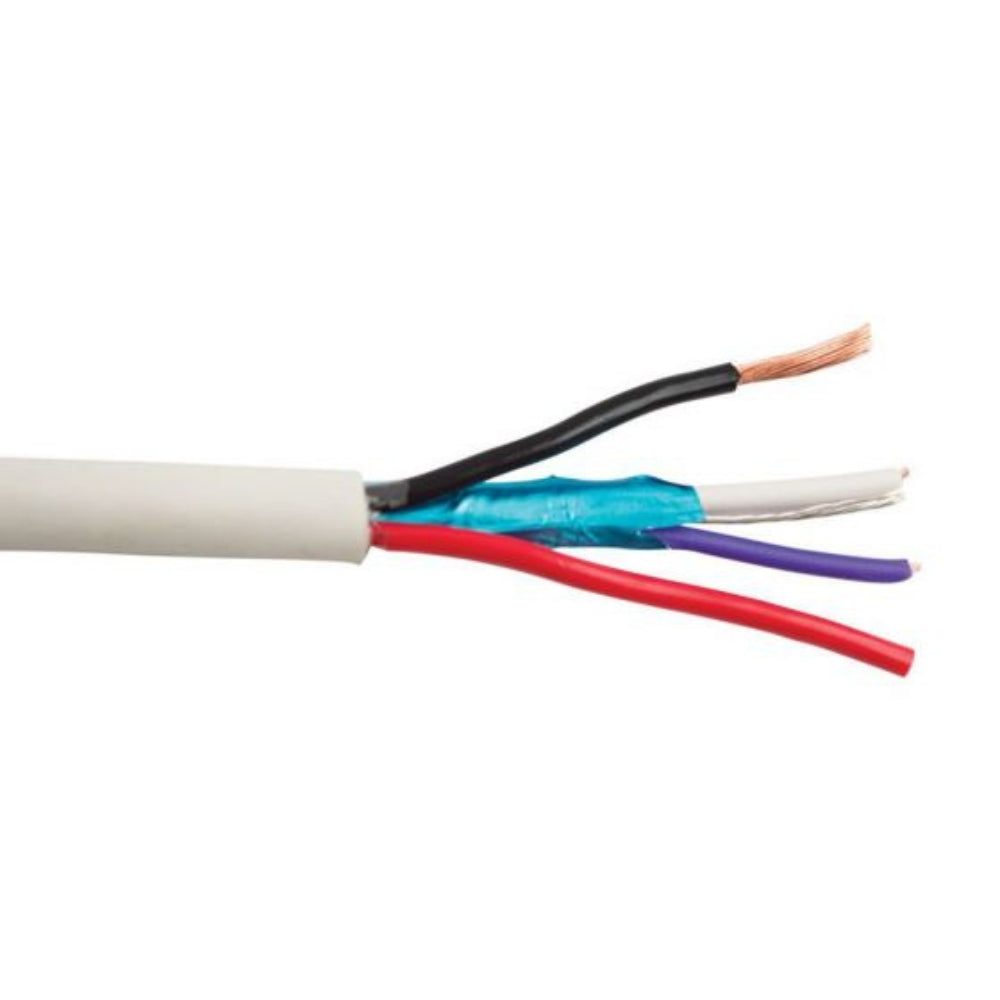

Construction
This cable consists of:
- (1) 2 conductor 16 AWG insulated stranded bare copper, twisted pair, unshielded, plus
- (1) 2 conductor shielded 22 AWG insulated stranded bare copper, twisted pair, with overall AL foil shield, and TC drain with an overall PLENUM jacket.
- The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
- Jacket / Color: PVC - White
- Packaged Length: 305m/1000ft Spool
- Dimensions L*W*H (in): 14.96 x 11.417 x 6.29
Note: *Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron and our products are not endorsed or certified by Lutron.
