SCP Lutron Quantum System/Grafix Eye Cable PVC - White (1000 ft. Spool) | SCP-LUT-QS-1000
QUANTUM SYSTEM/GRAFIX EYE- 2C/16 AWG + 2C/22 AWG SHIELDED PLUS DRAIN, PVC JKT- WHITE- 1000 FT//305 M SPOOL
Features
SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables which are available in PVC-rated CM, Plenum CMP, and Low Smoke Zero Halogen, (LSZH/LSOH) for commercial, marine, and institutional applications.
- UL listed, NEC: CL3 rated, CEC: CMG FT4, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray. CPR Euroclass Eca or Dca-s3,d2,a3
Applications
SCPs LUT-QS cable is for use with Lutron* Quantum Systems®, Grafik Eye®, Grafix Integrale®, and Homeworks® systems. The SCP LUT-QS is comparable to the Lutron* QSH-CBL-M-500 cable. The SCP LUT-QS applications include data/communications and controls.
SCP Standard Limited Warranty
- Lifetime Limited Warranty

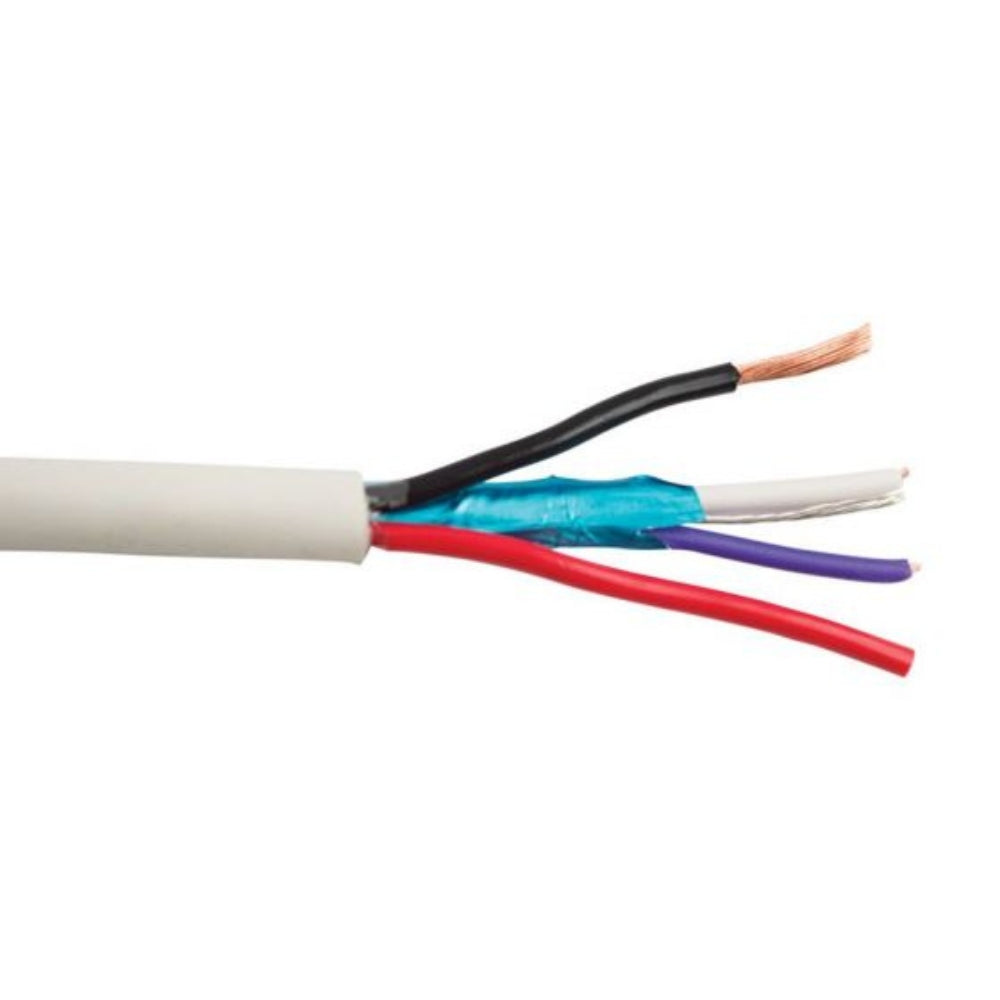

Construction
This cable consists of:
- (1) 2 conductor 16 AWG insulated stranded bare copper, twisted pair, unshielded, plus
- (1) 2 conductor shielded 22 AWG insulated stranded bare copper, twisted pair, with overall AL foil shield, and TC drain with an overall PVC jacket.
- The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
- Jacket / Color: PVC - White
- Packaged Length: 305m/1000ft Spool
LUT-QS-1000 is comparable to:
- Liberty LUTRON*-QSC
- LUTRON* QSH-CBL-M-500
The cross reference numbers above represent competitor products that are functionally equivalent to the SCP product. Color codes, packaging, and some constructional differences may exist. While we have done our best with the cross-references, we are not responsible for any errors. If you find an error, please bring it to our attention so that we make the correction.
Please refer to the SCP data sheet for specific details or please call our technical support team at (800) 730-8382 for more information.
Note: *Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron and our products are not endorsed or certified by Lutron.
