SCP Lutron Grafix Eye Systems Cable Plenum -White w/ Green Stripe (1000' Spool) | SCP-LUT-GREEN-P

SCPSKU: SCP-LUT-GREEN-P

Price:
Sale price$455.99

Estimate shipping

SCP Lutron Grafix Eye Systems Cable Plenum -White w/ Green Stripe (1000 ft. Spool) | SCP-LUT-GREEN-P

PLENUM- GRAFIX EYE- 2C/22 AWG SHIELDED + 2C/18 AWG STRANDED + DRAIN, CMP JKT- WHITE W/GREEN STRIPE- 305M/1000 FT SPOOL

Features

SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables which are available in PVC-rated CM, PLENUM CMP, and Low Smoke Zero Halogen (LSZH/LSOH) for commercial, marine, and institutional applications.

  • UL listed, NEC: CMP rated, CEC: CMG FT6, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.
Applications

SCP LUT-GREEN-P cable is for use with Lutron Grafix Eye Systems for specialty lighting and window shade systems. The SCP LUT-GREEN-P is comparable to the Lutron* GRX-CBL-346S. The SCP LUT-GREEN-P is also a universal control system cable that can be used on various other Brand systems such as AMX® and Crestron®. Also can be used for systems control and instrumentation. This cable is also compatible with the AMX AXLink™ Systems.

SCP Standard Limited Warranty
  • Lifetime Limited Warranty

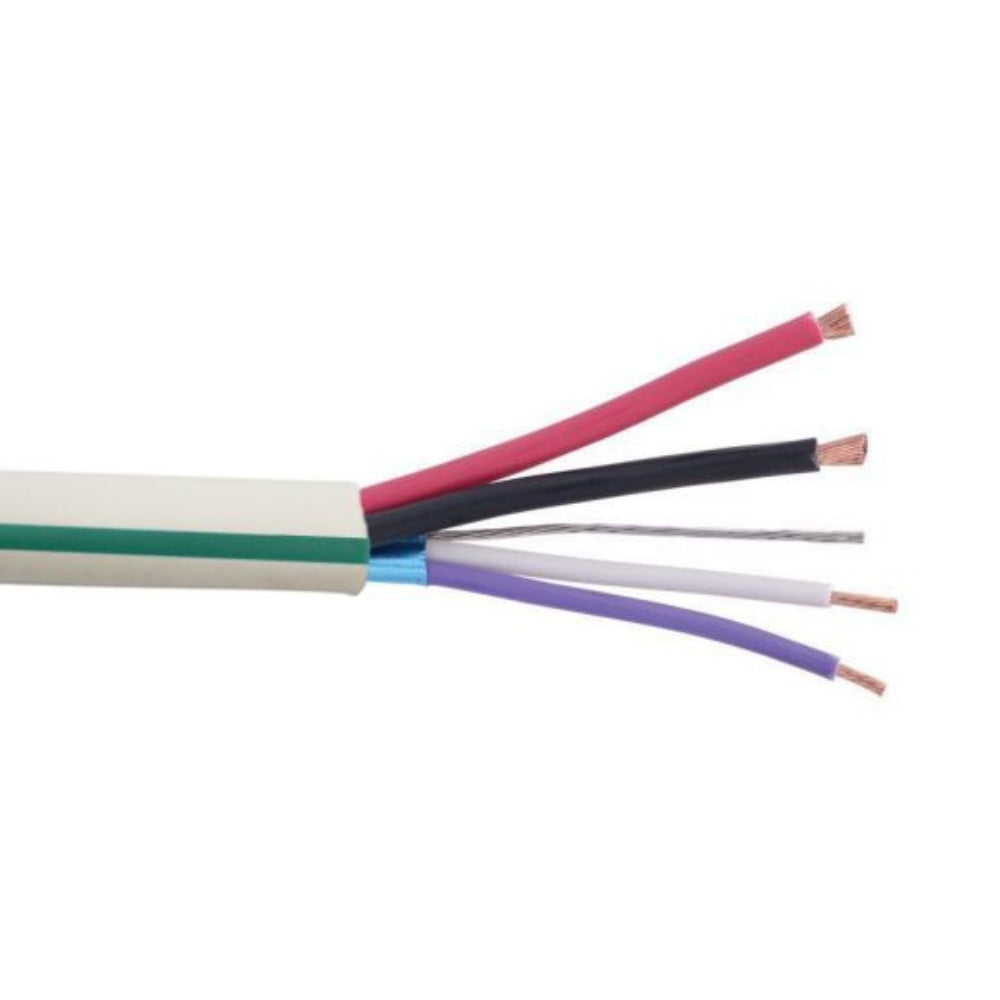

    Construction

    This cable consists of:

    • 2 conductors 22 AWG insulated stranded bare copper, twisted pair, shielded with overall AL foil- low capacitance plus
    • 2 conductor 18 AWG insulated stranded bare copper, twisted pair, unshielded, and a TC drain with an overall PLENUM jacket.
    • The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
    • Jacket / Color: PVC - Blue w/Green Stripe
    • Packaged Length: 305m/1000ft Spool
    • Dimensions L*W*H (in): 14.96 x 11.417 x 6.29

    Note: *Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron and our products are not endorsed or certified by Lutron.
