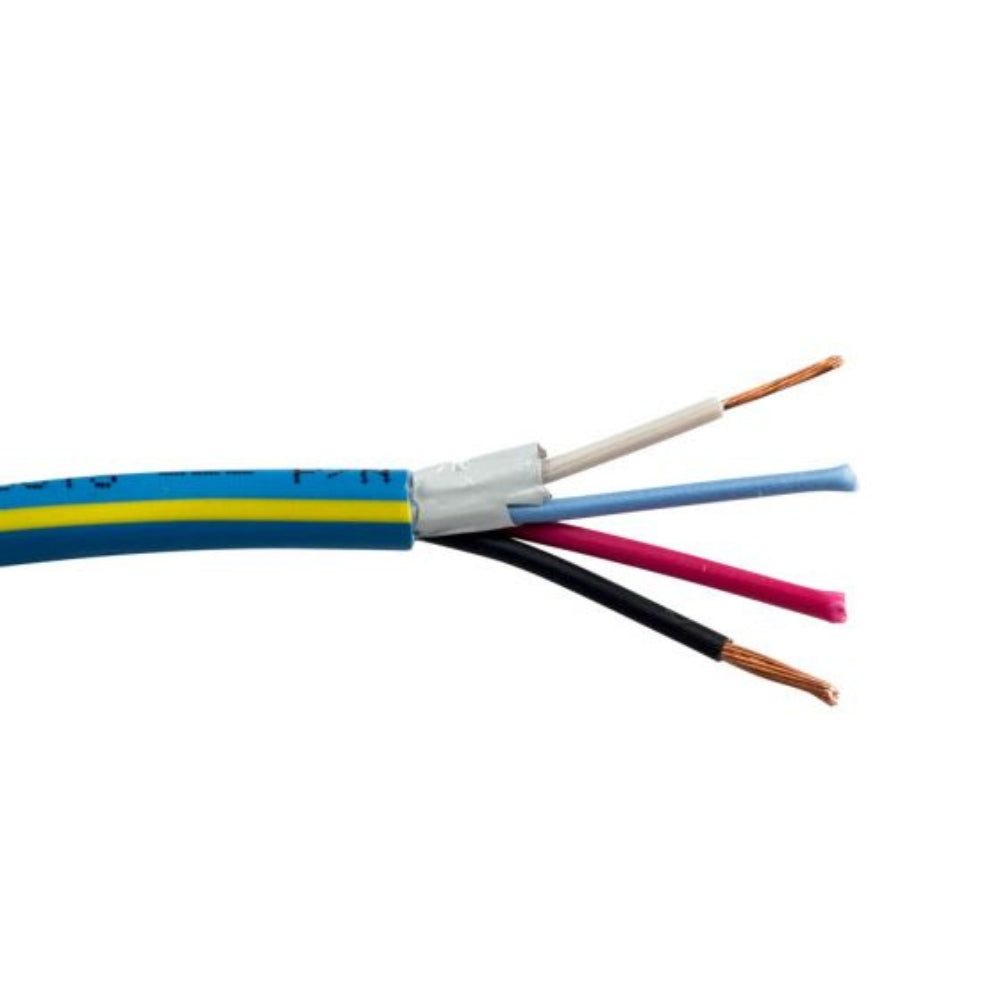

SCP Crest-1 Control Cable Plenum - Teal w/ Yellow Stripe (1000 ft. Spool) | SCP-CREST-1-P
CREST-1 PLENUM - 2C/22 AWG BC STRANDED, AL FOIL SHIELD W/DRAIN + 2C/18 AWG BC STRANDED, CMP- TEAL W/YELLOW STRIPE- 1000 FT SPOOL
Features
SCP manufactures specialized control cables for Crestron Systems. These bundled cables facilitate fast and easy wiring for Crestron AV distribution switches, room solution boxes, intercoms, and touch panels. The constructions with RG6 coax allow for the distribution of CATV/Satellite and broadband video. SCP Crestron-compatible cables are available in Non-plenum PVC, Plenum CMP, or Low Smoke Zero Halogen (LSZH).
CMP rating, UL 13 and 444, NEC Article 725 and 800.RoHS, CE. UL 1685 vertical tray.
Applications
SCP Crest-1 control cable provides a communications link between Crestron control systems, touchpanels, keypads, tuners, audio processors, video switchers, camera pan/tilts, expansion modules, and other Crestron devices. Compare to Crestrons Cresnet cable. The SCP Crest-1 is also a universal control system cable that can be used on various other Brand systems such as AMX and Lutron. IP video and control; general purpose RS-232, RS-485 simplex data and control; and general purpose communication and control systems. This cable is also compatible with the AMX AXLink™ Systems.
SCP Standard Limited Warranty
- Lifetime Limited Warranty
Construction
This cable consists of:
- 2 conductor 22 AWG bare copper stranded shielded with overall AL foil- low capacitance plus
- 2 conductor 18 AWG bare copper stranded unshielded, and a TC drain with an overall PVC, CMP, or LSZH jacket.
- The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
- Jacket / Color: LS-PVC - Teal w/Yellow Stripe
- Packaged Length: 305m/1000ft Spool
Note: Crestron®, Cresnet®, CresCat®, CresFiber®, and DigitalMedia® are registered trademarks of Crestron Electronics Inc. Structured Cable Products Inc. disclaims proprietary interest in the marks and names of others.
