SCP CAT6 Unshielded Plenum - Green (1000' Reel in Box) | SCP-CAT6-P-GN

SCPSKU: SCP-CAT6-P-GN

Price:
Sale price$330.99

Estimate shipping

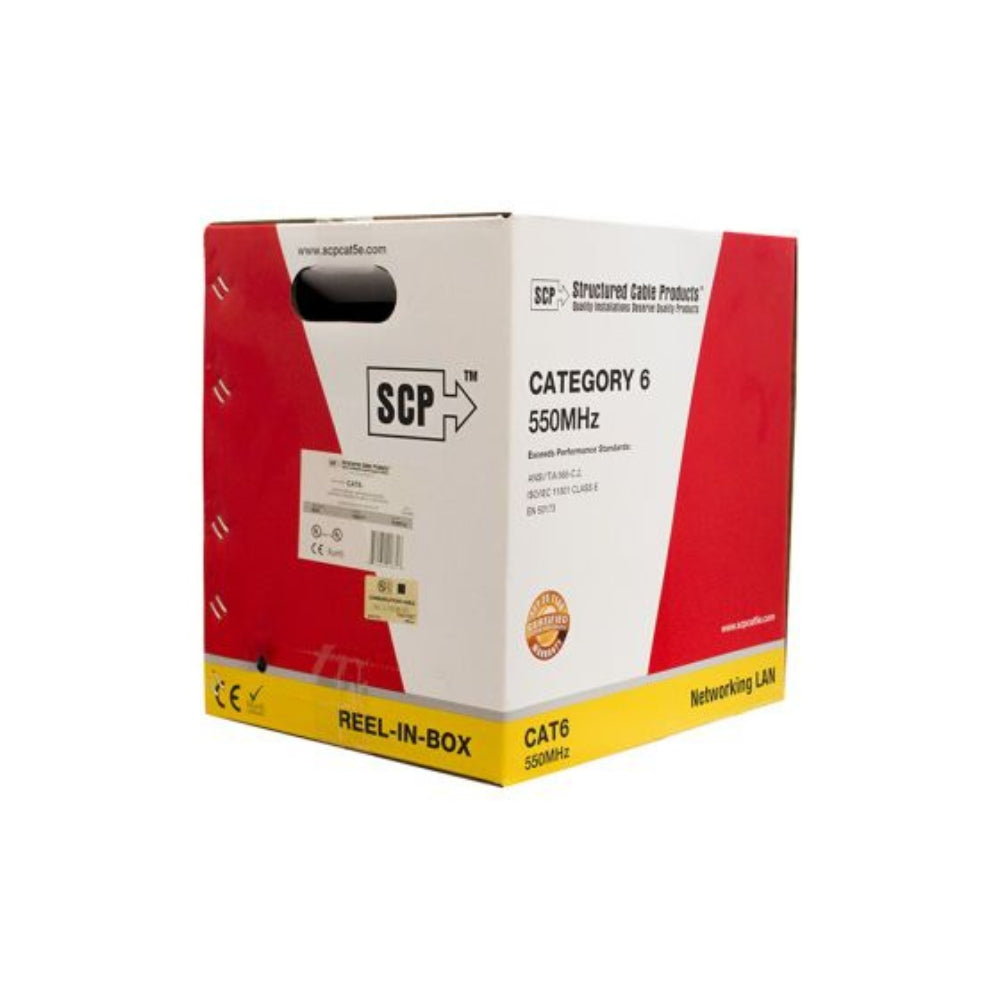

SCP CAT6 Unshielded Plenum - Green (1000 ft. Reel in Box) | SCP-CAT6-P-GN

CAT6 PLENUM- ENHANCED 550 MHz SOLID BC 4PR, UTP, ANSI/TIA 568.2-D, ISO/IEC 11801 CLASS E, UL CMP FT6, JKT- GREEN

SCP Cat6 UTP Plenum cables comply with NFPA-262 and are suitable for installation in ducts and plenums without the use of a conduit. These cables are designed for fire resistance and low smoke. Only plenum-rated cables are allowed for USA installation in spaces such as raised flooring systems and air handling ducts.

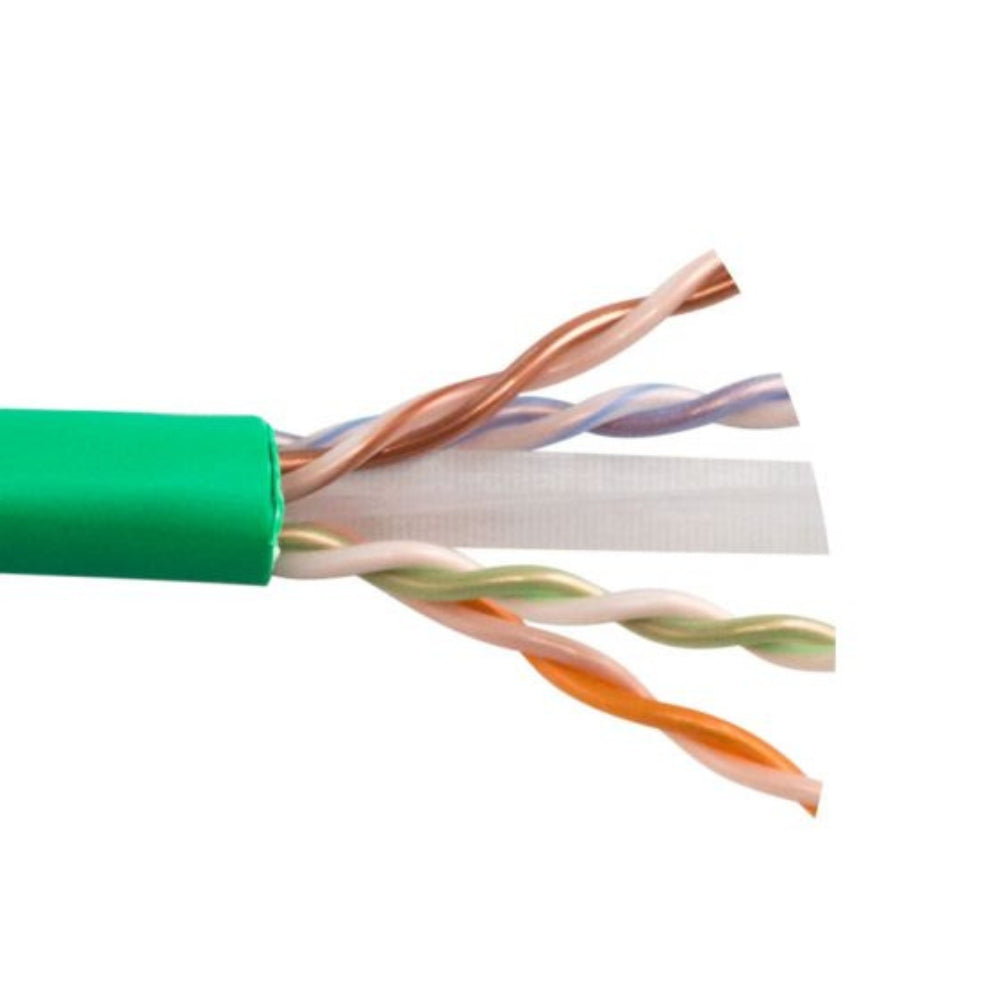

SCP Cat6 Plenum cables meet ANSI/TIA 568.2-D Category 6 standards. Each cable is 550 MHz 23 AWG insulated solid bare copper conductor with a center spline separating the pairs. This creates a round and flexible cable for easy pulling and stripping of the cable jacket.

Applications
  • High-performance IT, LAN & Ethernet installations. Suitable for use in all Class E structured wiring systems. PoE/PoH Compliant.
Features
  • 550MHz tested 1000BaseT Gigabit
  • HDBaseT Enhanced
  • UL Plenum/Riser
  • UV Sun Resistant
  • Descending FT and Zone/Outlet Jkt Markings
SCP Standard Limited Warranty
  • Lifetime Limited Warranty
CAT6-P-GN is comparable to:
  • Belden 7882A, 1874A
  • Honeywell 5102
  • Coleman 977964

The cross-reference numbers above represent competitor products that are functionally equivalent to the SCP product. Color codes, packaging, and some constructional differences may exist. While we have done our best with the cross-references, we are not responsible for any errors. If you find an error, please bring it to our attention so that we make the correction.

Please refer to the SCP data sheet for specific details or please call our technical support team at (800) 730-8382 for more information.
