SCP 6C/22 AWG Shielded Multi-Purpose Cable Plenum-White (500' Box) | SCP-22/6SHP-500

SCPSKU: SCP-22/6SHP-500

Price:
Sale price$137.43

Estimate shipping

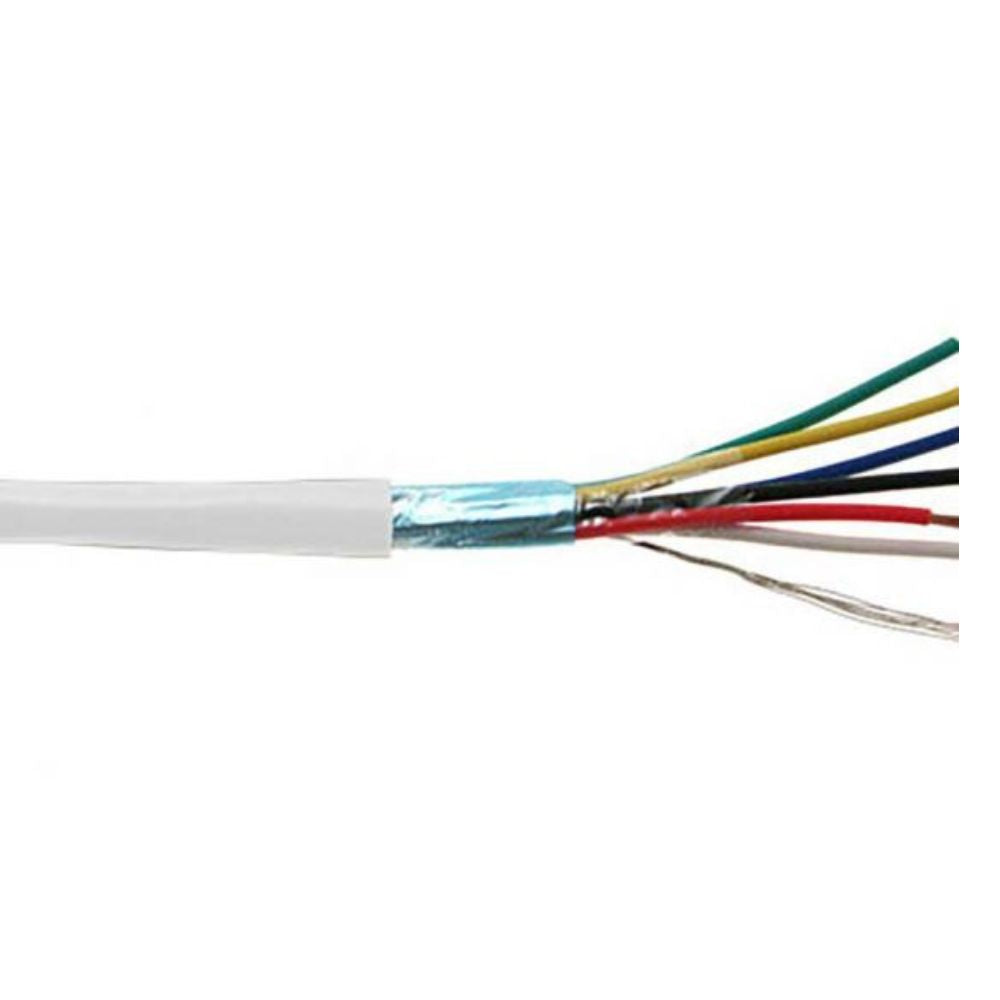

SCP 6C/22 AWG Shielded Multi-Purpose Cable Plenum-White (500 ft. Box) | SCP-22/6SHP-500

6C/22 AWG STRANDED SHIELDED w/ DRAIN

Multi-Conductor shielded low smoke PVC insulated stranded bare copper conductors, twisted with overall AL mylar shielding (with drain) and low smoke overall PVC jacket. Ripcord and sequential foot markings printed on jacket. Cables are manufactured to meet current NEC guidelines and are verified by outside standards organizations including c(UL)us and c(ETL)us.

Applications
  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls
Features
  • Stranded Bare Copper Conductors
  • Insulated Twisted Pair
  • UL Listed
  • Descending Feet and Zone/Outlet Jkt Markings
SCP Standard Limited Warranty
  • Lifetime Limited Warranty

22/6SHP-500 is comparable to:

  • Belden 6545FE
  • Coleman 75306
  • Liberty 22-6C-PSH-GRY

The cross reference numbers above represent competitor products that are functionally equivalent to the SCP product. Color codes, packaging, and some constructional differences may exist. While we have done our best with the cross-references, we are not responsible for any errors. If you find an error, please bring it to our attention so that we make the correction.

Please refer to the SCP data sheet for specific details or please call our technical support team at (800) 730-8382 for more information.
