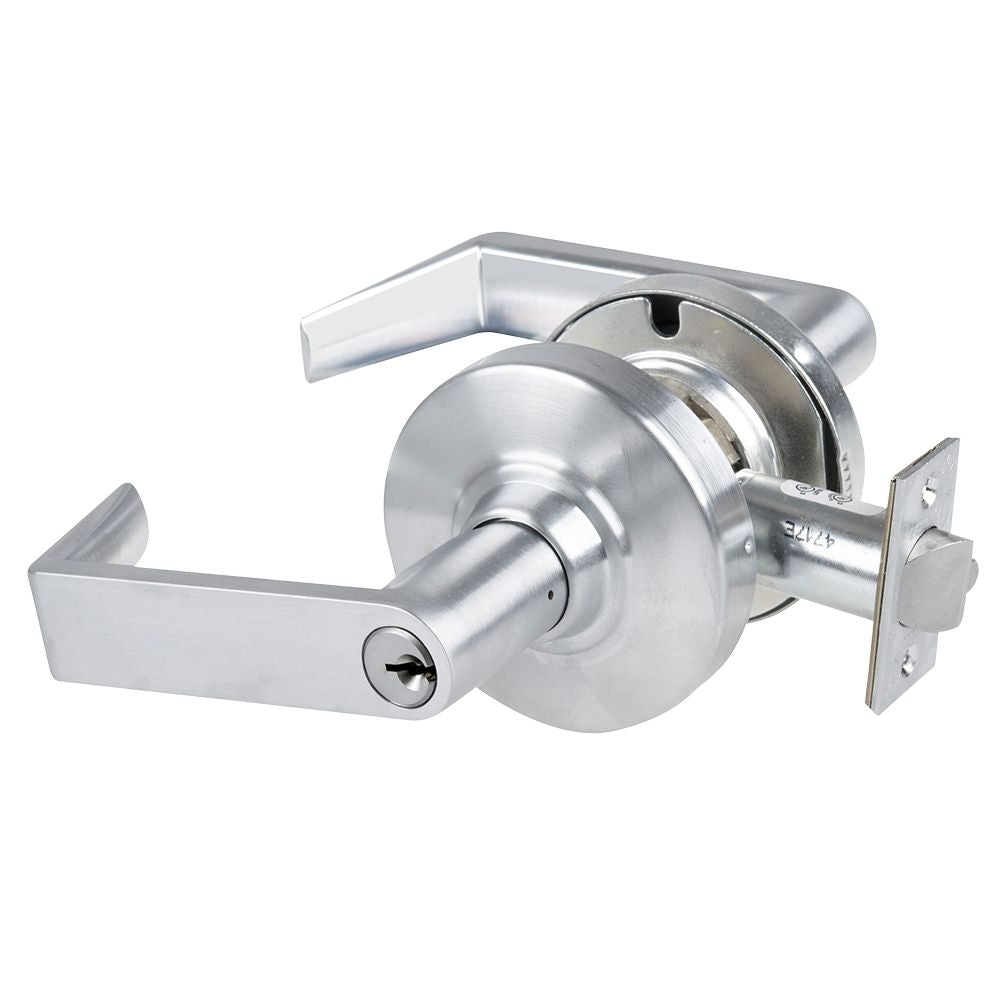

Schlage Grade 1 Electrified Cylindrical Lock (12-24V DC, Fail-Safe, 2-3/4" Backset, RX, Rhodes Lever, Satin Chrome) | SCH-ND80PDEL RHO 626 RX

SchlageSKU: SCH-ND80PDEL RHO 626 RX

Price:
Sale price$765.00

Estimate shipping

Schlage Grade 1 Electrified Cylindrical Lock (12-24V DC, Fail-Safe, 2-3/4" Backset, RX, Rhodes Lever, Satin Chrome) | SCH-ND80PDEL RHO 626 RX

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications. The locks compliment the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

The electrified ND is ideally used in high traffic areas, where line power ensures continuous operation, and in new construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building.

Includes
  • (2) keys
Features
  • Auto-detecting 12-24VDC input
  • Low 0.23 amp max current draw that allows multiple locks on a single power supply
  • Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
  • Modular Request to Exit (RX) that can be added at any time
  • Inventory friendly–one lock supports 12-24V
  • The outside lever continuously locked electrically.
  • Unlocked by key outside or by switch or power failure.
  • Auxiliary latch deadlocks latchbolt when the door is closed.
  • The inside lever is always free for immediate exit.
  • BAA Qualified: Yes
  • Limited Warranty: 1 Year
Technical Specifications
  • Base Material: Brass or Bronze
  • Application: Storeroom Lever
  • Finish: 626/US26D
  • Finish Description: Satin Chrome
  • Function: 80EL Fail-Safe
  • Lever/Knob Design: RHO - Rhodes
  • Rose/Escutcheon Design: Rose, 3-7/16" Diameter
  • Cylinder Type: Conventional Cylinder
  • Num Pins: 6
  • Keying: Keyed Different
  • Door Thickness: 1-3/4" to 2"
  • Latch Number: 14-047
  • Latch Type: Guarded Latch
  • Latch Backset Dim: 2-3/4"
  • Lock Face Size: 2-1/4" X 1-1/8"
  • Strike Number: 10-025
  • Strike Type: ASA
  • Strike Height: 4-7/8"
  • Strike Width: 1-1/4"
  • Dust Box: None
  • Screws: Combination
  • Power: Hard Wired
  • Operating Voltage: 12VDC/24VDC
  • Amp Draw: 0.23
  • Switch Type: RX
  • Product Type: Electric Cylindrical Lock
