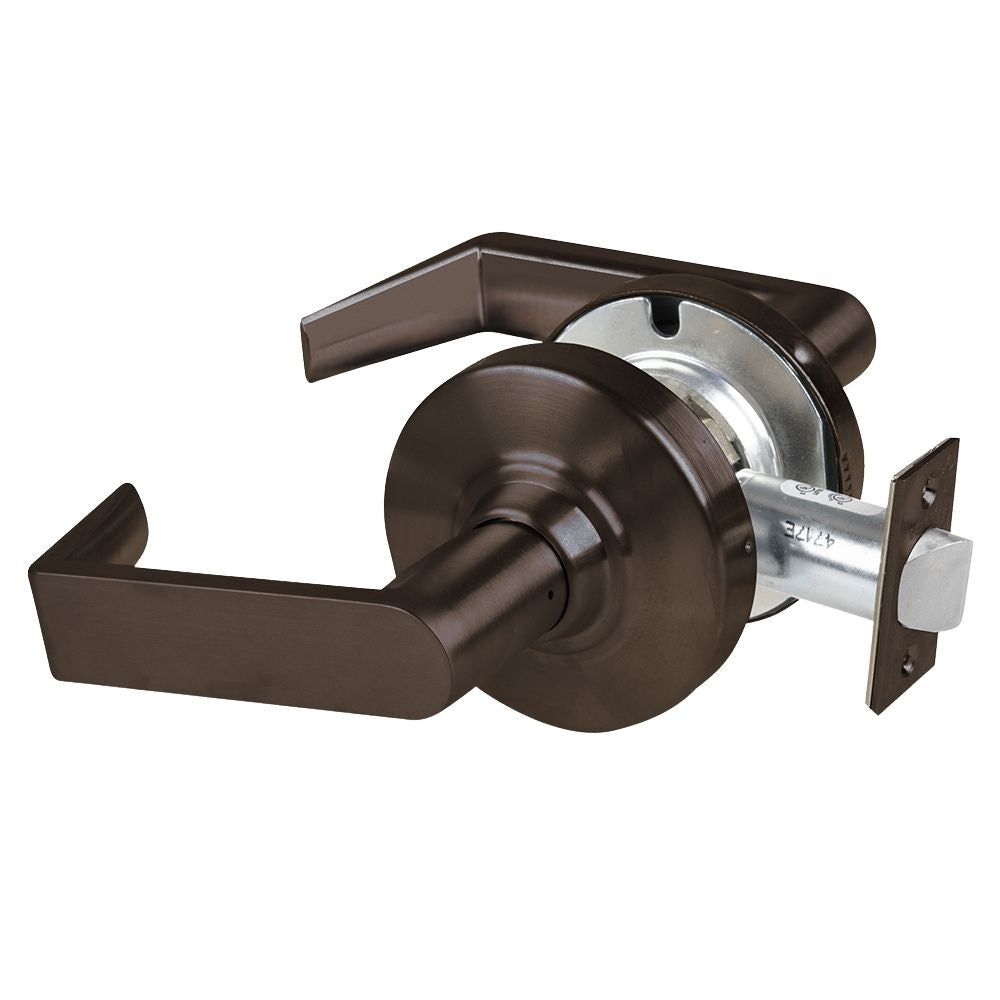

Schlage Grade 1 Passage Latch (Rhodes Lever, Non-Keyed, Oil Rubbed Bronze Finish) | SCH-ND10S-RHO-613
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail, and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Includes
- (2) keys
Features
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Better fit and easier installation levers
- With a "hands-free" torque plate for exceptionally easy installation
- Expanded cylinder support
- Easy-operation interior buttons
- New cast steel spindle for strong and durable performance-without droop or wobble
- UL/cUL Listed
- Handing: Non-handed
- BAA Qualified: Yes
- Fire Rated: 3 Hours {A}
- ADA Compliance: Yes
- Limited Warranty: 10 Years
Technical Specifications
- Finish: 613/US10B
- Finish Description: Oil Rubbed Bronze
- Finish Family: Dark Bronze
- Function: 10-Passage Latch
- Function Family: Passage
- ANSI Function: F75 - Passage
- Lever/Knob Design: RHO - Rhodes Lever
- Lever/Knob Design Family: Straight Return Lever
- Rose/Escutcheon Design: Rose
- Rose/Escutcheon Dimensions: 3-7/16"
- Cylinder Type: Non-Keyed
- Num Pins: 6
- Key(s): Cut
- Door Thickness: 1-5/8 In. to 2-1/8 In.
- Std. Latch Number: 13-247
- Std. Latch Type: Deadlatch
- Std. Latch Backset Dim: 2-3/4 In.
- Latch Bore Diameter: 1 In.
- Lock Face Size: 1-1/8 In. x 2-1/4 In.
- Bolt Projection: 1/2 In.
- Bore Hole Diameter: 2-1/8 In.
- Std. Strike Number: 10-025
- Std. Strike Type: ANSI Strike
- Std. Strike Height: 4-7/8 In.
- Std. Strike Width: 1-1/4 In.
- Screws: Wood/Machine Screws
- Product Type: Cylindrical Lock
Product Literature
- Schlage ND10S RHO 613 ND Series Locks & Latches Catalog
- Schlage ND10S RHO 613 ND-Series Mechanical Grade 1 Cylindrical Locks Catalog
- Schlage ND10S RHO 613 ND Series Product Catalog
- Schlage ND10S RHO 622 ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)
- Schlage ND10S RHO 613 ND Series Service Manual
