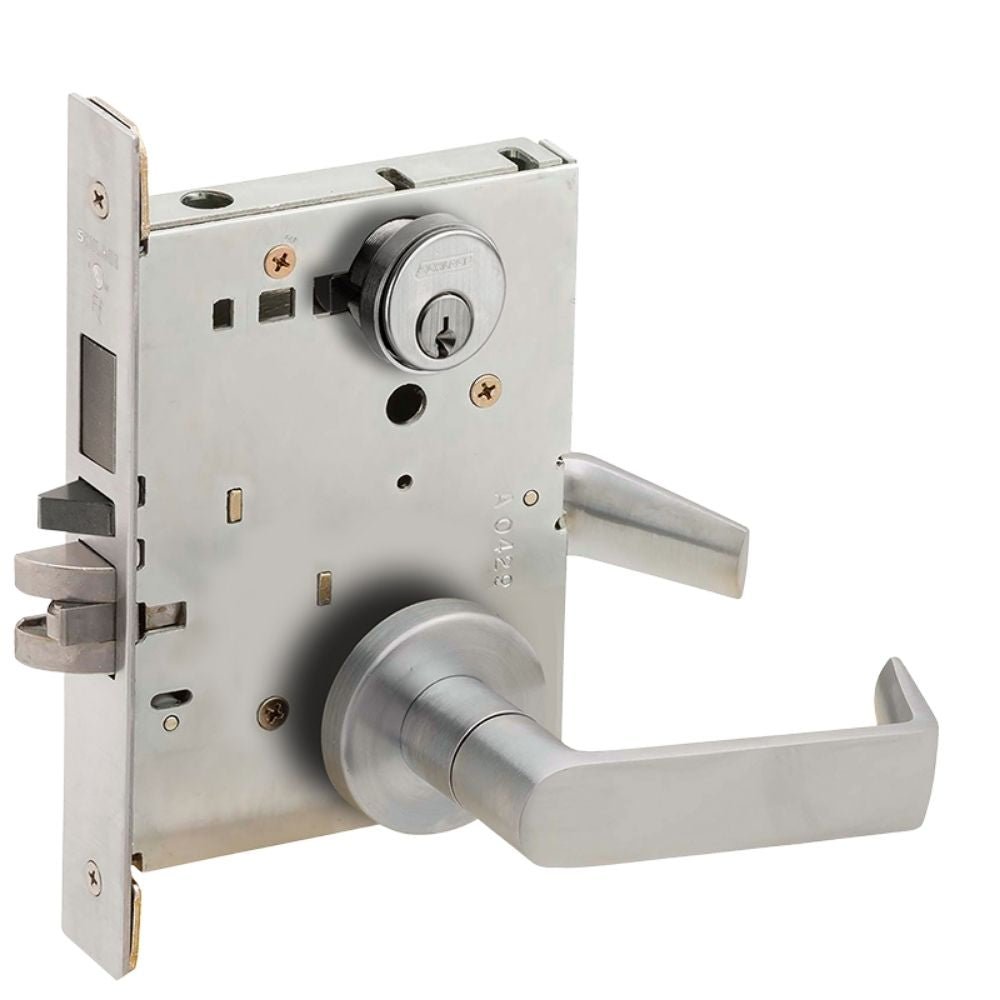

Schlage Entrance Mortise Lock with Deadbolt (06A Design, Satin Chrome) | SCH-L9453P-06A-626

SchlageSKU: SCH-L9453P-06A-626

Price:
Sale price$806.15

Estimate shipping

Schlage Entrance Mortise Lock with Deadbolt (06A Design, Satin Chrome) | SCH-L9453P-06A-626

The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable, and intelligent families of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

Includes
  • (2) keys
Features
  • Spring-loaded fusible link inside lock case provides fail secure mode in case of fire.
  • Security blocking hub prevents lock picking by removing levers.
  • A two-piece anti-friction tongue reduces wear.
  • Field reversible latch bolt allows change without opening case.
  • Anti-saw pin prevents cut through; included on deadbolt functions.
  • Break-away spindle prevents unsecured failures and provides an easy replacement.
  • Floating mounting tabs automatically adjust to fit a beveled door edge.
  • Latchbolt retracted by lever/knob from either side unless outside locked by 20° thumbturn rotation.
  • When locked, the outside key or inside lever/knob retracts both deadbolt and latchbolt.
  • Outside lever/knob locked until thumbturn is restored to a vertical position
  • Inside lever always free for immediate egress
  • Handing: Field-reversible without disassembly
  • BAA Qualified: Yes
  • Fire Rated: 3 Hours {A}
  • Limited Warranty: 3 Years
    Technical Specifications
    • Function: 9453-Entrance Office Lock w Deadbolt
    • ANSI Function: F20 - Entry/Office
    • Lever/Knob Design: 06 Lever
    • Rose/Escutcheon Design: A Rose
    • Cylinder Type: Conventional Cylinder
    • Base Material: Bronze
    • Finish: 626/US26D
    • Finish Description: Satin Chrome
    • Num Pins: 6
    • Std. Keyway: S123
    • Keying: Keyed Different
    • Key(s): Cut
    • Handing: Field Reversible
    • Door Thickness: 1-3/4"
    • Lock Face Size: 8" x 1-1/4"
    • Bolt Projection: 3/4" Latch, 1" Deadbolt
    • Std. Strike Number: 10-072
    • Std. Strike Type: ASA
    • Std. Strike Height: 4-7/8"
    • Std. Strike Width: 1-1/4"
    • Dust Box: Plastic
    • Screws: Combination
    • Product Type: Mortise Lock
