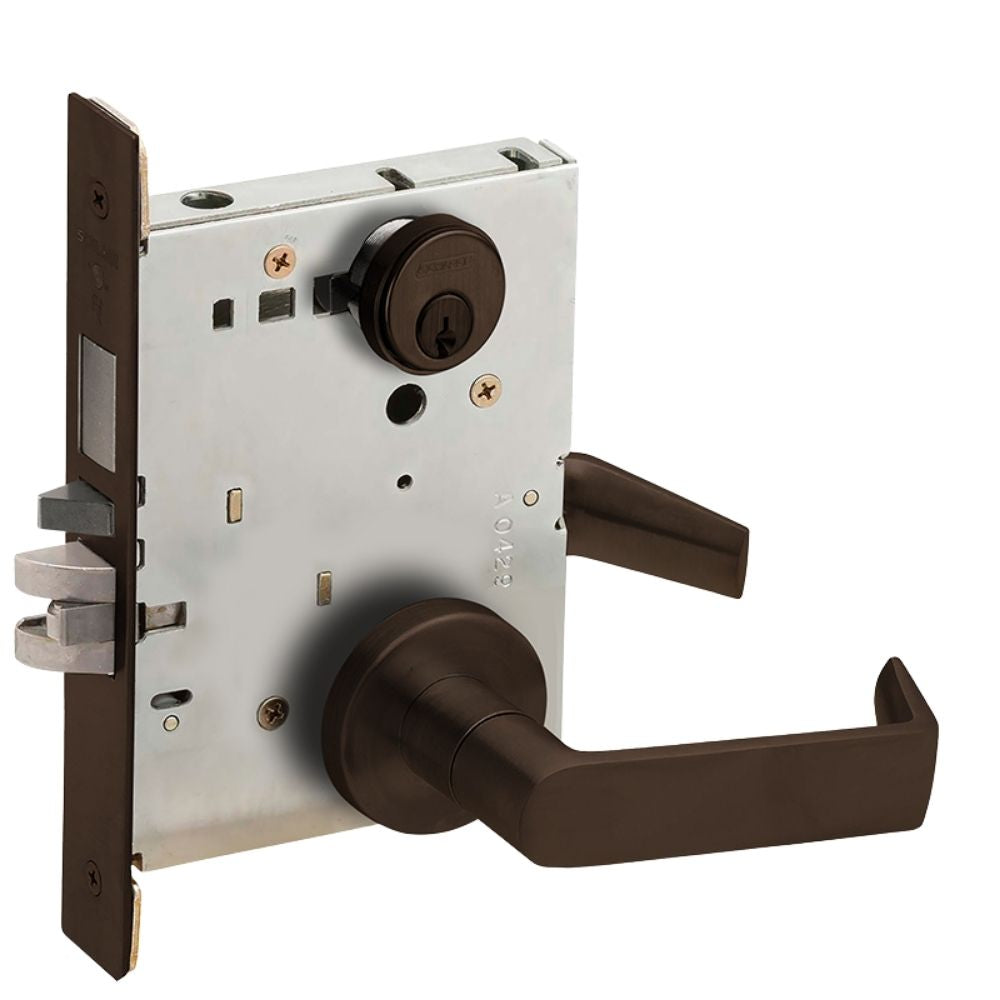

Schlage Entrance Mortise Lock with Deadbolt (06A Design, Oil Rubbed Bronze) | SCH-L9453P-06A-613
The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable, and intelligent families of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
Includes
- (2) keys
Features
- Latchbolt retracted by lever/knob from either side unless outside locked by 20° thumbturn rotation
- Deadbolt actuation through 90° thumbturn rotation
- When locked, the outside key or inside lever/knob retracts both deadbolt and latchbolt
- Outside lever/knob locked until thumbturn is restored to a vertical position
- Throwing deadbolt locks outside lever/knob
- Auxiliary latch deadlocks latch bolt when the door is closed
- Inside lever always free for immediate egress
- Handing: Field-reversible without disassembly
- BAA Qualified: Yes
- Fire Rated: 3 Hours {A}
- Limited Warranty: 3 Years
Technical Specifications
- Grade: Grade 1
- Function: 9453-Entrance Office Lock w Deadbolt
- ANSI Function: F20 - Entry/Office
- Lever/Knob Design: 06 Lever
- Rose/Escutcheon Design: A Rose
- Base Material: Bronze
- Finish: 613/US10B
- Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
- Cylinder Type: Conventional Cylinder
- Case Material: CRS with zinc dichromate plating
- Case Size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
- Case Material: Knob or lever to cylinder: 3-7/8" (98 mm); knob or lever to thumb turn hub: 2-11/16" (68 mm)
- Armor: Standard: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) Optional: 1-1/16" x 8" x 7/32" (27 mm x 203 mm x 6 mm)
- Num Pins: 6
- Std. Keyway: S123
- Keying: Keyed Different
- Key(s): Cut
- Door Thickness: 1-3/4"
- Lock Face Size: 8" x 1-1/4"
- Bolt Projection: 3/4" Latch, 1" Deadbolt
- Std. Strike Number: 10-072
- Std. Strike Type: ASA
- Std. Strike Height: 4-7/8"
- Std. Strike Width: 1-1/4"
- Dust Box: Plastic
- Screws: Combination
- Product Type: Mortise Lock
