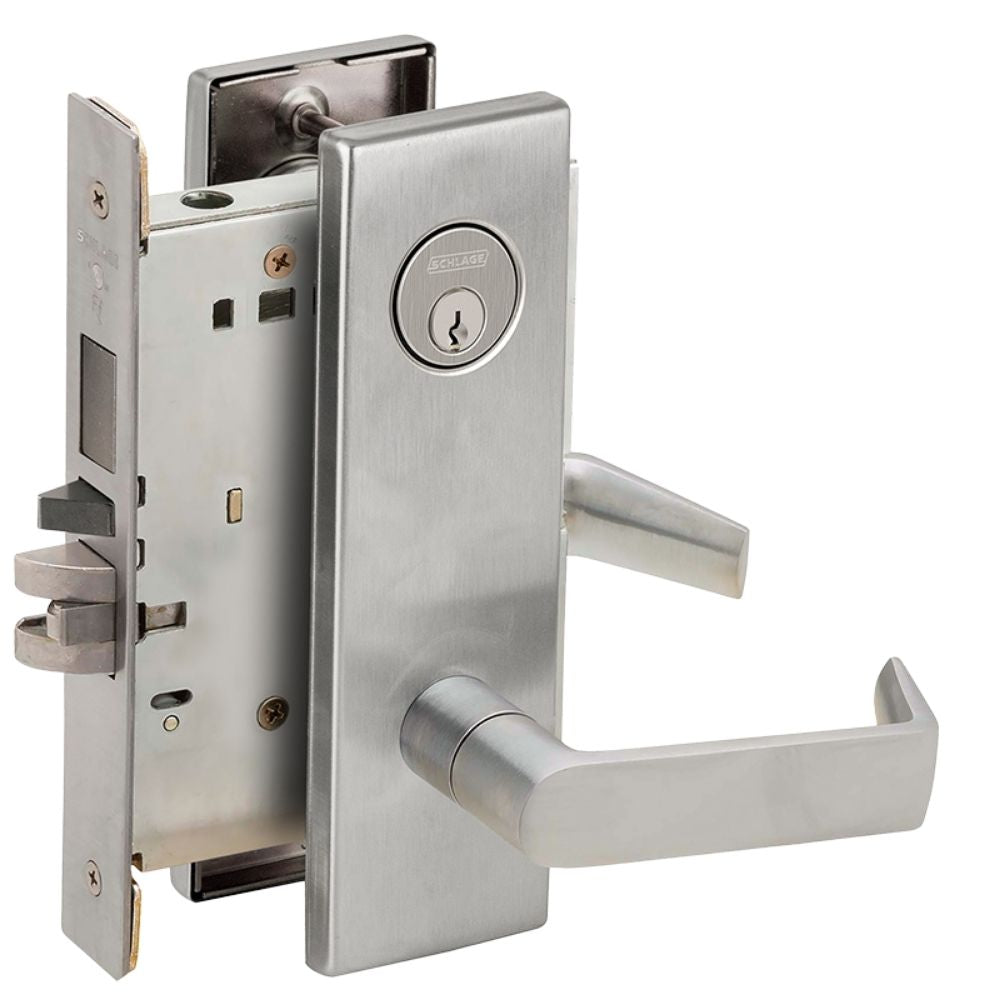

Schlage Grade 1 Storeroom Mortise Lock (Satin Chrome Finish) | SCH-L9080P-06N-626

The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable, and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

Features
  • Exceeds ANSI/BHMA Grade 1 operational and security standards
  • Supports standard, SFIC, and FSIC cylinder formats
  • Spring-loaded fusible link inside lock case provides fail secure mode in case of fire
  • Security blocking hub prevents lock picking by removing levers
  • A two-piece anti-friction tongue reduces wear
  • Floating mounting tabs automatically adjust to fit a beveled door edge
  • Break-away spindle prevents unsecured failures and provides easy replacement
  • Field reversible latch bolt allows change without opening the case
  • Anti-saw pin prevents cut through; included on deadbolt functions
  • Latchbolt retracted by lever/knob inside or key outside
  • The outside lever/knob is always inoperable
  • Auxiliary latch deadlocks latch bolt when the door is closed
  • Inside lever always free for immediate egress
  • Handing: Field-reversible without disassembly
  • BAA Qualified: Yes
  • Fire Rated: 3 Hours {A}
  • Burglar Rated: No
  • ADA Compliance: Yes
  • Limited Warranty: 3 Years
Technical Specifications
  • Finish: 626/US26D
  • Finish Description: Satin Chrome
  • Finish Family: Matte Silver
  • Function: 9080-Storeroom
  • ANSI Function: F07 - Storeroom/Exit
  • Lever/Knob Design: 06 Lever
  • Lever/Knob Design Family: Straight Return Lever
  • Rose/Escutcheon Design: N Escutcheon
  • Rose/Escutcheon Dimensions: 8" x 2-9/16"
  • Armor: Standard: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) Optional: 1-1/16" x 8" x 7/32" (27 mm x 203 mm x 6 mm)
  • Bolt: 1" (25 mm) throw stainless steel deadbolt; 3/4" (19 mm) throw stainless steel latch with anti-friction tongue
  • Case Size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
  • Case Material: Knob or lever to cylinder: 3-7/8" (98 mm); knob or lever to thumb turn hub: 2-11/16" (68 mm)
  • Case Material: CRS with zinc dichromate plating
  • Cylinder Type: Conventional Cylinder
  • Num Pins: 6
  • Std. Keyway: S123
  • Keying: Keyed Different
  • Key(s): Cut
  • Num of Keys: 2
  • Cylinder Length: 1-1/8"
  • Cam Type: Schlage L
  • Cam Number: L583-254
  • Door Thickness: 1-3/4"
  • Std. Latch Type: Dead Latch (Guarded)
  • Std. Latch Backset Dim: 2-3/4"
  • Lock Face Size: 8" x 1-1/4"
  • Bolt Projection: 3/4" Latch
  • Std. Strike Number: 10-072 1316
  • Std. Strike Type: ANSI Strike
  • Std. Strike Height: 4-7/8"
  • Std. Strike Width: 1-1/4"
  • Dust Box: Plastic
  • Screws: Combination
  • Product Type: Mortise Lock
