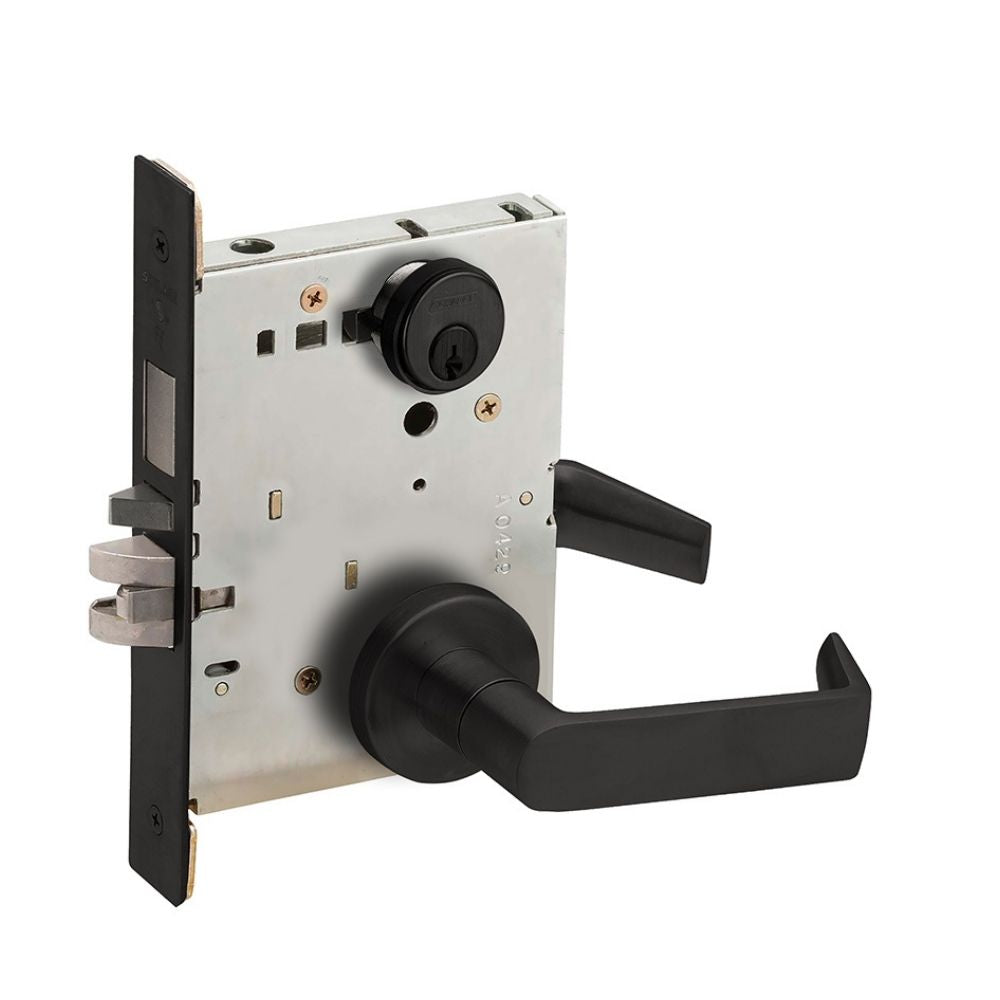

Schlage Grade 1 Storeroom Mortise Lock (Flat Black Coated Finish) | SCH-L9080P-06A-622

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application. The ability to suit across electronic, tubular, exit trim and multi-point locks allow the Schlage L Series mortise lock to integrate seamlessly into any environment.

Features
  • Exceeds ANSI/BHMA Grade 1 operational and security standards
  • Supports standard, SFIC, and FSIC cylinder formats
  • Spring-loaded fusible link inside lock case provides fail secure mode in case of fire
  • Security blocking hub prevents lock picking by removing levers
  • A two-piece anti-friction tongue reduces wear
  • Floating mounting tabs automatically adjust to fit a beveled door edge
  • Break-away spindle prevents unsecured failures and provides easy replacement
  • Field reversible latch bolt allows change without opening the case
  • Anti-saw pin prevents cut through; included on deadbolt functions
  • Handing: Field Reversible without disassembly
  • Latchbolt retracted by lever/knob inside or key outside
  • The outside lever/knob is always inoperable
  • Auxiliary latch deadlocks latch bolt when the door is closed
  • Inside lever always free for immediate egress
  • UL Listing Type: UL 10C, (c)ULC-S104
  • BAA Qualified: Yes
  • Fire Rated: 3 Hours {A}
  • Burglar Rated: No
  • ADA Compliance: Yes
  • Limited Warranty: 3 Years
Technical Specifications
  • Finish: 622/US19
  • Finish Description: Flat Black Coated
  • Finish Family: Black
  • Function: 9080-Storeroom
  • ANSI Function: F07 - Storeroom/Exit
  • Lever/Knob Design: 06 Lever
  • Lever/Knob Design Family: Straight Return Lever
  • Rose/Escutcheon Design: A Rose
  • Rose/Escutcheon Dimensions: 2-1/8" Diameter
  • Cylinder Type: Conventional Cylinder
  • Num Pins: 6
  • Std. Keyway: S123
  • Keying: Keyed Different
  • Key(s): Cut
  • Num Keys: 2
  • Cylinder Length: 1-1/8"
  • Cam Type: Schlage L
  • Cam Number: L583-254
  • Lock Face Size: 8" x 1-1/4"
  • Case Material: CRS with zinc dichromate plating
  • Case Size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
  • Case Material: Knob or lever to cylinder: 3-7/8" (98 mm); knob or lever to thumb turn hub: 2-11/16" (68 mm)
  • Door Thickness: 1-3/4" (44 mm)
  • Armor: Standard: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm). Optional: 1-1/16" x 8" x 7/32" (27 mm x 203 mm x 6 mm)
  • Bolt Projection: 3/4" (19 mm) throw stainless steel latch with anti-friction tongue
  • Std. Strike Number: 10-072 1316
  • Std. Strike Type: ANSI Strike
  • Std. Strike Height: 4-7/8"
  • Std. Strike Width: 1-1/4"
  • Dust Box: Plastic
  • Screws: Combination
  • Product Type: Mortise Lock
